Industrial, Microscopy & Low-Light Cameras

Industrial, analytical, microscopy and low-light cameras with CMOS and CCD sensor configurations.

438 modelsCamera Finder Compare by sensor

Choose a camera category

Industrial & Analytical Cameras

159 models

USB industrial cameras

USB3.0 industrial CMOS cameras32 modelsI3CMOS · 0.5–20.4 MP · Monochrome

Compare the published specifications below.Compare I3CMOS models →

USB3.0 industrial CMOS cameras — I3CMOS camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
I3CMOS00500KMAFull specifications →	Monochrome	Sony IMX433LLJ	0.5 MP (812×620)	9.0 µm × 9.0 µm	USB3.0	Global Shutter
I3CMOS01300KMAFull specifications →	Monochrome	GPixel GLUX9701BSI (UV)	1.3 MP (1280×1024)	9.76 µm × 9.76 µm	USB3.0	Rolling Shutter
I3CMOS01500KMAFull specifications →	Monochrome	Sony IMX273LLR	1.5 MP (1440×1080)	3.45 µm × 3.45 µm	USB3.0	Global Shutter
I3CMOS01700KMAFull specifications →	Monochrome	Sony IMX432LLJ	1.7 MP (1600×1100)	9.0 µm × 9.0 µm	USB3.0	Global Shutter
I3CMOS01700KMBFull specifications →	Monochrome	Sony IMX425LLJ	1.7 MP (1600×1100)	9.0 µm × 9.0 µm	USB3.0	Global Shutter
I3CMOS02000KMAFull specifications →	Monochrome	Sony IMX430LLJ	2.0 MP (1624×1240)	4.5 µm × 4.5 µm	USB3.0	Global Shutter
I3CMOS02000KMBFull specifications →	Monochrome	GSPRINT6502BSI-ABM-NLN-BR1 (cover glass removed)	2.0 MP (2048×1152)	6.5 µm × 6.5 µm	USB3.0 (USB3.1 Gen1)	Rolling Shutter
I3CMOS02300KMAFull specifications →	Monochrome	Sony IMX174LLJ	2.3 MP (1920×1200)	5.86 µm × 5.86 µm	USB3.0	Global Shutter
I3CMOS02300KMBFull specifications →	Monochrome	Sony IMX249LLJ	2.3 MP (1920×1200)	5.86 µm × 5.86 µm	USB3.0	Global Shutter
I3CMOS02400KMAFull specifications →	Monochrome	Gpixel GMAX4002	2.4 MP (2048×1200)	4.0 µm × 4.0 µm	USB3.0	Global Shutter
I3CMOS02800KMAFull specifications →	Monochrome	Sony IMX421LLJ	2.8 MP (1936×1464)	4.5 µm × 4.5 µm	USB3.0	Global Shutter
I3CMOS03100KMAFull specifications →	Monochrome	Sony IMX252LLR	3.1 MP (2048×1536)	3.45 µm × 3.45 µm	USB3.0	Global Shutter
I3CMOS03100KMA-10GFull specifications →	Monochrome	IMX252 LLR-C	3.1 MP (2048×1536)	3.45 µm × 3.45 µm	10GigE	Global Shutter
I3CMOS03100KMBFull specifications →	Monochrome	Sony IMX265LLR	3.1 MP (2048×1536)	3.45 µm × 3.45 µm	USB3.0	Global Shutter
I3CMOS03100KMB-GFull specifications →	Monochrome	Sony IMX265LLR	3.1 MP (2048×1536)	3.45 µm × 3.45 µm	GigE	Global Shutter
I3CMOS03200KMAFull specifications →	Monochrome	Sony IMX900AMR	3.2 MP (2048×1536)	2.25 µm × 2.25 µm	USB3.0	Global Shutter
I3CMOS03200KMA-GFull specifications →	Monochrome	Sony IMX900AMR	3.2 MP (2048×1536)	2.25 µm × 2.25 µm	GigE	Global Shutter
I3CMOS04200KMAFull specifications →	Monochrome	Sony IMX664-AAMR1	4.2 MP (2688×1520)	2.9 µm × 2.9 µm	USB3.0	Rolling Shutter
I3CMOS05000KMAFull specifications →	Monochrome	Sony IMX250LLR	5.0 MP (2448×2048)	3.45 µm × 3.45 µm	USB3.0	Global Shutter
I3CMOS05000KMBFull specifications →	Monochrome	Sony IMX264LLR	5.0 MP (2448×2048)	3.45 µm × 3.45 µm	USB3.0	Global Shutter
I3CMOS05000KMB-GFull specifications →	Monochrome	Sony IMX264LLR	5 MP (2448×2048)	3.45 µm × 3.45 µm	GigE	Global Shutter
I3CMOS05000KMCFull specifications →	Monochrome	Sony IMX250MZR (Polarsens)	5.0 MP (2448×2048)	3.45 µm × 3.45 µm	USB3.0	Global Shutter
I3CMOS05100KMAFull specifications →	Monochrome	Gpixel GMAX3405	5.1 MP (2448×2048)	3.4 µm × 3.4 µm	USB3.0	Global Shutter
I3CMOS05100KMB-CXPFull specifications →	Monochrome	Sony IMX547-AAMJ-C	5.1 MP (2432×2048)	2.74 µm × 2.74 µm	CXP-6	Global Shutter
I3CMOS06300KMAFull specifications →	Monochrome	Sony IMX178LLJ	6.3 MP (3072×2048)	2.4 µm × 2.4 µm	USB3.0	Rolling Shutter
I3CMOS07100KMAFull specifications →	Monochrome	Sony IMX428LLJ	7.1 MP (3200×2200)	4.5 µm × 4.5 µm	USB3.0	Global Shutter
I3CMOS08000KMAFull specifications →	Monochrome	Sony IMX546-AAMJ	8.0 MP (2832×2832)	2.74 µm × 2.74 µm	USB3.0	Global Shutter
I3CMOS08300KMBFull specifications →	Monochrome	Sony IMX585-AAMJ1-C	8.3 MP (3840×2160)	2.9 µm × 2.9 µm	USB3.0	Rolling Shutter
I3CMOS12300KMAFull specifications →	Monochrome	Sony IMX304LLR-C	12.3 MP (4096×3000)	3.45 µm × 3.45 µm	USB3.0	Global Shutter
I3CMOS12300KMCFull specifications →	Monochrome	Sony IMX253MZR (Polarsens)	12.3 MP (4096×3000)	3.45 µm × 3.45 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
I3CMOS12500KMAFull specifications →	Monochrome	Gpixel GMAX3412	12.5 MP (4096×3072)	3.4 µm × 3.4 µm	USB3.0	Global Shutter
I3CMOS20400KMAFull specifications →	Monochrome	Sony IMX541-AAMJ-C	20.4 MP (4496×4496)	2.74 µm × 2.74 µm	USB3.0	Global Shutter

USB3.0 color industrial cameras32 modelsI3ISPM · 0.5–20.4 MP · Color

Compare the published specifications below.Compare I3ISPM models →

USB3.0 color industrial cameras — I3ISPM camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
I3ISPM00500KPAFull specifications →	Color	Sony IMX433LQJ	0.5 MP (812×620)	9.0 µm × 9.0 µm	USB3.0	Global Shutter
I3ISPM01500KPAFull specifications →	Color	Sony IMX273LQR	1.5 MP (1440×1080)	3.45 µm × 3.45 µm	USB3.0	Global Shutter
I3ISPM01700KPAFull specifications →	Color	Sony IMX432LQJ	1.7 MP (1600×1100)	9.0 µm × 9.0 µm	USB3.0	Global Shutter
I3ISPM01700KPBFull specifications →	Color	Sony IMX425LQJ	1.7 MP (1600×1100)	9.0 µm × 9.0 µm	USB3.0	Global Shutter
I3ISPM02000KPAFull specifications →	Color	Sony IMX430LQJ	2.0 MP (1624×1240)	4.5 µm × 4.5 µm	USB3.0	Global Shutter
I3ISPM02000KPBFull specifications →	Color	IMX385LQR-C	2.0 MP (1920×1080)	3.75 µm × 3.75 µm	USB3.0	Rolling Shutter
I3ISPM02300KPAFull specifications →	Color	Sony IMX174LQJ	2.3 MP (1920×1200)	5.86 µm × 5.86 µm	USB3.0	Global Shutter
I3ISPM02300KPBFull specifications →	Color	Sony IMX249LQJ	2.3 MP (1920×1200)	5.86 µm × 5.86 µm	USB3.0	Global Shutter
I3ISPM02400KPAFull specifications →	Color	Gpixel GMAX4002	2.4 MP (2048×1200)	4.0 µm × 4.0 µm	USB3.0	Global Shutter
I3ISPM02800KPAFull specifications →	Color	Sony IMX421LQJ	2.8 MP (1936×1464)	4.5 µm × 4.5 µm	USB3.0	Global Shutter
I3ISPM02800KPA-GFull specifications →	Color	Sony IMX421LQJ	2.8 MP (1920×1464)	4.5 µm × 4.5 µm	GigE	Global Shutter
I3ISPM03100KPAFull specifications →	Color	Sony IMX252LQR	3.1 MP (2048×1536)	3.45 µm × 3.45 µm	USB3.0	Global Shutter
I3ISPM03100KPBFull specifications →	Color	Sony IMX265LQR	3.1 MP (2048×1536)	3.45 µm × 3.45 µm	USB3.0	Global Shutter
I3ISPM03100KPB-GFull specifications →	Color	Sony IMX265LLR	3.1 MP (2048×1536)	3.45 µm × 3.45 µm	GigE	Global Shutter
I3ISPM03200KPAFull specifications →	Color	Sony IMX900AQR	3.2 MP (2048×1536)	2.25 µm × 2.25 µm	USB3.0	Global Shutter
I3ISPM04200KPAFull specifications →	Color	Sony IMX664-AAQR1	4.2 MP (2688×1520)	2.9 µm × 2.9 µm	USB3.0	Rolling Shutter
I3ISPM05000KPAFull specifications →	Color	Sony IMX250LQR	5.0 MP (2448×2048)	3.45 µm × 3.45 µm	USB3.0	Global Shutter
I3ISPM05000KPBFull specifications →	Color	Sony IMX264LQR	5.0 MP (2448×2048)	3.45 µm × 3.45 µm	USB3.0	Global Shutter
I3ISPM05000KPB-GFull specifications →	Color	Sony IMX264LQR	5.0 MP (2448×2048)	3.45 µm × 3.45 µm	GigE	Global Shutter
I3ISPM05100KPAFull specifications →	Color	Gpixel GMAX3405	5.1 MP (2448×2048)	3.4 µm × 3.4 µm	USB3.0	Global Shutter
I3ISPM06300KPAFull specifications →	Color	Sony IMX178LQJ	6.3 MP (3072×2048)	2.4 µm × 2.4 µm	USB3.0	Rolling Shutter
I3ISPM07100KPAFull specifications →	Color	Sony IMX428LQJ	7.1 MP (3200×2200)	4.5 µm × 4.5 µm	USB3.0	Global Shutter
I3ISPM07100KPB-10GFull specifications →	Color	Sony IMX420LQJ-C	7.1 MP (3200×2200)	4.5 µm × 4.5 µm	10GigE	Global Shutter
I3ISPM08000KPAFull specifications →	Color	Sony IMX546-AAQJ	8.0 MP (2832×2832)	2.74 µm × 2.74 µm	USB3.0	Global Shutter
I3ISPM08300KPAFull specifications →	Color	Sony IMX678-AAQR	8.3 MP (3840×2160)	2.0 µm × 2.0 µm	USB3.0	Rolling Shutter
I3ISPM08300KPBFull specifications →	Color	Sony IMX585-AAQJ1-C	8.3 MP (3840×2160)	2.9 µm × 2.9 µm	USB3.0	Rolling Shutter
I3ISPM12000KPAFull specifications →	Color	Sony IMX226CQJ	12.0 MP (4064×3046)	1.85 µm × 1.85 µm	USB3.0	Rolling Shutter
I3ISPM12000KPBFull specifications →	Color	Sony IMX676-AACR	12.0 MP (3536×3536)	2.0 µm × 2.0 µm	USB3.0	Rolling Shutter
I3ISPM12300KPAFull specifications →	Color	Sony IMX304LQR-C	12.3 MP (4096×3000)	3.45 µm × 3.45 µm	USB3.0	Global Shutter
I3ISPM12500KPAFull specifications →	Color	Gpixel GMAX3412	12.5 MP (4096×3072)	3.4 µm × 3.4 µm	USB3.0	Global Shutter
I3ISPM20000KPAFull specifications →	Color	Sony IMX283CQJ	20.0 MP (5440×3648)	2.4 µm × 2.4 µm	USB3.0 (USB3.1 Gen1)	Rolling Shutter
I3ISPM20400KPAFull specifications →	Color	Sony IMX541-AAQJ-C	20.4 MP (4496×4496)	2.74 µm × 2.74 µm	USB3.0	Global Shutter

USB3.0 industrial sensor configurations58 modelsIUA · 0.39–45 MP · Color · Monochrome

Compare the published specifications below.Compare IUA models →

USB3.0 industrial sensor configurations — IUA camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
IUA10300KPAFull specifications →	Color	Sony IMX294CJK	10.3MP (4128×2808)	2.315 µm × 2.315 µm	USB3.0 (USB3.1 GEN1)	Rolling Shutter
IUA12000KPAFull specifications →	Color	Sony IMX676-AACR1-C	12MP (3536×3536)	2.0 µm × 2.0 µm	USB3.0 (USB3.1 GEN1)	Rolling Shutter
IUA12300KMAFull specifications →	Monochrome	Sony IMX545-AAMJ-C	12.3MP (4096×3000)	2.74 µm × 2.74 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA12300KMBFull specifications →	Monochrome	Sony IMX304LLR-C	12.3MP (4096×3000)	3.45 µm × 3.45 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA12300KPAFull specifications →	Color	Sony IMX545-AAQJ-C	12.3MP (4096×3000)	2.74 µm × 2.74 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA12300KPBFull specifications →	Color	Sony IMX304LQR-C	12.3MP (4096×3000)	3.45 µm × 3.45 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA1300KMA(GPixel UV)Full specifications →	Monochrome	GPixel GLUX9701BSI	1.3MP (1280×1024)	9.76 µm × 9.76 µm	USB3.0 (USB3.1 GEN1)	Rolling shutter
IUA1500KMAFull specifications →	Monochrome	Sony IMX273LLR	1.5MP (1440×1080)	3.45 µm × 3.45 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA1500KPAFull specifications →	Color	Sony IMX273LQR	1.5MP (1440×1080)	3.45 µm × 3.45 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA1700KMAFull specifications →	Monochrome	Sony IMX432LLJ	1.7MP (1600×1100)	9.0 µm × 9.0 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA1700KMBFull specifications →	Monochrome	Sony IMX425LLJ	1.7MP (1600×1100)	9.0 µm × 9.0 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA1700KPAFull specifications →	Color	Sony IMX432LQJ	1.7MP (1600×1100)	9.0 µm × 9.0 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA1700KPBFull specifications →	Color	Sony IMX425LQJ	1.7MP (1600×1100)	9.0 µm × 9.0 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA20000KMAFull specifications →	Monochrome	Sony IMX183CLK	20MP (5440×3684)	2.4 µm × 2.4 µm	USB3.0 (USB3.1 GEN1)	Rolling Shutter
IUA20000KPAFull specifications →	Color	Sony IMX183CQK	20MP (5440×3684)	2.4 µm × 2.4 µm	USB3.0 (USB3.1 GEN1)	Rolling shutter
IUA20400KMAFull specifications →	Monochrome	Sony IMX541-AAMJ-C	20.4MP (4496×4496)	2.74 µm × 2.74 µm	USB3.0 (USB3.1 GEN1)	Global shutter
IUA20400KPAFull specifications →	Color	Sony IMX541-AAQJ-C	20.4MP (4496×4496)	2.74 µm × 2.74 µm	USB3.0 (USB3.1 GEN1)	Global shutter
IUA2100KPA(NIR)Full specifications →	Color	Sony IMX462LQR	2.1MP (1920×1080)	2.9 µm × 2.9 µm	USB3.0 (USB3.1 GEN1)	Rolling shutter
IUA2300KMAFull specifications →	Monochrome	Sony IMX174LLJ	2.3MP (1920×1200)	5.86 µm × 5.86 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA2300KMBFull specifications →	Monochrome	Sony IMX249LLJ	2.3MP (1920×1200)	5.86 µm × 5.86 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA2300KPAFull specifications →	Color	Sony IMX174LQJ	2.3MP (1920×1200)	5.86 µm × 5.86 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA2300KPBFull specifications →	Color	Sony IMX249LQJ	2.3MP (1920×1200)	5.86 µm × 5.86 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA24500KMAFull specifications →	Monochrome	Sony IMX540-AAMJ-C	24.5MP (5320×4600)	2.74 µm × 2.74 µm	USB3.0 (USB3.1 GEN1)	Global shutter
IUA24500KPAFull specifications →	Color	Sony IMX540-AAQJ-C	24.5MP (5320×4600)	2.74 µm × 2.74 µm	USB3.0 (USB3.1 GEN1)	Global shutter
IUA25000KMAFull specifications →	Monochrome	GMAX0505	25MP (5120×5120)	2.5 µm × 2.5 µm	USB3.0 (USB3.1 GEN1)	Global shutter
IUA25000KPAFull specifications →	Color	GMAX0505	25MP (5120×5120)	2.5 µm × 2.5 µm	USB3.0 (USB3.1 GEN1)	Global shutter
IUA2800KMAFull specifications →	Monochrome	Sony IMX421LLJ	2.8MP (1936×1464)	4.5 µm × 4.5 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA2800KPAFull specifications →	Color	Sony IMX421LQJ	2.8MP (1936×1464)	4.5 µm × 4.5 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA390KMAFull specifications →	Monochrome	Sony IMX287LLR	0.39MP (720×540)	6.9 µm × 6.9 µm	USB3.0 (USB3.1 GEN1)	Global shutter
IUA4100KPA(NIR)Full specifications →	Color	Sony IMX464LQR	4.1MP (2688×1520)	2.9 µm × 2.9 µm	USB3.0 (USB3.1 GEN1)	Rolling shutter
IUA4200KMA-10GFull specifications →	Monochrome	GSENSE2020e	4.2MP (2048×2048)	6.5 µm × 6.5 µm	10GigE	Rolling shutter
IUA4200KMA(GPixel NIR)Full specifications →	Monochrome	GPixel GSENSE2020e	4.2MP (2048×2048)	6.5 µm × 6.5 µm	USB3.0 (USB3.1 GEN1)	Rolling shutter
IUA4200KMB-10GFull specifications →	Monochrome	GPixel GSENSE2020BSI-H	4.2MP (2048×2048)	6.5 µm × 6.5 µm	10GigE	Rolling shutter
IUA4200KMB(GPixel UV)Full specifications →	Monochrome	GPixel GSENSE2020BSI	4.2MP (2048×2048)	6.5 µm × 6.5 µm	USB3.0 (USB3.1 GEN1)	Rolling shutter
IUA4200KME-10G(GPixel UV)Full specifications →	Monochrome	GPixel GSENSE400BSI	4.2MP (2048×2048)	11 µm × 11 µm	10GigE	Rolling shutter
IUA4200KME(GPixel UV)Full specifications →	Monochrome	GPixel GSENSE400BSI	4.2MP (2048×2048)	11 µm × 11 µm	USB3.0 (USB3.1 GEN1)	Rolling shutter
IUA4200KPA(GPixel NIR)Full specifications →	Color	GPixel GSENSE2020s	4.2MP (2032×2046)	6.5 µm × 6.5 µm	USB3.0 (USB3.1 GEN1)	Rolling shutter
IUA45000KMAFull specifications →	Monochrome	Sony IMX492LLJ-C	45MP (8176×5616)	2.315 µm × 2.315 µm	USB3.0 (USB3.1 GEN1)	Rolling shutter
IUA45000KPBFull specifications →	Color	Sony IMX492LQJ-C	45MP (8176×5616)	2.315 µm × 2.315 µm	USB3.0 (USB3.1 GEN1)	Rolling shutter
IUA5000KMAFull specifications →	Monochrome	Sony IMX264LLR	5.0MP (2448×2048)	3.45 µm × 3.45 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA5000KPAFull specifications →	Color	Sony IMX264LQR	5.0MP (2448×2048)	3.45 µm × 3.45 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA500KMA(GPixel UV)Full specifications →	Monochrome	GPixel GLUX1605BSI	0.5MP (800×600)	16 µm × 16 µm	USB3.0 (USB3.1 GEN1)	Rolling shutter
IUA503KMAFull specifications →	Monochrome	Sony IMX426LLJ	0.5MP (800×620)	9.0 µm × 9.0 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA503KMBFull specifications →	Monochrome	Sony IMX433LLJ	0.5MP (800×620)	9.0 µm × 9.0 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA5100KMAFull specifications →	Monochrome	Sony IMX547-AAMJ-C	5.1MP (2448×2048)	2.74 µm × 2.74 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA5100KPAFull specifications →	Color	Sony IMX547-AAQJ-C	5.1MP (2448×2048)	2.74 µm × 2.74 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA6300KMAFull specifications →	Monochrome	Sony IMX178LLJ	6.3MP (3072×2048)	2.4 µm × 2.4 µm	USB3.0 (USB3.1 GEN1)	Rolling Shutter
IUA6300KPAFull specifications →	Color	Sony IMX178LQJ	6.3MP (3072×2048)	2.4 µm × 2.4 µm	USB3.0 (USB3.1 GEN1)	Rolling Shutter
IUA7100KMAFull specifications →	Monochrome	Sony IMX428LLJ	7.1MP (3200×2200)	4.5 µm × 4.5 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA7100KPAFull specifications →	Color	Sony IMX428LQJ	7.1MP (3200×2200)	4.5 µm × 4.5 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA8000KMA(Sony GS-UV)Full specifications →	Monochrome	Sony IMX487-AAMJ-C	8.0MP (2832×2832)	2.74 µm × 2.74 µm	USB3.0 (USB3.1 GEN1)	Global shutter
IUA8000KMBFull specifications →	Monochrome	Sony IMX546-AAMJ	8.0MP (2832×2832)	2.74 µm × 2.74 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA8000KPBFull specifications →	Color	Sony IMX546-AAQJ	8.0MP (2832×2832)	2.74 µm × 2.74 µm	USB3.0 (USB3.1 GEN1)	Global Shutter
IUA8300KMBFull specifications →	Monochrome	Sony IMX585-AAMJ1-C	8.3MP (3840×2160)	2.9 µm × 2.9 µm	USB3.0 (USB3.1 GEN1)	Rolling Shutter
IUA8300KMEFull specifications →	Monochrome	Sony IMX678-AAMR1-C	8.3MP (3840×2160)	2.0 µm × 2.0 µm	USB3.0 (USB3.1 GEN1)	Rolling Shutter
IUA8300KPAFull specifications →	Color	Sony IMX485LQJ-C	8.3MP (3840×2160)	2.9 µm × 2.9 µm	USB3.0 (USB3.1 GEN1)	Rolling Shutter
IUA8300KPBFull specifications →	Color	Sony IMX585-AAQJ1-C	8.3MP (3840×2160)	2.9 µm × 2.9 µm	USB3.0 (USB3.1 GEN1)	Rolling Shutter
IUA8300KPEFull specifications →	Color	Sony IMX678-AAQR1-C	8.3MP (3840×2160)	2.0 µm × 2.0 µm	USB3.0 (USB3.1 GEN1)	Rolling Shutter

USB3.0 cameras with M42 mounts8 modelsBIGEYE · 1.3–10.3 MP · Color · Monochrome

Compare the published specifications below.Compare BIGEYE models →

USB3.0 cameras with M42 mounts — BIGEYE camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
BIGEYE10000KPAFull specifications →	Color	IMX294 (C)	10.3 MP (4096×2160)	4.63 µm × 4.63 µm	USB3.0	Rolling Shutter
BIGEYE1300KMAFull specifications →	Monochrome	GLUX9701BSI (M, UV, RS)	1.3 MP (1280×1024)	9.76 µm × 9.76 µm	USB3.0	Rolling Shutter
BIGEYE4200KMAFull specifications →	Monochrome	GSENSE2020e (M, RS)	4.2 MP (2048×2048)	6.5 µm × 6.5 µm	USB3.0	Rolling Shutter
BIGEYE4200KMBFull specifications →	Monochrome	GSENSE2020BSI (M, UV, RS)	4.2 MP (2048×2048)	6.5 µm × 6.5 µm	USB3.0	Rolling Shutter
BIGEYE4200KMCFull specifications →	Monochrome	GSENSE2020BSI (M, UV, RS)	4.2 MP (2048×2048)	6.5 µm × 6.5 µm	USB3.0	Rolling Shutter
BIGEYE4200KMDFull specifications →	Monochrome	GSENSE2020BSI (M, UV, RS)	4.2 MP (2048×2048)	6.5 µm × 6.5 µm	USB3.0	Rolling Shutter
BIGEYE4200KMEFull specifications →	Monochrome	GSENSE400BSI (M, UV, RS)	4.2 MP (2048×2048)	11 µm × 11 µm	USB3.0	Rolling Shutter
MIPI4200KMBFull specifications →	Monochrome	GSENSE2020BSI (M, UV, RS)	4.2 MP (2048×2046)	6.5 µm × 6.5 µm	MIPI D-PHY CSI-2 1Ch 4Lane	Rolling Shutter

16 & 25 MP PYTHON sensor cameras2 modelsIUD · 16–25 MP · Monochrome

Compare the published specifications below.Compare IUD models →

16 & 25 MP PYTHON sensor cameras — IUD camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
IUD16000KMAFull specifications →	Monochrome	PYTHON 16K	16.0MP (4096×4096)	4.5 µm × 4.5 µm	USB3.0	Global Shutter
IUD25000KMAFull specifications →	Monochrome	PYTHON 25K	25.0MP (5120×5120)	4.5 µm × 4.5 µm	USB3.0	Global Shutter

1.8 MP CMOS camera1 modelIUE · 1.8 MP · Monochrome

Compare the published specifications below.Compare IUE models →

1.8 MP CMOS camera — IUE camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
IUE1800KMAFull specifications →	Monochrome	CMOS Sensor	1.8 MP (1200×1536)	96.0 µm × 96.0 µm	USB3.0	Rolling Shutter

CameraLink, USB & 10GigE cameras

CameraLink, USB & 10GigE industrial cameras15 modelsIUC · 1.7–60 MP · Monochrome · Color

Compare the published specifications below.Compare IUC models →

CameraLink, USB & 10GigE industrial cameras — IUC camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
IUC1700KMA-CL480Full specifications →	Monochrome	Sony IMX425LLJ	1.7MP (1600×1100)	9.0 µm × 9.0 µm	CameraLink	Global Shutter
IUC20400KMA-10GFull specifications →	Monochrome	Sony IMX531-AAMJ-C	20.4MP (4480×4480)	2.74 µm × 2.74 µm	10GigE	Global Shutter
IUC20400KPA-10GFull specifications →	Color	Sony IMX531-AAQJ-C	20.4MP (4480×4480)	2.74 µm × 2.74 µm	10GigE	Global Shutter
IUC21000KPAFull specifications →	Color	Sony IMX472AAJK-C	21.0MP (5280×3956)	3.3 µm × 3.3 µm	USB3.0	Rolling Shutter
IUC24000KPAFull specifications →	Color	Sony IMX410CQK-C	24.0MP (6064×4040)	5.94 µm × 5.94 µm	USB3.0	Rolling Shutter
IUC26000KMAFull specifications →	Monochrome	Sony IMX571BLR-J	26.0MP (6224×4168)	3.76 µm × 3.76 µm	USB3.0	Rolling Shutter
IUC26000KMA-10GFull specifications →	Monochrome	Sony IMX571BLR-J	26.0MP (6208×4168)	3.76 µm × 3.76 µm	10GigE	Rolling Shutter
IUC26000KPAFull specifications →	Color	Sony IMX571BQR-C	26.0MP (6224×4168)	3.76 µm × 3.76 µm	USB3.0	Rolling Shutter
IUC26000KPA-10GFull specifications →	Color	Sony IMX571BQR-C	26.0MP (6224×4168)	3.76 µm × 3.76 µm	10GigE	Rolling Shutter
IUC31000KMAFull specifications →	Monochrome	Sony IMX342LLA	31.0MP (6464×4852)	3.45 µm × 3.45 µm	USB3.0	Global Shutter
IUC31000KPAFull specifications →	Color	Sony IMX342LQA	31.0MP (6464×4852)	3.45 µm × 3.45 µm	USB3.0	Global Shutter
IUC60000KMAFull specifications →	Monochrome	Sony IMX455ALK	60.0MP (9568×6380)	3.76 µm × 3.76 µm	USB3.0	Rolling Shutter
IUC60000KMA-10GFull specifications →	Monochrome	Sony IMX455ALK	60.0MP (9568×6380)	3.76 µm × 3.76 µm	10GigE	Rolling Shutter
IUC60000KPAFull specifications →	Color	Sony IMX455AQK	60.0MP (9568×6380)	3.76 µm × 3.76 µm	USB3.0	Rolling Shutter
IUC9000KMAFull specifications →	Monochrome	Sony IMX533CLK-D	9MP (2992×3000)	3.76 µm × 3.76 µm	USB3.0 (USB3.1 GEN1)	Rolling Shutter

26 & 60 MP industrial cameras

26 & 60 MP USB / 10GigE cameras8 modelsIUC AFU EF · 26–60 MP · Monochrome · Color

Compare the published specifications below.Compare IUC AFU EF models →

26 & 60 MP USB / 10GigE cameras — IUC-AFU-EF camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
IUC26000KMA-AF10GFull specifications →	Monochrome	Sony IMX571BLR	26.0MP (6224×4168)	3.76 µm × 3.76 µm	10GigE	Rolling Shutter
IUC26000KMA-AFUFull specifications →	Monochrome	Sony IMX571BLR	26.0MP (6224×4168)	3.76 µm × 3.76 µm	USB3.0	Rolling Shutter
IUC26000KPA-AF10GFull specifications →	Color	Sony IMX571BQR	26.0MP (6224×4168)	3.76 µm × 3.76 µm	10GigE	Rolling Shutter
IUC26000KPA-AFUFull specifications →	Color	Sony IMX571BQR	26.0MP (6224×4168)	3.76 µm × 3.76 µm	USB3.0	Rolling Shutter
IUC60000KMA-AF10GFull specifications →	Monochrome	Sony IMX455ALK	60.0MP (9568×6380)	3.76 µm × 3.76 µm	10GigE	Rolling Shutter
IUC60000KMA-AFUFull specifications →	Monochrome	Sony IMX455ALK	60.0MP (9568×6380)	3.76 µm × 3.76 µm	USB3.0	Rolling Shutter
IUC60000KPA-AF10GFull specifications →	Color	Sony IMX455AQK	60.0MP (9568×6380)	3.76 µm × 3.76 µm	10GigE	Rolling Shutter
IUC60000KPA-AFUFull specifications →	Color	Sony IMX455AQK	60.0MP (9568×6380)	3.76 µm × 3.76 µm	USB3.0	Rolling Shutter

Analog & capture terminals

CVBS analog camera1 modelAVCAM · 0.4 MP · Monochrome

Compare the published specifications below.Compare AVCAM models →

CVBS analog camera — AVCAM camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
AVCAM290AFull specifications →	Monochrome	Sony IMX307	0.4 MP (720×576)	2.9 µm × 2.9 µm	CVBS (PAL-N format)	Rolling Shutter

Camera capture terminals2 modelsCamPI

Compare the published specifications below.Compare CamPI models →

Camera capture terminals — CamPI camera specifications
Model	Interface
CamPI2K133AFull specifications →	Dual HDMI 2.0 input, USB-A 3.0×2, USB-C (DP), USB-A 2.0×1, SD card slot, Gigabit Ethernet port, 2.5 mm shutter release interface, 12 V DC5525 power input
CamPI4K133AFull specifications →	Dual HDMI 2.0 input, USB-A 3.0×2, USB-C (DP), USB-A 2.0×1, SD card slot, Gigabit Ethernet port, 2.5 mm shutter release interface, 12 V DC5525 power input

Microscopy Cameras

204 models

USB 3 microscope cameras

USB3.0 CMOS cameras — mono & color20 modelsE3CMOS · 0.4–45 MP · Monochrome · Color

Compare the published specifications below.Compare E3CMOS models →

USB3.0 CMOS cameras — mono & color — E3CMOS camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
E3CMOS00400KMAFull specifications →	Monochrome	IMX287 (M,GS)	0.4M (720×540)	6.9 µm × 6.9 µm	USB3.0	Global Shutter
E3CMOS00400KPAFull specifications →	Color	IMX287 (C,GS)	0.4M (720×540)	6.9 µm × 6.9 µm	USB3.0	Global Shutter
E3CMOS01200KPAFull specifications →	Color	IMX224 (C)	1.2M (1280×960)	3.75 µm × 3.75 µm	USB3.0	Rolling Shutter
E3CMOS01500KMAFull specifications →	Monochrome	IMX273 (M,GS)	1.5M (1440×1080)	3.45 µm × 3.45 µm	USB3.0	Global Shutter
E3CMOS02300KMCFull specifications →	Monochrome	IMX174 (M,GS)	2.3M (1920×1200)	5.86 µm × 5.86 µm	USB3.0	Global Shutter
E3CMOS02300KPAFull specifications →	Color	IMX185 (C)	2.3M (1920×1200)	3.75 µm × 3.75 µm	USB3.0	Rolling Shutter
E3CMOS02300KPBFull specifications →	Color	IMX249 (C,GS)	2.3M (1920×1200)	5.86 µm × 5.86 µm	USB3.0	Global Shutter
E3CMOS03100KMCFull specifications →	Monochrome	IMX265 (M,GS)	3.1M (2048×1536)	3.45 µm × 3.45 µm	USB3.0	Global Shutter
E3CMOS03100KPBFull specifications →	Color	IMX123 (C)	3.1M (2048×1536)	2.5 µm × 2.5 µm	USB3.0	Rolling Shutter
E3CMOS05000KMAFull specifications →	Monochrome	IMX264 (M,GS)	5M (2448×2048)	3.45 µm × 3.45 µm	USB3.0	Global Shutter
E3CMOS05100KMAFull specifications →	Monochrome	IMX547 (M,GS)	5.1M (2448×2048)	2.74 µm × 2.74 µm	USB3.0	Global Shutter
E3CMOS06300KMAFull specifications →	Monochrome	IMX178 (M,RS)	6.3M (3072×2048)	2.4 µm × 2.4 µm	USB3.0	Rolling Shutter
E3CMOS06300KPAFull specifications →	Color	IMX178 (C,RS)	6.3M (3072×2048)	2.4 µm × 2.4 µm	USB3.0	Rolling Shutter
E3CMOS12000KPAFull specifications →	Color	IMX226 (C)	12M (4000×3000)	1.85 µm × 1.85 µm	USB3.0	Rolling Shutter
E3CMOS12300KMAFull specifications →	Monochrome	IMX304 (M)	12.3M (4096×3000)	3.45 µm × 3.45 µm	USB3.0	Rolling Shutter
E3CMOS12400KMAFull specifications →	Monochrome	IMX545 (M,GS)	12.4M (4096×3000)	2.74 µm × 2.74 µm	USB3.0	Global Shutter
E3CMOS20000KMAFull specifications →	Monochrome	IMX183 (M,RS)	20M (5440×3648)	2.4 µm × 2.4 µm	USB3.0	Rolling Shutter
E3CMOS20000KPBFull specifications →	Color	IMX147 (C)	20M (5200×3888)	1.2 µm × 1.2 µm	USB3.0	Rolling Shutter
E3CMOS20400KMAFull specifications →	Monochrome	IMX541 (M,GS)	20.4M (4496×4496)	2.74 µm × 2.74 µm	USB3.0	Global Shutter
E3CMOS45000KMAFull specifications →	Monochrome	IMX492 (M,RS)	45M (8176×5616)	2.315 µm × 2.315 µm	USB3.0	Rolling Shutter

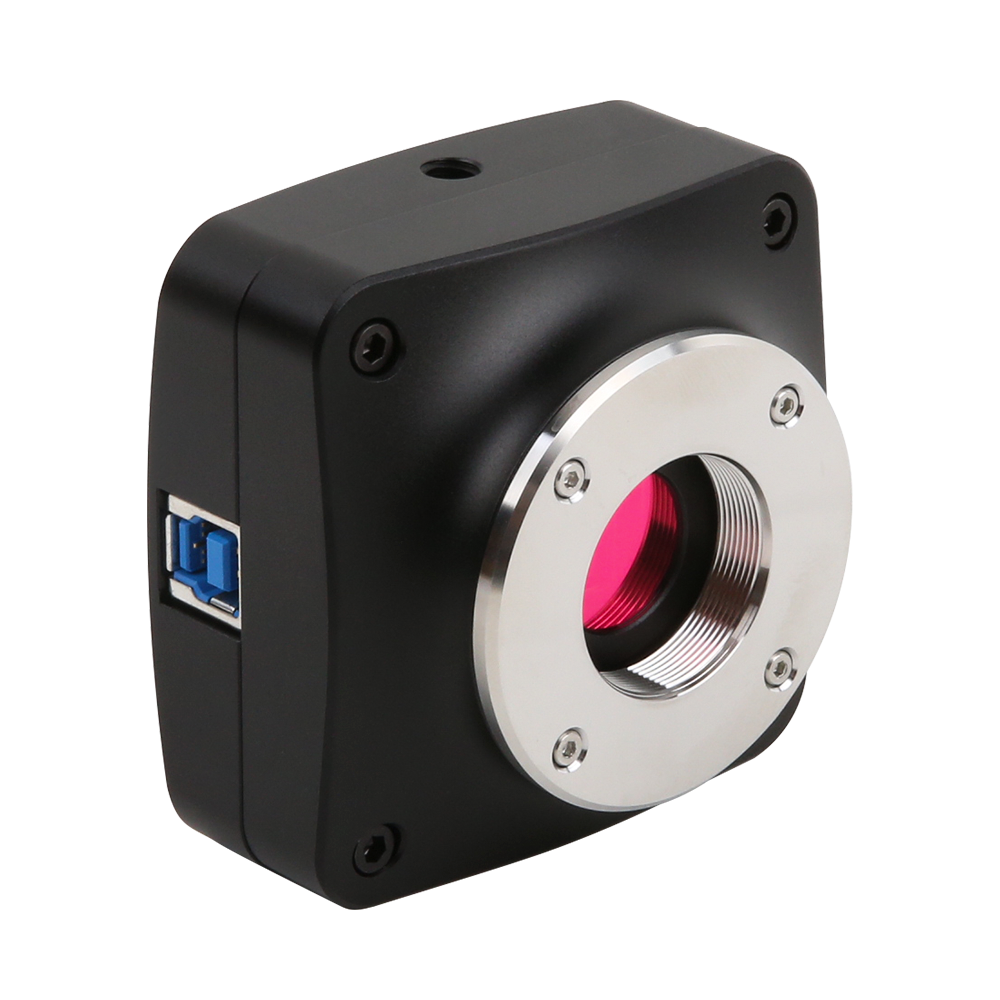

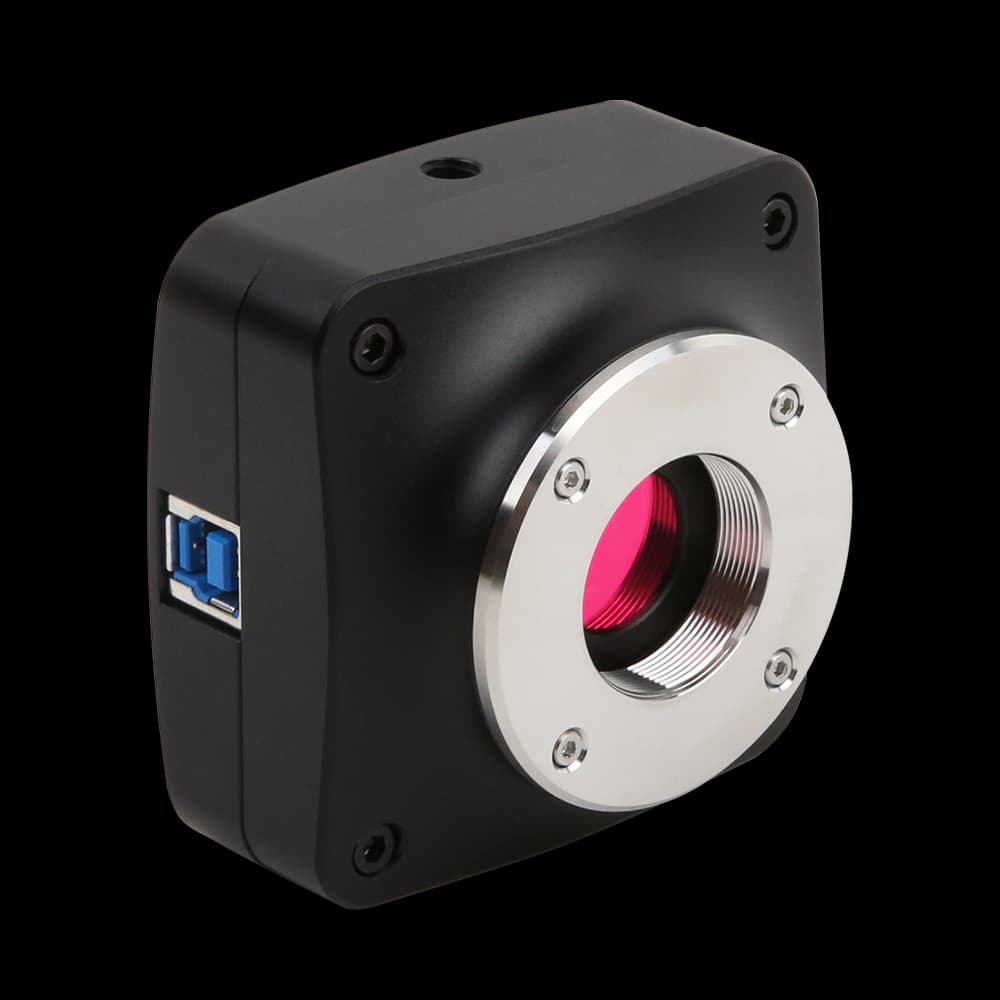

USB3.0 color CMOS cameras33 modelsE3ISPM · 1.5–45 MP · Color

Compare the published specifications below.Compare E3ISPM models →

USB3.0 color CMOS cameras — E3ISPM camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
E3ISPM01500KPAFull specifications →	Color	IMX273 (C,GS)	1.5M (1440×1080)	3.45 µm × 3.45 µm	USB3.0	Global Shutter
E3ISPM02000KPAFull specifications →	Color	IMX385 (C)	2M (1920×1080)	3.75 µm × 3.75 µm	USB3.0	Rolling Shutter
E3ISPM02100KPAFull specifications →	Color	IMX482 (C)	2.1M (1920×1080)	5.8 µm × 5.8 µm	USB3.0	Rolling Shutter
E3ISPM03100KPAFull specifications →	Color	IMX265 (C,GS)	3.1M (2048×1536)	3.45 µm × 3.45 µm	USB3.0	Global Shutter
E3ISPM03100KPBFull specifications →	Color	IMX123 (C)	3.1M (2048×1536)	2.5 µm × 2.5 µm	USB3.0	Rolling Shutter
E3ISPM05000KPAFull specifications →	Color	IMX264 (C,GS)	5M (2448×2048)	3.45 µm × 3.45 µm	USB3.0	Global Shutter
E3ISPM05100KPAFull specifications →	Color	IMX547 (C,GS)	5.1M (2448×2048)	2.74 µm × 2.74 µm	USB3.0	Global Shutter
E3ISPM06300KPAFull specifications →	Color	IMX178 (C,RS)	6.3M (3072×2048)	2.4 µm × 2.4 µm	USB3.0	Rolling Shutter
E3ISPM06300KPBFull specifications →	Color	IMX178 (C,RS)	6.3M (3072×2048)	2.4 µm × 2.4 µm	USB3.0	Rolling Shutter
E3ISPM08000KPAFull specifications →	Color	IMX294 (C)	8M (2808×2808)	4.63 µm × 4.63 µm	USB3.0	Rolling Shutter
E3ISPM08300KPAFull specifications →	Color	IMX274 (C)	8.3M (3840×2160)	1.62 µm × 1.62 µm	USB3.0	Rolling Shutter
E3ISPM08300KPBFull specifications →	Color	IMX334 (C)	8.3M (3840×2160)	2.0 µm × 2.0 µm	USB3.0	Rolling Shutter
E3ISPM08300KPCFull specifications →	Color	IMX485 (C)	8.3M (3840×2160)	2.9 µm × 2.9 µm	USB3.0	Rolling Shutter
E3ISPM08300KPDFull specifications →	Color	IMX585 (C)	8.3M (3840×2160)	2.9 µm × 2.9 µm	USB3.0	Rolling Shutter
E3ISPM08300KPEFull specifications →	Color	IMX678 (C)	8.3M (3840×2160)	2.0 µm × 2.0 µm	USB3.0	Rolling Shutter
E3ISPM09000KPAFull specifications →	Color	IMX305 (C,GS)	9M (4096×2160)	3.45 µm × 3.45 µm	USB3.0	Global Shutter
E3ISPM09000KPBFull specifications →	Color	IMX533 (C)	9M (3008×3000)	3.76 µm × 3.76 µm	USB3.0	Rolling Shutter
E3ISPM12000KPAFull specifications →	Color	IMX226 (C)	12M (4000×3000)	1.85 µm × 1.85 µm	USB3.0	Rolling Shutter
E3ISPM12000KPBFull specifications →	Color	IMX577 (C)	12M (4056×3040)	1.55 µm × 1.55 µm	USB3.0	Rolling Shutter
E3ISPM12000KPCFull specifications →	Color	IMX676 (C)	12M (3536×3536)	2.0 µm × 2.0 µm	USB3.0	Rolling Shutter
E3ISPM12300KPAFull specifications →	Color	IMX304 (C,GS)	12.3M (4096×3000)	3.45 µm × 3.45 µm	USB3.0	Global Shutter
E3ISPM12400KPAFull specifications →	Color	IMX545 (C,GS)	12.4M (4096×3000)	2.74 µm × 2.74 µm	USB3.0	Global Shutter
E3ISPM15600KPAFull specifications →	Color	SONY Special (C)	15.6M (3952×3952)	3.3 µm × 3.3 µm	USB3.0	Rolling Shutter
E3ISPM18000KPAFull specifications →	Color	SONY Special (C)	18M (4880×3720)	1.2 µm × 1.2 µm	USB3.0	Rolling Shutter
E3ISPM20000KPAFull specifications →	Color	IMX183 (C,RS)	20M (5440×3648)	2.4 µm × 2.4 µm	USB3.0	Rolling Shutter
E3ISPM20000KPCFull specifications →	Color	IMX183 (C,RS)	20M (5440×3648)	2.4 µm × 2.4 µm	USB3.0	Rolling Shutter
E3ISPM20000KPDFull specifications →	Color	IMX283 (C,RS)	20M (5440×3648)	2.4 µm × 2.4 µm	USB3.0	Rolling Shutter
E3ISPM20400KPAFull specifications →	Color	IMX541 (C,GS)	20.4M (4496×4496)	2.74 µm × 2.74 µm	USB3.0	Global Shutter
E3ISPM21000KPA (Discontinued)Full specifications →	Color	IMX269 (C)	21M (5280×3954)	3.3 µm × 3.3 µm	USB3.0	Rolling Shutter
E3ISPM25000KPAFull specifications →	Color	IMX511 (C)	25M (4928×4928)	1.12 µm × 1.12 µm	USB3.0	Rolling Shutter
E3ISPM32000KPAFull specifications →	Color	IMX294 (C)	32M (5600×5600)	2.315 µm × 2.315 µm	USB3.0	Rolling Shutter
E3ISPM45000KPAFull specifications →	Color	IMX294 (C)	45M (8176×5616)	2.315 µm × 2.315 µm	USB3.0	Rolling Shutter
E3ISPM45000KPBFull specifications →	Color	IMX492 (C,RS)	45M (8176×5616)	2.315 µm × 2.315 µm	USB3.0	Rolling Shutter

USB3.2 Gen2 color cameras4 modelsE10ISPM · 8.3–50 MP · Color

Compare the published specifications below.Compare E10ISPM models →

USB3.2 Gen2 color cameras — E10ISPM camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
E10ISPM08300KPAFull specifications →	Color	IMX585 (C,RS)	8.3M (3840×2160)	2.9 µm × 2.9 µm	USB3.2 Gen2 (Type-C)	Rolling Shutter
E10ISPM20000KPAFull specifications →	Color	IMX383 (C,RS)	20M (5472×3648)	2.4 µm × 2.4 µm	USB3.2 Gen2 (Type-C)	Rolling Shutter
E10ISPM21000KPAFull specifications →	Color	IMX472 (C,RS)	21M (5280×3956)	3.3 µm × 3.3 µm	USB3.2 Gen2 (Type-C)	Rolling Shutter
E10ISPM50000KPAFull specifications →	Color	IMX06A (C,RS)	50M (8128×6144)	1.6 µm × 1.6 µm	USB3.2 Gen2 (Type-C)	Rolling Shutter

20 MP USB / CameraLink camera1 modelE3ISPM U3 CL · 20 MP · Color

Compare the published specifications below.Compare E3ISPM U3 CL models →

20 MP USB / CameraLink camera — E3ISPM-U3-CL camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
E3ISPM20000KPA-U3-CLFull specifications →	Color	IMX183CQK (C, RS)	20.0MP (5440×3684)	2.4 µm × 2.4 µm	USB3.0(USB3.1 GEN1)/CameraLink	Rolling Shutter

USB3.0 color cameras6 modelsC3CMOS · 3.5–12 MP · Color

Compare the published specifications below.Compare C3CMOS models →

USB3.0 color cameras — C3CMOS camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
C3CMOS03500KPAFull specifications →	Color	SC4236(C)	3.5M (2304×1536)	2.5 µm × 2.5 µm	USB3.0	Rolling Shutter
C3CMOS04100KPAFull specifications →	Color	IMX347(C)	4.1M (2688×1536)	2.9 µm × 2.9 µm	USB3.0	Rolling Shutter
C3CMOS05100KPAFull specifications →	Color	AR0521(C)	5.1M (2592×1944)	2.2 µm × 2.2 µm	USB3.0	Rolling Shutter
C3CMOS05100KPBFull specifications →	Color	IMX335(C)	5.1M (2592×1944)	2.0 µm × 2.0 µm	USB3.0	Rolling Shutter
C3CMOS10000KPAFull specifications →	Color	IMX577(C)	10M (3664×2748)	1.55 µm × 1.55 µm	USB3.0	Rolling Shutter
C3CMOS12000KPAFull specifications →	Color	IMX577(C)	12M (3840×3040)	1.55 µm × 1.55 µm	USB3.0	Rolling Shutter

USB3.0 AR sensor cameras6 modelsL3CMOS · 3.1–14 MP · Color

Compare the published specifications below.Compare L3CMOS models →

USB3.0 AR sensor cameras — L3CMOS camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
L3CMOS03100KPAFull specifications →	Color	AR0330(C)	3.1M (2048×1534)	2.2 µm × 2.2 µm	USB3.0	Rolling Shutter
L3CMOS05100KPAFull specifications →	Color	AR0521(C)	5.1M (2592×1944)	2.2 µm × 2.2 µm	USB3.0	Rolling Shutter
L3CMOS08500KPAFull specifications →	Color	Special(C)	8.5M (3328×2548)	1.55 µm × 1.55 µm	USB3.0	Rolling Shutter
L3CMOS10000KPAFull specifications →	Color	IMX577(C)	10M (3664×2748)	1.55 µm × 1.55 µm	USB3.0	Rolling Shutter
L3CMOS12000KPAFull specifications →	Color	IMX577(C)	12M (3840×3040)	1.55 µm × 1.55 µm	USB3.0	Rolling Shutter
L3CMOS14000KPAFull specifications →	Color	MT9F002(C)	14M (4096×3286)	1.4 µm × 1.4 µm	USB3.0	Rolling Shutter

USB3.0 color microscope cameras3 modelsS3CMOS · 5–5.1 MP · Color

Compare the published specifications below.Compare S3CMOS models →

USB3.0 color microscope cameras — S3CMOS camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
S3CMOS05000KPAFull specifications →	Color	MT9P001 (C) 1/2.5" (7.13 mm) \| 5.70 mm × 4.28 mm	5.0MP (2560×1920)	2.2 µm × 2.2 µm	USB3.0	Rolling Shutter
S3CMOS05000KPCFull specifications →	Color	SC5033 (C) 1/2.5" (6.48 mm) \| 5.18 mm × 3.89 mm	5.0MP (2592×1944)	2.0 µm × 2.0 µm	USB3.0	Rolling Shutter
S3CMOS05100KPAFull specifications →	Color	IMX335 (C) 1/2.5" (6.48 mm) \| 5.18 mm × 3.89 mm	5.1MP (2592×1944)	2.0 µm × 2.0 µm	USB3.0	Rolling Shutter

USB3.0 CMOS microscope cameras12 modelsU3CMOS · 3.1–18 MP · Color · Monochrome

Compare the published specifications below.Compare U3CMOS models →

USB3.0 CMOS microscope cameras — U3CMOS camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
U3CMOS03100KPAFull specifications →	Color	AR0330 (C)	3.1M (2048×1534)	2.2 µm × 2.2 µm	USB3.0	Rolling Shutter
U3CMOS04100KPAFull specifications →	Color	IMX347 (C)	4.1M (2688×1536)	2.9 µm × 2.9 µm	USB3.0	Rolling Shutter
U3CMOS05100KPAFull specifications →	Color	AR0521 (C)	5.1M (2592×1944)	2.2 µm × 2.2 µm	USB3.0	Rolling Shutter
U3CMOS08500KPAFull specifications →	Color	Special (C)	8.5M (3328×2548)	1.55 µm × 1.55 µm	USB3.0	Rolling Shutter
U3CMOS10000KMAFull specifications →	Monochrome	MT9J003 (M)	10M (3584×2746)	1.67 µm × 1.67 µm	USB3.0	Rolling Shutter
U3CMOS10000KPAFull specifications →	Color	IMX577 (C)	10M (3664×2748)	1.55 µm × 1.55 µm	USB3.0	Rolling Shutter
U3CMOS12000KPAFull specifications →	Color	IMX577 (C)	12M (3840×3040)	1.55 µm × 1.55 µm	USB3.0	Rolling Shutter
U3CMOS14000KPAFull specifications →	Color	MT9F002 (C)	14M (4096×3286)	1.4 µm × 1.4 µm	USB3.0	Rolling Shutter
U3CMOS16000KMBFull specifications →	Monochrome	MN34230ALJ (M)	16M (4640×3506)	3.8 µm × 3.8 µm	USB3.0	Rolling Shutter
U3CMOS16000KPAFull specifications →	Color	MN34120 (C)	16M (4632×3488)	1.335 µm × 1.335 µm	USB3.0	Rolling Shutter
U3CMOS16000KPBFull specifications →	Color	MN34230PLJ (C)	16M (4648×3506)	3.8 µm × 3.8 µm	USB3.0	Rolling Shutter
U3CMOS18000KPAFull specifications →	Color	AR1820 (C)	18M (4912×3684)	1.25 µm × 1.25 µm	USB3.0	Rolling Shutter

USB3.0 color microscope cameras4 modelsU3ISPM · 16–20 MP · Color

Compare the published specifications below.Compare U3ISPM models →

USB3.0 color microscope cameras — U3ISPM camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
U3ISPM16000KPA (Discontinued)Full specifications →	Color	MN34120 (C)	16M (4632×3488)	1.335 µm × 1.335 µm	USB3.0	Rolling Shutter
U3ISPM16000KPB (Discontinued)Full specifications →	Color	MN34230 (C)	16M (4640×3506)	3.8 µm × 3.8 µm	USB3.0	Rolling Shutter
U3ISPM18000KPA (Discontinued)Full specifications →	Color	AR1820 (C)	18M (4912×3684)	1.25 µm × 1.25 µm	USB3.0	Rolling Shutter
U3ISPM20000KPAFull specifications →	Color	AR2020 (C)	20M (5120×3840)	1.4 µm × 1.4 µm	USB3.0	Rolling Shutter

USB 2 microscope cameras

USB2.0 color CMOS cameras6 modelsC2CMOS · 2.1–12 MP · Color

Compare the published specifications below.Compare C2CMOS models →

USB2.0 color CMOS cameras — C2CMOS camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
C2CMOS02100KPAFull specifications →	Color	IMX307(C)	2.1M (1920×1080)	2.9 µm × 2.9 µm	USB2.0	Rolling Shutter
C2CMOS03100KPAFull specifications →	Color	Aptina(C)	3.1M (2048×1536)	2.8 µm × 2.8 µm	USB2.0	Rolling Shutter
C2CMOS05100KPAFull specifications →	Color	AR0521(C)	5.1M (2592×1944)	2.2 µm × 2.2 µm	USB2.0	Rolling Shutter
C2CMOS05100KPBFull specifications →	Color	IMX335(C)	5.1M (2592×1944)	2.0 µm × 2.0 µm	USB2.0	Rolling Shutter
C2CMOS08300KPAFull specifications →	Color	IMX274(C)	8.3M (3840×2160)	1.62 µm × 1.62 µm	USB2.0	Rolling Shutter
C2CMOS12000KPAFull specifications →	Color	IMX577(C)	12M (3840×3040)	1.55 µm × 1.55 µm	USB2.0	Rolling Shutter

USB2.0 color microscope cameras7 modelsECMOS · 1.2–8.3 MP · Color

Compare the published specifications below.Compare ECMOS models →

USB2.0 color microscope cameras — ECMOS camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
ECMOS01200KPAFull specifications →	Color	IMX224(C)	1.2M (1280×960)	3.75 µm × 3.75 µm	USB2.0	Rolling Shutter
ECMOS02000KPAFull specifications →	Color	IMX290(C)	2.0M (1920×1080)	2.9 µm × 2.9 µm	USB2.0	Rolling Shutter
ECMOS03100KPAFull specifications →	Color	IMX123(C)	3.1M (2048×1536)	2.5 µm × 2.5 µm	USB2.0	Rolling Shutter
ECMOS05000KPAFull specifications →	Color	IMX335(C)	5.0M (2592×1944)	2.0 µm × 2.0 µm	USB2.0	Rolling Shutter
ECMOS05300KPAFull specifications →	Color	IMX178(C)	5.3M (3072×1728)	2.4 µm × 2.4 µm	USB2.0	Rolling Shutter
ECMOS06600KPAFull specifications →	Color	IMX326(C)	6.6M (3072×2160)	1.62 µm × 1.62 µm	USB2.0	Rolling Shutter
ECMOS08300KPAFull specifications →	Color	IMX274(C)	8.3M (3840×2160)	1.62 µm × 1.62 µm	USB2.0	Rolling Shutter

USB2.0 UVC microscope cameras4 modelsICMOS · 1.3–14 MP · Monochrome · Color

Compare the published specifications below.Compare ICMOS models →

USB2.0 UVC microscope cameras — ICMOS camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
ICMOS01300KMAFull specifications →	Monochrome	onsemi MT9M001 (M)	1.3MP (1280×1024)	5.2 µm × 5.2 µm	USB2.0 (UVC)	Rolling Shutter
ICMOS03100KPAFull specifications →	Color	Aptina MT9T001 (C)	3.1MP (2048×1536)	3.2 µm × 3.2 µm	USB2.0 (UVC)	Rolling Shutter
ICMOS10000KPAFull specifications →	Color	Aptina MT9J003 (C)	10MP (3584×2748)	1.67 µm × 1.67 µm	USB2.0 (UVC)	Rolling Shutter
ICMOS14000KPAFull specifications →	Color	Aptina MT9F002 (C)	14MP (4096×3288)	1.4 µm × 1.4 µm	USB2.0 (UVC)	Rolling Shutter

USB2.0 AR sensor cameras16 modelsLCMOS · 1.2–14 MP · Color

Compare the published specifications below.Compare LCMOS models →

USB2.0 AR sensor cameras — LCMOS camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
LCMOS01200KPBFull specifications →	Color	AR0130 (C)	1.2MP (1280×960)	3.75 µm × 3.75 µm	USB2.0	Rolling Shutter
LCMOS01300KPAFull specifications →	Color	MT9M111 (C)	1.3MP (1280×1024)	3.6 µm × 3.6 µm	USB2.0	Rolling Shutter
LCMOS02000KPB (Discontinued)Full specifications →	Color	Special (C)	2.0MP (1600×1200)	3.2 µm × 3.2 µm	USB2.0	Rolling Shutter
LCMOS03100KPA (Discontinued)Full specifications →	Color	MT9T001 (C)	3.1MP (2048×1536)	3.2 µm × 3.2 µm	USB2.0	Rolling Shutter
LCMOS03100KPBFull specifications →	Color	IMX123 (C)	3.1MP (2048×1536)	2.5 µm × 2.5 µm	USB2.0	Rolling Shutter
LCMOS03100KPB (Discontinued)Full specifications →	Color	IMX036 (C)	3.1MP (2048×1536)	2.5 µm × 2.5 µm	USB2.0	Rolling Shutter
LCMOS05100KPAFull specifications →	Color	AR0521 (C)	5.1MP (2592×1944)	2.2 µm × 2.2 µm	USB2.0	Rolling Shutter
LCMOS05100KPA (Discontinued)Full specifications →	Color	MT9P001 (C)	5.1MP (2592×1944)	2.2 µm × 2.2 µm	USB2.0	Rolling Shutter
LCMOS08000KPAFull specifications →	Color	Special (C)	8MP (3264×2448)	1.55 µm × 1.55 µm	USB2.0	Rolling Shutter
LCMOS08000KPB (Discontinued)Full specifications →	Color	Special (C)	8MP (3264×2448)	1.67 µm × 1.67 µm	USB2.0	Rolling Shutter
LCMOS09000KPAFull specifications →	Color	Special (C)	9MP (3488×2616)	1.55 µm × 1.55 µm	USB2.0	Rolling Shutter
LCMOS09000KPB (Discontinued)Full specifications →	Color	Special (C)	9MP (3488×2616)	1.67 µm × 1.67 µm	USB2.0	Rolling Shutter
LCMOS10000KPAFull specifications →	Color	IMX577 (C)	10MP (3584×2748)	1.55 µm × 1.55 µm	USB2.0	Rolling Shutter
LCMOS10000KPA (Discontinued)Full specifications →	Color	MT9J003 (C)	10MP (3584×2748)	1.67 µm × 1.67 µm	USB2.0	Rolling Shutter
LCMOS12000KPAFull specifications →	Color	IMX577 (C)	12MP (3840×3040)	1.55 µm × 1.55 µm	USB2.0	Rolling Shutter
LCMOS14000KPAFull specifications →	Color	MT9F002 (C)	14MP (4096×3288)	1.4 µm × 1.4 µm	USB2.0	Rolling Shutter

USB2.0 microscope cameras — mono & color10 modelsUA · 1.23–16 MP · Color · Monochrome

Compare the published specifications below.Compare UA models →

USB2.0 microscope cameras — mono & color — UA camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
UA1000CAFull specifications →	Color	IMX577(C)	10M (3584×2748)	1.55 µm × 1.55 µm	USB2.0	Rolling Shutter
UA1200CAFull specifications →	Color	IMX577(C)	12M (3840×3040)	1.55 µm × 1.55 µm	USB2.0	Rolling Shutter
UA130CAFull specifications →	Color	SC1235(C)	1.23M (1280×960)	3.75 µm × 3.75 µm	USB2.0	Rolling Shutter
UA1600CAFull specifications →	Color	MN34120(C)	16M (4632×3488)	1.335 µm × 1.335 µm	USB2.0	Rolling Shutter
UA310CBFull specifications →	Color	IMX123(C)	3.1M (2048×1536)	2.5 µm × 2.5 µm	USB2.0	Rolling Shutter
UA410CAFull specifications →	Color	IMX347(C)	4.1M (2688×1536)	2.9 µm × 2.9 µm	USB2.0	Rolling Shutter
UA410CBFull specifications →	Color	IMX664(C)	4.1M (2688×1520)	2.9 µm × 2.9 µm	USB2.0	Rolling Shutter
UA510CAFull specifications →	Color	AR0521(C)	5.1M (2592×1944)	2.2 µm × 2.2 µm	USB2.0	Rolling Shutter
UA630CAFull specifications →	Color	IMX178(C)	6.3M (3072×2048)	2.4 µm × 2.4 µm	USB2.0	Rolling Shutter
UA630MAFull specifications →	Monochrome	IMX178(M)	6.3M (3072×2048)	2.4 µm × 2.4 µm	USB2.0	Rolling Shutter

USB2.0 color microscope cameras10 modelsUCMOS · 1.23–14 MP · Color

Compare the published specifications below.Compare UCMOS models →

USB2.0 color microscope cameras — UCMOS camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
UCMOS01300KPAFull specifications →	Color	SC1235(C)	1.23M (1280×960)	3.75 µm × 3.75 µm	USB2.0	Rolling Shutter
UCMOS03100KPBFull specifications →	Color	IMX123(C)	3.1M (2048×1536)	2.5 µm × 2.5 µm	USB2.0	Rolling Shutter
UCMOS04100KPA (Discontinued)Full specifications →	Color	IMX347(C)	4.1M (2688×1536)	2.9 µm × 2.9 µm	USB2.0	Rolling Shutter
UCMOS04100KPBFull specifications →	Color	IMX664(C)	4.1M (2688×1520)	2.9 µm × 2.9 µm	USB2.0	Rolling Shutter
UCMOS05100KPAFull specifications →	Color	AR0521(C)	5.1M (2592×1944)	2.2 µm × 2.2 µm	USB2.0	Rolling Shutter
UCMOS08000KPBFull specifications →	Color	Special(C)	8M (3264×2448)	1.55 µm × 1.55 µm	USB2.0	Rolling Shutter
UCMOS09000KPBFull specifications →	Color	Special(C)	9M (3488×2616)	1.55 µm × 1.55 µm	USB2.0	Rolling Shutter
UCMOS10000KPAFull specifications →	Color	IMX577(C)	10M (3584×2748)	1.55 µm × 1.55 µm	USB2.0	Rolling Shutter
UCMOS12000KPAFull specifications →	Color	IMX577(C)	12M (3840×3040)	1.55 µm × 1.55 µm	USB2.0	Rolling Shutter
UCMOS14000KPAFull specifications →	Color	MT9F002(C)	14M (4096×3288)	1.4 µm × 1.4 µm	USB2.0	Rolling Shutter

CCD microscope cameras

USB3.0 CCD cameras10 modelsU3CCD · 1.4–12 MP · Monochrome · Color

Compare the published specifications below.Compare U3CCD models →

USB3.0 CCD cameras — U3CCD camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
U3CCD01400KMBFull specifications →	Monochrome	ICX825ALA CCD (M)	1.4MP (1376×1040)	6.45 µm × 6.45 µm	USB3.0	Rolling Shutter
U3CCD01400KPBFull specifications →	Color	ICX825AQA CCD (C)	1.4MP (1376×1040)	6.45 µm × 6.45 µm	USB3.0	Rolling Shutter
U3CCD02800KMAFull specifications →	Monochrome	ICX674ALG CCD (M)	2.8MP (1938×1460)	4.54 µm × 4.54 µm	USB3.0	Rolling Shutter
U3CCD02800KPAFull specifications →	Color	ICX674AQG CCD (C)	2.8MP (1938×1460)	4.54 µm × 4.54 µm	USB3.0	Rolling Shutter
U3CCD06000KMAFull specifications →	Monochrome	ICX694ALG CCD (M)	6MP (2748×2200)	4.54 µm × 4.54 µm	USB3.0	Rolling Shutter
U3CCD06000KPAFull specifications →	Color	ICX694AQG CCD (C)	6MP (2748×2200)	4.54 µm × 4.54 µm	USB3.0	Rolling Shutter
U3CCD09000KMAFull specifications →	Monochrome	ICX814ALG CCD (M)	9MP (3388×2712)	3.69 µm × 3.69 µm	USB3.0	Rolling Shutter
U3CCD09000KPAFull specifications →	Color	ICX814AQG CCD (C)	9MP (3388×2712)	3.69 µm × 3.69 µm	USB3.0	Rolling Shutter
U3CCD12000KMAFull specifications →	Monochrome	ICX834ALG CCD (M)	12MP (4248×2836)	3.1 µm × 3.1 µm	USB3.0	Rolling Shutter
U3CCD12000KPA (Discontinued)Full specifications →	Color	ICX834AQG CCD (C)	12MP (4248×2836)	3.1 µm × 3.1 µm	USB3.0	Rolling Shutter

USB2.0 CCD cameras — mono & color4 modelsEXCCD · 0.3–1.4 MP · Monochrome · Color

Compare the published specifications below.Compare EXCCD models →

USB2.0 CCD cameras — mono & color — EXCCD camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
EXCCD00300KMAFull specifications →	Monochrome	ICX618AL CCD (M)	0.3MP (640×480)	5.6 µm × 5.6 µm	USB2.0	Rolling Shutter
EXCCD00440KMAFull specifications →	Monochrome	ICX829AL CCD (M)	0.44MP (748×578)	8.6 µm × 8.3 µm	USB2.0	Rolling Shutter
EXCCD01400KMAFull specifications →	Monochrome	ICX285AL CCD (M)	1.4MP (1360×1024)	6.45 µm × 6.45 µm	USB2.0	Rolling Shutter
EXCCD01400KPAFull specifications →	Color	ICX285AQ CCD (C)	1.4MP (1360×1024)	6.45 µm × 6.45 µm	USB2.0	Rolling Shutter

USB2.0 CCD microscope cameras9 modelsUHCCD · 0.8–5.2 MP · Color · Monochrome

Compare the published specifications below.Compare UHCCD models →

USB2.0 CCD microscope cameras — UHCCD camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
UHCCD00800KPAFull specifications →	Color	ICX204AK CCD (C)	0.8MP (1024×768)	4.65 µm × 4.65 µm	USB2.0	Rolling Shutter
UHCCD01400KMBFull specifications →	Monochrome	ICX205AL CCD (M)	1.4MP (1360×1024)	4.65 µm × 4.65 µm	USB2.0	Rolling Shutter
UHCCD01400KPAFull specifications →	Color	ICX205AK CCD (C)	1.4MP (1360×1024)	4.65 µm × 4.65 µm	USB2.0	Rolling Shutter
UHCCD01400KPBFull specifications →	Color	ICX205AK CCD (C)	1.4MP (1360×1024)	4.65 µm × 4.65 µm	USB2.0	Rolling Shutter
UHCCD02000KPAFull specifications →	Color	ICX274AQ CCD (C)	2.0MP (1600×1200)	4.40 µm × 4.40 µm	USB2.0	Rolling Shutter
UHCCD03100KPB (Discontinued)Full specifications →	Color	ICX252AQ CCD (C)	3.1MP (2048×1536)	3.45 µm × 3.45 µm	USB2.0	Rolling Shutter
UHCCD05000KPAFull specifications →	Color	ICX282AQ CCD (C)	5.0MP (2560×1920)	3.40 µm × 3.40 µm	USB2.0	Rolling Shutter
UHCCD05100KPAFull specifications →	Color	ICX452AQ CCD (C)	5.1MP (2592×1944)	2.775 µm × 2.775 µm	USB2.0	Rolling Shutter
UHCCD05200KPAFull specifications →	Color	ICX655AQ CCD (C)	5.2MP (2448×2050)	3.45 µm × 3.45 µm	USB2.0	Rolling Shutter

2048-pixel CCD line-scan cameras3 modelsLHCCD · Monochrome

Compare the published specifications below.Compare LHCCD models →

2048-pixel CCD line-scan cameras — LHCCD camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
LHCCD00511Full specifications →	Monochrome	ILX511 CCD (M)	2048-pixel line array	14 µm × 200 µm	USB2.0	Rolling Shutter
LHCCD00554Full specifications →	Monochrome	ILX554 CCD (M)	2048-pixel line array	14 µm × 56 µm	USB2.0	Rolling Shutter
LHCCD01304Full specifications →	Monochrome	TCD1304 CCD (M)	3648-pixel line array	8 µm × 200 µm	USB2.0	Rolling Shutter

Eyepiece cameras

USB2.0 color eyepiece cameras19 modelsSCMOS · 0.35–12 MP · Color

Compare the published specifications below.Compare SCMOS models →

USB2.0 color eyepiece cameras — SCMOS camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
SCMOS00350KPAFull specifications →	Color	Aptina (C)	0.35MP (640×480)	5.6 µm × 5.6 µm	USB2.0	Electronic Rolling Shutter
SCMOS00920KPAFull specifications →	Color	BG0703 (C)	0.92MP (1280×720)	4.5 µm × 4.5 µm	USB2.0	Electronic Rolling Shutter
SCMOS00921KPAFull specifications →	Color	OV9732 (C)	0.92MP (1280×720)	3 µm × 3 µm	USB2.0	Electronic Rolling Shutter
SCMOS01300KPAFull specifications →	Color	Aptina (C)	1.3MP (1280×1024)	3.6 µm × 3.6 µm	USB2.0	Electronic Rolling Shutter
SCMOS01301KPAFull specifications →	Color	Special (C)	1.3MP (1520×856)	3.41 µm × 3.41 µm	USB2.0	Electronic Rolling Shutter
SCMOS02000KPAFull specifications →	Color	Aptina (C)	2.0MP (1600×1200)	2.8 µm × 2.8 µm	USB2.0	Electronic Rolling Shutter
SCMOS02000KPBFull specifications →	Color	OV2710 (C)	2.0MP (1920×1080)	3 µm × 3 µm	USB2.0	Electronic Rolling Shutter
SCMOS02100KPAFull specifications →	Color	IMX307 (C)	2.1MP (1920×1080)	2.9 µm × 2.9 µm	USB2.0	Electronic Rolling Shutter
SCMOS02100KPBFull specifications →	Color	SC2332 (C)	2.1MP (1920×1080)	2.7 µm × 2.7 µm	USB2.0	Electronic Rolling Shutter
SCMOS03000KPAFull specifications →	Color	Aptina (C)	3.0MP (2048×1536)	2.2 µm × 2.2 µm	USB2.0	Electronic Rolling Shutter
SCMOS03000KPBFull specifications →	Color	SmartSens (C)	3.0MP (2048×1536)	2.0 µm × 2.0 µm	USB2.0	Electronic Rolling Shutter
SCMOS03100KPAFull specifications →	Color	Aptina (C)	3.1MP (2048×1536)	2.8 µm × 2.8 µm	USB2.0	Electronic Rolling Shutter
SCMOS05000KPAFull specifications →	Color	Aptina (C)	5.0MP (2592×1944)	2.2 µm × 2.2 µm	USB2.0	Electronic Rolling Shutter
SCMOS05000KPBFull specifications →	Color	SC5033 (C)	5.0MP (2592×1944)	2.0 µm × 2.0 µm	USB2.0	Electronic Rolling Shutter
SCMOS05100KPAFull specifications →	Color	AR0521 (C)	5.1MP (2592×1944)	2.2 µm × 2.2 µm	USB2.0	Electronic Rolling Shutter
SCMOS05100KPBFull specifications →	Color	IMX335 (C)	5.1MP (2592×1944)	2.0 µm × 2.0 µm	USB2.0	Electronic Rolling Shutter
SCMOS08300KPAFull specifications →	Color	IMX274 (C)	8.3MP (3840×2160)	1.62 µm × 1.62 µm	USB2.0	Electronic Rolling Shutter
SCMOS08300KPBFull specifications →	Color	IMX415 (C)	8.3MP (3840×2160)	1.45 µm × 1.45 µm	USB2.0	Electronic Rolling Shutter
SCMOS12000KPAFull specifications →	Color	IMX577 (C)	12MP (3840×3040)	1.55 µm × 1.55 µm	USB2.0	Electronic Rolling Shutter

USB2.0 color eyepiece cameras6 modelsSPCMOS · 0.35–5.1 MP · Color

Compare the published specifications below.Compare SPCMOS models →

USB2.0 color eyepiece cameras — SPCMOS camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
SPCMOS00350KPAFull specifications →	Color	Aptina(C)	0.35M (640×480)	5.6 µm × 5.6 µm	USB2.0	Electronic Rolling Shutter (ERS)
SPCMOS01300KPAFull specifications →	Color	Aptina(C)	1.3M (1280×1024)	3.6 µm × 3.6 µm	USB2.0	Electronic Rolling Shutter (ERS)
SPCMOS02000KPAFull specifications →	Color	Aptina(C)	2.0M (1600×1200)	2.8 µm × 2.8 µm	USB2.0	Electronic Rolling Shutter (ERS)
SPCMOS03000KPAFull specifications →	Color	Aptina(C)	3.0M (2048×1536)	2.2 µm × 2.2 µm	USB2.0	Electronic Rolling Shutter (ERS)
SPCMOS05000KPAFull specifications →	Color	Aptina(C)	5.0M (2592×1944)	2.2 µm × 2.2 µm	USB2.0	Electronic Rolling Shutter (ERS)
SPCMOS05100KPBFull specifications →	Color	IMX335(C)	5.1M (2592×1944)	2.0 µm × 2.0 µm	USB2.0	Rolling Shutter

Integrated microscope systems

Microscope cameras with lens / display options2 modelsHCAM · 2 MP · Color

Compare the published specifications below.Compare HCAM models →

Microscope cameras with lens / display options — HCAM camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface
HCAM200AFull specifications →	Color	Sony IMX323(C) 1/2.9" (6.3 × 3.6 mm)	2MP (1920×1080)	2.8 µm × 2.8 µm	USB2.0
PHM2MPAFull specifications →	Color	Sony IMX307(C) Starvis Back-illuminated CMOS 1/2.8" (5.57 × 3.13 mm)	2MP (1920×1080)	2.9 µm × 2.9 µm	5-inch LCD screen USB

USB2.0 cameras with integrated lenses7 modelsPUM · 1.3–8.3 MP · Color

Compare the published specifications below.Compare PUM models →

USB2.0 cameras with integrated lenses — PUM camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface
PUM01300KPAFull specifications →	Color	1.3M / Sony IMX307(C) 1/2.8" (4.41 × 2.48 mm)	1.3 MP (1520 × 856)	2.9 µm × 2.9 µm	USB2.0
PUM02000KPAFull specifications →	Color	2.0M / Sony IMX290(C) 1/2.8" (5.56 × 3.13 mm)	2.0 MP (1920 × 1080)	2.9 µm × 2.9 µm	USB2.0
PUM02100KPAFull specifications →	Color	2.1M / Sony IMX307(C) 1/2.8" (5.56 × 3.13 mm)	2.1 MP (1920 × 1080)	2.9 µm × 2.9 µm	USB2.0
PUM05100KPAFull specifications →	Color	5.1M / Sony IMX335(C) 1/2.8" (5.18 × 3.89 mm)	5.1 MP (2592 × 1944)	2.0 µm × 2.0 µm	USB2.0
PUM05100KPA-PFull specifications →	Color	5.1M / Sony IMX335(C) 1/2.8" (5.18 × 3.89 mm)	5.1 MP (2592 × 1944)	2.0 µm × 2.0 µm	USB2.0
PUM08300KPAFull specifications →	Color	8.3M / Sony IMX415(C) 1/2.8" (5.57 × 3.13 mm)	8.3 MP (3840 × 2160)	1.45 µm × 1.45 µm	USB2.0
PUM08300KPA-PFull specifications →	Color	8.3M / Sony IMX415(C) 1/2.8" (5.57 × 3.13 mm)	8.3 MP (3840 × 2160)	1.45 µm × 1.45 µm	USB2.0

USB2.0 continuous-zoom microscope cameras2 modelsZOPE · 2–5.1 MP · Color

Compare the published specifications below.Compare ZOPE models →

USB2.0 continuous-zoom microscope cameras — ZOPE camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
ZOPE2MPAFull specifications →	Color	Sony IMX323(C) 1/2.9" (6.3 × 3.6 mm)	2MP (1920×1080)	2.8 µm × 2.8 µm	USB2.0	Rolling Shutter
ZOPE5MPAFull specifications →	Color	Sony IMX335(C) 1/2.8" (5.18 × 3.89 mm)	5.1MP (2592×1944)	2.0 µm × 2.0 µm	USB2.0	Rolling Shutter

Low-Light & Cooled Cameras

75 models

Cooled CMOS cameras

Cooled IMX sensor cameras16 modelsCTR3CMOS · 0.39–45 MP · Monochrome · Color

Compare the published specifications below.Compare CTR3CMOS models →

Cooled IMX sensor cameras — CTR3CMOS camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
CTR3CMOS00390KMAFull specifications →	Monochrome	Sony IMX287LLR	0.39MP (720×540)	6.9 µm × 6.9 µm	USB3.0	Global Shutter
CTR3CMOS00503KMAFull specifications →	Monochrome	Sony IMX426LLJ	0.5MP (800×620)	9.0 µm × 9.0 µm	USB3.0	Global Shutter
CTR3CMOS01700KMAFull specifications →	Monochrome	Sony IMX432LLJ	1.7MP (1600×1100)	9.0 µm × 9.0 µm	USB3.0	Global Shutter
CTR3CMOS01700KMA-GFull specifications →	Monochrome	Sony IMX432LLJ	1.7MP (1600×1100)	9.0 µm × 9.0 µm	GigE	Global Shutter
CTR3CMOS01700KPAFull specifications →	Color	Sony IMX432LQJ	1.7MP (1600×1100)	9.0 µm × 9.0 µm	USB3.0	Global Shutter
CTR3CMOS01700KPA-GFull specifications →	Color	Sony IMX432LQJ	1.7MP (1600×1100)	9.0 µm × 9.0 µm	GigE	Global Shutter
CTR3CMOS07100KMAFull specifications →	Monochrome	Sony IMX428LLJ	7.1MP (3200×2200)	4.5 µm × 4.5 µm	USB3.0	Global Shutter
CTR3CMOS07100KMA-GFull specifications →	Monochrome	Sony IMX428LLJ	7.1MP (3200×2200)	4.5 µm × 4.5 µm	GigE	Global Shutter
CTR3CMOS07100KPAFull specifications →	Color	Sony IMX428LQJ	7.1MP (3200×2200)	4.5 µm × 4.5 µm	USB3.0	Global Shutter
CTR3CMOS07100KPA-GFull specifications →	Color	Sony IMX428LQJ	7.1MP (3200×2200)	4.5 µm × 4.5 µm	GigE	Global Shutter
CTR3CMOS08300KMAFull specifications →	Monochrome	Sony IMX585	8.3MP (3840×2160)	2.9 µm × 2.9 µm	USB3.0	Rolling Shutter
CTR3CMOS20000KMAFull specifications →	Monochrome	Sony IMX183CLK	20MP (5440×3648)	2.4 µm × 2.4 µm	USB3.0	Rolling Shutter
CTR3CMOS20000KMA-GFull specifications →	Monochrome	Sony IMX183CLK	20MP (5440×3648)	2.4 µm × 2.4 µm	GigE	Rolling Shutter
CTR3CMOS20000KPAFull specifications →	Color	Sony IMX183CQK	20MP (5440×3648)	2.4 µm × 2.4 µm	USB3.0	Rolling Shutter
CTR3CMOS20000KPA-GFull specifications →	Color	Sony IMX183CQK	20MP (5440×3648)	2.4 µm × 2.4 µm	GigE	Rolling Shutter
CTR3CMOS45000KMAFull specifications →	Monochrome	Sony IMX492LLJ-C	45MP (8176×5616)	2.315 µm × 2.315 µm	USB3.0	Rolling Shutter

Cooled CMOS cameras25 modelsITR3CMOS · 0.5–45 MP · Monochrome · Color

Compare the published specifications below.Compare ITR3CMOS models →

Cooled CMOS cameras — ITR3CMOS camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
ITR3CMOS00500KMAFull specifications →	Monochrome	GPixel GLUX1605BSI	0.5MP (800×600)	16.0 µm × 16.0 µm	USB3.0	Rolling Shutter
ITR3CMOS01300KMAFull specifications →	Monochrome	GPixel GLUX9701BSI	1.3MP (1280×1024)	9.76 µm × 9.76 µm	USB3.0	Rolling Shutter
ITR3CMOS01700KMAFull specifications →	Monochrome	Sony IMX432LLJ	1.7MP (1600×1100)	9.0 µm × 9.0 µm	USB3.0	Global Shutter
ITR3CMOS01700KMA-GFull specifications →	Monochrome	Sony IMX432LLJ	1.7MP (1600×1100)	9.0 µm × 9.0 µm	GigE	Global Shutter
ITR3CMOS01700KPAFull specifications →	Color	Sony IMX432LQJ	1.7MP (1600×1100)	9.0 µm × 9.0 µm	USB3.0	Global Shutter
ITR3CMOS01700KPA-GFull specifications →	Color	Sony IMX432LQJ	1.7MP (1600×1100)	9.0 µm × 9.0 µm	GigE	Global Shutter
ITR3CMOS02300KMAFull specifications →	Monochrome	SC2110	2.3 MP (1920×1200)	12 µm × 12 µm	USB3.0 (USB3.1 Gen1)	Rolling Shutter
ITR3CMOS07100KMAFull specifications →	Monochrome	Sony IMX428LLJ	7.1MP (3200×2200)	4.5 µm × 4.5 µm	USB3.0	Global Shutter
ITR3CMOS07100KMA-GFull specifications →	Monochrome	Sony IMX428LLJ	7.1MP (3200×2200)	4.5 µm × 4.5 µm	GigE	Global Shutter
ITR3CMOS07100KPAFull specifications →	Color	Sony IMX428LQJ	7.1MP (3200×2200)	4.5 µm × 4.5 µm	USB3.0	Global Shutter
ITR3CMOS07100KPA-GFull specifications →	Color	Sony IMX428LQJ	7.1MP (3200×2200)	4.5 µm × 4.5 µm	GigE	Global Shutter
ITR3CMOS08300KPAFull specifications →	Color	Sony IMX585-AAQJ1-C	8.3MP (3840×2160)	2.9 µm × 2.9 µm	USB3.0	Rolling Shutter
ITR3CMOS09000KMAFull specifications →	Monochrome	Sony IMX533CLK-D	9MP (2992×3000)	3.76 µm × 3.76 µm	USB3.0	Rolling Shutter
ITR3CMOS09000KMA-10GFull specifications →	Monochrome	Sony IMX533CLK-D	9MP (2992×3000)	3.76 µm × 3.76 µm	10GigE	Rolling Shutter
ITR3CMOS09000KPAFull specifications →	Color	Sony IMX533CQK-C	9MP (2992×3000)	3.76 µm × 3.76 µm	USB3.0	Rolling Shutter
ITR3CMOS10300KMAFull specifications →	Monochrome	Sony IMX492LLJ-C	10.3MP (4128×2808)	2.315 µm × 2.315 µm	USB3.0	Rolling Shutter
ITR3CMOS10300KPAFull specifications →	Color	Sony IMX294CJK	10.3MP (4128×2808)	4.63 µm × 4.63 µm	USB3.0	Rolling Shutter
ITR3CMOS20000KMAFull specifications →	Monochrome	Sony IMX183CLK	20MP (5440×3648)	2.4 µm × 2.4 µm	USB3.0	Rolling Shutter
ITR3CMOS20000KMA-GFull specifications →	Monochrome	Sony IMX183CLK	20MP (5440×3648)	2.4 µm × 2.4 µm	GigE	Rolling Shutter
ITR3CMOS20000KPAFull specifications →	Color	Sony IMX183CQK	20MP (5440×3648)	2.4 µm × 2.4 µm	USB3.0	Rolling Shutter
ITR3CMOS20000KPA-GFull specifications →	Color	Sony IMX183CQK	20MP (5440×3648)	2.4 µm × 2.4 µm	GigE	Rolling Shutter
ITR3CMOS21000KPAFull specifications →	Color	Sony IMX269AQR	21MP (5280×3954)	3.3 µm × 3.3 µm	USB3.0	Rolling Shutter
ITR3CMOS26000KMAFull specifications →	Monochrome	Sony IMX571BLR-J	26MP (6224×4168)	3.76 µm × 3.76 µm	USB3.0	Rolling Shutter
ITR3CMOS26000KPAFull specifications →	Color	Sony IMX571BQR-C	26MP (6224×4168)	3.76 µm × 3.76 µm	USB3.0	Rolling Shutter
ITR3CMOS45000KMAFull specifications →	Monochrome	Sony IMX492LLJ-C	45MP (8176×5616)	4.63 µm × 4.63 µm	USB3.0	Rolling Shutter

Cooled CMOS cameras with UV sensor variants22 modelsMTR3CMOS · 0.5–45 MP · Monochrome · Color

Compare the published specifications below.Compare MTR3CMOS models →

Cooled CMOS cameras with UV sensor variants — MTR3CMOS camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
MTR3CMOS00500KMAFull specifications →	Monochrome	GLUX1605BSI (M, UV, RS)	0.5MP (800×600)	16.0 µm × 16.0 µm	USB3.0	Rolling Shutter
MTR3CMOS01300KMAFull specifications →	Monochrome	GLUX9701BSI (M, UV, RS)	1.3MP (1280×1024)	9.76 µm × 9.76 µm	USB3.0	Rolling Shutter
MTR3CMOS01700KMAFull specifications →	Monochrome	IMX432 (M, GS)	1.7MP (1600×1100)	9.0 µm × 9.0 µm	USB3.0	Global Shutter
MTR3CMOS01700KPAFull specifications →	Color	IMX432 (C, GS)	1.7MP (1600×1100)	9.0 µm × 9.0 µm	USB3.0	Global Shutter
MTR3CMOS02300KMAFull specifications →	Monochrome	SC2110 (M, RS)	2.3MP (1920×1200)	12 µm × 12 µm	USB3.0	Rolling Shutter
MTR3CMOS02300KPAFull specifications →	Color	SC2110 (C, RS)	2.3MP (1920×1200)	12 µm × 12 µm	USB3.0	Rolling Shutter
MTR3CMOS07100KMAFull specifications →	Monochrome	IMX428 (M, GS)	7.0MP (3200×2200)	4.5 µm × 4.5 µm	USB3.0	Global Shutter
MTR3CMOS07100KPAFull specifications →	Color	IMX428 (C, GS)	7.0MP (3200×2200)	4.5 µm × 4.5 µm	USB3.0	Global Shutter
MTR3CMOS08300KMAFull specifications →	Monochrome	IMX585 (M, RS)	8.3MP (3840×2160)	2.9 µm × 2.9 µm	USB3.0	Rolling Shutter
MTR3CMOS08300KPAFull specifications →	Color	IMX585 (C, RS)	8.3MP (3840×2160)	2.9 µm × 2.9 µm	USB3.0	Rolling Shutter
MTR3CMOS09000KMAFull specifications →	Monochrome	IMX533 (M)	9MP (2992×3000)	3.76 µm × 3.76 µm	USB3.0	Rolling Shutter
MTR3CMOS09000KPAFull specifications →	Color	IMX533 (C)	9MP (2992×3000)	3.76 µm × 3.76 µm	USB3.0	Rolling Shutter
MTR3CMOS10300KMAFull specifications →	Monochrome	IMX492 (M, RS)	10.3MP (4128×2808)	4.63 µm × 4.63 µm	USB3.0	Rolling Shutter
MTR3CMOS10300KPAFull specifications →	Color	IMX294 (C)	10.3MP (4128×2808)	4.63 µm × 4.63 µm	USB3.0	Rolling Shutter
MTR3CMOS16000KMAFull specifications →	Monochrome	MN34230ALJ (M)	16MP (4648×3506)	3.8 µm × 3.8 µm	USB3.0	Rolling Shutter
MTR3CMOS16000KPAFull specifications →	Color	MN34230PLJ (C)	16MP (4640×3506)	3.8 µm × 3.8 µm	USB3.0	Rolling Shutter
MTR3CMOS20000KMAFull specifications →	Monochrome	IMX183 (M, RS)	20MP (5440×3648)	2.4 µm × 2.4 µm	USB3.0	Rolling Shutter
MTR3CMOS20000KPAFull specifications →	Color	IMX183 (C, RS)	20MP (5440×3648)	2.4 µm × 2.4 µm	USB3.0	Rolling Shutter
MTR3CMOS21000KPAFull specifications →	Color	IMX269 (C)	21MP (5280×3954)	3.3 µm × 3.3 µm	USB3.0	Rolling Shutter
MTR3CMOS26000KMAFull specifications →	Monochrome	IMX571 (M, RS)	26MP (6224×4168)	3.76 µm × 3.76 µm	USB3.0	Rolling Shutter
MTR3CMOS26000KPAFull specifications →	Color	IMX571 (C, RS)	26MP (6224×4168)	3.76 µm × 3.76 µm	USB3.0	Rolling Shutter
MTR3CMOS45000KMAFull specifications →	Monochrome	IMX492 (M, RS)	45MP (8176×5616)	2.315 µm × 2.315 µm	USB3.0	Rolling Shutter

Cooled CCD cameras

Cooled ICX CCD cameras12 modelsMTR3CCD · 1.4–12 MP · Monochrome · Color

Compare the published specifications below.Compare MTR3CCD models →

Cooled ICX CCD cameras — MTR3CCD camera specifications
Model	Image type	Sensor	Resolution	Pixel size	Interface	Cooling / shutter
MTR3CCD01400KMAFull specifications →	Monochrome	ICX285AL (M)	1.4MP (1360×1024)	6.45 µm × 6.45 µm	USB3.0	Rolling Shutter
MTR3CCD01400KMBFull specifications →	Monochrome	ICX825ALA (M)	1.4MP (1376×1040)	6.45 µm × 6.45 µm	USB3.0	Rolling Shutter
MTR3CCD01400KPAFull specifications →	Color	ICX285AQ (C)	1.4MP (1360×1024)	6.45 µm × 6.45 µm	USB3.0	Rolling Shutter
MTR3CCD01400KPBFull specifications →	Color	ICX825AQA (C)	1.4MP (1376×1040)	6.45 µm × 6.45 µm	USB3.0	Rolling Shutter
MTR3CCD02800KMAFull specifications →	Monochrome	ICX674ALG (M)	2.8MP (1938×1460)	4.54 µm × 4.54 µm	USB3.0	Rolling Shutter
MTR3CCD02800KPAFull specifications →	Color	ICX674AQG (C)	2.8MP (1938×1460)	4.54 µm × 4.54 µm	USB3.0	Rolling Shutter
MTR3CCD06000KMAFull specifications →	Monochrome	ICX694ALG (M)	6.0MP (2748×2200)	4.54 µm × 4.54 µm	USB3.0	Rolling Shutter
MTR3CCD06000KPAFull specifications →	Color	ICX694AQG (C)	6.0MP (2748×2200)	4.54 µm × 4.54 µm	USB3.0	Rolling Shutter
MTR3CCD09000KMAFull specifications →	Monochrome	ICX814ALG (M)	9.0MP (3388×2712)	3.69 µm × 3.69 µm	USB3.0	Rolling Shutter
MTR3CCD09000KPAFull specifications →	Color	ICX814AQG (C)	9.0MP (3388×2712)	3.69 µm × 3.69 µm	USB3.0	Rolling Shutter
MTR3CCD12000KMAFull specifications →	Monochrome	ICX834ALG (M)	12MP (4248×2836)	3.1 µm × 3.1 µm	USB3.0	Rolling Shutter
MTR3CCD12000KPA (Discontinued)Full specifications →	Color	ICX834AQG (C)	12MP (4248×2836)	3.1 µm × 3.1 µm	USB3.0	Rolling Shutter

Series Technical Data

E3ISPM

E3ISPM
Parameter	E3ISPM20400	E3ISPM20000	E3ISPM18000	E3ISPM12400
Sensor	Sony IMX541 GS (Color)	Sony IMX183 RS (Color)	Sony Special RS (Color)	Sony IMX545 GS (Color)
Resolution (pixels)	20.4 MP (4496 × 4496)	20 MP (5440 × 3648)	18 MP (4880 × 3720)	12.4 MP (4096 × 3000)
Pixel Size (μm)	2.74 × 2.74	2.4 × 2.4	1.2 × 1.2	2.74 × 2.74
Sensor Format	1.1" (12.32 × 12.32 mm)	1" (13.06 × 8.76 mm)	1/2.2" (5.86 × 4.46 mm)	1.1"
Shutter	Global Shutter	Rolling Shutter	Rolling Shutter	Global Shutter
Max FPS @ Full Res	17.5 fps	15 fps	17 fps	17 fps
A/D Conversion	8/12-bit	8/12-bit	8/12-bit	8/12-bit
Built-in ISP (HISP VP)	✓ 12-bit Ultra-Fine	✓ 12-bit Ultra-Fine	✓ 12-bit Ultra-Fine	✓ 12-bit Ultra-Fine
Exposure Range	0.03 ms – 15 s	0.1 ms – 15 s	0.1 ms – 15 s	0.03 ms – 15 s
Data Interface	USB 3.0	USB 3.0	USB 3.0	USB 3.0
SDK / Platforms	Win / Linux / macOS / Android	Win / Linux / macOS / Android	Win / Linux / macOS / Android	Win / Linux / macOS / Android

C3CMOS

C3CMOS
Parameter	C3CMOS12000	C3CMOS06600	C3CMOS03100
Sensor	Sony IMX577 (Color)	Sony IMX326 (Color)	Sony IMX335 (Color)
Resolution (pixels)	12 MP (4056 × 3040)	6.6 MP (3072 × 2160)	3.1 MP (2104 × 1560)
Pixel Size (μm)	1.55 × 1.55	2.0 × 2.0	2.5 × 2.5
Sensor Format	1/2.3"	1/3.06"	1/2.8"
Max FPS @ Full Res	7.5 fps	6 fps	5 fps
A/D Conversion	12-bit	12-bit	12-bit
Exposure Range	0.1 ms – 2000 ms	0.1 ms – 2000 ms	0.1 ms – 2000 ms
Data Interface	USB 3.0	USB 3.0	USB 3.0

U3CCD

U3CCD
Parameter	U3CCD12C	U3CCD09C	U3CCD06C	U3CCD028C	U3CCD014B
CCD Sensor	Sony ICX834AQG/ALG	Sony ICX814AQG/ALG	Sony ICX694AQG/ALG	Sony ICX674AQG/ALG	Sony ICX825AQA/ALA
CCD Type	ExView HAD CCD II	ExView HAD CCD II	ExView HAD CCD II	ExView HAD CCD II	ExView HAD CCD II
Resolution (pixels)	12 MP (4248 × 2836)	9 MP (3388 × 2712)	6 MP (2748 × 2200)	2.8 MP (1938 × 1460)	1.4 MP (1376 × 1040)
Pixel Size (μm)	3.1 × 3.1	3.69 × 3.69	4.54 × 4.54	4.54 × 4.54	6.45 × 6.45
Sensor Format	1" (13.15 × 8.77)	1" (12.47 × 9.98)	1" (12.48 × 9.99)	2/3" (8.81 × 6.63)	2/3" (8.88 × 6.70)
G-Light Sensitivity	420 mV with 1/30s	580 mV (C) / 660 mV (M)	880 mV (C) / 1000 mV (M)	800 mV (C) / 950 mV (M)	2000 mV with 1/30s
Dark Current	15.2 mV with 1/30s	12 mV with 1/30s	8 mV with 1/30s	4 mV with 1/30s	4.8 mV with 1/30s
Max FPS @ Full Res	3.6 fps	4.4 fps	7.5 fps	15 fps	25 fps
Exposure Range	0.06 ms – 1000 s	0.06 ms – 1000 s	0.06 ms – 1000 s	0.05 ms – 1000 s	0.07 ms – 1000 s
Data Interface	USB 3.0	USB 3.0	USB 3.0	USB 3.0	USB 3.0
Available (M / C)	✓ / ✓	✓ / ✓	✓ / ✓	✓ / ✓	✓ / ✓

DIC100 systems and objectives

DIC100 systems and objectives
Included components	Matched objectives, DIC prisms, polarizer, analyser, and compatible camera
Illumination options	Blue-light LED and white-light LED

DIC100 objectives

DIC100 objectives
Magnification	Numerical aperture	Working distance	Resolution
5×	0.15	23.5 mm	2.2 μm
10×	0.30	22.8 mm	1.1 μm
20×	0.40	20 mm	0.8 μm

Technical images (1)
