Industrial Camera/Analytical Imaging

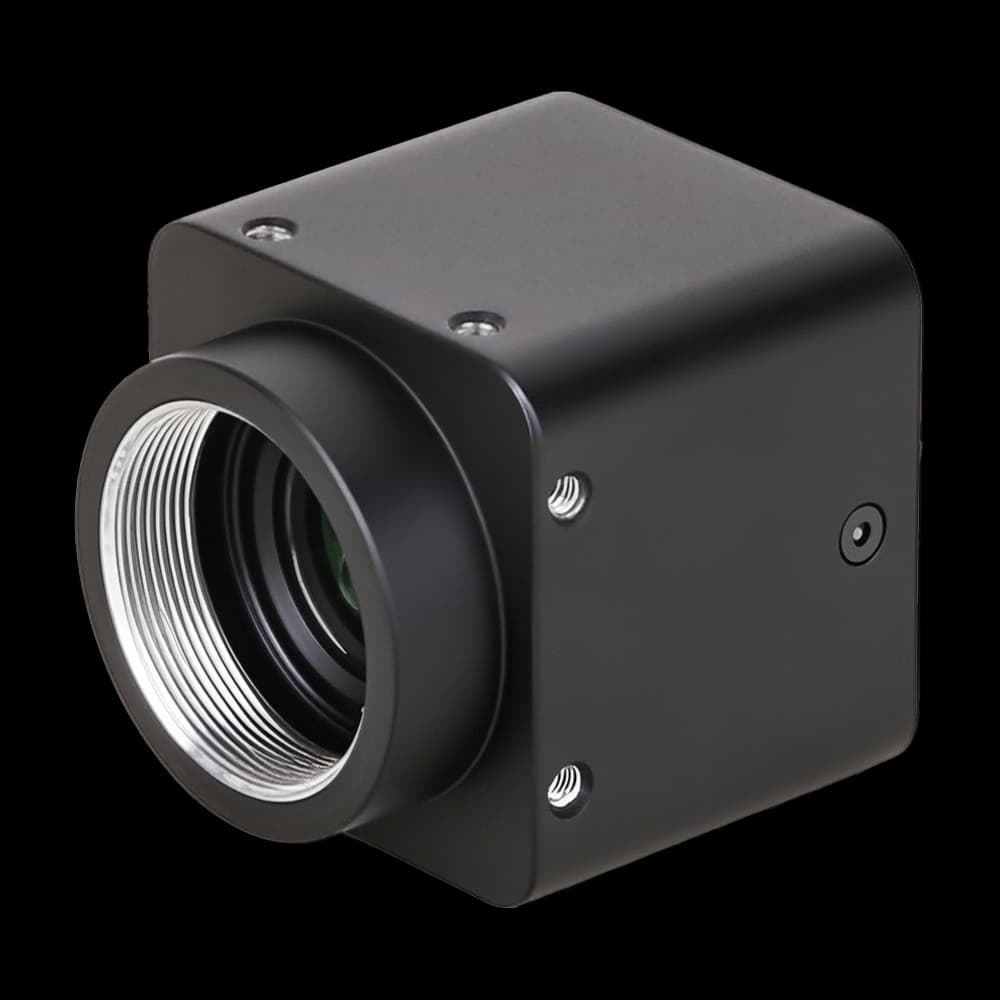

I3ISPM03100KPA Industrial Camera/Analytical Imaging with Sony IMX252LQR sensor, 3.1 MP (2048×1536) for professional imaging.
Application context
I3ISPM03100KPA: The Sony IMX252LQR sensor, 3.1 MP (2048×1536) resolution, and 3.45 µm × 3.45 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 115 fps @ 2048×1536; 230.3 fps @ 1024×768 frame-rate listing also sets the fastest full-frame acquisition regime.
I3ISPM03100KPA: The Sony IMX252LQR sensor, 3.1 MP (2048×1536) resolution, and 3.45 µm × 3.45 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 115 fps @ 2048×1536; 230.3 fps @ 1024×768 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
23 specification rows
The I3ISPM03100KPA is an industrial & analytical camera in the I3ISPM series, built around a Sony IMX252LQR sensor, 3.1 MP (2048×1536) resolution, 3.45 µm × 3.45 µm pixels, frame rates up to 115 fps @ 2048×1536; 230.3 fps @ 1024×768, a USB3.0 interface. It suits industrial camera/analytical imaging where reliable imaging performance and interface compatibility matter.
| Model | I3ISPM03100KPA |
|---|---|
| Sensor | Sony IMX252LQR |
| Effective Pixels / Resolution | 3.1 MP (2048×1536) |
| Frame Rate (Full Resolution) | 115 fps @ 2048×1536; 230.3 fps @ 1024×768 |
| Exposure Time | 15 µs ~ 15 s |
| Shutter Type | Global Shutter |
| Color Type | Color |
| Pixel Size | 3.45 µm × 3.45 µm |
|---|---|
| Sensor Size | 7.07 mm × 5.30 mm |
| Diagonal | 1/1.8" (8.84 mm) |
| Dynamic Range | 73.6 dB |
| Bit Depth | 8/12-bit |
| Sensitivity | 1146 mV |
| Data Interface | USB3.0 |
|---|---|
| GPIO | 1 opto-isolated input, 1 opto-isolated output, 1 non-isolated I/O port |
| Lens Mount | C-mount |
| Dimensions | 33 mm × 33 mm × 33 mm |
| Weight | 70 g |
| Power Supply | USB3.0 interface powered |
| Operating Temperature / Humidity | 10 °C to +50 °C / 20% to 80% (non-condensing) |
|---|---|
| Storage Temperature / Humidity | 30 °C to +70 °C / Available on request |
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
| Certification | CE/FCC |
System integration
Use these checks to connect I3ISPM03100KPA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX252LQR · Resolution: 3.1 MP (2048×1536). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 115 fps @ 2048×1536; 230.3 fps @ 1024×768 · Interface: USB3.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 1 opto-isolated input, 1 opto-isolated output, 1 non-isolated I/O port. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: 73.6 dB. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare I3ISPM03100KPA with the closest available models in the I3ISPM family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | I3ISPM03100KPA (current) | I3ISPM02800KPA-G | I3ISPM03100KPB |
|---|---|---|---|
| Sensor | Sony IMX252LQR | Sony IMX421LQJ | Sony IMX265LQR |
| Resolution | 3.1 MP (2048×1536) | 2.8 MP (1920×1464) | 3.1 MP (2048×1536) |
| Sensor size | 7.07 mm × 5.30 mm | Available on request | 7.07 mm × 5.30 mm |
| Pixel size / frame rate | 3.45 µm × 3.45 µm | 4.5 µm × 4.5 µm | 3.45 µm × 3.45 µm |
The IMX252 appears in 3 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
