AVCAM290A Industrial Camera/Analytical Imaging with Sony IMX307 sensor, 0.4 MP (720×576) for professional imaging.
Application context
AVCAM290A: The Sony IMX307 sensor, 0.4 MP (720×576) resolution, and 2.9 µm × 2.9 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 25 fps @ 720×576 frame-rate listing also sets the fastest full-frame acquisition regime.
AVCAM290A: The Sony IMX307 sensor, 0.4 MP (720×576) resolution, and 2.9 µm × 2.9 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 25 fps @ 720×576 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
23 specification rows
The AVCAM290A is an industrial & analytical camera in the AVCAM series, built around a Sony IMX307 sensor, 0.4 MP (720×576) resolution, 2.9 µm × 2.9 µm pixels, frame rates up to 25 fps @ 720×576, a CVBS (PAL-N format) interface. It suits industrial camera/analytical imaging where reliable imaging performance and interface compatibility matter.
| Model | AVCAM290A |
|---|---|
| Sensor | Sony IMX307 |
| Effective Pixels / Resolution | 0.4 MP (720×576) |
| Frame Rate (Full Resolution) | 25 fps @ 720×576 |
| Exposure Time | 105 µs ~ 20 ms |
| Shutter Type | Rolling Shutter |
| Color Type | Monochrome |
| Pixel Size | 2.9 µm × 2.9 µm |
|---|---|
| Sensor Size | 2.08 mm × 1.67 mm |
| Diagonal | 1/4" (2.67 mm) |
| Dynamic Range | Available on request |
| Bit Depth | 8/12-bit |
| Sensitivity | Available on request |
| Data Interface | CVBS (PAL-N format) |
|---|---|
| GPIO | Available on request |
| Lens Mount | M12 mount |

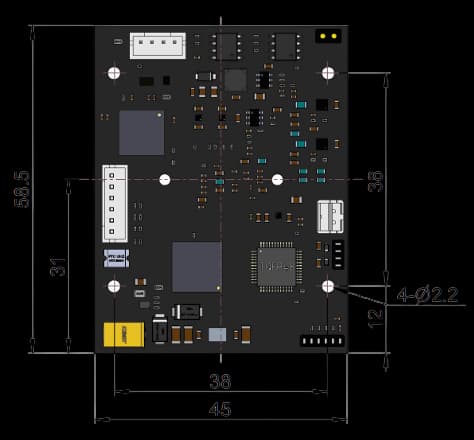

| Dimensions | 45 mm × 58.5 mm |
| Weight | Available on request |
| Power Supply | USB2.0 interface powered |
| Operating Temperature / Humidity | 10 °C to +50 °C / 20% to 80% (non-condensing) |
|---|---|
| Storage Temperature / Humidity | 30 °C to +70 °C / Available on request |
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
| Certification | CE/FCC |
System integration
Use these checks to connect AVCAM290A to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: M12 mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX307 · Resolution: 0.4 MP (720×576). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 25 fps @ 720×576 · Interface: CVBS (PAL-N format). Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: Available on request. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: Available on request. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
The IMX307 appears in 8 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
