Industrial Camera/Analytical Imaging

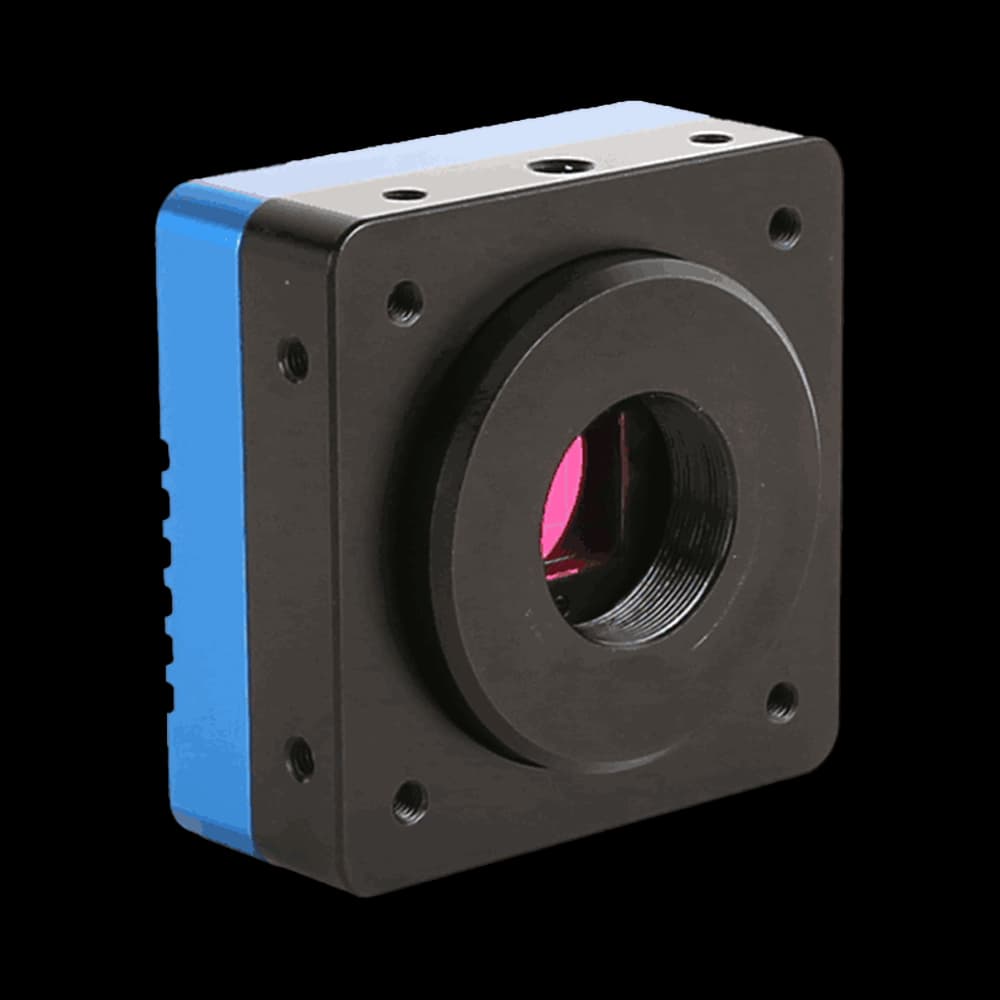

IUA5000KMA Industrial Camera/Analytical Imaging with Sony IMX264LLR sensor, 5.0MP (2448×2048) for professional imaging.
Application context
IUA5000KMA: The Sony IMX264LLR sensor, 5.0MP (2448×2048) resolution, and 3.45 µm × 3.45 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 35.6 fps @ 2448×2048; 87.6 fps @ 1224×1024 frame-rate listing also sets the fastest full-frame acquisition regime.
IUA5000KMA: The Sony IMX264LLR sensor, 5.0MP (2448×2048) resolution, and 3.45 µm × 3.45 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 35.6 fps @ 2448×2048; 87.6 fps @ 1224×1024 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
23 specification rows
The IUA5000KMA is an industrial & analytical camera in the IUA series, built around a Sony IMX264LLR sensor, 5.0MP (2448×2048) resolution, 3.45 µm × 3.45 µm pixels, frame rates up to 35.6 fps @ 2448×2048; 87.6 fps @ 1224×1024, a USB3.0 (USB3.1 GEN1) interface. It suits industrial camera/analytical imaging where reliable imaging performance and interface compatibility matter.
| Model | IUA5000KMA |
|---|---|
| Sensor | Sony IMX264LLR |
| Effective Pixels / Resolution | 5.0MP (2448×2048) |
| Frame Rate (Full Resolution) | 35.6 fps @ 2448×2048; 87.6 fps @ 1224×1024 |
| Exposure Time | 15 µs ~ 15 s |
| Shutter Type | Global Shutter |
| Color Type | Monochrome |
| Pixel Size | 3.45 µm × 3.45 µm |
|---|---|
| Sensor Size | 8.45 mm × 7.07 mm |
| Diagonal | 2/3" (11.02 mm) |
| Dynamic Range | 72 dB |
| Bit Depth | 8/12-bit |
| Sensitivity | 1830 mV |
| Data Interface | USB3.0 (USB3.1 GEN1) |
|---|---|
| GPIO | 1 optically isolated input, 1 optically isolated output, 2 non-isolated input/output ports |
| Lens Mount | C-mount |
| Dimensions | 68 mm × 68 mm × 28.1 mm |
| Weight | 219g |
| Power Supply | USB3.0 bus power / DC 12 V power |
| Operating Temperature / Humidity | 10 °C ~ +50 °C / 20%~80% non-condensing |
|---|---|
| Storage Temperature / Humidity | 30 °C ~ +70 °C / Available on request |
| Operating System | Windows 32-bit/Windows RT/Linux/macOS/Android; x86/x64/ARM HF/ARM EL/ARM64 |
| Certification | CE, FCC |
System integration
Use these checks to connect IUA5000KMA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX264LLR · Resolution: 5.0MP (2448×2048). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 35.6 fps @ 2448×2048; 87.6 fps @ 1224×1024 · Interface: USB3.0 (USB3.1 GEN1). Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 1 optically isolated input, 1 optically isolated output, 2 non-isolated input/output ports. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: 72 dB. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare IUA5000KMA with the closest available models in the IUA family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | IUA5000KMA (current) | IUA45000KPB | IUA5000KPA |
|---|---|---|---|
| Sensor | Sony IMX264LLR | Sony IMX492LQJ-C | Sony IMX264LQR |
| Resolution | 5.0MP (2448×2048) | 45MP (8176×5616) | 5.0MP (2448×2048) |
| Sensor size | 8.45 mm × 7.07 mm | 19.11 mm × 13.00 mm | 8.45 mm × 7.07 mm |
| Pixel size / frame rate | 3.45 µm × 3.45 µm | 2.315 µm × 2.315 µm | 3.45 µm × 3.45 µm |
The IMX264 appears in 8 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
