Monochrome · Gigabit Ethernet industrial camera

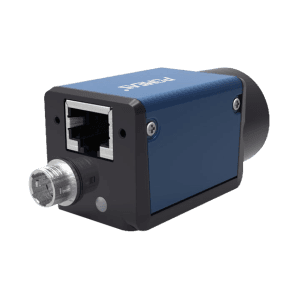

PMS-CCN-120P15BSC
- Sensor
- 1.1" CMOS
- Resolution
- 12 MP (4096×3000)
- Pixel Size
- 3.45 µm × 3.45 µm
- Frame Rate
- 9 fps @ 4096×3000
- Interface
- GigE (Gigabit Ethernet), 1 Gbit/s
Complete Specifications
Sensor & Imaging
| Sensor | 1.1" CMOS |
|---|---|
| Sensor Format | 1.1" |
| Shutter Type | Global shutter |
| Resolution | 12 MP (4096×3000) |
| Pixel Size | 3.45 µm × 3.45 µm |
| Color Type | Monochrome |
Performance
| Frame Rate | 9 fps @ 4096×3000 |
|---|---|
| Bit Depth | 12 bit |
| Signal-to-noise Ratio | >38 dB |
| Dynamic Range | >70 dB |
| Gain Range | 1×-32× |
| Exposure Time | 48 µs-1 s |
| Binning | Supported |
| Image Buffer | 128 MB |
| Memory Channel | 2 groups of user-defined configurations |
Interface & Connectivity
| Interface | GigE (Gigabit Ethernet), 1 Gbit/s |
|---|---|
| GPIO | 6-pin Hirose: 1 opto-isolated input and 1 opto-isolated output |
Cooling & Mechanical
| Power over Ethernet | Supported |
|---|---|
| Power Supply | PoE or DC 6-26 V via Hirose connector |
| Power Consumption | 3.2 W at 12 V |
| Operating Temperature | -30 °C to +50 °C |
| Storage Temperature | -30 °C to +80 °C |
| Dimensions | 29 × 44 × 58 mm, excluding lens mount and rear housing connector |
| Weight | 100 g |
| Lens Mount | C-mount |
Other Published Specifications
| Maximum Cable Length | 100 m without a repeater |
|---|---|
| Protocol Compatibility | GigE Vision V2.0; GenICam |
| White Balance | Supported |
| Gamma | 0-4; LUT supported |
| Image Format | Mono8/10/10Packed/12/12Packed |
| Decimation | Not supported |
| ROI | Supported |
| X Flip | Supported |
| Y Flip | Supported |
| Image Acquisition Mode | Software trigger / hardware trigger / free run |
| SPC | GigE, PoE (as printed; not a confirmed SPC specification) |
| FPN | Not supported |
| Feature 1 | Gigabit Ethernet transfers uncompressed image data over cables up to 100 m without a repeater. |
| Feature 2 | Automatic or manual gain, exposure and gamma adjustment; lookup-table processing. |
| Feature 3 | GigE Vision V2.0 and GenICam compatibility for third-party software integration. |
| Applications | Machine vision; Industrial inspection; Microscopic imaging; Visual positioning; Dimensional measurement |
Technical Files & Images
Related Products
| Selection parameter | PMS-CCN-120P15BSC (current) | PMS-CCN-013D15BSCSame Gigabit Ethernet industrial cameras series | PMS-CCN-013D15CSCSame Gigabit Ethernet industrial cameras series | PMS-CCN-020M15CSCSame Gigabit Ethernet industrial cameras series |
|---|---|---|---|---|
| Sensor | 1.1" CMOS | 1/2" CMOS | 1/2" CMOS | 1/2.8" CMOS |
| Image type | Monochrome | Monochrome | Color | Color |
| Resolution | 12 MP (4096×3000) | 1.3 MP (1280×1024) | 1.3 MP (1280×1024) | 2 MP (1920×1080) |
| Pixel size | 3.45 µm × 3.45 µm | 4.8 µm × 4.8 µm | 4.8 µm × 4.8 µm | 2.9 µm × 2.9 µm |
| Frame / line rate | 9 fps @ 4096×3000 | 60 fps @ 1280×1024 | 60 fps @ 1280×1024 | 22 fps @ 1920×1080 |
| Interface | GigE (Gigabit Ethernet), 1 Gbit/s | GigE (Gigabit Ethernet), 1 Gbit/s | GigE (Gigabit Ethernet), 1 Gbit/s | GigE (Gigabit Ethernet), 1 Gbit/s |
| Cooling / shutter | Global shutter | Global shutter | Global shutter | Rolling shutter |
