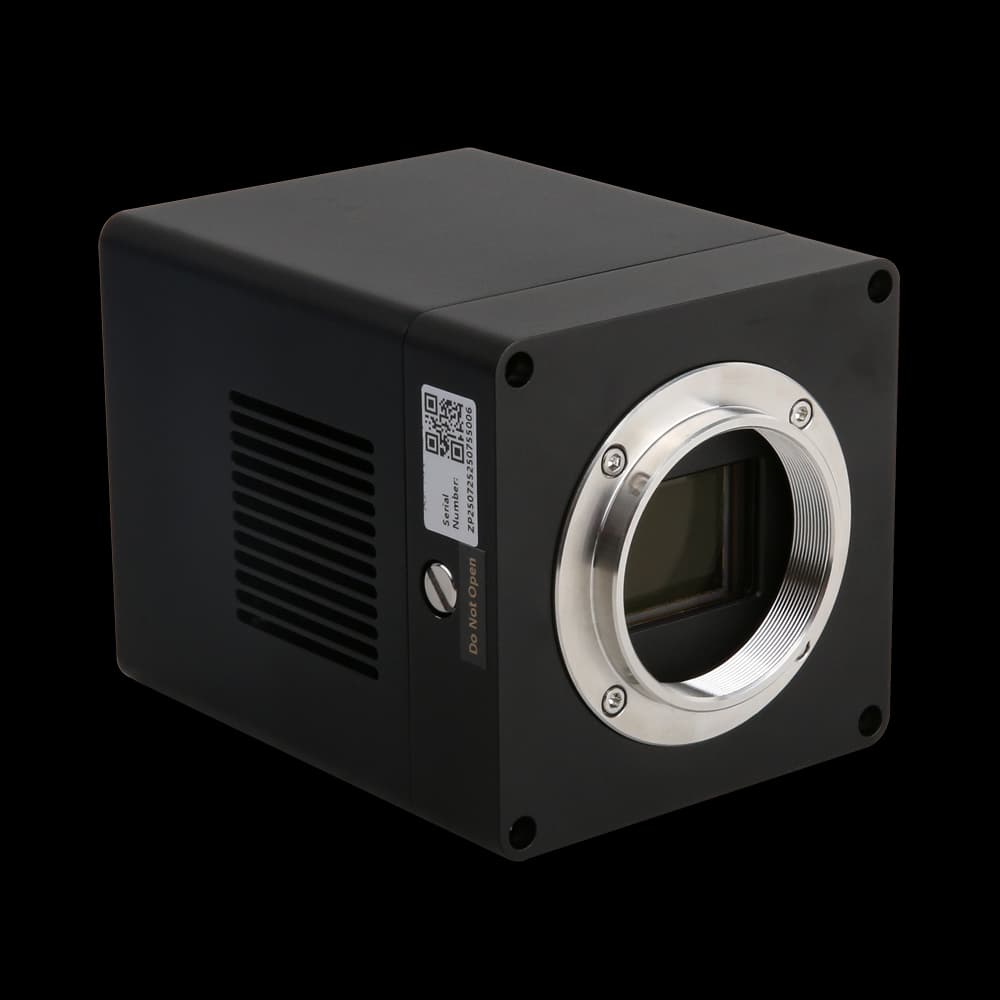

Monochrome · Low Light Imaging/Semiconductor Cooled Camera
MTR3CMOS01300KMA
- Sensor
- GLUX9701BSI (M, UV, RS)
- Resolution
- 1.3MP (1280×1024)
- Pixel Size
- 9.76 µm × 9.76 µm
- Frame Rate
- 30 fps @ 1280×1024; 30 fps @ 640×512
- Interface
- USB3.0
Complete Specifications
Sensor & Imaging
| Sensor | GLUX9701BSI (M, UV, RS) |
|---|---|
| Effective Pixels / Resolution | 1.3MP (1280×1024) |
| Shutter Type | Rolling Shutter |
| Color Type | Monochrome |
| Pixel Size | 9.76 µm × 9.76 µm |
| Sensor Size | 12.493 mm × 9.994 mm |
| Diagonal | 1" (16.00 mm) |
| Resolution | 1.3MP (1280×1024) |
Performance
| Frame Rate (Full Resolution and Key Resolution Modes) | 30 fps @ 1280×1024; 30 fps @ 640×512 |
|---|---|
| Exposure Time | 0.1 ms ~ 1 h |
| Dynamic Range | Available on request |
| Bit Depth | 8-bit/HDR 16-bit |
| Sensitivity | 2.57×10^8 (e-/((W/m2).s)), QE89% @610 nm, 0.08(e-/s/pix) @-28 °C |
| Frame Rate | 30 fps @ 1280×1024; 30 fps @ 640×512 |
Interface & Connectivity
| Data Interface | USB3.0 |
|---|---|
| GPIO | Available on request |
| OS Support | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
| Interface | USB3.0 |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Dimensions | Circular or square housing optional |
| Weight | Available on request |
| Power Supply | USB3.0 interface power + external DC 12 V 3 A cooling power supply |
| Operating Temperature / Humidity | 10 °C ~ +50 °C / 30%~80%RH |
| Storage Temperature / Humidity | 20 °C ~ +60 °C / 10%~60%RH |
Other Published Specifications
| Model | MTR3CMOS01300KMA |
|---|---|
| Certification | CE, FCC |
