Low Light Imaging/Semiconductor Cooled Camera

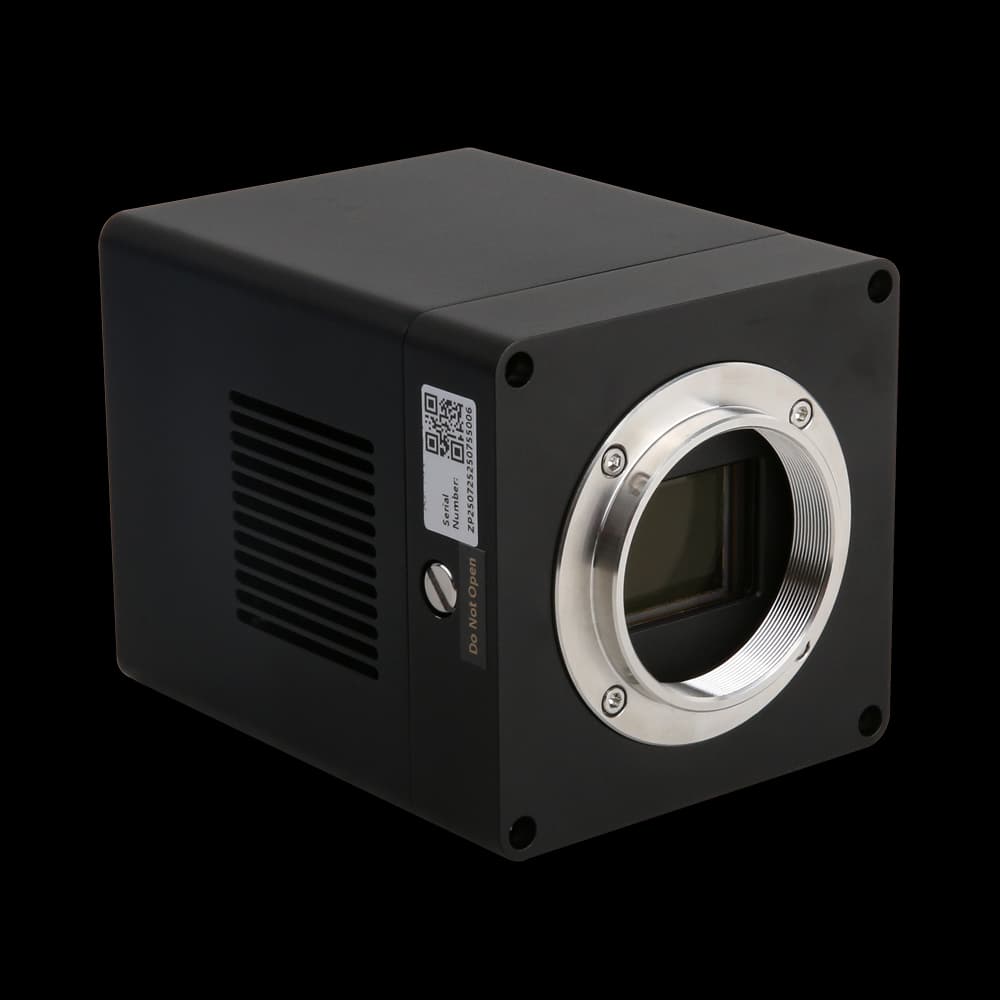

ITR3CMOS01300KMA Low Light Imaging/Semiconductor Cooled Camera with GPixel GLUX9701BSI sensor, 1.3MP (1280×1024) for professional imaging.
Application context
ITR3CMOS01300KMA: The GPixel GLUX9701BSI sensor, 1.3MP (1280×1024) resolution, and 9.76 µm × 9.76 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 30 fps @ 1280×1024; 30 fps @ 640×512 frame-rate listing also sets the fastest full-frame acquisition regime.
ITR3CMOS01300KMA: The GPixel GLUX9701BSI sensor, 1.3MP (1280×1024) resolution, and 9.76 µm × 9.76 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 30 fps @ 1280×1024; 30 fps @ 640×512 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
23 specification rows
The ITR3CMOS01300KMA is a low-light & cooled camera in the ITR3CMOS series, built around a GPixel GLUX9701BSI sensor, 1.3MP (1280×1024) resolution, 9.76 µm × 9.76 µm pixels, frame rates up to 30 fps @ 1280×1024; 30 fps @ 640×512, a USB3.0 interface. It suits low light imaging/semiconductor cooled camera where reliable imaging performance and interface compatibility matter.
| Model | ITR3CMOS01300KMA |
|---|---|
| Sensor | GPixel GLUX9701BSI |
| Effective Pixels / Resolution | 1.3MP (1280×1024) |
| Frame Rate (Full Resolution and Key Resolution Modes) | 30 fps @ 1280×1024; 30 fps @ 640×512 |
| Exposure Time | 63 µs ~ 60 s |
| Shutter Type | Rolling Shutter |
| Color Type | Monochrome |
| Pixel Size | 9.76 µm × 9.76 µm |
|---|---|
| Sensor Size | 12.493 mm × 9.994 mm |
| Diagonal | 1" (16.00 mm) |
| Dynamic Range | 67.78 dB (HCG) 68.14 dB (LCG) 81.08 dB (HDR) |
| Bit Depth | 8-bit/HDR16-bit |
| Sensitivity | 2.57×10⁸(e-/((W/m2).s))@610 nm |
| Data Interface | USB3.0 |
|---|---|
| GPIO | 1x optically isolated input, 1x optically isolated output, 2x non-isolated I/O ports |
| Lens Mount | C-mount |
| Dimensions | 80 mm × 80 mm × 101.5 mm |
| Weight | 860 g |
| Power Supply | USB3.0 interface power / DC 12 V power |
| Operating Temperature / Humidity | 10 °C ~ +50 °C / 20%-80% non-condensing |
|---|---|
| Storage Temperature / Humidity | 30 °C ~ +70 °C / Available on request |
| OS Support | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
| Certification | CE/FCC |
System integration
Use these checks to connect ITR3CMOS01300KMA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: GPixel GLUX9701BSI · Resolution: 1.3MP (1280×1024). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 30 fps @ 1280×1024; 30 fps @ 640×512 · Interface: USB3.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 1x optically isolated input, 1x optically isolated output, 2x non-isolated I/O ports. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: 67.78 dB (HCG) 68.14 dB (LCG) 81.08 dB (HDR). Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare ITR3CMOS01300KMA with the closest available models in the ITR3CMOS family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | ITR3CMOS01300KMA (current) | ITR3CMOS00500KMA | ITR3CMOS01700KMA |
|---|---|---|---|
| Sensor | GPixel GLUX9701BSI | GPixel GLUX1605BSI | Sony IMX432LLJ |
| Resolution | 1.3MP (1280×1024) | 0.5MP (800×600) | 1.7MP (1600×1100) |
| Sensor size | 12.493 mm × 9.994 mm | 12.8 mm × 9.6 mm | 14.4 mm × 9.9 mm |
| Pixel size / frame rate | 9.76 µm × 9.76 µm | 16.0 µm × 16.0 µm | 9.0 µm × 9.0 µm |
The GLUX9701BSI appears in 5 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
Compare the ITR3CMOS01300KMA with other ITR3CMOS models and low-light & cooled cameras in the range.
