Monochrome · Industrial & Analytical Camera

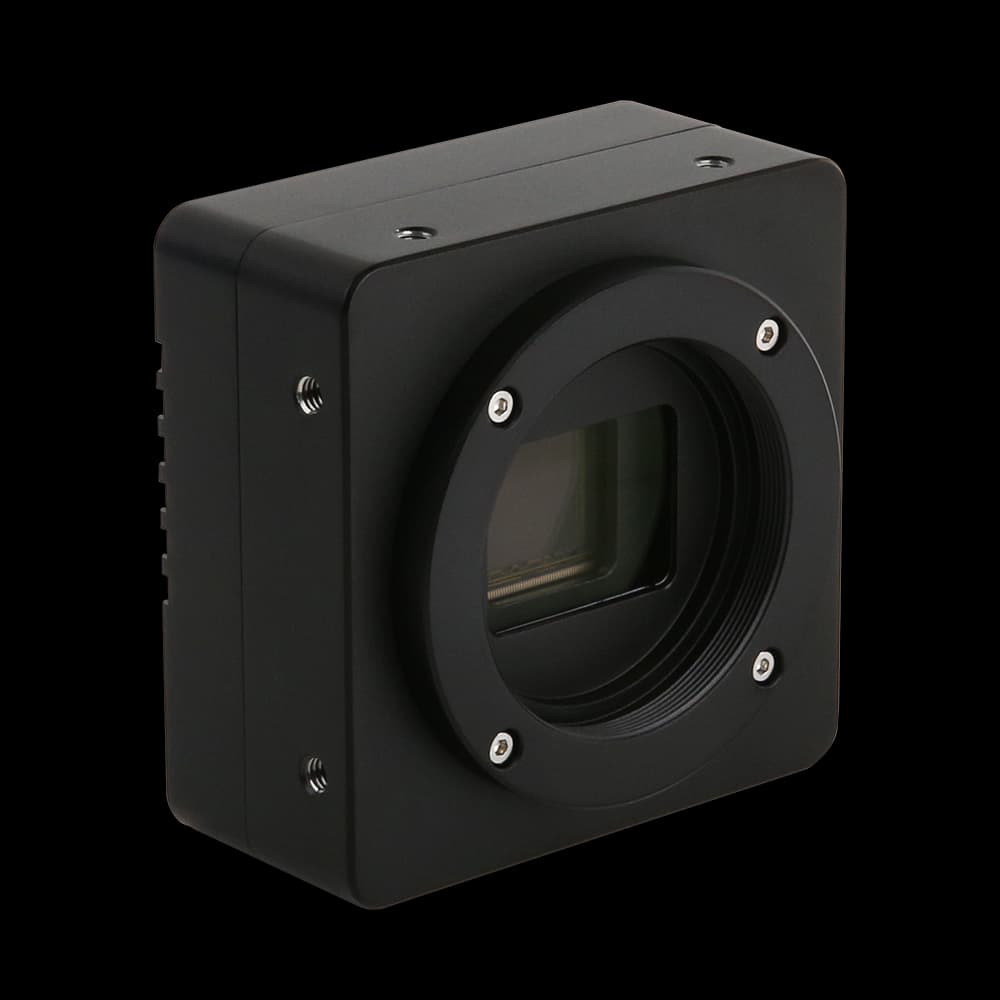

IUA1300KMA-10G
- Sensor
- GPixel GLUX9701BSI (UV)
- Resolution
- 1.3 MP (1280×1024)
- Pixel Size
- 9.76 µm × 9.76 µm
- Frame Rate
- 30 fps @ 1280×1024; 30 fps @ 640×512
- Interface
- 10GigE
Complete Specifications
Sensor & Imaging
| Sensor | GPixel GLUX9701BSI (UV) |
|---|---|
| Effective Pixels / Resolution | 1.3 MP (1280×1024) |
| Shutter Type | Rolling shutter |
| Color Type | Monochrome(UV) |
| Pixel Size | 9.76 µm × 9.76 µm |
| Sensor Size | 12.49 mm × 9.99 mm |
| Diagonal | 1" (15.99 mm) |
| Peak QE | 89% @ 610 nm |
| Resolution | 1.3 MP (1280×1024) |
Performance
| Frame Rate (Full Resolution) | 30 fps @ 1280×1024; 30 fps @ 640×512 |
|---|---|
| Dynamic Range | 56.9 dB (HCG 16×); 67.3 dB (LCG 1.5×); 81.2 dB (HDR) |
| Bit Depth | 8/16-bit |
| Sensitivity | 2.57 × 10⁸ e⁻/(W/m²·s) |
| Conversion Gain | 0.26 e⁻/ADU (HCG 16×); 12.98 e⁻/ADU (LCG 1.5×); 0.32 e⁻/ADU (HDR) |
| Read Noise | 1.5 e⁻ (HCG 16×); 22.36 e⁻ (LCG 1.5×); 1.83 e⁻ (HDR) |
| Full Well Capacity | 1.05 ke⁻ (HCG 16×); 51.88 ke⁻ (LCG 1.5×); 21.03 ke⁻ (HDR) |
| Signal-to-Noise Ratio | 30.2 dB (HCG 16×); 47.2 dB (LCG 1.5×); 43.2 dB (HDR) |
| Dark Current | 28 e⁻/s/pixel @ 25 °C |
| Gain Range | 1×–16× |
| Binning | Hardware 2×2; software 2×2–8×8 |
| Frame Rate | 30 fps @ 1280×1024; 30 fps @ 640×512 |
Interface & Connectivity
| Data Interface | 10GigE |
|---|---|
| GPIO | 1 optically isolated input, 1 optically isolated output, 2 non-isolated input/output |
| Interface | 10GigE |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Dimensions | 68 mm × 68 mm × 46.2 mm |
| Power Supply | DC 12 V |
| Operating Temperature / Humidity | -10 °C ~ +50 °C / 20%~80% non-condensing |
| Storage Temperature / Humidity | -30 °C ~ +70 °C / 20%~80% non-condensing |
Other Published Specifications
| Model | IUA1300KMA-10G |
|---|---|
| Software | Full SDK package / imaging software |
| Operating System | Windows 32-bit/Windows RT/Linux/macOS/Android; x86/x64/ARM HF/ARM EL/ARM64 |
| Certification | CE, FCC |
Technical Files & Images
Technical images (1)
Related Products
| Selection parameter | IUA1300KMA-10G (current) | IUA1300KMA(GPixel UV)Same GLUX9701BSI sensor | BIGEYE1300KMASame GLUX9701BSI sensor | I3CMOS01300KMASame GLUX9701BSI sensor |
|---|---|---|---|---|
| Sensor | GPixel GLUX9701BSI (UV) | GPixel GLUX9701BSI | GLUX9701BSI (M, UV, RS) | GPixel GLUX9701BSI (UV) |
| Image type | Monochrome(UV) | Monochrome(UV) | Monochrome | Monochrome (UV) |
| Resolution | 1.3 MP (1280×1024) | 1.3MP (1280×1024) | 1.3 MP (1280×1024) | 1.3 MP (1280×1024) |
| Pixel size | 9.76 µm × 9.76 µm | 9.76 µm × 9.76 µm | 9.76 µm × 9.76 µm | 9.76 µm × 9.76 µm |
| Published QE | 89% @ 610 nm | — | — | — |
| Read noise | 1.5 e⁻ (HCG 16×); 22.36 e⁻ (LCG 1.5×); 1.83 e⁻ (HDR) | — | — | — |
| Frame / line rate | 30 fps @ 1280×1024; 30 fps @ 640×512 | 30 fps @ 1280×1024; 30 fps @ 640×512 | 30 fps @ 1280×1024; 30 fps @ 640×512 | 30 fps @ 1280×1024; 30 fps @ 640×512 |
| Interface | 10GigE | USB3.0 (USB3.1 GEN1) | USB3.0 | USB3.0 |
| Cooling / shutter | Rolling shutter | Rolling shutter | Rolling Shutter | Rolling Shutter |
