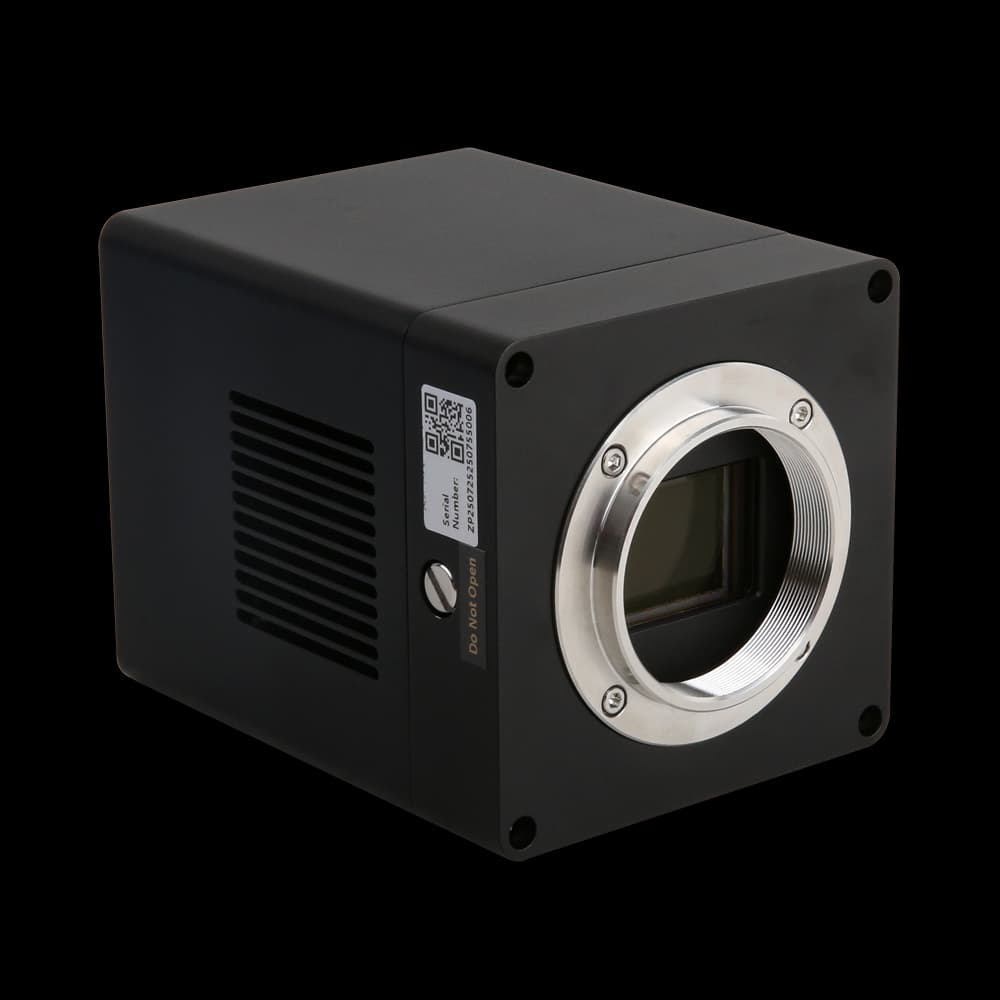

Low Light Imaging/Semiconductor Cooled Camera
MTR3CMOS26000KMA
MTR3CMOS26000KMA Low Light Imaging/Semiconductor Cooled Camera with IMX571 (M, RS) sensor, 26MP (6224×4168) for professional imaging.
- Sensor
- IMX571 (M, RS)
- Resolution
- 26MP (6224×4168)
- Pixel Size
- 3.76 µm × 3.76 µm
- Frame Rate
- 14 fps @ 6224×4168; 37 fps @ 3104×2084; 110 fps @ 2064×1386
- Interface
- USB3.0
Specifications
MTR3CMOS26000KMA
23 specification rows
Key Parameters
| Model | MTR3CMOS26000KMA |
|---|---|
| Sensor | IMX571 (M, RS) |
| Effective Pixels / Resolution | 26MP (6224×4168) |
| Frame Rate (Full Resolution and Key Resolution Modes) | 14 fps @ 6224×4168; 37 fps @ 3104×2084; 110 fps @ 2064×1386 |
| Exposure Time | 0.1 ms ~ 1 h |
| Shutter Type | Rolling Shutter |
| Color Type | Monochrome |
Imaging Performance
| Pixel Size | 3.76 µm × 3.76 µm |
|---|---|
| Sensor Size | 23.48 mm × 15.67 mm |
| Diagonal | 1.8" (28.23 mm) |
| Dynamic Range | Available on request |
| Bit Depth | 8/16-bit |
| Sensitivity | 871 mV (1/30s), 0.07 mV dark current |
Interface & Mechanical
| Data Interface | USB3.0 |
|---|---|
| GPIO | Available on request |
| Lens Mount | C-mount |
| Dimensions | Circular or square housing optional |
| Weight | Available on request |
| Power Supply | USB3.0 interface power + external DC 12 V 3 A cooling power supply |
Environment & Certification
| Operating Temperature / Humidity | 10 °C ~ +50 °C / 30%~80%RH |
|---|---|
| Storage Temperature / Humidity | 20 °C ~ +60 °C / 10%~60%RH |
| OS Support | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
| Certification | CE, FCC |
