Deep-sky astrophotography
Two-stage TEC, ΔT ≥42 °C helps control thermal noise during long exposures of galaxies, nebulae and star clusters.
Deep-sky cooled
ATR2600M
ToupTek ATR2600M is a cooled deep-sky camera using the IMX571 sensor, with 26 MP (6224 × 4168), 3.76 µm pixels and 13.3 fps. Designed for deep-sky astrophotography, narrowband nebula imaging, high-resolution galaxy and lunar imaging. Available from Precisometer for professional astronomy systems.
- Sensor
- Sony IMX571 monochrome CMOS
- Sensor Type
- Back-illuminated APS-C monochrome CMOS
- Resolution
- 26 MP (6224 × 4168)
- Pixel Size
- 3.76 µm
- Frame Rate
- 13.3 fps
- Interface
- USB 3.0
Application context
Why this design is used
Choose the ATR2600M when your telescope and target benefit from APS-C, 23.4 × 15.7 mm sensor coverage, 3.76 µm sampling, two-stage TEC, ΔT ≥42 °C and 380–1100 nm response.
Narrowband nebula imaging
The monochrome IMX571 sensor is suited to H-alpha, O III and S II filter workflows.
High-resolution galaxy and lunar imaging
3.76 µm pixels balance image scale and detail for appropriately matched telescope focal lengths.
Photometry and time-series imaging
16-bit acquisition, 87.9 dB dynamic range and regulated cooling support repeatable quantitative observations.
Specifications
ATR2600M
32 specification rows
The ATR2600M is an astronomy camera in the ATR DSO cooled series, built around a Sony IMX571 monochrome CMOS sensor, 26 MP (6224 × 4168) resolution, 3.76 µm pixels, frame rates up to 13.3 fps, a USB 3.0 interface. It suits deep-sky cooled where reliable imaging performance and interface compatibility matter.
Sensor & Imaging
| Model | ATR2600M |
|---|---|
| Status | Current |
| Application | Deep-sky cooled |
| Sensor | Sony IMX571 monochrome CMOS |
| Sensor Type | Back-illuminated APS-C monochrome CMOS |
| Sensor Size | APS-C, 23.4 × 15.7 mm |
| Resolution | 26 MP (6224 × 4168) |
| Pixel Size | 3.76 µm |
| Shutter Type | Rolling shutter |
Performance
| Frame Rate | 13.3 fps |
|---|---|
| ADC | 16-bit |
| Peak QE | >80% |
| Dynamic Range | 87.9 dB |
| Read Noise | 2.77–0.77 e⁻ |
| Full Well | 51 ke⁻ |
| Spectral Range | 380–1100 nm |
Interface & Thermal
| Interface | USB 3.0 |
|---|---|
| Mount | M42 / M54 astronomy adapters |
| Cooling | Two-stage TEC, ΔT ≥42 °C |
Additional Published Specifications
| Legacy Model Name | ATR3CMOS26000KMA |
|---|---|
| Sensor Diagonal | 28.3mm |
| LCG Read Noise | 2.4-1.14e- |
| HCG Read Noise | 2.15-1.16e- |
| Maximum SNR | 47.1dB |
| Frame Buffer | 512MB |
| Sensor Chamber Window | Adjustable heating window |
| Back Focal Distance | 17.5mm/12.5mm |
| Protective Window | IR/AR |
| Color Filter Array | RGGB |
| DDR3 Buffer | 512MB |
| Max Exposure | Up to 1 hour |
| Power Supply | DC 12V / 3A |
Technical media

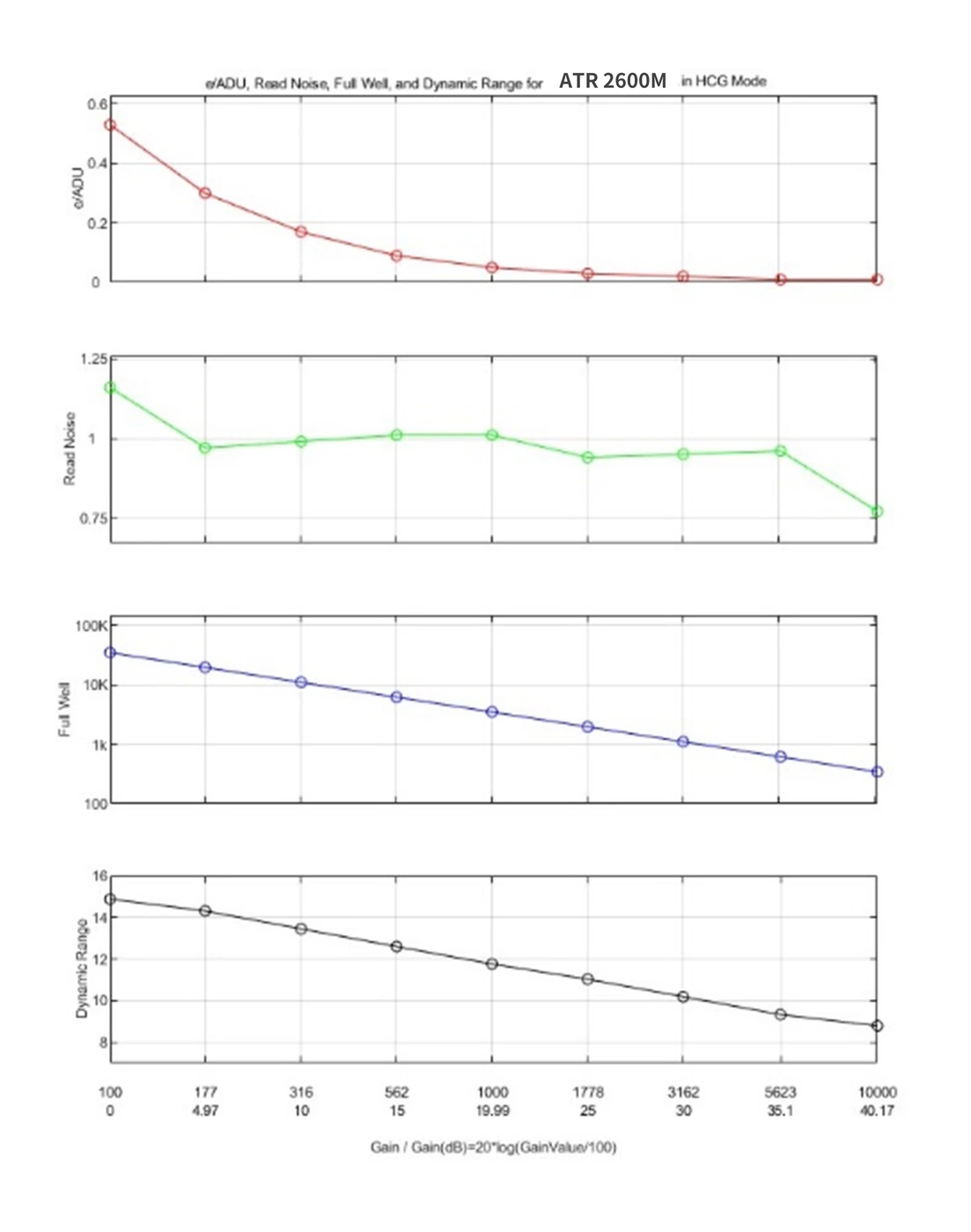

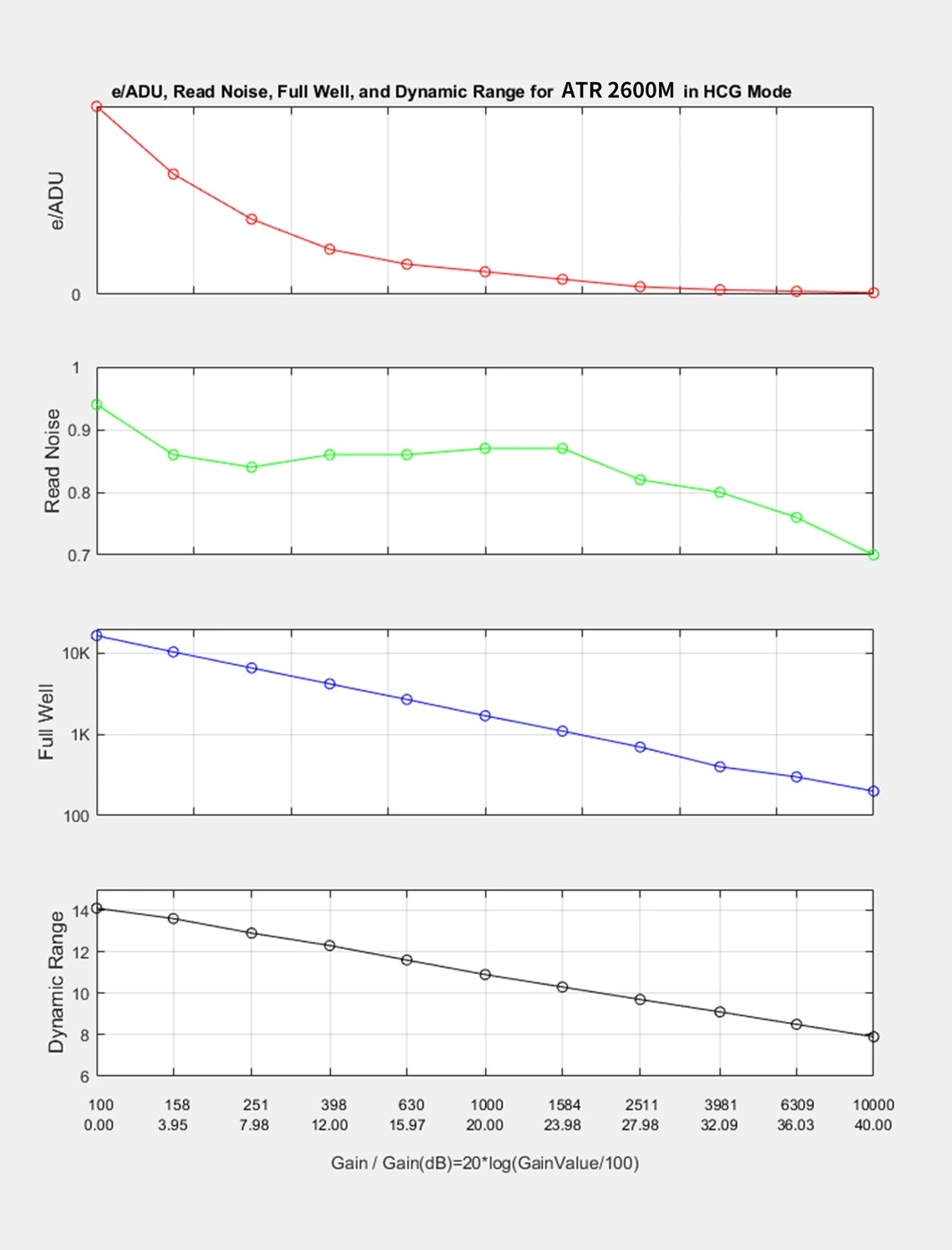

Performance graphs and technical drawings
Official sensor-response, performance, and mechanical imagery for the ATR2600M.
System integration
Integration and compatibility
Use these checks to connect ATR2600M to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
- Lens and microscope interface
- Mount: M42 / M54 astronomy adapters
- Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
- Sensor and sampling
- Sensor: Sony IMX571 monochrome CMOS · Sensor Type: Back-illuminated APS-C monochrome CMOS
- Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
- Interface and data rate
- Frame Rate: 13.3 fps · Interface: USB 3.0
- Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
- Cooling and noise floor
- Dynamic Range: 87.9 dB · Read Noise: 2.77–0.77 e⁻
- Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Technical FAQ
Integration questions for ATR2600M
What lens mount is required for the ATR2600M?
Mount: M42 / M54 astronomy adapters. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
What sensor and pixel pitch does the ATR2600M use?
Sensor: Sony IMX571 monochrome CMOS · Sensor Type: Back-illuminated APS-C monochrome CMOS. Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
How does the ATR2600M connect to the acquisition computer?
Frame Rate: 13.3 fps · Interface: USB 3.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
What is the noise performance of the ATR2600M?
Dynamic Range: 87.9 dB · Read Noise: 2.77–0.77 e⁻. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Need help choosing?
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Nearby series comparison
Compare ATR2600M with the closest available models in the ATR DSO cooled family.
| Selection parameter | ATR2600M (current) | ATR2600C | ATR294C |
|---|---|---|---|
| Sensor | Sony IMX571 monochrome CMOS | Sony IMX571 color CMOS | Sony IMX294 color CMOS |
| Resolution | 26 MP (6224 × 4168) | 26 MP (6224 × 4168) | 11.6 MP (4128 × 2808) |
| Sensor size | APS-C, 23.4 × 15.7 mm | APS-C, 23.4 × 15.7 mm | 4/3-inch, 19.11 × 13.0 mm |
| Pixel size / frame rate | 3.76 µm | 3.76 µm | 4.63 µm |
