Deep-sky astrophotography
Two-stage TEC, ΔT ≥42 °C helps control thermal noise during long exposures of galaxies, nebulae and star clusters.
Deep-sky cooled
ATR2600C

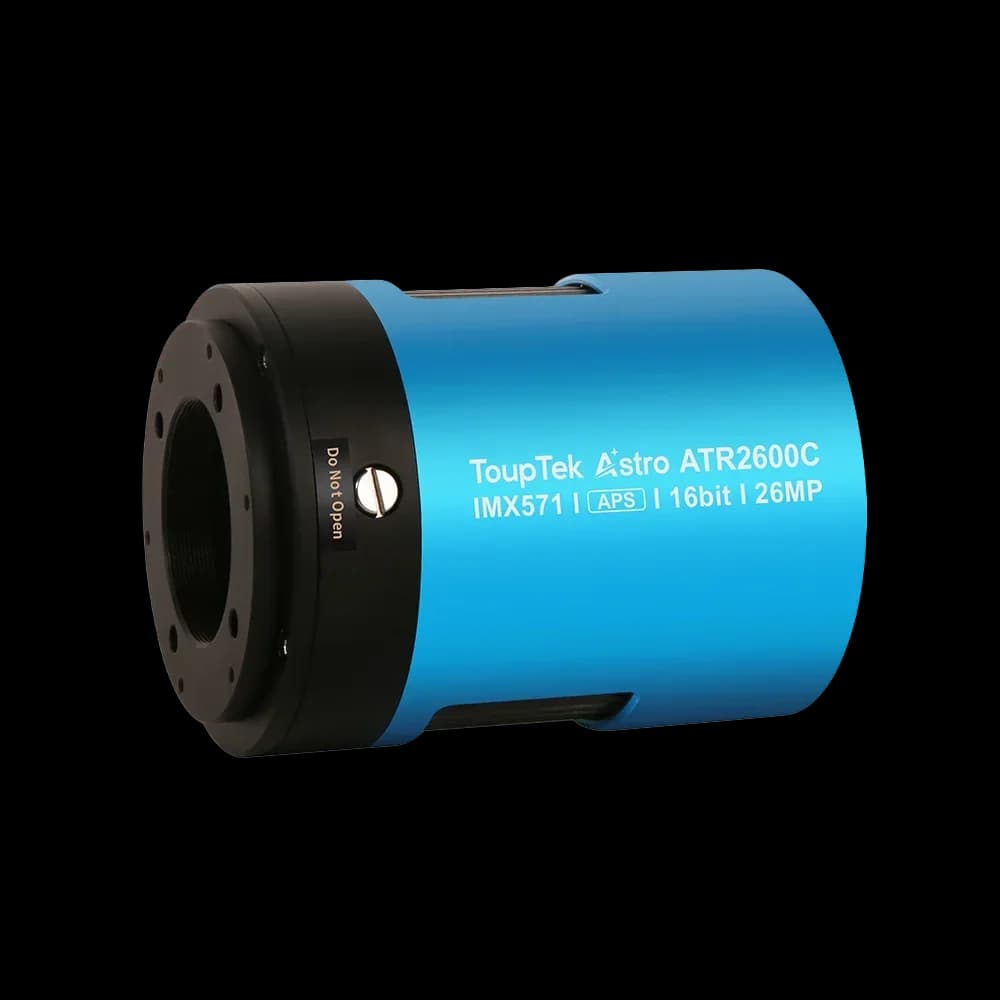

ToupTek ATR2600C is a cooled deep-sky camera using the IMX571 sensor, with 26 MP (6224 × 4168), 3.76 µm pixels and 13.3 fps. Designed for deep-sky astrophotography, one-shot colour deep-sky imaging, high-resolution galaxy and lunar imaging. Available from Precisometer for professional astronomy systems in the Benelux.
- Sensor
- Sony IMX571 color CMOS
- Sensor Type
- Back-illuminated APS-C color CMOS
- Resolution
- 26 MP (6224 × 4168)
- Pixel Size
- 3.76 µm
- Frame Rate
- 13.3 fps
- Interface
- USB 3.0
Applications & selection
ATR2600C applications
One-shot colour deep-sky imaging
The colour IMX571 sensor captures broadband targets without a separate LRGB filter sequence.
High-resolution galaxy and lunar imaging
3.76 µm pixels balance image scale and detail for appropriately matched telescope focal lengths.
Photometry and time-series imaging
16-bit acquisition, 86.8 dB dynamic range and regulated cooling support repeatable quantitative observations.
When to choose this camera
Choose the ATR2600C when your telescope and target benefit from APS-C, 23.4 × 15.7 mm sensor coverage, 3.76 µm sampling, two-stage TEC, ΔT ≥42 °C and 380–690 nm response.
Specifications
ATR2600C
32 specification rows
The ATR2600C is an astronomy camera in the ATR DSO cooled series, built around a Sony IMX571 color CMOS sensor, 26 MP (6224 × 4168) resolution, 3.76 µm pixels, frame rates up to 13.3 fps, a USB 3.0 interface. It suits deep-sky cooled where reliable imaging performance and interface compatibility matter.
Sensor & Imaging
| Model | ATR2600C |
|---|---|
| Status | Current |
| Application | Deep-sky cooled |
| Sensor | Sony IMX571 color CMOS |
| Sensor Type | Back-illuminated APS-C color CMOS |
| Sensor Size | APS-C, 23.4 × 15.7 mm |
| Resolution | 26 MP (6224 × 4168) |
| Pixel Size | 3.76 µm |
| Shutter Type | Rolling shutter |
Performance
| Frame Rate | 13.3 fps |
|---|---|
| ADC | 16-bit |
| Peak QE | >80% |
| Dynamic Range | 86.8 dB |
| Read Noise | 2.77–0.79 e⁻ |
| Full Well | 51 ke⁻ |
| Spectral Range | 380–690 nm |
Interface & Thermal
| Interface | USB 3.0 |
|---|---|
| Mount | M42 / M54 astronomy adapters |
| Cooling | Two-stage TEC, ΔT ≥42 °C |
Additional Published Specifications
| Legacy Model Name | ATR3CMOS26000KPA |
|---|---|
| Sensor Diagonal | 28.3mm |
| LCG Read Noise | 2.4-1.14e- |
| HCG Read Noise | 2.15-1.16e- |
| Maximum SNR | 47.1dB |
| Frame Buffer | 512MB |
| Sensor Chamber Window | Adjustable heating window |
| Back Focal Distance | 17.5mm/12.5mm |
| Protective Window | IR/AR |
| Color Filter Array | RGGB |
| DDR3 Buffer | 512MB |
| Max Exposure | Up to 1 hour |
| Power Supply | DC 12V / 3A |
Technical media

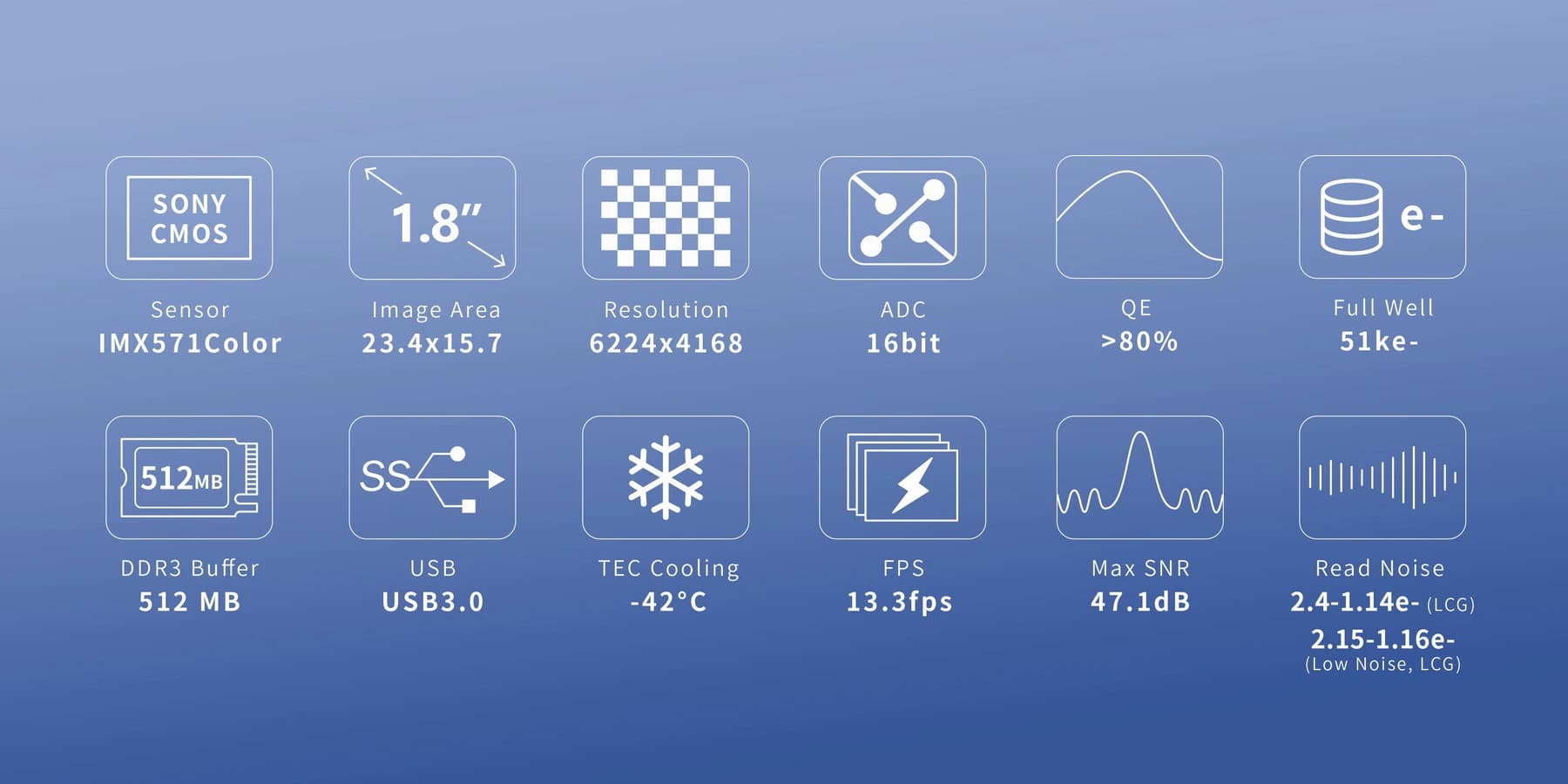

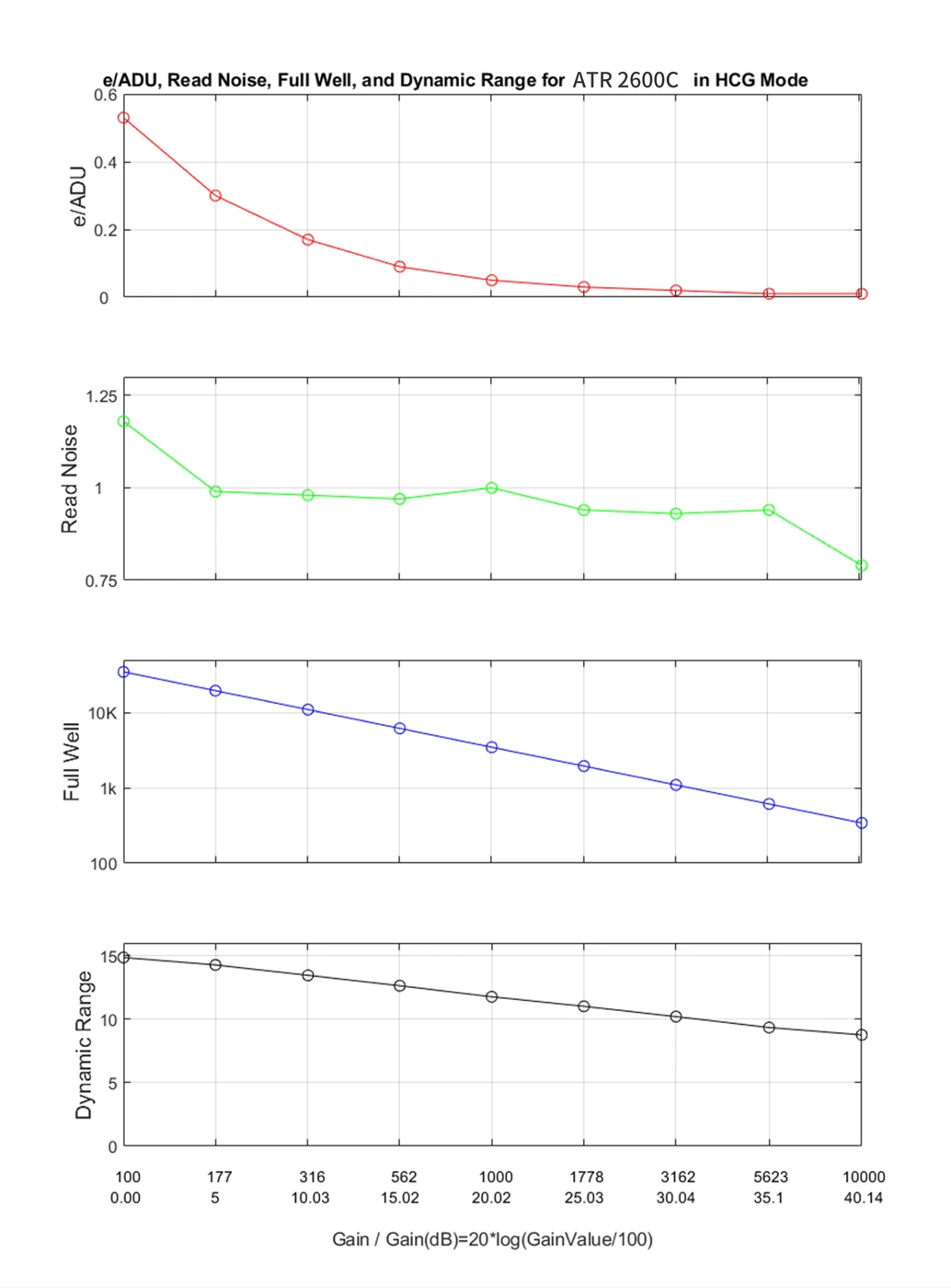

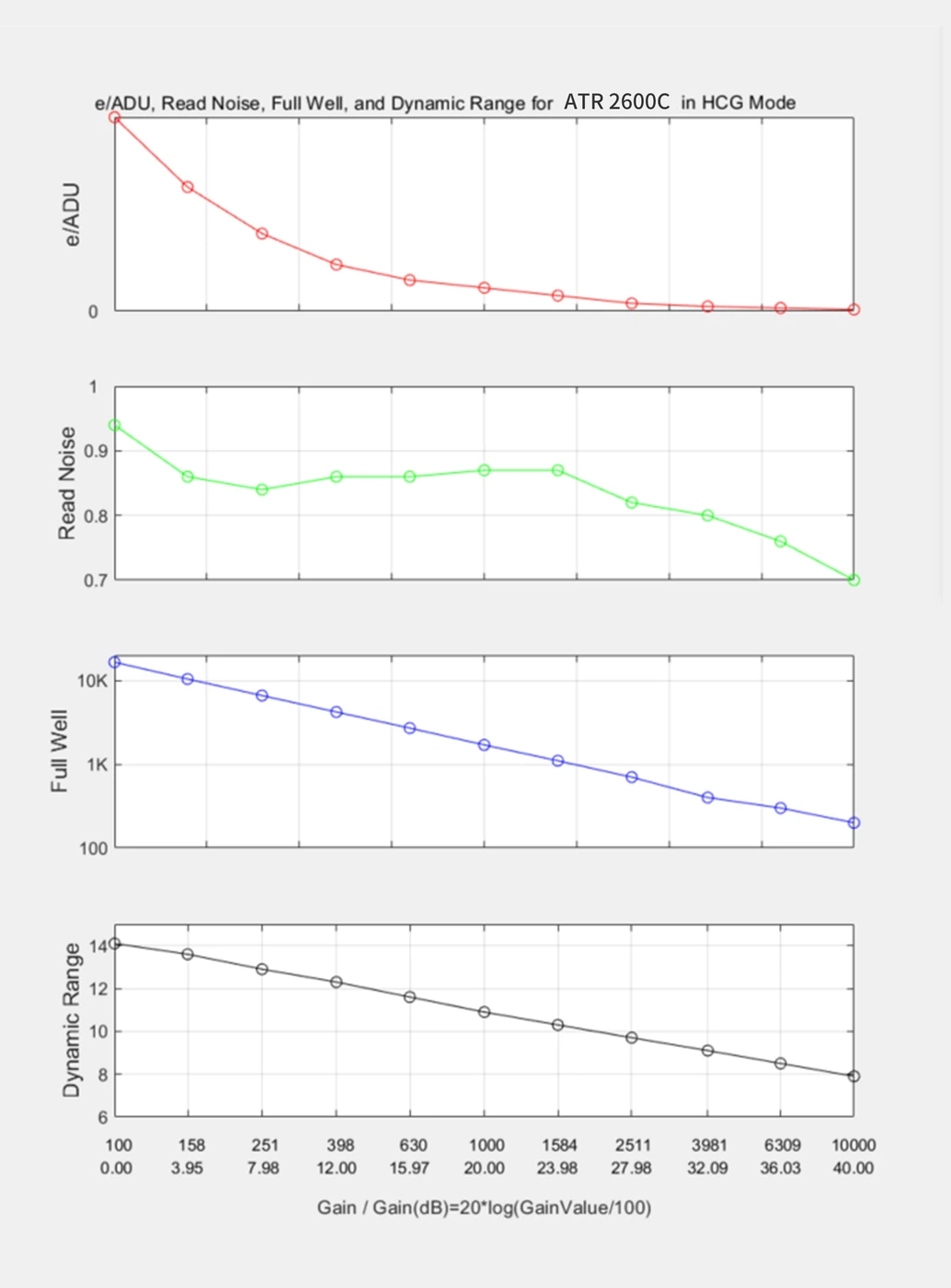

Performance graphs and technical drawings
Official sensor-response, performance, and mechanical imagery for the ATR2600C.
Need help choosing?
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
