Low Light Imaging/Semiconductor Cooled Camera

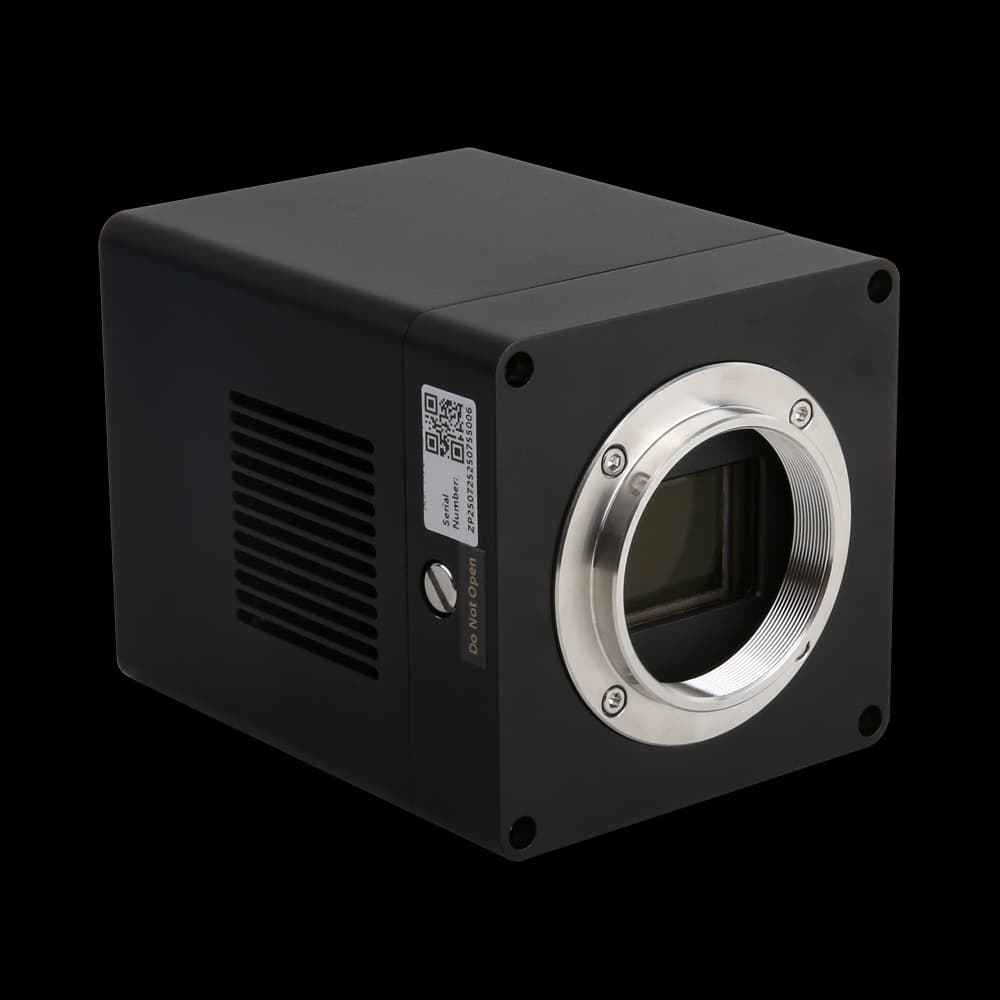

ITR3CMOS26000KPA Low Light Imaging/Semiconductor Cooled Camera with Sony IMX571BQR-C sensor, 26MP (6224×4168) for professional imaging.
Application context
ITR3CMOS26000KPA: The Sony IMX571BQR-C sensor, 26MP (6224×4168) resolution, and 3.76 µm × 3.76 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 14 fps @ 6224×4168; 37 fps @ 3104×2084; 110 fps @ 2064×1388 frame-rate listing also sets the fastest full-frame acquisition regime.
ITR3CMOS26000KPA: The Sony IMX571BQR-C sensor, 26MP (6224×4168) resolution, and 3.76 µm × 3.76 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 14 fps @ 6224×4168; 37 fps @ 3104×2084; 110 fps @ 2064×1388 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
23 specification rows
The ITR3CMOS26000KPA is a low-light & cooled camera in the ITR3CMOS series, built around a Sony IMX571BQR-C sensor, 26MP (6224×4168) resolution, 3.76 µm × 3.76 µm pixels, frame rates up to 14 fps @ 6224×4168; 37 fps @ 3104×2084; 110 fps @ 2064×1388, a USB3.0 interface. It suits low light imaging/semiconductor cooled camera where reliable imaging performance and interface compatibility matter.
| Model | ITR3CMOS26000KPA |
|---|---|
| Sensor | Sony IMX571BQR-C |
| Effective Pixels / Resolution | 26MP (6224×4168) |
| Frame Rate (Full Resolution and Key Resolution Modes) | 14 fps @ 6224×4168; 37 fps @ 3104×2084; 110 fps @ 2064×1388 |
| Exposure Time | 150 µs ~ 1 h |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Pixel Size | 3.76 µm × 3.76 µm |
|---|---|
| Sensor Size | 23.48 mm × 15.67 mm |
| Diagonal | 1.8" (28.23 mm) |
| Dynamic Range | 81.78 dB |
| Bit Depth | 8-bit/16-bit |
| Sensitivity | 485 mV |
| Data Interface | USB3.0 |
|---|---|
| GPIO | 1x optically isolated input, 1x optically isolated output, 2x non-isolated I/O ports |
| Lens Mount | C-mount |
| Dimensions | 80 mm × 80 mm × 101.5 mm |
| Weight | 860 g |
| Power Supply | USB3.0 interface power / DC 12 V power |
| Operating Temperature / Humidity | 10 °C ~ +50 °C / 20%-80% non-condensing |
|---|---|
| Storage Temperature / Humidity | 30 °C ~ +70 °C / Available on request |
| OS Support | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
| Certification | CE/FCC |
System integration
Use these checks to connect ITR3CMOS26000KPA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX571BQR-C · Resolution: 26MP (6224×4168). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 14 fps @ 6224×4168; 37 fps @ 3104×2084; 110 fps @ 2064×1388 · Interface: USB3.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 1x optically isolated input, 1x optically isolated output, 2x non-isolated I/O ports. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: 81.78 dB. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare ITR3CMOS26000KPA with the closest available models in the ITR3CMOS family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | ITR3CMOS26000KPA (current) | ITR3CMOS26000KMA | ITR3CMOS45000KMA |
|---|---|---|---|
| Sensor | Sony IMX571BQR-C | Sony IMX571BLR-J | Sony IMX492LLJ-C |
| Resolution | 26MP (6224×4168) | 26MP (6224×4168) | 45MP (8176×5616) |
| Sensor size | 23.48 mm × 15.67 mm | 23.48 mm × 15.67 mm | 18.93 mm × 13.00 mm |
| Pixel size / frame rate | 3.76 µm × 3.76 µm | 3.76 µm × 3.76 µm | 4.63 µm × 4.63 µm |
The IMX571 appears in 16 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
