Color · Microscopy Camera/Microscope Camera

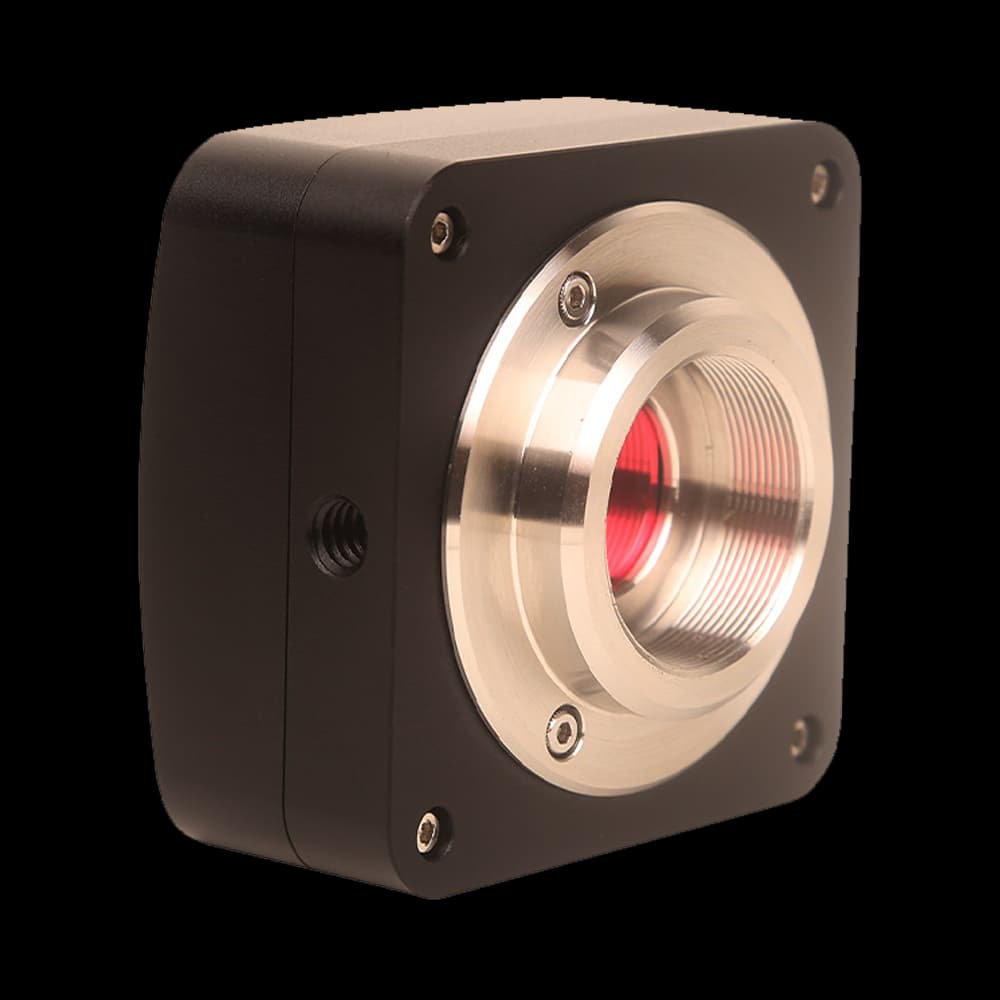

UA1000CA
- Sensor
- IMX577(C)
- Resolution
- 10M (3584×2748)
- Pixel Size
- 1.55 µm × 1.55 µm
- Frame Rate
- 3.3 fps @ 3584×2748; 12 fps @ 1792×1374; 53 fps @ 896×684
- Interface
- USB2.0
Complete Specifications
Sensor & Imaging
| Sensor | IMX577(C) |
|---|---|
| Effective Pixels / Resolution | 10M (3584×2748) |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Pixel Size | 1.55 µm × 1.55 µm |
| Sensor Size | 5.56 mm × 4.26 mm |
| Diagonal | 1/2.5" (7.00 mm) |
| Resolution | 10M (3584×2748) |
Performance
| Frame Rate (Full Resolution) | 3.3 fps @ 3584×2748; 12 fps @ 1792×1374; 53 fps @ 896×684 |
|---|---|
| Dynamic Range | Available on request |
| Bit Depth | 8-bit |
| Sensitivity | 250 mV with 1/30s; 0.25 mV with 1/30s |
| Frame Rate | 3.3 fps @ 3584×2748; 12 fps @ 1792×1374; 53 fps @ 896×684 |
Interface & Connectivity
| Data Interface | USB2.0 |
|---|---|
| GPIO | Available on request |
| Interface | USB2.0 |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Dimensions | Available on request |
| Weight | 0.5~0.55Kg |
| Power Supply | USB powered |
| Operating Temperature / Humidity | 10 °C ~ 50 °C / 30%~80%RH |
| Storage Temperature / Humidity | 20 °C ~ 60 °C / 10%~60%RH |
Other Published Specifications
| Model | UA1000CA |
|---|---|
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
| Certification | CE, FCC |
