Microscopy Camera/Microscope Camera

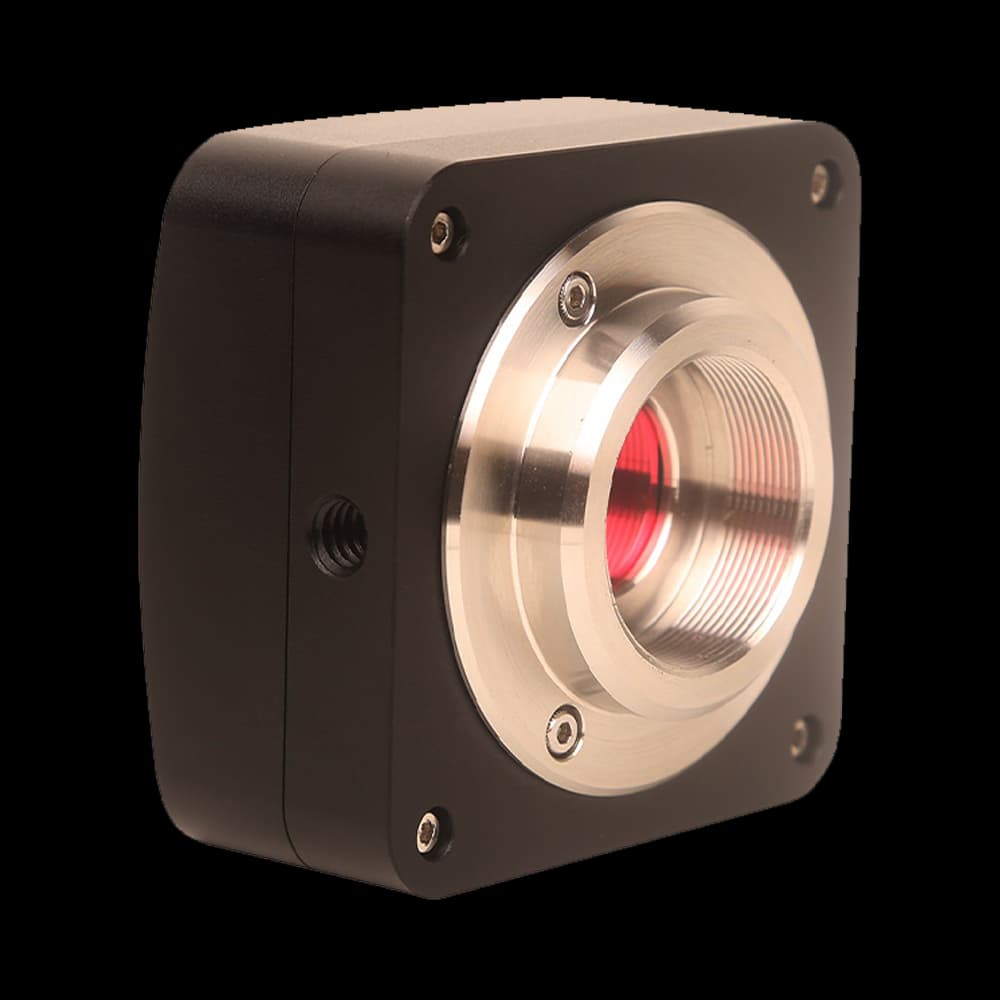

UA1200CA

UA1200CA Microscopy Camera/Microscope Camera with IMX577(C) sensor, 12M (3840×3040) for professional imaging.

Sensor: IMX577(C)
Resolution: 12M (3840×3040)
Pixel Size: 1.55 µm × 1.55 µm
Frame Rate: 3 fps @ 3840×3040; 11 fps @ 1920×1516; 47 fps @ 960×758
Interface: USB2.0

Datasheet (PDF)Back to Microscopy Cameras

Specifications

UA1200CA

22 specification rows

The UA1200CA is a microscopy camera in the UA series, built around a IMX577(C) sensor, 12M (3840×3040) resolution, 1.55 µm × 1.55 µm pixels, frame rates up to 3 fps @ 3840×3040; 11 fps @ 1920×1516; 47 fps @ 960×758, a USB2.0 interface. It suits microscopy camera/microscope camera where reliable imaging performance and interface compatibility matter.

Key Parameters

Model	UA1200CA
Sensor	IMX577(C)
Effective Pixels / Resolution	12M (3840×3040)
Frame Rate (Full Resolution)	3 fps @ 3840×3040; 11 fps @ 1920×1516; 47 fps @ 960×758
Shutter Type	Rolling Shutter
Color Type	Color

Imaging Performance

Pixel Size	1.55 µm × 1.55 µm
Sensor Size	5.95 mm × 4.71 mm
Diagonal	1/2" (7.59 mm)
Dynamic Range	Available on request
Bit Depth	8-bit
Sensitivity	250 mV with 1/30s; 0.25 mV with 1/30s

Interface & Mechanical

Data Interface	USB2.0
GPIO	Available on request
Lens Mount	C-mount
Dimensions	Available on request
Weight	0.5~0.55Kg
Power Supply	USB powered

Environment & Certification

Operating Temperature / Humidity	10 °C ~ 50 °C / 30%~80%RH
Storage Temperature / Humidity	20 °C ~ 60 °C / 10%~60%RH
Operating System	Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.)
Certification	CE, FCC
