Microscopy Camera

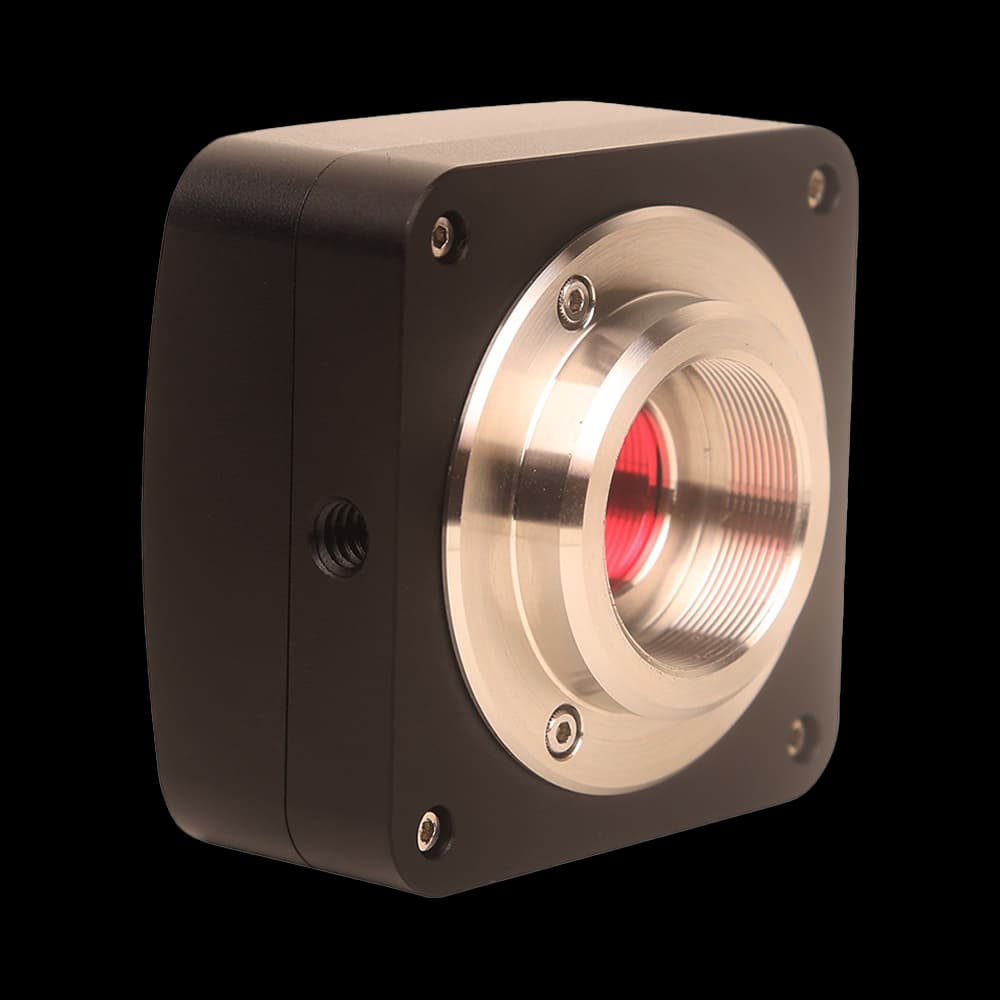

C2CMOS12000KPA Microscopy Camera with IMX577(C) sensor, 12M (3840×3040) for professional imaging.
Application context
C2CMOS12000KPA: The IMX577(C) sensor, 12M (3840×3040) resolution, and 1.55 µm × 1.55 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 20 fps @ 3840×3040; 20 fps @ 1920×1520; 20 fps @ 960×760 frame-rate listing also sets the fastest full-frame acquisition regime.
C2CMOS12000KPA: The IMX577(C) sensor, 12M (3840×3040) resolution, and 1.55 µm × 1.55 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 20 fps @ 3840×3040; 20 fps @ 1920×1520; 20 fps @ 960×760 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
22 specification rows
The C2CMOS12000KPA is a microscopy camera in the C2CMOS series, built around a IMX577(C) sensor, 12M (3840×3040) resolution, 1.55 µm × 1.55 µm pixels, frame rates up to 20 fps @ 3840×3040; 20 fps @ 1920×1520; 20 fps @ 960×760, a USB2.0 interface. It suits microscopy camera where reliable imaging performance and interface compatibility matter.
| Model | C2CMOS12000KPA |
|---|---|
| Sensor | IMX577(C) |
| Effective Pixels / Resolution | 12M (3840×3040) |
| Frame Rate (Full Resolution) | 20 fps @ 3840×3040; 20 fps @ 1920×1520; 20 fps @ 960×760 |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Pixel Size | 1.55 µm × 1.55 µm |
|---|---|
| Sensor Size | 5.95 mm × 4.71 mm |
| Diagonal | 1/2" (7.59 mm) |
| Dynamic Range | 70 dB |
| Bit Depth | MJPEG |
| Sensitivity | 250LSB |
| Data Interface | USB2.0 |
|---|---|
| GPIO | Available on request |
| Lens Mount | C-mount |
| Dimensions | Available on request |
| Weight | 0.5~0.55Kg |
| Power Supply | USB powered |
| Operating Temperature / Humidity | 10 °C ~ 50 °C / 30%~80%RH |
|---|---|
| Storage Temperature / Humidity | 20 °C ~ 60 °C / 10%~60%RH |
| Operating System | Windows/Linux/Mac OS |
| Certification | CE/FCC |
System integration
Use these checks to connect C2CMOS12000KPA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: IMX577(C) · Resolution: 12M (3840×3040). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 20 fps @ 3840×3040; 20 fps @ 1920×1520; 20 fps @ 960×760 · Interface: USB2.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: Available on request. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: 70 dB. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare C2CMOS12000KPA with the closest available models in the C2CMOS family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | C2CMOS12000KPA (current) | C2CMOS08300KPA | C2CMOS05100KPB |
|---|---|---|---|
| Sensor | IMX577(C) | IMX274(C) | IMX335(C) |
| Resolution | 12M (3840×3040) | 8.3M (3840×2160) | 5.1M (2592×1944) |
| Sensor size | 5.95 mm × 4.71 mm | 6.22 mm × 3.50 mm | 5.18 mm × 3.89 mm |
| Pixel size / frame rate | 1.55 µm × 1.55 µm | 1.62 µm × 1.62 µm | 2.0 µm × 2.0 µm |
The IMX577 appears in 15 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
