Industrial Cameras/Analytical Imaging

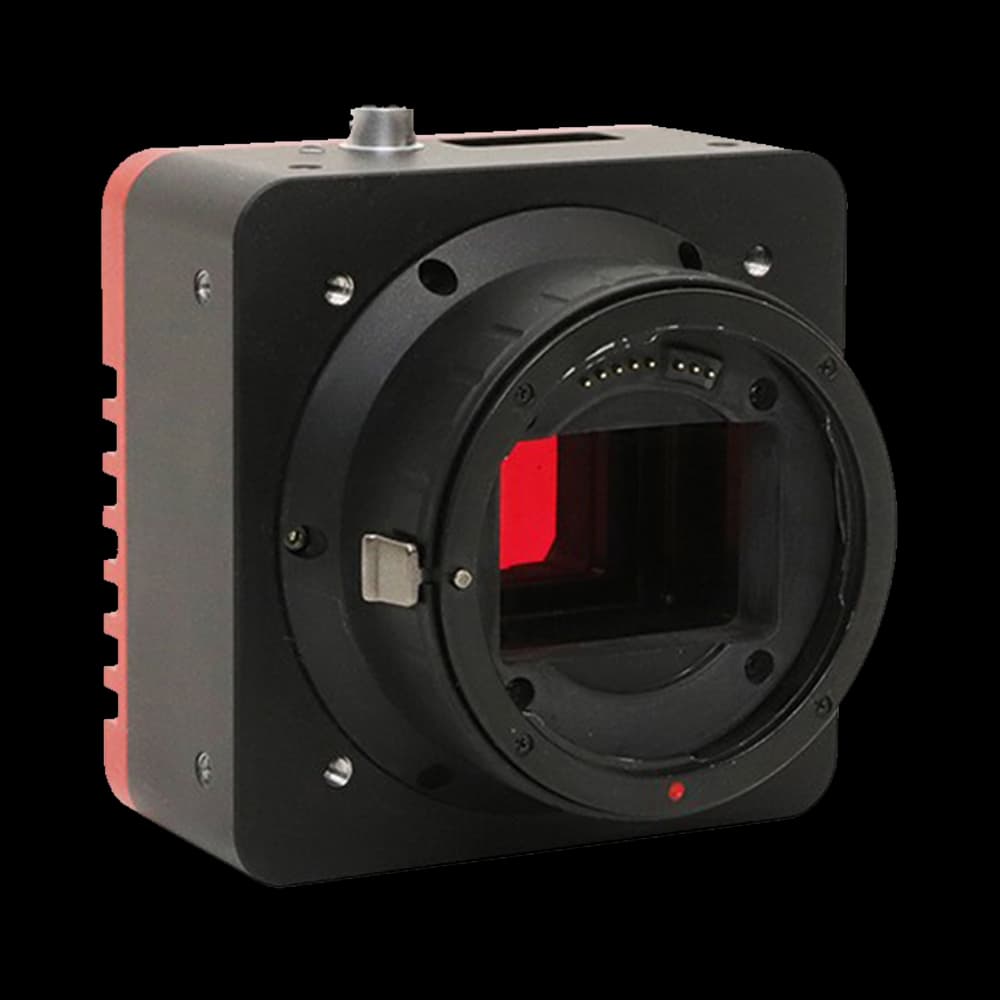

IUC26000KMA-AF10G
IUC26000KMA-AF10G Industrial Cameras/Analytical Imaging with Sony IMX571BLR sensor, 26.0MP (6224×4168) for professional imaging.
- Sensor
- Sony IMX571BLR
- Resolution
- 26.0MP (6224×4168)
- Pixel Size
- 3.76 µm × 3.76 µm
- Frame Rate
- 45 fps @ 6224×4168 (16-bit); 37 fps @ 3104×2084; 110 fps @ 2064×1388
- Interface
- 10GigE
Specifications
IUC26000KMA-AF10G
22 specification rows
The IUC26000KMA-AF10G is a industrial & analytical camera in the IUC AFU EF series, built around a Sony IMX571BLR sensor, 26.0MP (6224×4168) resolution, 3.76 µm × 3.76 µm pixels, frame rates up to 45 fps @ 6224×4168 (16-bit); 37 fps @ 3104×2084; 110 fps @ 2064×1388, a 10GigE interface. It suits industrial cameras/analytical imaging where reliable imaging performance and interface compatibility matter.
Key Parameters
| Model | IUC26000KMA-AF10G |
|---|---|
| Sensor | Sony IMX571BLR |
| Effective Pixels / Resolution | 26.0MP (6224×4168) |
| Frame Rate (Full Resolution) | 45 fps @ 6224×4168 (16-bit); 37 fps @ 3104×2084; 110 fps @ 2064×1388 |
| Shutter Type | Rolling Shutter |
| Color Type | Monochrome |
Imaging Performance
| Pixel Size | 3.76 µm × 3.76 µm |
|---|---|
| Sensor Size | 23.48 mm × 15.67 mm |
| Diagonal | 1.8" (28.23 mm) |
| Dynamic Range | 84.42 dB (HCG) 86.58 dB (LCG) |
| Bit Depth | 8/16-bit |
| Sensitivity | 870.9 mV |
Interface & Mechanical
| Data Interface | 10GigE |
|---|---|
| GPIO | 1× optically isolated input, 1× optically isolated output, 2× non-isolated I/O |
| Lens Mount | M42 mount |
| Dimensions | 88 mm × 88 mm × 51.3 mm |
| Weight | 540 g |
| Power Supply | DC 12 V |
Environment & Certification
| Operating Temperature / Humidity | 10 °C to +50 °C / 20% to 80% non-condensing |
|---|---|
| Storage Temperature / Humidity | 30 °C to +70 °C / Available on request |
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
| Certification | CE/FCC |
