Industrial Cameras/Analytical Imaging

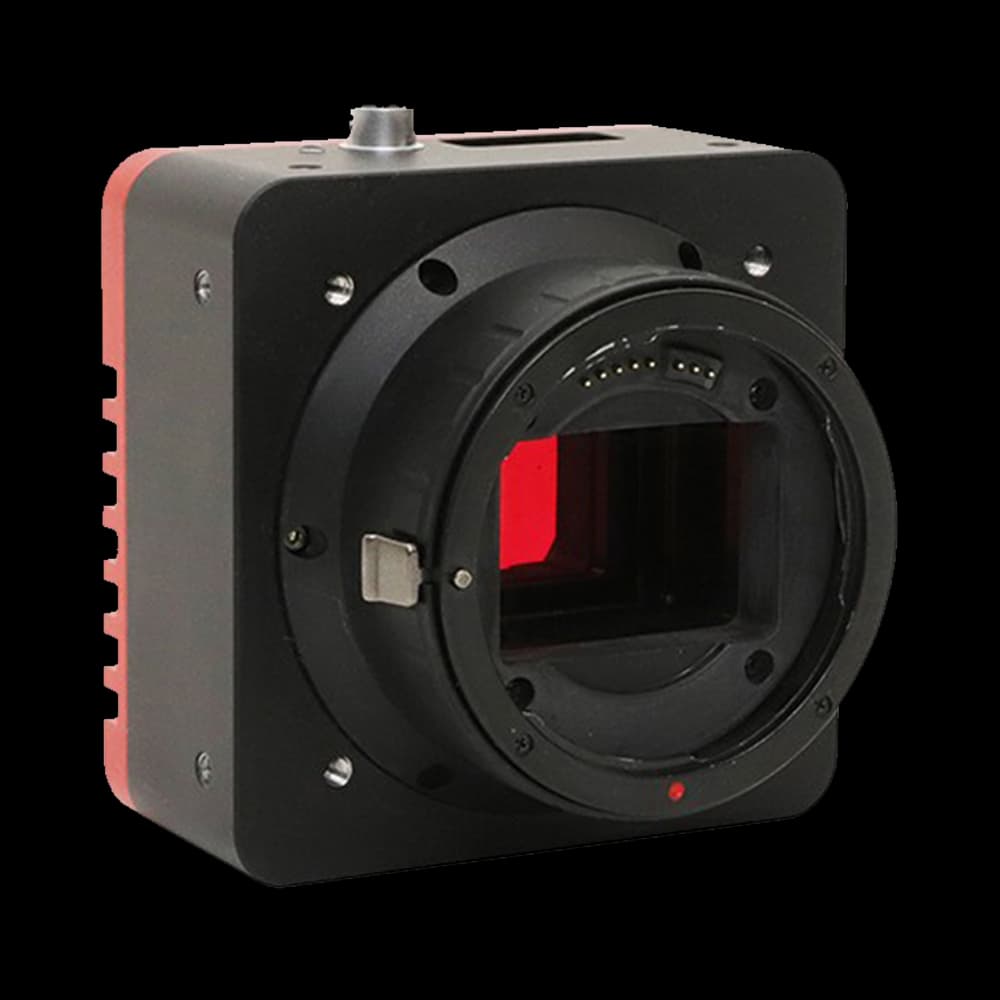

IUC26000KMA-AFU Industrial Cameras/Analytical Imaging with Sony IMX571BLR sensor, 26.0MP (6224×4168) for professional imaging.
Application context
IUC26000KMA-AFU: The Sony IMX571BLR sensor, 26.0MP (6224×4168) resolution, and 3.76 µm × 3.76 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 14 fps @ 6224×4168 (16-bit); 37 fps @ 3104×2084; 110 fps @ 2064×1388 frame-rate listing also sets the fastest full-frame acquisition regime.
IUC26000KMA-AFU: The Sony IMX571BLR sensor, 26.0MP (6224×4168) resolution, and 3.76 µm × 3.76 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 14 fps @ 6224×4168 (16-bit); 37 fps @ 3104×2084; 110 fps @ 2064×1388 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
22 specification rows
The IUC26000KMA-AFU is an industrial & analytical camera in the IUC AFU EF series, built around a Sony IMX571BLR sensor, 26.0MP (6224×4168) resolution, 3.76 µm × 3.76 µm pixels, frame rates up to 14 fps @ 6224×4168 (16-bit); 37 fps @ 3104×2084; 110 fps @ 2064×1388, a USB3.0 interface. It suits industrial cameras/analytical imaging where reliable imaging performance and interface compatibility matter.
| Model | IUC26000KMA-AFU |
|---|---|
| Sensor | Sony IMX571BLR |
| Effective Pixels / Resolution | 26.0MP (6224×4168) |
| Frame Rate (Full Resolution) | 14 fps @ 6224×4168 (16-bit); 37 fps @ 3104×2084; 110 fps @ 2064×1388 |
| Shutter Type | Rolling Shutter |
| Color Type | Monochrome |
| Pixel Size | 3.76 µm × 3.76 µm |
|---|---|
| Sensor Size | 23.48 mm × 15.67 mm |
| Diagonal | 1.8" (28.23 mm) |
| Dynamic Range | 84.42 dB (HCG) 86.58 dB (LCG) |
| Bit Depth | 8/16-bit |
| Sensitivity | 870.9 mV |
| Data Interface | USB3.0 |
|---|---|
| GPIO | 1× optically isolated input, 1× optically isolated output, 2× non-isolated I/O |
| Lens Mount | M42 mount |
| Dimensions | 88 mm × 88 mm × 36.3 mm |
| Weight | 540 g |
| Power Supply | DC 12 V |
| Operating Temperature / Humidity | 10 °C to +50 °C / 20% to 80% non-condensing |
|---|---|
| Storage Temperature / Humidity | 30 °C to +70 °C / Available on request |
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
| Certification | CE/FCC |
System integration
Use these checks to connect IUC26000KMA-AFU to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: M42 mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX571BLR · Resolution: 26.0MP (6224×4168). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 14 fps @ 6224×4168 (16-bit); 37 fps @ 3104×2084; 110 fps @ 2064×1388 · Interface: USB3.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 1× optically isolated input, 1× optically isolated output, 2× non-isolated I/O. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: 84.42 dB (HCG) 86.58 dB (LCG). Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare IUC26000KMA-AFU with the closest available models in the IUC AFU EF family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | IUC26000KMA-AFU (current) | IUC26000KMA-AF10G | IUC26000KPA-AF10G |
|---|---|---|---|
| Sensor | Sony IMX571BLR | Sony IMX571BLR | Sony IMX571BQR |
| Resolution | 26.0MP (6224×4168) | 26.0MP (6224×4168) | 26.0MP (6224×4168) |
| Sensor size | 23.48 mm × 15.67 mm | 23.48 mm × 15.67 mm | 23.48 mm × 15.67 mm |
| Pixel size / frame rate | 3.76 µm × 3.76 µm | 3.76 µm × 3.76 µm | 3.76 µm × 3.76 µm |
The IMX571 appears in 16 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
