Monochrome · Industrial & Analytical Camera

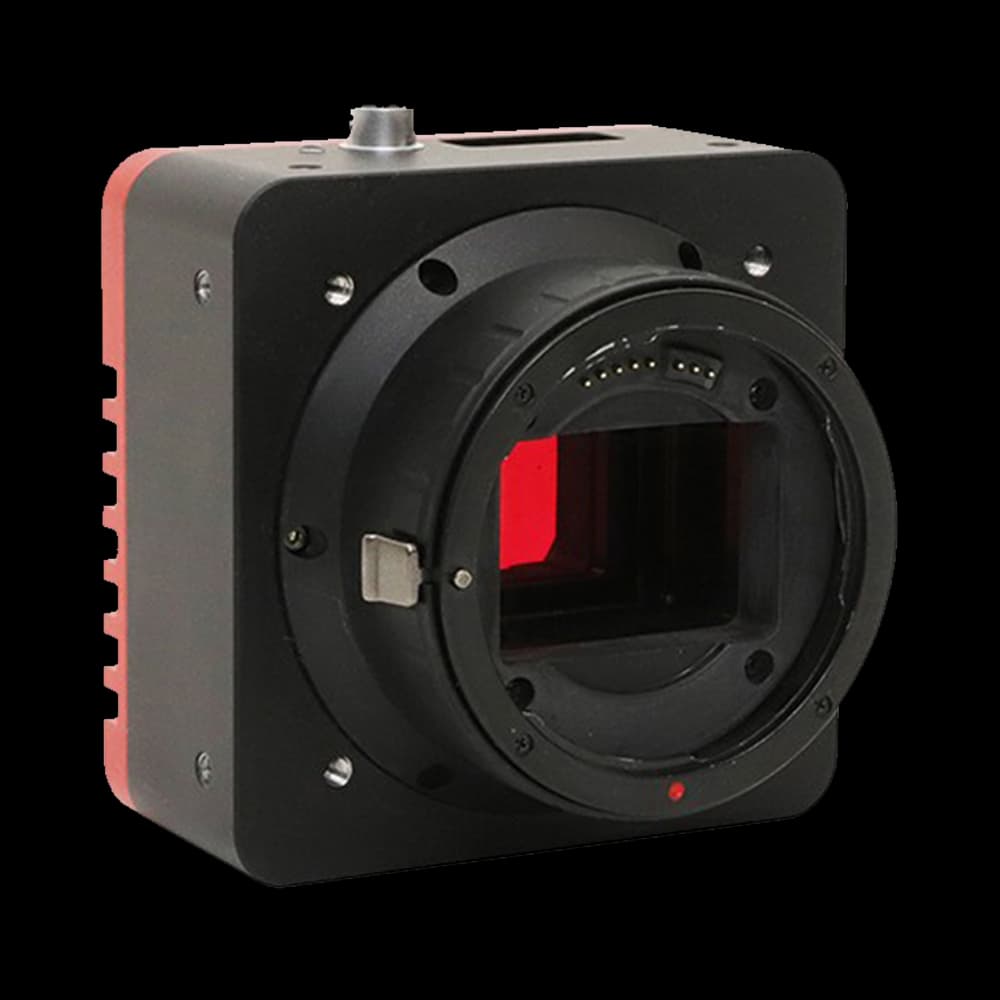

IUC26000KMA-AFU-10G
- Sensor
- Sony IMX571BLR
- Resolution
- 26.0MP (6224×4168)
- Pixel Size
- 3.76 µm × 3.76 µm
- Frame Rate
- 45 fps @ 6224×4168 (16-bit); 37 fps @ 3104×2084; 110 fps @ 2064×1388
- Interface
- 10GigE
Complete Specifications
Sensor & Imaging
| Sensor | Sony IMX571BLR |
|---|---|
| Effective Pixels / Resolution | 26.0MP (6224×4168) |
| Shutter Type | Rolling Shutter |
| Color Type | Monochrome |
| Pixel Size | 3.76 µm × 3.76 µm |
| Sensor Size | 23.48 mm × 15.67 mm |
| Diagonal | 1.8" (28.23 mm) |
| Resolution | 26.0MP (6224×4168) |
Performance
| Frame Rate (Full Resolution) | 45 fps @ 6224×4168 (16-bit); 37 fps @ 3104×2084; 110 fps @ 2064×1388 |
|---|---|
| Dynamic Range | 84.42 dB (HCG) 86.58 dB (LCG) |
| Bit Depth | 8/16-bit |
| Sensitivity | 870.9 mV |
| Frame Rate | 45 fps @ 6224×4168 (16-bit); 37 fps @ 3104×2084; 110 fps @ 2064×1388 |
Interface & Connectivity
| Data Interface | 10GigE |
|---|---|
| GPIO | 1× optically isolated input, 1× optically isolated output, 2× non-isolated I/O |
| Interface | 10GigE |
Cooling & Mechanical
| Lens Mount | M42 mount |
|---|---|
| Dimensions | 88 mm × 88 mm × 51.3 mm |
| Weight | 540 g |
| Power Supply | DC 12 V |
| Operating Temperature / Humidity | -10 °C to +50 °C / 20% to 80% non-condensing |
| Storage Temperature / Humidity | -30 °C to +70 °C / Available on request |
Other Published Specifications
| Model | IUC26000KMA-AFU-10G |
|---|---|
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
| Certification | CE/FCC |
Technical Files & Images
Related Products
| Selection parameter | IUC26000KMA-AFU-10G (current) | IUC26000KMA-AF10GSame IMX571 sensor | IUC26000KMA-AFUSame IMX571 sensor | IUC26000KPA-AF10GSame IMX571 sensor |
|---|---|---|---|---|
| Sensor | Sony IMX571BLR | Sony IMX571BLR | Sony IMX571BLR | Sony IMX571BQR |
| Image type | Monochrome | Monochrome | Monochrome | Color |
| Resolution | 26.0MP (6224×4168) | 26.0MP (6224×4168) | 26.0MP (6224×4168) | 26.0MP (6224×4168) |
| Pixel size | 3.76 µm × 3.76 µm | 3.76 µm × 3.76 µm | 3.76 µm × 3.76 µm | 3.76 µm × 3.76 µm |
| Frame / line rate | 45 fps @ 6224×4168 (16-bit); 37 fps @ 3104×2084; 110 fps @ 2064×1388 | 45 fps @ 6224×4168 (16-bit); 37 fps @ 3104×2084; 110 fps @ 2064×1388 | 14 fps @ 6224×4168 (16-bit); 37 fps @ 3104×2084; 110 fps @ 2064×1388 | 45 fps @ 6224×4168 (16-bit); 37 fps @ 3104×2084; 110 fps @ 2064×1388 |
| Interface | 10GigE | 10GigE | USB3.0 | 10GigE |
| Cooling / shutter | Rolling Shutter | Rolling Shutter | Rolling Shutter | Rolling Shutter |
