Microscopy Camera/Microscope Camera

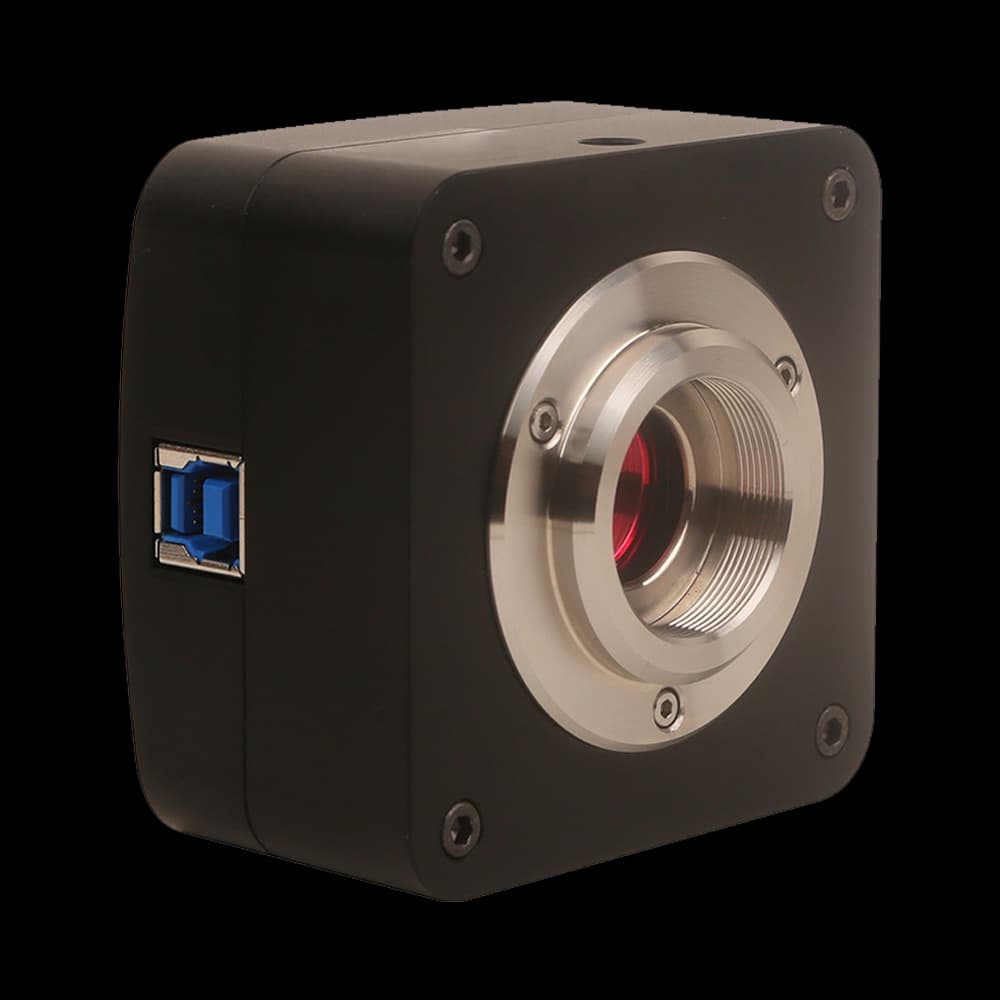

U3CCD09000KMA

U3CCD09000KMA Microscopy Camera/Microscope Camera with ICX814ALG CCD (M) sensor, 9MP (3388×2712) for professional imaging.

Sensor: ICX814ALG CCD (M)
Resolution: 9MP (3388×2712)
Pixel Size: 3.69 µm × 3.69 µm
Frame Rate: 4.4 fps @ 3388×2712; 4.4 fps @ 1694×1356
Interface: USB3.0

Datasheet (PDF)Back to Microscopy Cameras

Specifications

U3CCD09000KMA

23 specification rows

The U3CCD09000KMA is a microscopy camera in the U3CCD series, built around a ICX814ALG CCD (M) sensor, 9MP (3388×2712) resolution, 3.69 µm × 3.69 µm pixels, frame rates up to 4.4 fps @ 3388×2712; 4.4 fps @ 1694×1356, a USB3.0 interface. It suits microscopy camera/microscope camera where reliable imaging performance and interface compatibility matter.

Key Parameters

Model	U3CCD09000KMA
Sensor	ICX814ALG CCD (M)
Effective Pixels / Resolution	9MP (3388×2712)
Frame Rate (Full Resolution)	4.4 fps @ 3388×2712; 4.4 fps @ 1694×1356
Exposure Time	0.06 ms ~ 1000 s
Shutter Type	Rolling Shutter
Color Type	Monochrome

Imaging Performance

Pixel Size	3.69 µm × 3.69 µm
Sensor Size	12.47 mm × 9.98 mm
Diagonal	1" (15.97 mm)
Dynamic Range	Available on request
Bit Depth	8-bit/14-bit
Sensitivity	660 mv with 1/30s

Interface & Mechanical

Data Interface	USB3.0
GPIO	Available on request
Lens Mount	C-mount
Dimensions	Available on request
Weight	0.67~0.75 Kg
Power Supply	USB3.0 Power Supply

Environment & Certification

Operating Temperature / Humidity	10 °C ~ +50 °C / 30%~80%RH
Storage Temperature / Humidity	20 °C ~ +60 °C / 10%~60%RH
Operating System	Windows XP/Vista/7/8/10/11(32&64-bit)/OS X/Linux
Certification	CE, FCC
