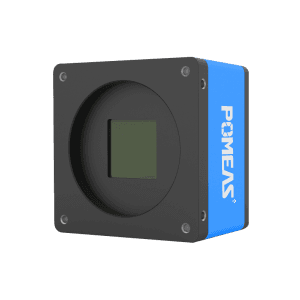

Color · Large-format Gigabit Ethernet industrial camera
PMS-CCN-120H15CSF
- Sensor
- PYTHON 12K CMOS
- Resolution
- 12 MP (4096×3072)
- Pixel Size
- 4.5 µm × 4.5 µm
- Frame Rate
- 9 fps @ 4096×3072
- Interface
- GigE (Gigabit Ethernet), 1 Gbit/s
Complete Specifications
Sensor & Imaging
| Sensor | PYTHON 12K CMOS |
|---|---|
| Sensor Format | 4/3" |
| Shutter Type | Global shutter |
| Resolution | 12 MP (4096×3072) |
| Pixel Size | 4.5 µm × 4.5 µm |
| Color Type | Color |
| Bad Pixel Correction | Supported |
Performance
| Frame Rate | 9 fps @ 4096×3072 |
|---|---|
| Bit Depth | 10 bit |
| Signal-to-noise Ratio | >41 dB |
| Dynamic Range | 58 dB |
| Gain Range | 1×-32× |
| Exposure Time | 1 µs-1 s |
| Image Buffer | 256 MB |
| Memory Channel | 2 groups of user-defined configurations |
Interface & Connectivity
| Interface | GigE (Gigabit Ethernet), 1 Gbit/s |
|---|---|
| Published Camera Output | Colour Camera |
| GPIO | 3 opto-isolated inputs; 3 opto-isolated outputs; 1 RS232 serial interface |
| Optional Lens Interfaces | F-mount or V-mount (product-page options) |
Cooling & Mechanical

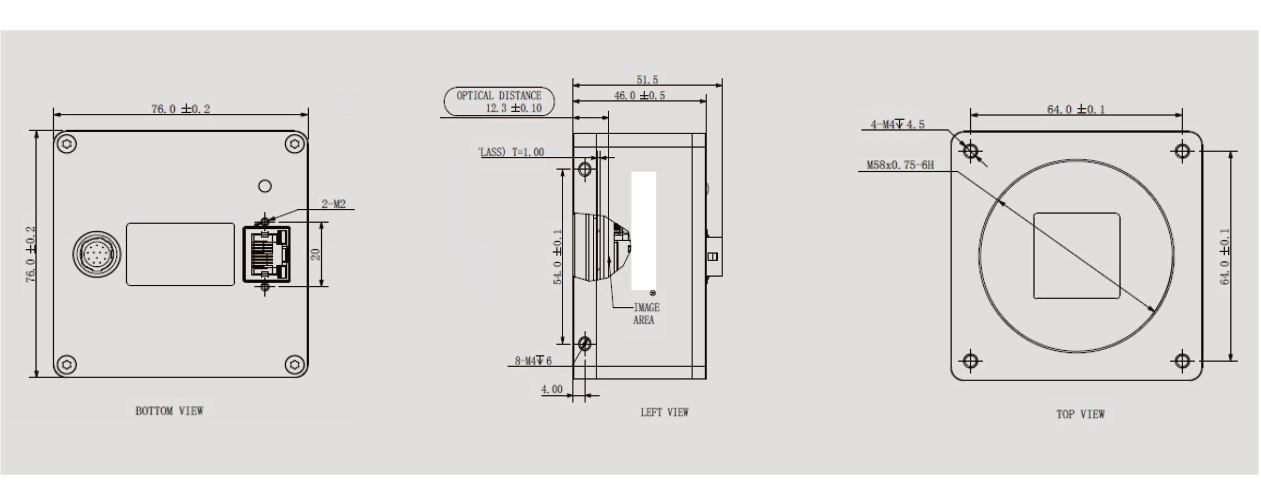

| Power Supply | DC 12-26 V via 12-pin Hirose connector |
|---|---|
| Power Consumption | Approximately 9 W at 24 V |
| Operating Temperature | -30 °C to +50 °C |
| Storage Temperature | -30 °C to +80 °C |
| Dimensions | 72 × 72 × 46 mm, excluding backshell interface |
| Weight | 430 g |
| Lens Mount | M58×0.75 |
Other Published Specifications
| Maximum Cable Length | 100 m without a repeater |
|---|---|
| Protocol Compatibility | GigE Vision V2.0; GenICam |
| Gamma | 0-4; LUT supported |
| Flat Field Correction | Supported |
| Image Format | Mono8; BayerRG8/10/10Packed; BayerGB8/10/10Packed; YUV422Packed |
| X Flip | Supported |
| Y Flip | Supported |
| ROI | Supported |
| SPC | Supported |
| White Balance | Supported |
| Image Acquisition Mode | Software trigger / hardware trigger / free run |
| Flange Back Length | 12.3 mm |
| Feature 1 | Gigabit Ethernet transfers uncompressed image data over cables up to 100 m without a repeater. |
| Feature 2 | Automatic or manual gain, exposure and gamma adjustment; lookup-table processing. |
| Feature 3 | GigE Vision V2.0 and GenICam compatibility for third-party software integration. |
| Applications | Machine vision; Industrial inspection; Microscopic imaging; Visual positioning; Dimensional measurement |
Other Published Specifications — I/O Connector Pinout
| Pin | Signal | Description |
|---|---|---|
| 1 | GND | Camera power ground |
| 2 | Power | Camera power |
| 3 | RXD RS232 | Serial receive |
| 4 | TXD RS232 | Serial transmit |
| 5 | Line1 | Opto-isolated input 1 |
| 6 | Line2 | Opto-isolated input 2 |
| 7 | Line3 | Opto-isolated input 3 |
| 8 | OPT_IN_GND | Optocoupler input ground; do not connect to power supply |
| 9 | Line1 | Opto-isolated output 1 |
| 10 | Line2 | Opto-isolated output 2 |
| 11 | Line3 | Opto-isolated output 3 |
| 12 | GNOPT_OUT_GND | Optocoupler output ground; do not connect to power supply |
Technical Files & Images

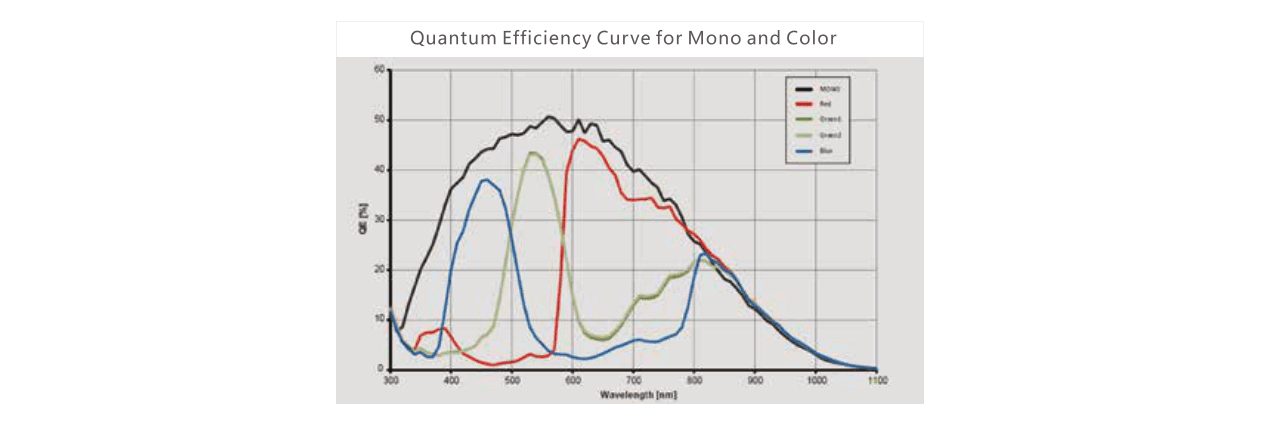

Technical images (2)
Related Products
| Selection parameter | PMS-CCN-120H15CSF (current) | PMS-CCN-120H15BSFSame Large-format Gigabit Ethernet cameras series |
|---|---|---|
| Sensor | PYTHON 12K CMOS | 4/3" CMOS |
| Image type | Color | — |
| Resolution | 12 MP (4096×3072) | 12 MP (4096×3072) |
| Pixel size | 4.5 µm × 4.5 µm | 4.5 µm × 4.5 µm |
| Frame / line rate | 9 fps @ 4096×3072 | 9 fps @ 4096×3072 |
| Interface | GigE (Gigabit Ethernet), 1 Gbit/s | GigE (Gigabit Ethernet), 1 Gbit/s |
| Cooling / shutter | Global shutter | Global shutter |
