Industrial Cameras/Analytical Imaging

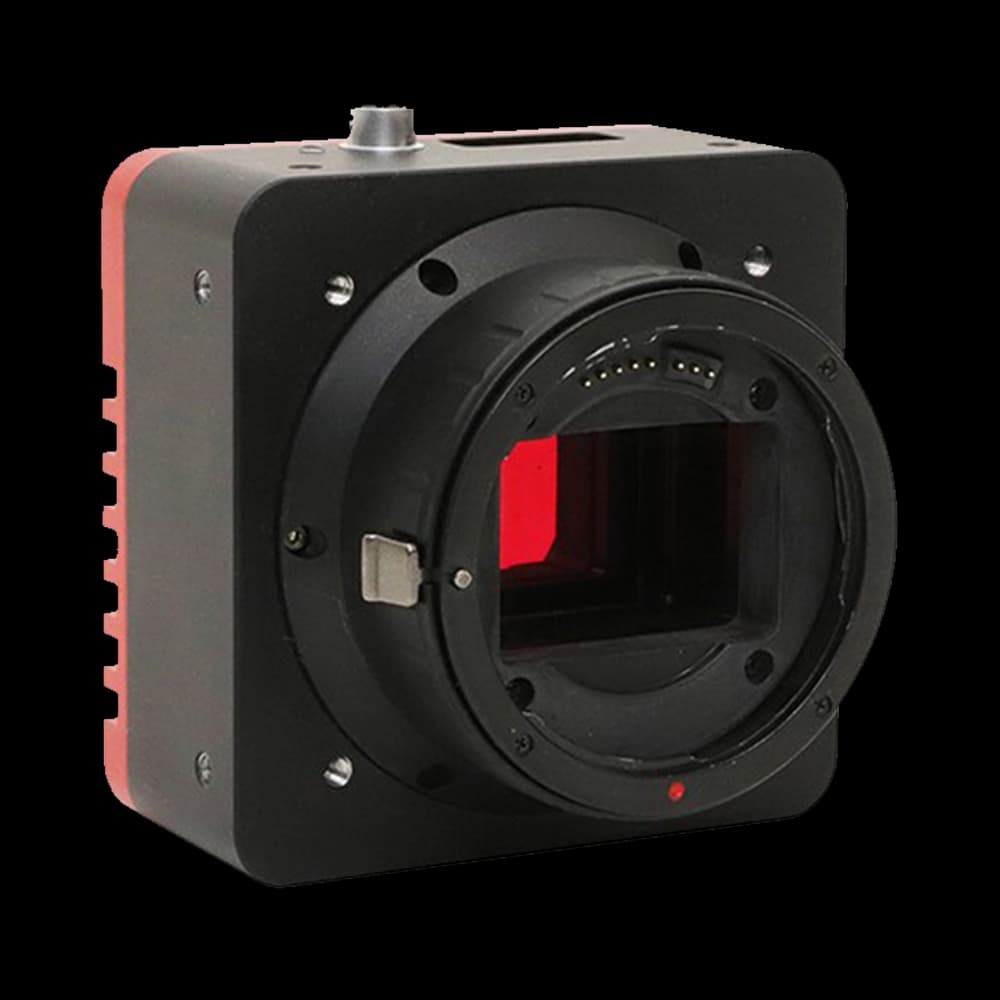

IUC60000KPA-AF10G Industrial Cameras/Analytical Imaging with Sony IMX455AQK sensor, 60.0MP (9568×6380) for professional imaging.
Application context
IUC60000KPA-AF10G: The Sony IMX455AQK sensor, 60.0MP (9568×6380) resolution, and 3.76 µm × 3.76 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 20 fps @ 9568×6380 (16-bit); 40 fps @ 4784×3190; 57.52 fps @ 3184×2124; 199.37 fps @ 1040×706 frame-rate listing also sets the fastest full-frame acquisition regime.
IUC60000KPA-AF10G: The Sony IMX455AQK sensor, 60.0MP (9568×6380) resolution, and 3.76 µm × 3.76 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 20 fps @ 9568×6380 (16-bit); 40 fps @ 4784×3190; 57.52 fps @ 3184×2124; 199.37 fps @ 1040×706 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
22 specification rows
The IUC60000KPA-AF10G is an industrial & analytical camera in the IUC AFU EF series, built around a Sony IMX455AQK sensor, 60.0MP (9568×6380) resolution, 3.76 µm × 3.76 µm pixels, frame rates up to 20 fps @ 9568×6380 (16-bit); 40 fps @ 4784×3190; 57.52 fps @ 3184×2124; 199.37 fps @ 1040×706, a 10GigE interface. It suits industrial cameras/analytical imaging where reliable imaging performance and interface compatibility matter.
| Model | IUC60000KPA-AF10G |
|---|---|
| Sensor | Sony IMX455AQK |
| Effective Pixels / Resolution | 60.0MP (9568×6380) |
| Frame Rate (Full Resolution) | 20 fps @ 9568×6380 (16-bit); 40 fps @ 4784×3190; 57.52 fps @ 3184×2124; 199.37 fps @ 1040×706 |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Pixel Size | 3.76 µm × 3.76 µm |
|---|---|
| Sensor Size | 35.96 mm × 23.99 mm |
| Diagonal | 1.8" (43.23 mm) |
| Dynamic Range | 83.34 dB (HCG) 84.18 dB (LCG) |
| Bit Depth | 8/16-bit |
| Sensitivity | 484.5 mV |
| Data Interface | 10GigE |
|---|---|
| GPIO | 1× optically isolated input, 1× optically isolated output, 2× non-isolated I/O |
| Lens Mount | M52 mount |
| Dimensions | 88 mm × 88 mm × 51.3 mm |
| Weight | 540 g |
| Power Supply | DC 12 V |
| Operating Temperature / Humidity | 10 °C to +50 °C / 20% to 80% non-condensing |
|---|---|
| Storage Temperature / Humidity | 30 °C to +70 °C / Available on request |
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
| Certification | CE/FCC |
System integration
Use these checks to connect IUC60000KPA-AF10G to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: M52 mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX455AQK · Resolution: 60.0MP (9568×6380). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 20 fps @ 9568×6380 (16-bit); 40 fps @ 4784×3190; 57.52 fps @ 3184×2124; 199.37 fps @ 1040×706 · Interface: 10GigE. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 1× optically isolated input, 1× optically isolated output, 2× non-isolated I/O. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: 83.34 dB (HCG) 84.18 dB (LCG). Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare IUC60000KPA-AF10G with the closest available models in the IUC AFU EF family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | IUC60000KPA-AF10G (current) | IUC60000KMA-AFU | IUC60000KPA-AFU |
|---|---|---|---|
| Sensor | Sony IMX455AQK | Sony IMX455ALK | Sony IMX455AQK |
| Resolution | 60.0MP (9568×6380) | 60.0MP (9568×6380) | 60.0MP (9568×6380) |
| Sensor size | 35.96 mm × 23.99 mm | 35.96 mm × 23.99 mm | 35.96 mm × 23.99 mm |
| Pixel size / frame rate | 3.76 µm × 3.76 µm | 3.76 µm × 3.76 µm | 3.76 µm × 3.76 µm |
The IMX455 appears in 11 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
