Industrial Camera/Analytical Imaging

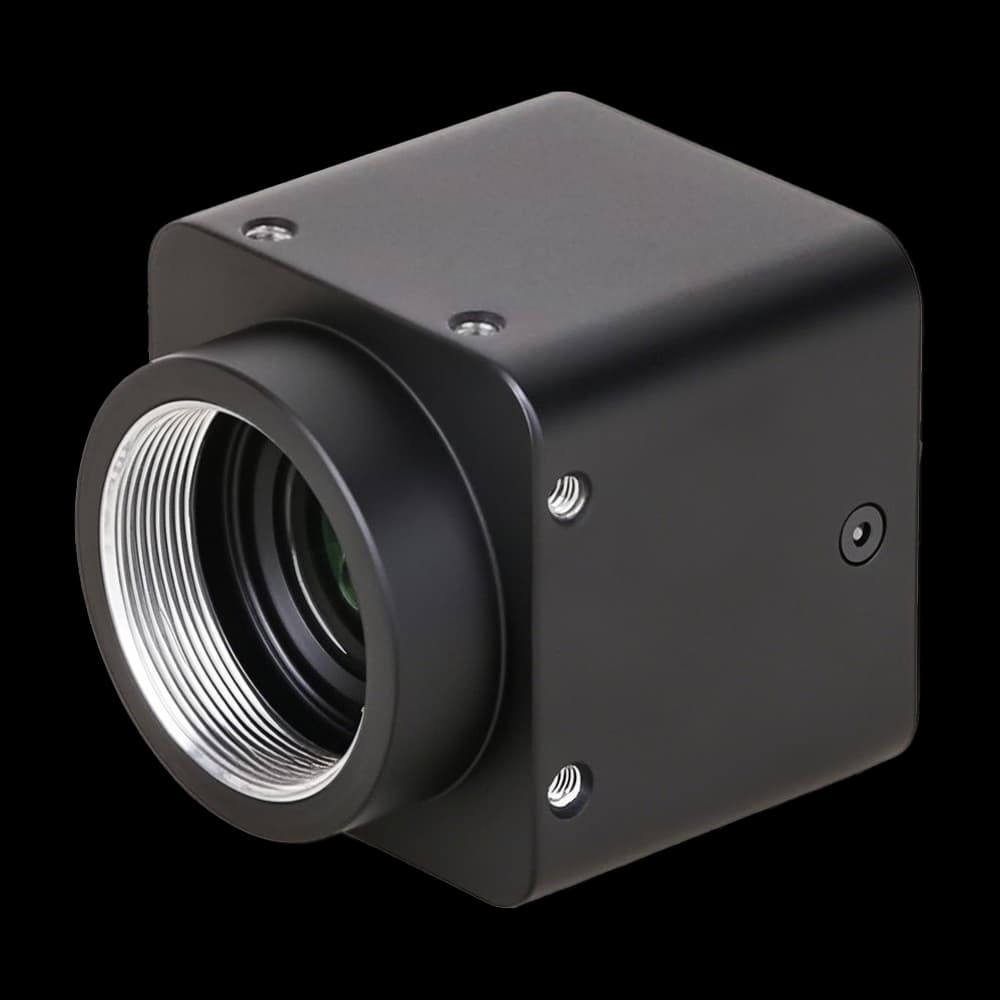

I3CMOS05100KMA Industrial Camera/Analytical Imaging with Gpixel GMAX3405 sensor, 5.1 MP (2448×2048) for professional imaging.
Application context
I3CMOS05100KMA: The Gpixel GMAX3405 sensor, 5.1 MP (2448×2048) resolution, and 3.4 µm × 3.4 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 71 fps @ 2448×2048; 100 fps @ 1224×1024 frame-rate listing also sets the fastest full-frame acquisition regime.
I3CMOS05100KMA: The Gpixel GMAX3405 sensor, 5.1 MP (2448×2048) resolution, and 3.4 µm × 3.4 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 71 fps @ 2448×2048; 100 fps @ 1224×1024 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
23 specification rows
The I3CMOS05100KMA is an industrial & analytical camera in the I3CMOS series, built around a Gpixel GMAX3405 sensor, 5.1 MP (2448×2048) resolution, 3.4 µm × 3.4 µm pixels, frame rates up to 71 fps @ 2448×2048; 100 fps @ 1224×1024, a USB3.0 interface. It suits industrial camera/analytical imaging where reliable imaging performance and interface compatibility matter.
| Model | I3CMOS05100KMA |
|---|---|
| Sensor | Gpixel GMAX3405 |
| Effective Pixels / Resolution | 5.1 MP (2448×2048) |
| Frame Rate (Full Resolution) | 71 fps @ 2448×2048; 100 fps @ 1224×1024 |
| Exposure Time | 10 µs ~ 15 s |
| Shutter Type | Global Shutter |
| Color Type | Monochrome |
| Pixel Size | 3.4 µm × 3.4 µm |
|---|---|
| Sensor Size | 8.32 mm × 6.96 mm |
| Diagonal | 2/3" (10.85 mm) |
| Dynamic Range | 73.6 dB |
| Bit Depth | 8/12-bit |
| Sensitivity | 2.36×10^7 e-/((W/m²)·s) |
| Data Interface | USB3.0 |
|---|---|
| GPIO | 1 opto-isolated input, 1 opto-isolated output, 1 non-isolated I/O port |
| Lens Mount | C-mount |
| Dimensions | 33 mm × 33 mm × 33 mm |
| Weight | 70 g |
| Power Supply | USB3.0 interface powered |
| Operating Temperature / Humidity | 10 °C to +50 °C / 20% to 80% (non-condensing) |
|---|---|
| Storage Temperature / Humidity | 30 °C to +70 °C / Available on request |
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
| Certification | CE/FCC |
System integration
Use these checks to connect I3CMOS05100KMA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Gpixel GMAX3405 · Resolution: 5.1 MP (2448×2048). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 71 fps @ 2448×2048; 100 fps @ 1224×1024 · Interface: USB3.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 1 opto-isolated input, 1 opto-isolated output, 1 non-isolated I/O port. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: 73.6 dB. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare I3CMOS05100KMA with the closest available models in the I3CMOS family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | I3CMOS05100KMA (current) | I3CMOS05000KMC | I3CMOS05100KMB-CXP |
|---|---|---|---|
| Sensor | Gpixel GMAX3405 | Sony IMX250MZR (Polarsens) | Sony IMX547-AAMJ-C |
| Resolution | 5.1 MP (2448×2048) | 5.0 MP (2448×2048) | 5.1 MP (2432×2048) |
| Sensor size | 8.32 mm × 6.96 mm | 8.45 mm × 7.07 mm | 6.71 mm × 5.61 mm |
| Pixel size / frame rate | 3.4 µm × 3.4 µm | 3.45 µm × 3.45 µm | 2.74 µm × 2.74 µm |
The GMAX3405 appears in 2 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
