Industrial Camera/Analytical Imaging

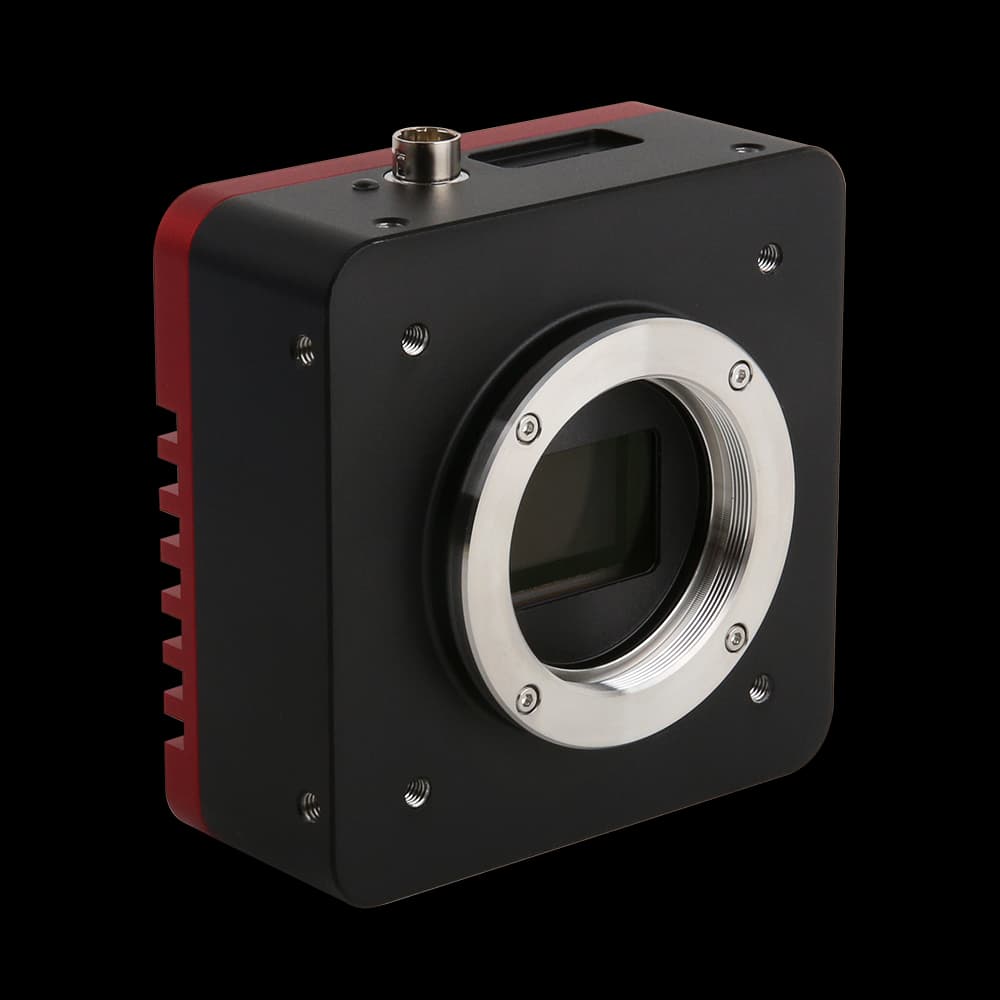

IUC20400KMA-10G Industrial Camera/Analytical Imaging with Sony IMX531-AAMJ-C sensor, 20.4MP (4480×4480) for professional imaging.
Application context
IUC20400KMA-10G: The Sony IMX531-AAMJ-C sensor, 20.4MP (4480×4480) resolution, and 2.74 µm × 2.74 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 52.5 fps @ 4480×4480 (8-bit); 149 fps @ 2240×2240 (8-bit); 28 fps @ 4480×4480 (12-bit); 100 fps @ 2240×2240 (12-bit) frame-rate listing also sets the fastest full-frame acquisition regime.
IUC20400KMA-10G: The Sony IMX531-AAMJ-C sensor, 20.4MP (4480×4480) resolution, and 2.74 µm × 2.74 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 52.5 fps @ 4480×4480 (8-bit); 149 fps @ 2240×2240 (8-bit); 28 fps @ 4480×4480 (12-bit); 100 fps @ 2240×2240 (12-bit) frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
23 specification rows
The IUC20400KMA-10G is an industrial & analytical camera in the IUC series, built around a Sony IMX531-AAMJ-C sensor, 20.4MP (4480×4480) resolution, 2.74 µm × 2.74 µm pixels, frame rates up to 52.5 fps @ 4480×4480 (8-bit); 149 fps @ 2240×2240 (8-bit); 28 fps @ 4480×4480 (12-bit); 100 fps @ 2240×2240 (12-bit), a 10GigE interface. It suits industrial camera/analytical imaging where reliable imaging performance and interface compatibility matter.
| Model | IUC20400KMA-10G |
|---|---|
| Sensor | Sony IMX531-AAMJ-C |
| Effective Pixels / Resolution | 20.4MP (4480×4480) |
| Frame Rate (Full Resolution) | 52.5 fps @ 4480×4480 (8-bit); 149 fps @ 2240×2240 (8-bit); 28 fps @ 4480×4480 (12-bit); 100 fps @ 2240×2240 (12-bit) |
| Exposure Time | 150 µs ~ 15 s |
| Shutter Type | Global Shutter |
| Color Type | Monochrome |
| Pixel Size | 2.74 µm × 2.74 µm |
|---|---|
| Sensor Size | 12.28 mm × 12.28 mm |
| Diagonal | 1" (17.37 mm) |
| Dynamic Range | 72.0 dB |
| Bit Depth | 8/12-bit |
| Sensitivity | 2649 mV |
| Data Interface | 10GigE |
|---|---|
| GPIO | 1× optically isolated input, 1× optically isolated output, 2× non-isolated I/O |
| Lens Mount | C-mount |
| Dimensions | 88 mm × 88 mm × 58.8 mm |
| Weight | 545 g |
| Power Supply | DC 12 V |
| Operating Temperature / Humidity | 10 °C to +50 °C / 20% to 80% non-condensing |
|---|---|
| Storage Temperature / Humidity | 30 °C to +70 °C / Available on request |
| Operating System | Windows/WinRT/Linux/macOS/Android; x86/x64/ARM HF/ARM EL/ARM64 |
| Certification | CE/FCC |
System integration
Use these checks to connect IUC20400KMA-10G to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX531-AAMJ-C · Resolution: 20.4MP (4480×4480). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 52.5 fps @ 4480×4480 (8-bit); 149 fps @ 2240×2240 (8-bit); 28 fps @ 4480×4480 (12-bit); 100 fps @ 2240×2240 (12-bit) · Interface: 10GigE. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 1× optically isolated input, 1× optically isolated output, 2× non-isolated I/O. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: 72.0 dB. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare IUC20400KMA-10G with the closest available models in the IUC family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | IUC20400KMA-10G (current) | IUC1700KMA-CL480 | IUC20400KPA-10G |
|---|---|---|---|
| Sensor | Sony IMX531-AAMJ-C | Sony IMX425LLJ | Sony IMX531-AAQJ-C |
| Resolution | 20.4MP (4480×4480) | 1.7MP (1600×1100) | 20.4MP (4480×4480) |
| Sensor size | 12.28 mm × 12.28 mm | 14.4 mm × 9.9 mm | 12.28 mm × 12.28 mm |
| Pixel size / frame rate | 2.74 µm × 2.74 µm | 9.0 µm × 9.0 µm | 2.74 µm × 2.74 µm |
The IMX531 appears in 2 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
Compare the IUC20400KMA-10G with other IUC models and industrial & analytical cameras in the range.
