Industrial Camera/Analytical Imaging

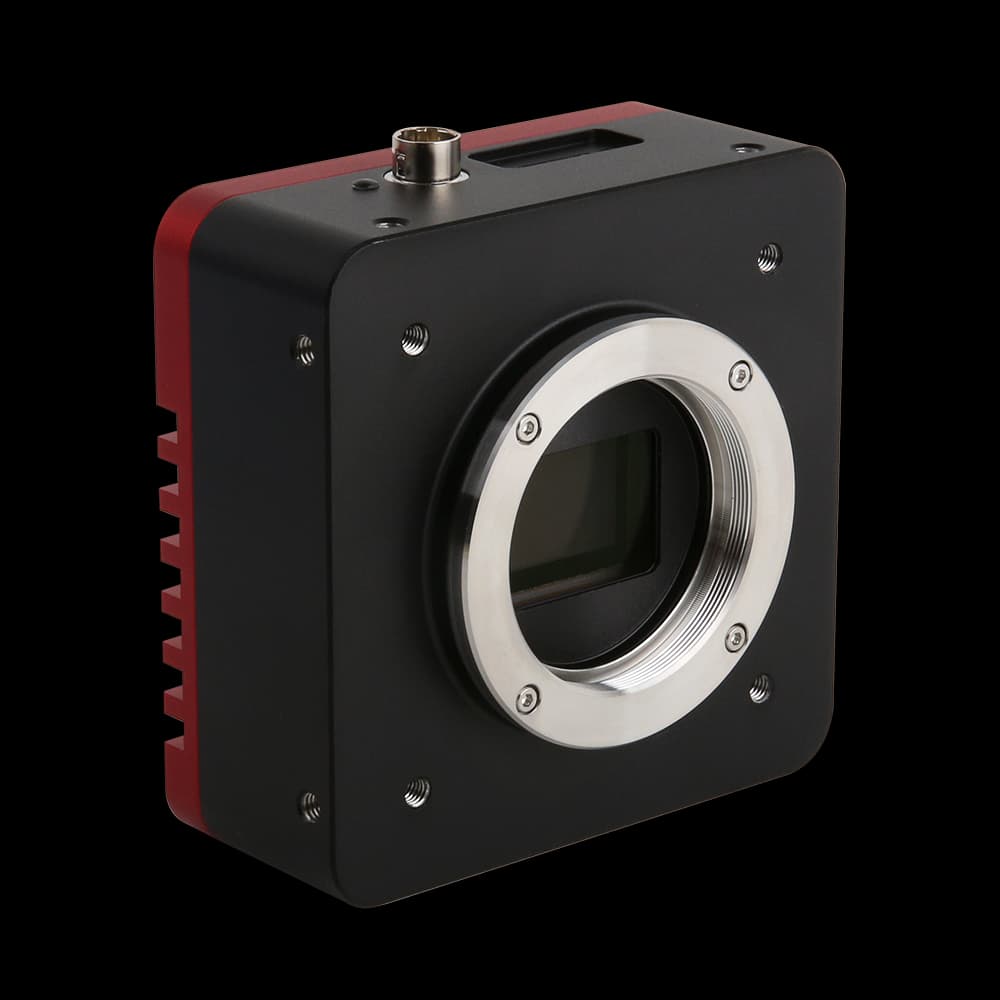

IUC20400KPA-10G
IUC20400KPA-10G Industrial Camera/Analytical Imaging with Sony IMX531-AAQJ-C sensor, 20.4MP (4480×4480) for professional imaging.
- Sensor
- Sony IMX531-AAQJ-C
- Resolution
- 20.4MP (4480×4480)
- Pixel Size
- 2.74 µm × 2.74 µm
- Frame Rate
- 52.5 fps @ 4480×4480 (8-bit); 149 fps @ 2240×2240 (8-bit); 28 fps @ 4480×4480 (12-bit); 100 fps @ 2240×2240 (12-bit)
- Interface
- 10GigE
Specifications
IUC20400KPA-10G
23 specification rows
Key Parameters
| Model | IUC20400KPA-10G |
|---|---|
| Sensor | Sony IMX531-AAQJ-C |
| Effective Pixels / Resolution | 20.4MP (4480×4480) |
| Frame Rate (Full Resolution) | 52.5 fps @ 4480×4480 (8-bit); 149 fps @ 2240×2240 (8-bit); 28 fps @ 4480×4480 (12-bit); 100 fps @ 2240×2240 (12-bit) |
| Exposure Time | 150 µs ~ 15 s |
| Shutter Type | Global Shutter |
| Color Type | Color |
Imaging Performance
| Pixel Size | 2.74 µm × 2.74 µm |
|---|---|
| Sensor Size | 12.28 mm × 12.28 mm |
| Diagonal | 1" (17.37 mm) |
| Dynamic Range | 72.0 dB |
| Bit Depth | 8/12-bit |
| Sensitivity | 1574 mV |
Interface & Mechanical
| Data Interface | 10GigE |
|---|---|
| GPIO | 1× optically isolated input, 1× optically isolated output, 2× non-isolated I/O |
| Lens Mount | C-mount |
| Dimensions | 88 mm × 88 mm × 58.8 mm |
| Weight | 545 g |
| Power Supply | DC 12 V |
Environment & Certification
| Operating Temperature / Humidity | 10 °C to +50 °C / 20% to 80% non-condensing |
|---|---|
| Storage Temperature / Humidity | 30 °C to +70 °C / Available on request |
| Operating System | Windows/WinRT/Linux/macOS/Android; x86/x64/ARM HF/ARM EL/ARM64 |
| Certification | CE/FCC |
