Color · Microscopy Camera/Microscope Camera

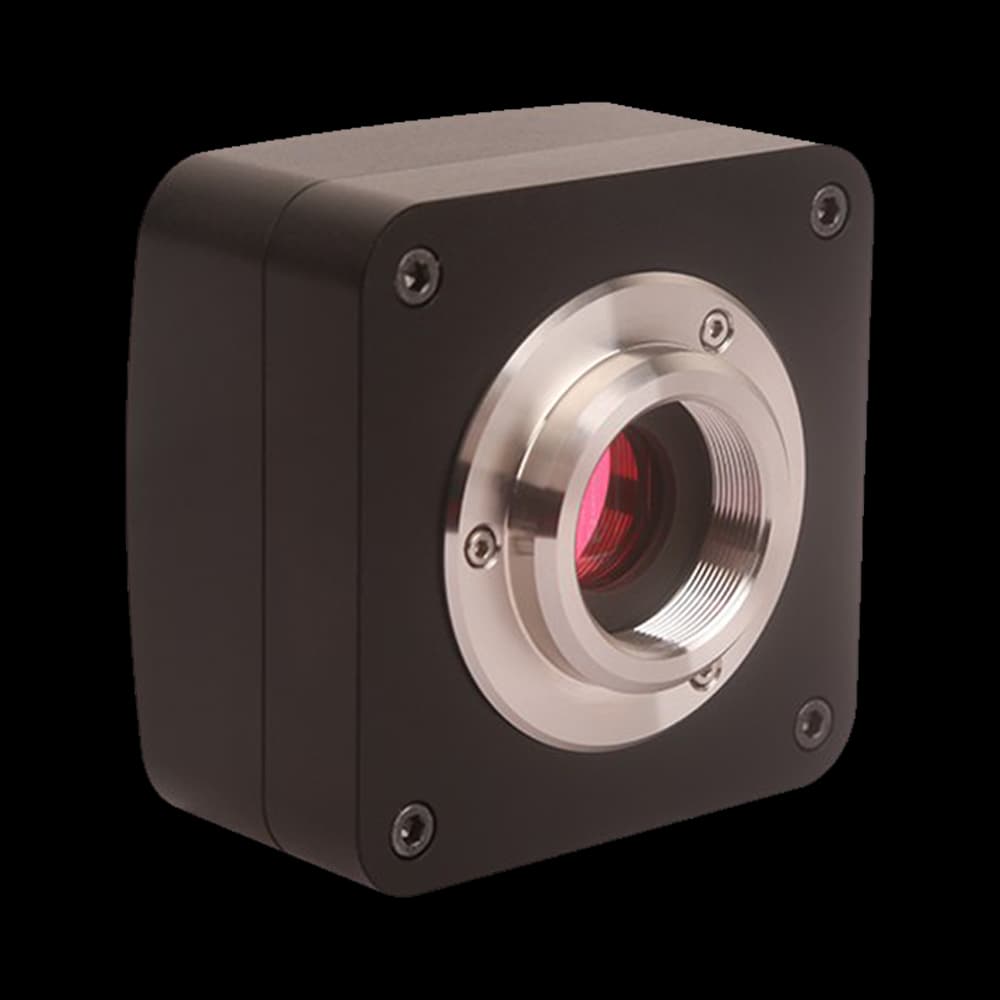

UHCCD01400KPB
- Sensor
- ICX205AK CCD (C)
- Resolution
- 1.4MP (1360×1024)
- Pixel Size
- 4.65 µm × 4.65 µm
- Frame Rate
- 15 fps @ 1360×1024
- Interface
- USB2.0
Complete Specifications
Sensor & Imaging
| Sensor | ICX205AK CCD (C) |
|---|---|
| Effective Pixels / Resolution | 1.4MP (1360×1024) |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Pixel Size | 4.65 µm × 4.65 µm |
| Sensor Size | 6.32 mm × 4.76 mm |
| Diagonal | 1/2" (7.91 mm) |
| Resolution | 1.4MP (1360×1024) |
Performance
| Frame Rate (Full Resolution) | 15 fps @ 1360×1024 |
|---|---|
| Exposure Time | 0.127 ms ~ 60 s |
| Dynamic Range | Available on request |
| Bit Depth | 8-bit/12-bit |
| Sensitivity | 400 mv with 1/30s |
| Frame Rate | 15 fps @ 1360×1024 |
Interface & Connectivity
| Data Interface | USB2.0 |
|---|---|
| GPIO | Available on request |
| Interface | USB2.0 |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Dimensions | Available on request |
| Weight | 0.67~0.8 Kg |
| Power Supply | USB2.0 Power Supply |
| Operating Temperature / Humidity | 10 °C ~ +50 °C / 30%~80%RH |
| Storage Temperature / Humidity | 20 °C ~ +60 °C / 10%~60%RH |
Other Published Specifications
| Model | UHCCD01400KPB |
|---|---|
| Operating System | Windows XP/Vista/7/8/10/11(32&64-bit)/OS X/Linux |
| Certification | CE, FCC |
