Microscopy Camera/Microscope Camera

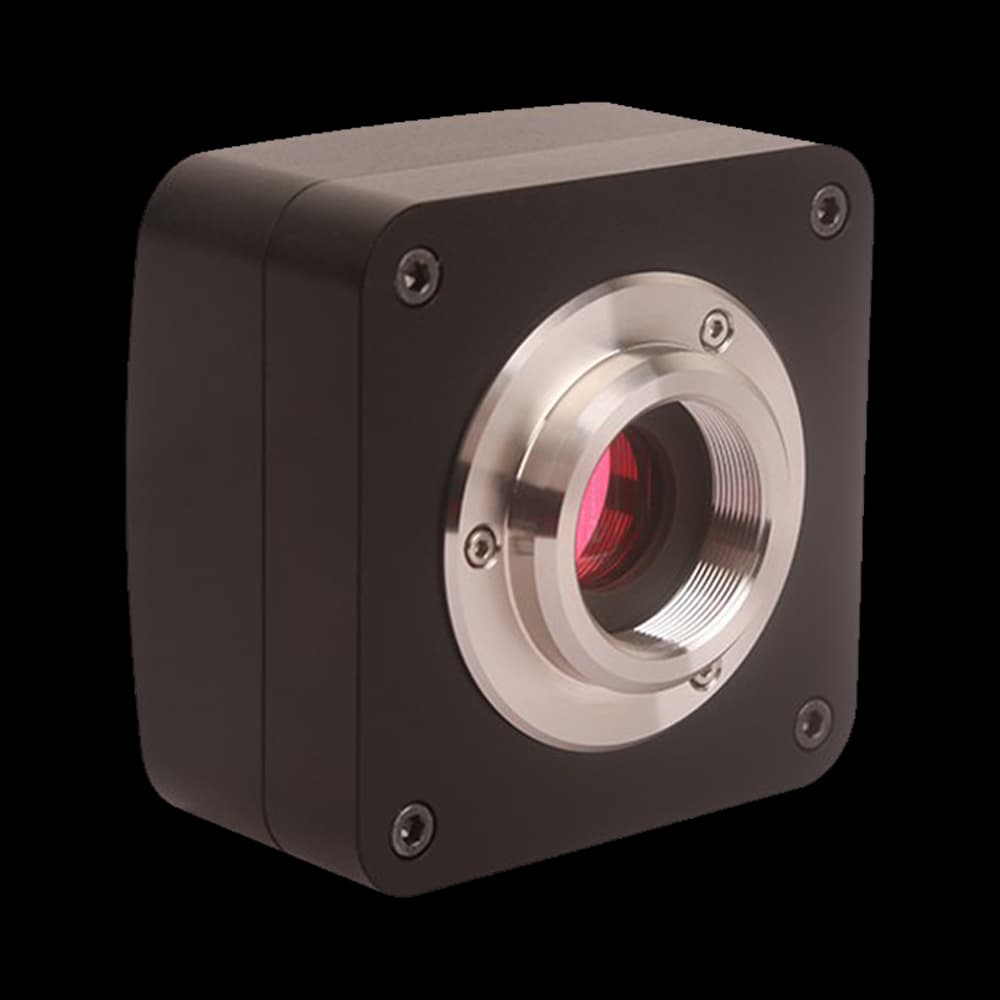

UHCCD00800KPA Microscopy Camera/Microscope Camera with ICX204AK CCD (C) sensor, 0.8MP (1024×768) for professional imaging.
Application context
UHCCD00800KPA: The ICX204AK CCD (C) sensor, 0.8MP (1024×768) resolution, and 4.65 µm × 4.65 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 16 fps @ 1024×768 frame-rate listing also sets the fastest full-frame acquisition regime.
UHCCD00800KPA: The ICX204AK CCD (C) sensor, 0.8MP (1024×768) resolution, and 4.65 µm × 4.65 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 16 fps @ 1024×768 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
23 specification rows
The UHCCD00800KPA is a microscopy camera in the UHCCD series, built around a ICX204AK CCD (C) sensor, 0.8MP (1024×768) resolution, 4.65 µm × 4.65 µm pixels, frame rates up to 16 fps @ 1024×768, a USB2.0 interface. It suits microscopy camera/microscope camera where reliable imaging performance and interface compatibility matter.
| Model | UHCCD00800KPA |
|---|---|
| Sensor | ICX204AK CCD (C) |
| Effective Pixels / Resolution | 0.8MP (1024×768) |
| Frame Rate (Full Resolution) | 16 fps @ 1024×768 |
| Exposure Time | 0.16 ms ~ 60 s |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Pixel Size | 4.65 µm × 4.65 µm |
|---|---|
| Sensor Size | 4.76 mm × 3.57 mm |
| Diagonal | 1/2.5" (5.95 mm) |
| Dynamic Range | Available on request |
| Bit Depth | 8-bit/12-bit |
| Sensitivity | 400 mv with 1/30s |
| Data Interface | USB2.0 |
|---|---|
| GPIO | Available on request |
| Lens Mount | C-mount |
| Dimensions | Available on request |
| Weight | 0.67~0.8 Kg |
| Power Supply | USB2.0 Power Supply |
| Operating Temperature / Humidity | 10 °C ~ +50 °C / 30%~80%RH |
|---|---|
| Storage Temperature / Humidity | 20 °C ~ +60 °C / 10%~60%RH |
| Operating System | Windows XP/Vista/7/8/10/11(32&64-bit)/OS X/Linux |
| Certification | CE, FCC |
System integration
Use these checks to connect UHCCD00800KPA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: ICX204AK CCD (C) · Resolution: 0.8MP (1024×768). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 16 fps @ 1024×768 · Interface: USB2.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: Available on request. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: Available on request. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare UHCCD00800KPA with the closest available models in the UHCCD family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | UHCCD00800KPA (current) | UHCCD01400KMB | UHCCD01400KPA |
|---|---|---|---|
| Sensor | ICX204AK CCD (C) | ICX205AL CCD (M) | ICX205AK CCD (C) |
| Resolution | 0.8MP (1024×768) | 1.4MP (1360×1024) | 1.4MP (1360×1024) |
| Sensor size | 4.76 mm × 3.57 mm | 6.32 mm × 4.76 mm | 6.32 mm × 4.76 mm |
| Pixel size / frame rate | 4.65 µm × 4.65 µm | 4.65 µm × 4.65 µm | 4.65 µm × 4.65 µm |
Compare the UHCCD00800KPA with other UHCCD models and microscopy cameras in the range.
