Microscopy Camera/Microscope Camera
UHCCD01400KMB

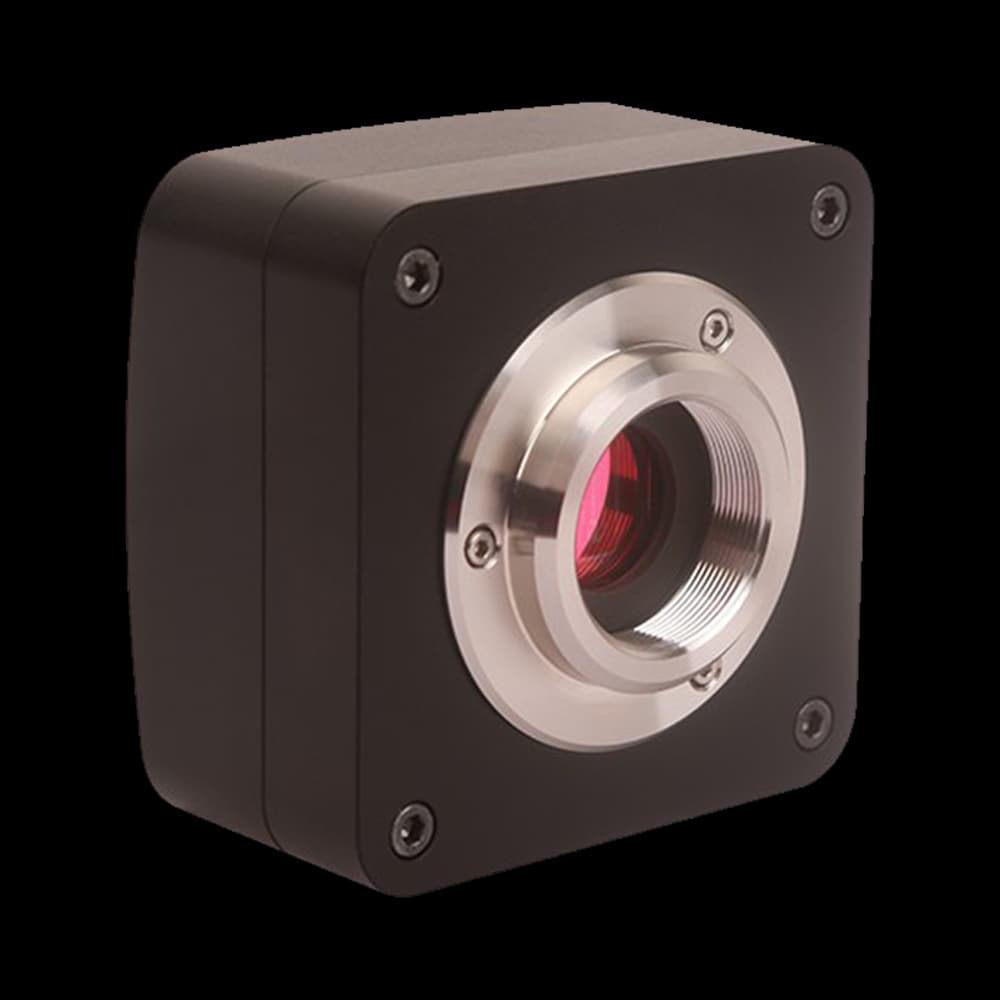

UHCCD01400KMB Microscopy Camera/Microscope Camera with ICX205AL CCD (M) sensor, 1.4MP (1360×1024) for professional imaging.
- Sensor
- ICX205AL CCD (M)
- Resolution
- 1.4MP (1360×1024)
- Pixel Size
- 4.65 µm × 4.65 µm
- Frame Rate
- 15 fps @ 1360×1024
- Interface
- USB2.0
Specifications
UHCCD01400KMB
23 specification rows
Key Parameters
| Model | UHCCD01400KMB |
|---|---|
| Sensor | ICX205AL CCD (M) |
| Effective Pixels / Resolution | 1.4MP (1360×1024) |
| Frame Rate (Full Resolution) | 15 fps @ 1360×1024 |
| Exposure Time | 0.127 ms ~ 60 s |
| Shutter Type | Rolling Shutter |
| Color Type | Monochrome |
Imaging Performance
| Pixel Size | 4.65 µm × 4.65 µm |
|---|---|
| Sensor Size | 6.32 mm × 4.76 mm |
| Diagonal | 1/2" (7.91 mm) |
| Dynamic Range | Available on request |
| Bit Depth | 8-bit/12-bit |
| Sensitivity | 450 mv with 1/30s |
Interface & Mechanical
| Data Interface | USB2.0 |
|---|---|
| GPIO | Available on request |
| Lens Mount | C-mount |
| Dimensions | Available on request |
| Weight | 0.67~0.8 Kg |
| Power Supply | USB2.0 Power Supply |
Environment & Certification
| Operating Temperature / Humidity | 10 °C ~ +50 °C / 30%~80%RH |
|---|---|
| Storage Temperature / Humidity | 20 °C ~ +60 °C / 10%~60%RH |
| Operating System | Windows XP/Vista/7/8/10/11(32&64-bit)/OS X/Linux |
| Certification | CE, FCC |
Need help choosing?
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
