Color · Microscopy Cameras/Microscope Cameras

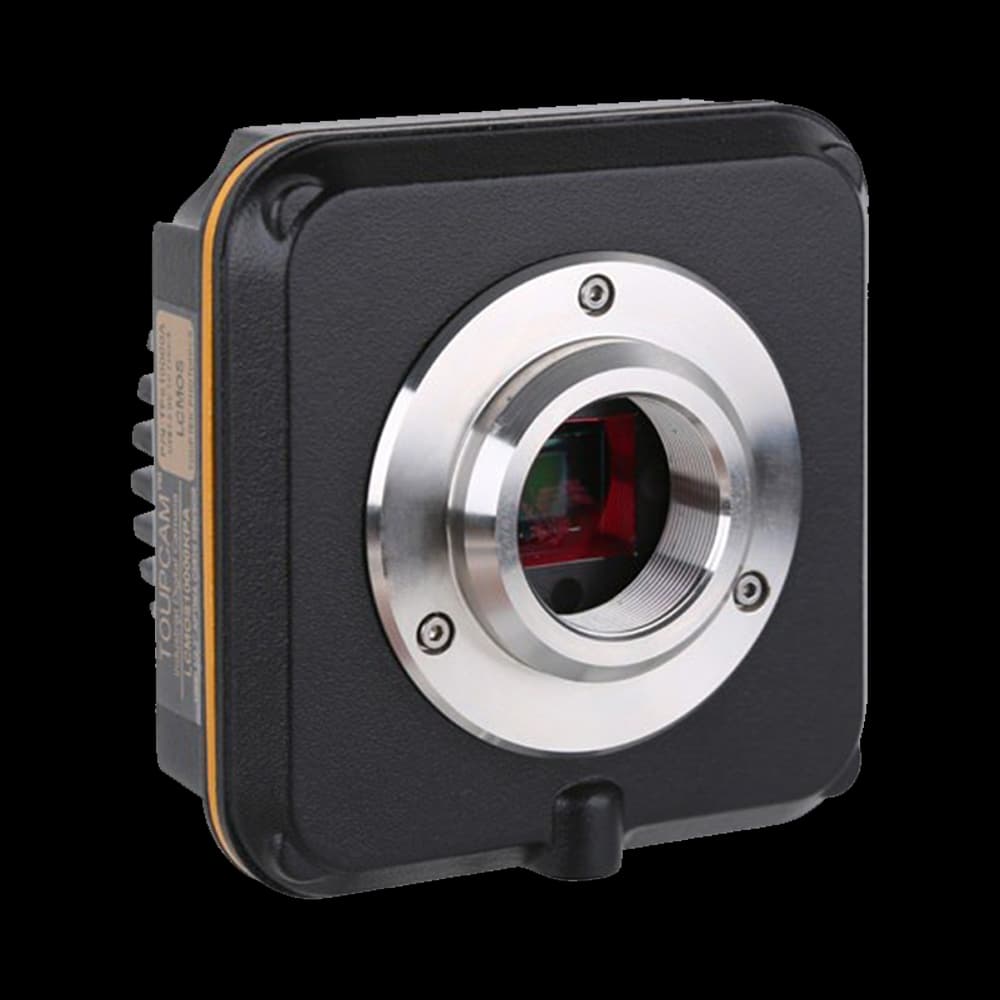

L3CMOS05100KPA
- Sensor
- AR0521(C)
- Resolution
- 5.1M (2592×1944)
- Pixel Size
- 2.2 µm × 2.2 µm
- Frame Rate
- 15.5 fps @ 2592×1944; 49.5 fps @ 1296×972; 97.5 fps @ 648×486
- Interface
- USB3.0
Complete Specifications
Sensor & Imaging
| Sensor | AR0521(C) |
|---|---|
| Effective Pixels / Resolution | 5.1M (2592×1944) |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Pixel Size | 2.2 µm × 2.2 µm |
| Sensor Size | 5.70 mm × 4.28 mm |
| Diagonal | 1/2.5" (7.13 mm) |
| Resolution | 5.1M (2592×1944) |
Performance
| Frame Rate (Full Resolution) | 15.5 fps @ 2592×1944; 49.5 fps @ 1296×972; 97.5 fps @ 648×486 |
|---|---|
| Dynamic Range | 73 dB |
| Bit Depth | 8-bit |
| Sensitivity | 18.8 ke-/lux |
| Frame Rate | 15.5 fps @ 2592×1944; 49.5 fps @ 1296×972; 97.5 fps @ 648×486 |
Interface & Connectivity
| Data Interface | USB3.0 |
|---|---|
| GPIO | Available on request |
| Interface | USB3.0 |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Dimensions | Available on request |
| Weight | 0.72~0.8Kg |
| Power Supply | USB powered |
| Operating Temperature / Humidity | 10 °C ~ 50 °C / 30%~80%RH |
| Storage Temperature / Humidity | 20 °C ~ 60 °C / 10%~60%RH |
Other Published Specifications
| Model | L3CMOS05100KPA |
|---|---|
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
| Certification | CE, FCC |
