Low Light Imaging/Semiconductor Cooled Camera

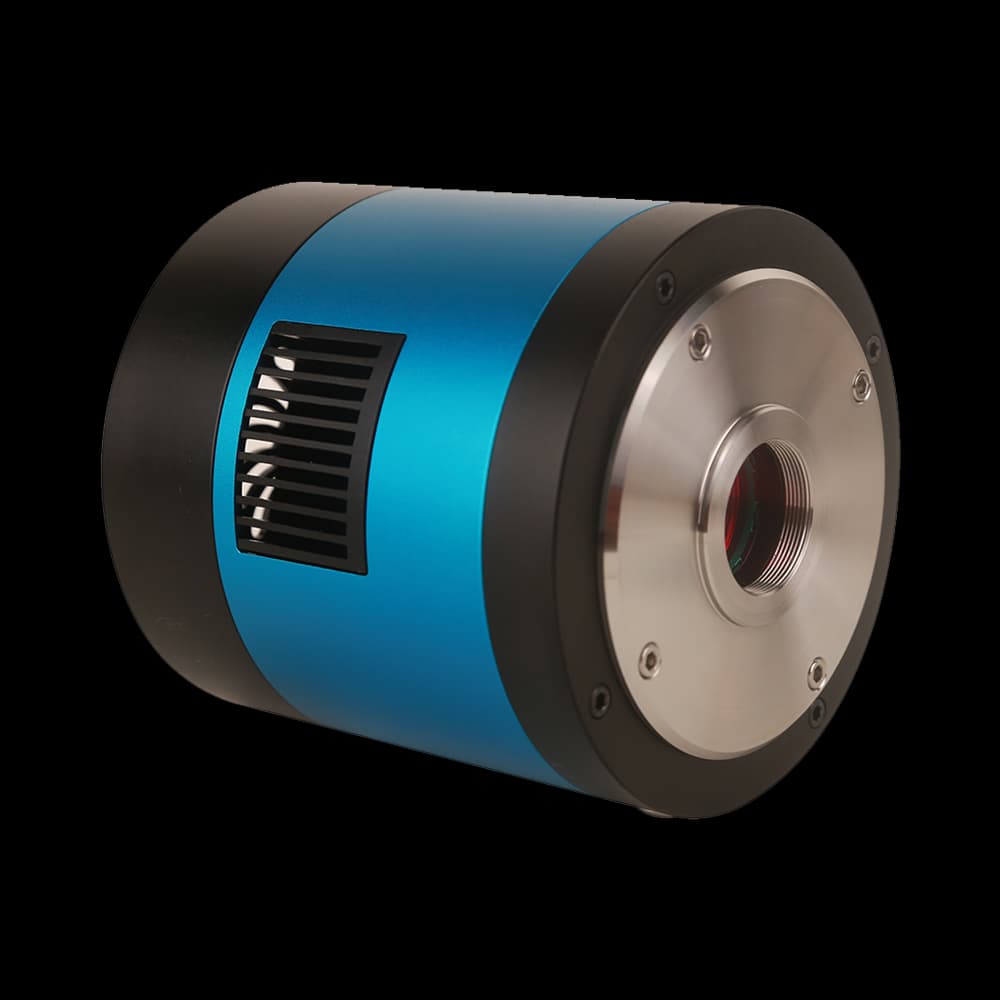

MTR3CCD12000KMA Low Light Imaging/Semiconductor Cooled Camera with ICX834ALG (M) sensor, 12MP (4248×2836) for professional imaging.
Application context
MTR3CCD12000KMA: The ICX834ALG (M) sensor, 12MP (4248×2836) resolution, and 3.1 µm × 3.1 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 3.6 fps @ 4248×2836; 3.6 fps @ 2124×1418 frame-rate listing also sets the fastest full-frame acquisition regime.
MTR3CCD12000KMA: The ICX834ALG (M) sensor, 12MP (4248×2836) resolution, and 3.1 µm × 3.1 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 3.6 fps @ 4248×2836; 3.6 fps @ 2124×1418 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
23 specification rows
The MTR3CCD12000KMA is a low-light & cooled camera in the MTR3CCD series, built around a ICX834ALG (M) sensor, 12MP (4248×2836) resolution, 3.1 µm × 3.1 µm pixels, frame rates up to 3.6 fps @ 4248×2836; 3.6 fps @ 2124×1418, a USB3.0 interface. It suits low light imaging/semiconductor cooled camera where reliable imaging performance and interface compatibility matter.
| Model | MTR3CCD12000KMA |
|---|---|
| Sensor | ICX834ALG (M) |
| Effective Pixels / Resolution | 12MP (4248×2836) |
| Frame Rate (Full Resolution and Key Resolution Modes) | 3.6 fps @ 4248×2836; 3.6 fps @ 2124×1418 |
| Exposure Time | 0.06 ms ~ 1 h |
| Shutter Type | Rolling Shutter |
| Color Type | Monochrome |
| Pixel Size | 3.1 µm × 3.1 µm |
|---|---|
| Sensor Size | 13.15 mm × 8.77 mm |
| Diagonal | 1" (15.81 mm) |
| Dynamic Range | Available on request |
| Bit Depth | 8/14-bit |
| Sensitivity | 420 mV (1/30s), 12 mV dark current (F8.0) |
| Data Interface | USB3.0 |
|---|---|
| GPIO | Available on request |
| Lens Mount | C-mount |
| Dimensions | See dimensional drawings |
| Weight | Available on request |
| Power Supply | USB3.0 interface power + external DC 12 V 3 A cooling power |
| Operating Temperature / Humidity | 10 °C ~ +50 °C / 30%~80%RH |
|---|---|
| Storage Temperature / Humidity | 20 °C ~ +60 °C / 10%~60%RH |
| OS Support | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
| Certification | CE, FCC |
System integration
Use these checks to connect MTR3CCD12000KMA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: ICX834ALG (M) · Resolution: 12MP (4248×2836). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 3.6 fps @ 4248×2836; 3.6 fps @ 2124×1418 · Interface: USB3.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: Available on request. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: Available on request. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare MTR3CCD12000KMA with the closest available models in the MTR3CCD family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | MTR3CCD12000KMA (current) | MTR3CCD09000KPA | MTR3CCD12000KPA (Discontinued) |
|---|---|---|---|
| Sensor | ICX834ALG (M) | ICX814AQG (C) | ICX834AQG (C) |
| Resolution | 12MP (4248×2836) | 9.0MP (3388×2712) | 12MP (4248×2836) |
| Sensor size | 13.15 mm × 8.77 mm | 12.47 mm × 9.98 mm | 13.15 mm × 8.77 mm |
| Pixel size / frame rate | 3.1 µm × 3.1 µm | 3.69 µm × 3.69 µm | 3.1 µm × 3.1 µm |
The ICX834 appears in 4 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
