Microscopy Camera/Microscope Camera

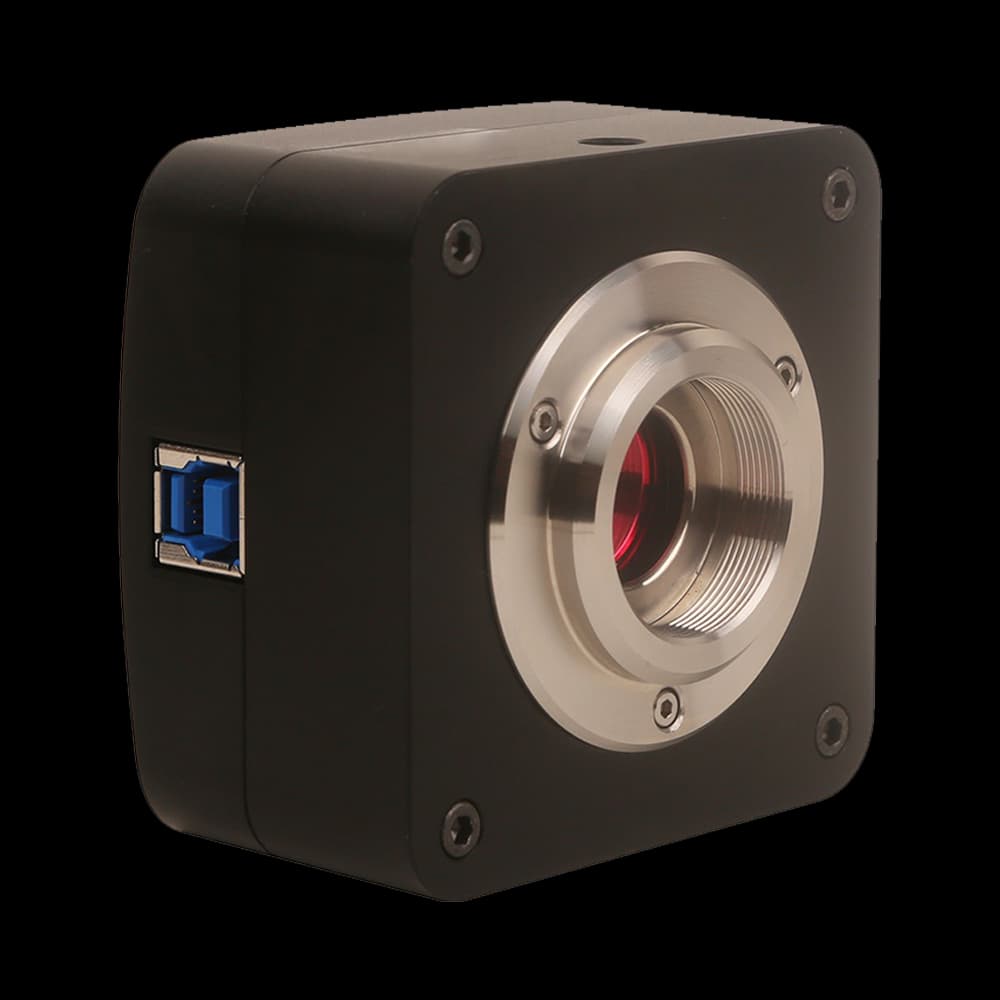

U3CCD12000KPA (Discontinued) Microscopy Camera/Microscope Camera with ICX834AQG CCD (C) sensor, 12MP (4248×2836) for professional imaging.
Application context
U3CCD12000KPA (Discontinued): The ICX834AQG CCD (C) sensor, 12MP (4248×2836) resolution, and 3.1 µm × 3.1 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 3.6 fps @ 4248×2836; 3.6 fps @ 2124×1418 frame-rate listing also sets the fastest full-frame acquisition regime.
U3CCD12000KPA (Discontinued): The ICX834AQG CCD (C) sensor, 12MP (4248×2836) resolution, and 3.1 µm × 3.1 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 3.6 fps @ 4248×2836; 3.6 fps @ 2124×1418 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
22 specification rows
The U3CCD12000KPA (Discontinued) is a microscopy camera in the U3CCD series, built around a ICX834AQG CCD (C) sensor, 12MP (4248×2836) resolution, 3.1 µm × 3.1 µm pixels, frame rates up to 3.6 fps @ 4248×2836; 3.6 fps @ 2124×1418, a USB3.0 interface. It suits microscopy camera/microscope camera where reliable imaging performance and interface compatibility matter.
| Model | U3CCD12000KPA (Discontinued) |
|---|---|
| Sensor | ICX834AQG CCD (C) |
| Effective Pixels / Resolution | 12MP (4248×2836) |
| Frame Rate (Full Resolution) | 3.6 fps @ 4248×2836; 3.6 fps @ 2124×1418 |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Pixel Size | 3.1 µm × 3.1 µm |
|---|---|
| Sensor Size | 13.15 mm × 8.77 mm |
| Diagonal | 1" (15.81 mm) |
| Dynamic Range | Available on request |
| Bit Depth | 8-bit/14-bit |
| Sensitivity | 420 mv with 1/30s |
| Data Interface | USB3.0 |
|---|---|
| GPIO | Available on request |
| Lens Mount | C-mount |
| Dimensions | Available on request |
| Weight | 0.67~0.75 Kg |
| Power Supply | USB3.0 Power Supply |
| Operating Temperature / Humidity | 10 °C ~ +50 °C / 30%~80%RH |
|---|---|
| Storage Temperature / Humidity | 20 °C ~ +60 °C / 10%~60%RH |
| Operating System | Windows XP/Vista/7/8/10/11(32&64-bit)/OS X/Linux |
| Certification | CE, FCC |
System integration
Use these checks to connect U3CCD12000KPA (Discontinued) to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: ICX834AQG CCD (C) · Resolution: 12MP (4248×2836). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 3.6 fps @ 4248×2836; 3.6 fps @ 2124×1418 · Interface: USB3.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: Available on request. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: Available on request. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare U3CCD12000KPA (Discontinued) with the closest available models in the U3CCD family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | U3CCD12000KPA (Discontinued) (current) | U3CCD12000KMA | U3CCD09000KPA |
|---|---|---|---|
| Sensor | ICX834AQG CCD (C) | ICX834ALG CCD (M) | ICX814AQG CCD (C) |
| Resolution | 12MP (4248×2836) | 12MP (4248×2836) | 9MP (3388×2712) |
| Sensor size | 13.15 mm × 8.77 mm | 13.15 mm × 8.77 mm | 12.47 mm × 9.98 mm |
| Pixel size / frame rate | 3.1 µm × 3.1 µm | 3.1 µm × 3.1 µm | 3.69 µm × 3.69 µm |
The ICX834 appears in 4 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
