Color · Microscopy Cameras/Microscope Cameras

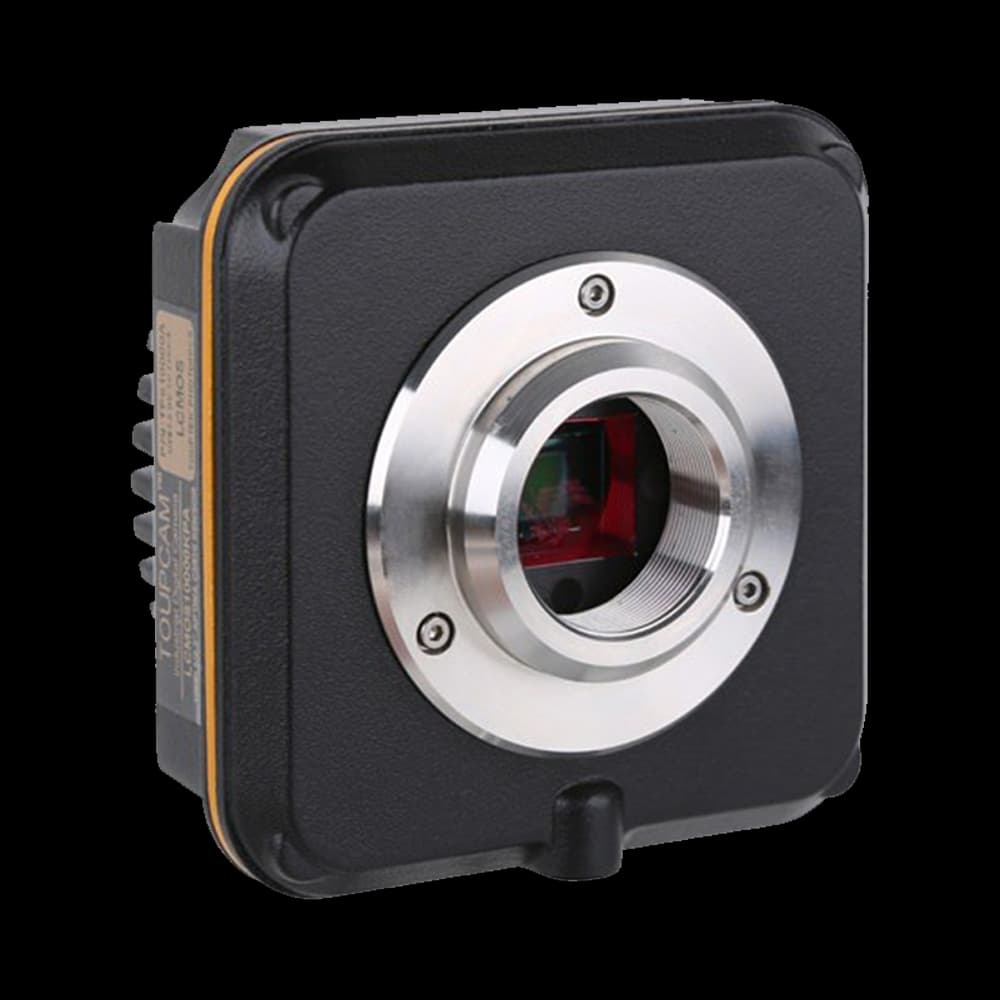

L3CMOS12000KPA
- Sensor
- IMX577(C)
- Resolution
- 12M (3840×3040)
- Pixel Size
- 1.55 µm × 1.55 µm
- Frame Rate
- 8.5 fps @ 3840×3040; 49 fps @ 1920×1516; 137 fps @ 960×758
- Interface
- USB3.0
Complete Specifications
Sensor & Imaging
| Sensor | IMX577(C) |
|---|---|
| Effective Pixels / Resolution | 12M (3840×3040) |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Pixel Size | 1.55 µm × 1.55 µm |
| Sensor Size | 5.95 mm × 4.71 mm |
| Diagonal | 1/2" (7.59 mm) |
| Resolution | 12M (3840×3040) |
Performance
| Frame Rate (Full Resolution) | 8.5 fps @ 3840×3040; 49 fps @ 1920×1516; 137 fps @ 960×758 |
|---|---|
| Dynamic Range | Available on request |
| Bit Depth | 8-bit |
| Sensitivity | 250 mV with 1/30s; 0.25 mV with 1/30s |
| Frame Rate | 8.5 fps @ 3840×3040; 49 fps @ 1920×1516; 137 fps @ 960×758 |
Interface & Connectivity
| Data Interface | USB3.0 |
|---|---|
| GPIO | Available on request |
| Interface | USB3.0 |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Dimensions | Available on request |
| Weight | 0.72~0.8Kg |
| Power Supply | USB powered |
| Operating Temperature / Humidity | 10 °C ~ 50 °C / 30%~80%RH |
| Storage Temperature / Humidity | 20 °C ~ 60 °C / 10%~60%RH |
Other Published Specifications
| Model | L3CMOS12000KPA |
|---|---|
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
| Certification | CE, FCC |
Technical Files & Images
Related Products
| Selection parameter | L3CMOS12000KPA (current) | L3CMOS10000KPASame IMX577 sensor | C2CMOS12000KPASame IMX577 sensor | C3CMOS10000KPASame IMX577 sensor |
|---|---|---|---|---|
| Sensor | IMX577(C) | IMX577(C) | IMX577(C) | IMX577(C) |
| Image type | Color | Color | Color | Color |
| Resolution | 12M (3840×3040) | 10M (3664×2748) | 12M (3840×3040) | 10M (3664×2748) |
| Pixel size | 1.55 µm × 1.55 µm | 1.55 µm × 1.55 µm | 1.55 µm × 1.55 µm | 1.55 µm × 1.55 µm |
| Frame / line rate | 8.5 fps @ 3840×3040; 49 fps @ 1920×1516; 137 fps @ 960×758 | 8.5 fps @ 3664×2748; 49 fps @ 1832×1374; 137 fps @ 912×686 | 20 fps @ 3840×3040; 20 fps @ 1920×1520; 20 fps @ 960×760 | 8.5 fps @ 3664×2748; 49 fps @ 1832×1374; 137 fps @ 912×686 |
| Interface | USB3.0 | USB3.0 | USB2.0 | USB3.0 |
| Cooling / shutter | Rolling Shutter | Rolling Shutter | Rolling Shutter | Rolling Shutter |
