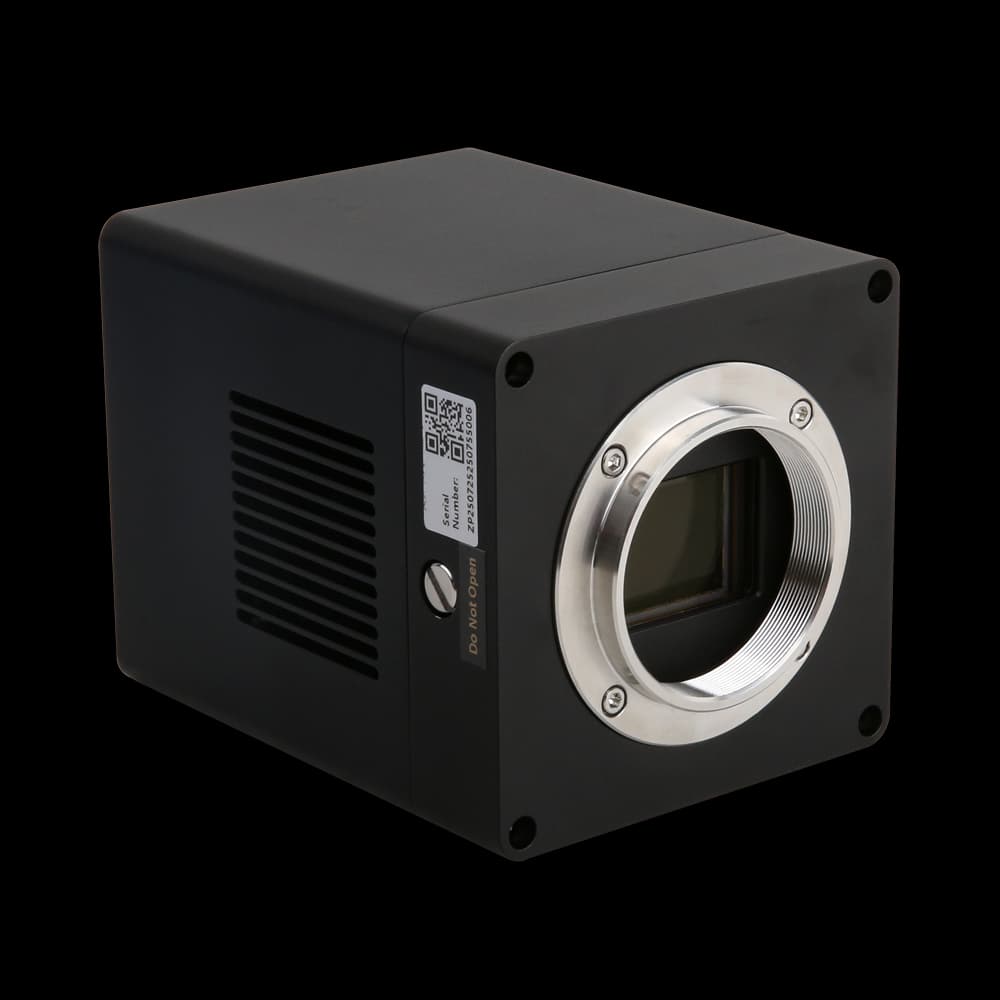

Low Light Imaging/Semiconductor Cooled Camera
ITR3CMOS21000KPA
ITR3CMOS21000KPA Low Light Imaging/Semiconductor Cooled Camera with Sony IMX269AQR sensor, 21MP (5280×3954) for professional imaging.
- Sensor
- Sony IMX269AQR
- Resolution
- 21MP (5280×3954)
- Pixel Size
- 3.3 µm × 3.3 µm
- Frame Rate
- 17 fps @ 5280×3954; 17 fps @ 3952×3952; 56 fps @ 2640×1976; 67 fps @ 1760×1316; 192 fps @ 584×438
- Interface
- USB3.0
Specifications
ITR3CMOS21000KPA
23 specification rows
The ITR3CMOS21000KPA is a low-light & cooled camera in the ITR3CMOS series, built around a Sony IMX269AQR sensor, 21MP (5280×3954) resolution, 3.3 µm × 3.3 µm pixels, frame rates up to 17 fps @ 5280×3954; 17 fps @ 3952×3952; 56 fps @ 2640×1976; 67 fps @ 1760×1316; 192 fps @ 584×438, a USB3.0 interface. It suits low light imaging/semiconductor cooled camera where reliable imaging performance and interface compatibility matter.
Key Parameters
| Model | ITR3CMOS21000KPA |
|---|---|
| Sensor | Sony IMX269AQR |
| Effective Pixels / Resolution | 21MP (5280×3954) |
| Frame Rate (Full Resolution and Key Resolution Modes) | 17 fps @ 5280×3954; 17 fps @ 3952×3952; 56 fps @ 2640×1976; 67 fps @ 1760×1316; 192 fps @ 584×438 |
| Exposure Time | 100 µs ~ 1 h |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
Imaging Performance
| Pixel Size | 3.3 µm × 3.3 µm |
|---|---|
| Sensor Size | 17.4 mm × 13.1 mm |
| Diagonal | 4/3" (21.78 mm) |
| Dynamic Range | 72 dB |
| Bit Depth | 8-bit/12-bit |
| Sensitivity | 400 mV |
Interface & Mechanical
| Data Interface | USB3.0 |
|---|---|
| GPIO | 1x optically isolated input, 1x optically isolated output, 2x non-isolated I/O ports |
| Lens Mount | C-mount |
| Dimensions | 80 mm × 80 mm × 101.5 mm |
| Weight | 860 g |
| Power Supply | USB3.0 interface power / DC 12 V power |
Environment & Certification
| Operating Temperature / Humidity | 10 °C ~ +50 °C / 20%-80% non-condensing |
|---|---|
| Storage Temperature / Humidity | 30 °C ~ +70 °C / Available on request |
| OS Support | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
| Certification | CE/FCC |
System integration
Integration and compatibility
Use these checks to connect ITR3CMOS21000KPA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
- Lens and microscope interface
- Lens Mount: C-mount
- Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
- Sensor and sampling
- Sensor: Sony IMX269AQR · Resolution: 21MP (5280×3954)
- Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
- Interface and data rate
- Frame Rate: 17 fps @ 5280×3954; 17 fps @ 3952×3952; 56 fps @ 2640×1976; 67 fps @ 1760×1316; 192 fps @ 584×438 · Interface: USB3.0
- Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
- Hardware synchronization
- GPIO: 1x optically isolated input, 1x optically isolated output, 2x non-isolated I/O ports
- Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
- Cooling and noise floor
- Dynamic Range: 72 dB
- Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Technical FAQ
Integration questions for ITR3CMOS21000KPA
What lens mount is required for the ITR3CMOS21000KPA?
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
What sensor and pixel pitch does the ITR3CMOS21000KPA use?
Sensor: Sony IMX269AQR · Resolution: 21MP (5280×3954). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
How does the ITR3CMOS21000KPA connect to the acquisition computer?
Frame Rate: 17 fps @ 5280×3954; 17 fps @ 3952×3952; 56 fps @ 2640×1976; 67 fps @ 1760×1316; 192 fps @ 584×438 · Interface: USB3.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Does the ITR3CMOS21000KPA support hardware triggering?
GPIO: 1x optically isolated input, 1x optically isolated output, 2x non-isolated I/O ports. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
What is the noise performance of the ITR3CMOS21000KPA?
Dynamic Range: 72 dB. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Need help choosing?
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Zoom lenses for the ITR3CMOS21000KPA
See which of our C-mount zoom lenses suit this sensor, with the field of view, µm per pixel and depth of field at each zoom setting.
Model selection
Nearby series comparison
Compare ITR3CMOS21000KPA with the closest available models in the ITR3CMOS family.
| Selection parameter | ITR3CMOS21000KPA (current) | ITR3CMOS20000KPA-G | ITR3CMOS26000KMA |
|---|---|---|---|
| Sensor | Sony IMX269AQR | Sony IMX183CQK | Sony IMX571BLR-J |
| Resolution | 21MP (5280×3954) | 20MP (5440×3648) | 26MP (6224×4168) |
| Sensor size | 17.4 mm × 13.1 mm | 13.056 mm × 8.755 mm | 23.48 mm × 15.67 mm |
| Pixel size / frame rate | 3.3 µm × 3.3 µm | 2.4 µm × 2.4 µm | 3.76 µm × 3.76 µm |
