Color · Microscopy Camera/Microscope Camera

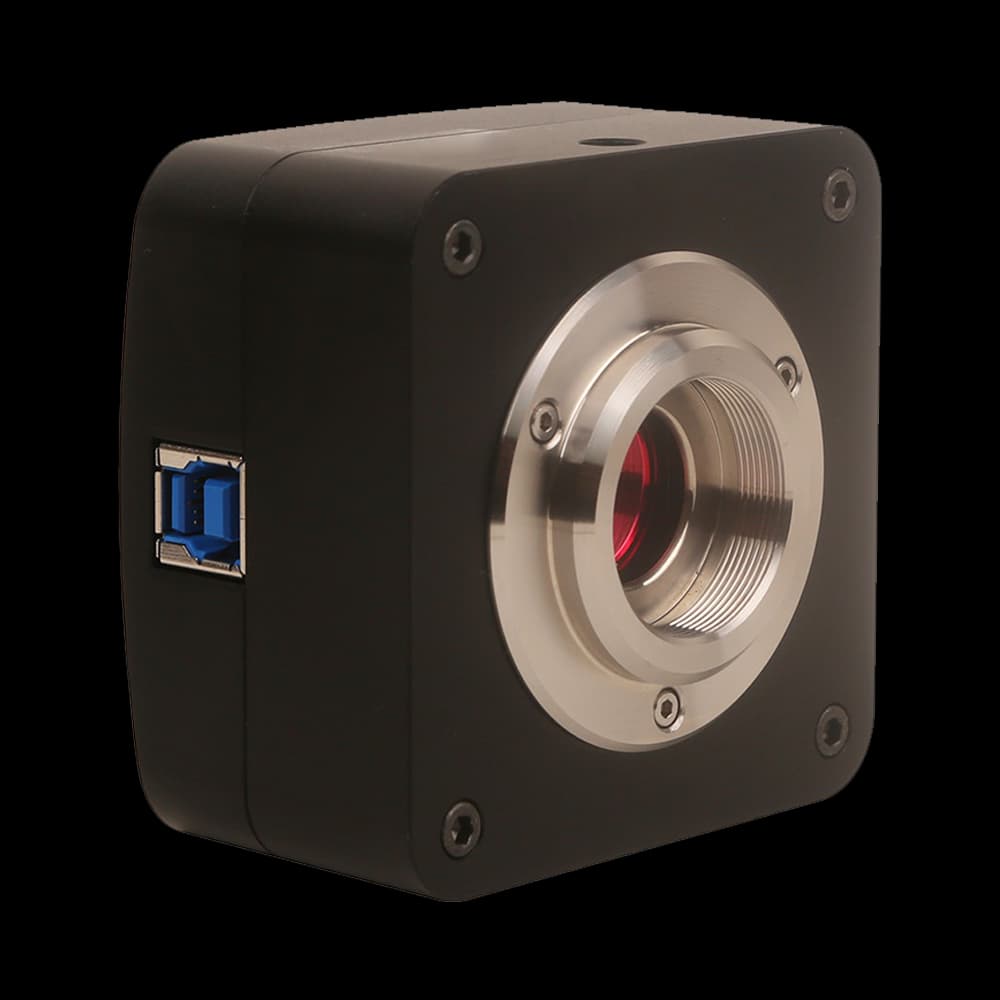

U3CMOS16000KPA
- Sensor
- MN34120 (C)
- Resolution
- 16M (4632×3488)
- Pixel Size
- 1.335 µm × 1.335 µm
- Frame Rate
- 6.0 fps @ 4632×3488; 15.0 fps @ 2320×1740; 26.0 fps @ 1536×1160
- Interface
- USB3.0
Complete Specifications
Sensor & Imaging
| Sensor | MN34120 (C) |
|---|---|
| Effective Pixels / Resolution | 16M (4632×3488) |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Pixel Size | 1.335 µm × 1.335 µm |
| Sensor Size | 6.18 mm × 4.66 mm |
| Diagonal | 1/2" (7.74 mm) |
| Resolution | 16M (4632×3488) |
Performance
| Frame Rate (Full Resolution) | 6.0 fps @ 4632×3488; 15.0 fps @ 2320×1740; 26.0 fps @ 1536×1160 |
|---|---|
| Dynamic Range | Available on request |
| Bit Depth | 8-bit |
| Sensitivity | R: 2453 LSB; Gr: 2444 LSB; Gb: 1054 LSB; B: 996 LSB |
| Frame Rate | 6.0 fps @ 4632×3488; 15.0 fps @ 2320×1740; 26.0 fps @ 1536×1160 |
Interface & Connectivity
| Data Interface | USB3.0 |
|---|---|
| GPIO | Available on request |
| Interface | USB3.0 |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Dimensions | Available on request |
| Weight | Available on request |
| Power Supply | USB3.0 interface power |
| Operating Temperature / Humidity | 10 °C ~ +50 °C / 30%~80%RH |
| Storage Temperature / Humidity | 20 °C ~ +60 °C / 10%~60%RH |
Other Published Specifications
| Model | U3CMOS16000KPA |
|---|---|
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
| Certification | CE, FCC |
Technical Files & Images
Related Products
| Selection parameter | U3CMOS16000KPA (current) | U3ISPM16000KPA (Discontinued)Same MN34120 sensor | UA1600CASame MN34120 sensor | U3CMOS03100KPASame U3CMOS series |
|---|---|---|---|---|
| Sensor | MN34120 (C) | MN34120 (C) | MN34120(C) | AR0330 (C) |
| Image type | Color | Color | Color | Color |
| Resolution | 16M (4632×3488) | 16M (4632×3488) | 16M (4632×3488) | 3.1M (2048×1534) |
| Pixel size | 1.335 µm × 1.335 µm | 1.335 µm × 1.335 µm | 1.335 µm × 1.335 µm | 2.2 µm × 2.2 µm |
| Frame / line rate | 6.0 fps @ 4632×3488; 15.0 fps @ 2320×1740; 26.0 fps @ 1536×1160 | 16 fps @ 4632×3488; 30 fps @ 2320×1740; 27 fps @ 1536×1160 | 2 fps @ 4632×3488; 8 fps @ 2320×1740; 11 fps @ 1536×1160 | 27.3 fps @ 2048×1534; 53.3 fps @ 1024×770 |
| Interface | USB3.0 | USB3.0 | USB2.0 | USB3.0 |
| Cooling / shutter | Rolling Shutter | Rolling Shutter | Rolling Shutter | Rolling Shutter |
