Microscopy Camera/Microscope Camera

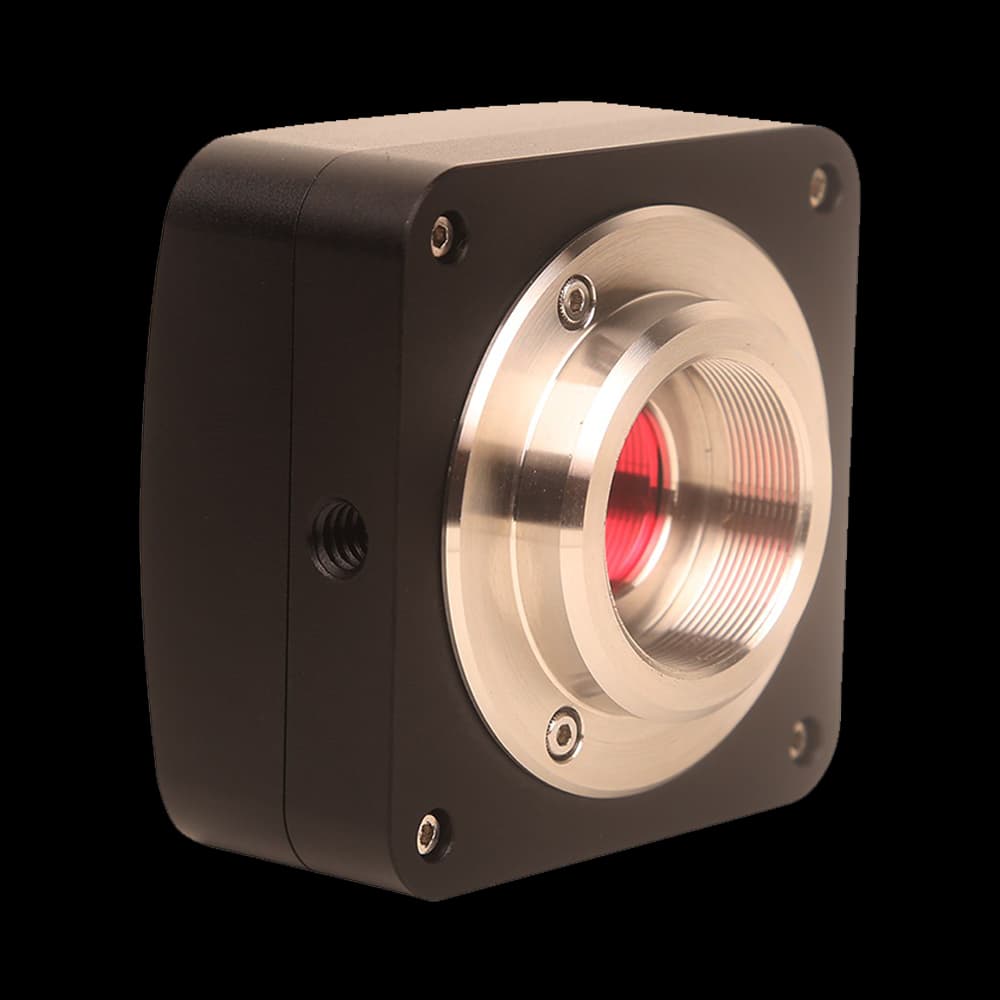

UCMOS04100KPB
UCMOS04100KPB Microscopy Camera/Microscope Camera with IMX664(C) sensor, 4.1M (2688×1520) for professional imaging.
- Sensor
- IMX664(C)
- Resolution
- 4.1M (2688×1520)
- Pixel Size
- 2.9 µm × 2.9 µm
- Frame Rate
- 8.5 fps @ 2688×1520; 34 fps @ 1344×760
- Interface
- USB2.0
Specifications
UCMOS04100KPB
22 specification rows
Key Parameters
| Model | UCMOS04100KPB |
|---|---|
| Sensor | IMX664(C) |
| Effective Pixels / Resolution | 4.1M (2688×1520) |
| Frame Rate (Full Resolution) | 8.5 fps @ 2688×1520; 34 fps @ 1344×760 |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
Imaging Performance
| Pixel Size | 2.9 µm × 2.9 µm |
|---|---|
| Sensor Size | 7.795 mm × 4.408 mm |
| Diagonal | 1/1.8" (8.96 mm) |
| Dynamic Range | Available on request |
| Bit Depth | 8-bit |
| Sensitivity | 5970 mV with HCG mode; 0.13 mV with 1/30s |
Interface & Mechanical
| Data Interface | USB2.0 |
|---|---|
| GPIO | Available on request |
| Lens Mount | C-mount |
| Dimensions | Available on request |
| Weight | 0.5~0.55Kg |
| Power Supply | USB powered |
Environment & Certification
| Operating Temperature / Humidity | 10 °C ~ 50 °C / 30%~80%RH |
|---|---|
| Storage Temperature / Humidity | 20 °C ~ 60 °C / 10%~60%RH |
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
| Certification | CE, FCC |
Need help choosing?
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
