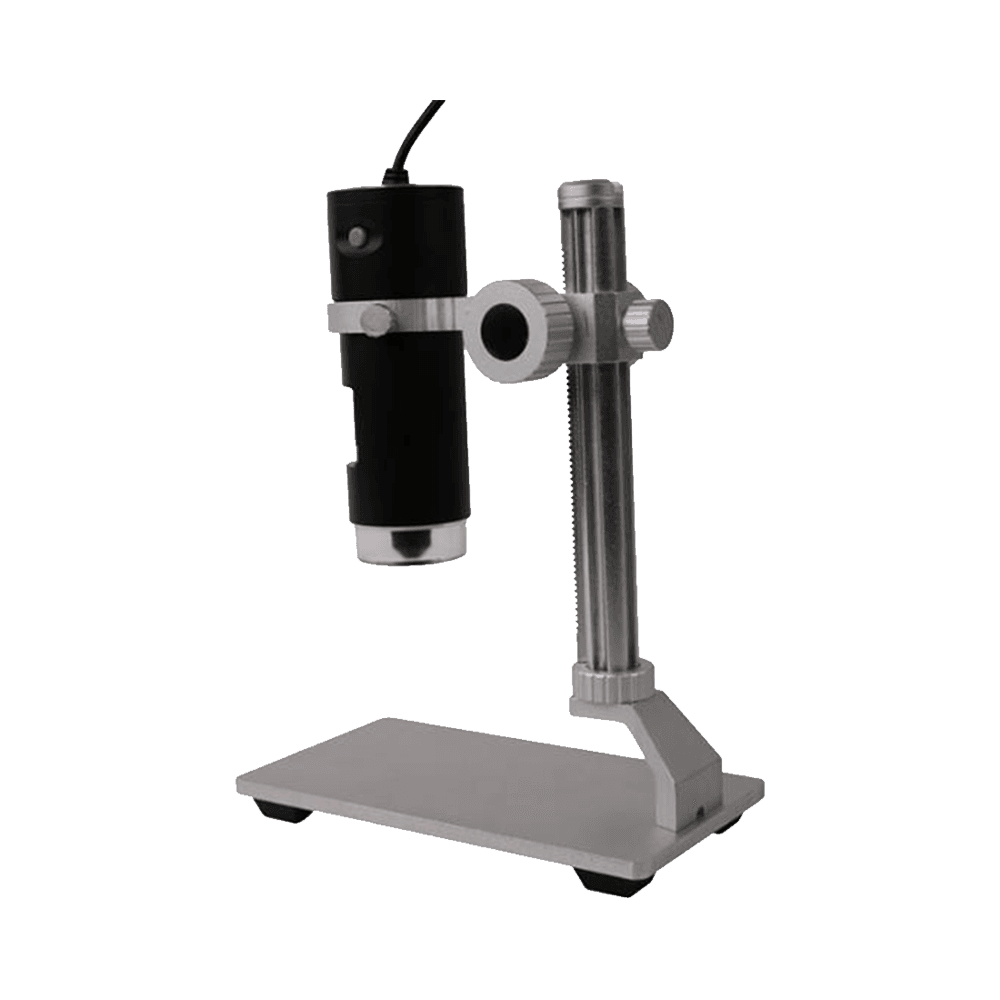

Color · Microscopy camera
PUM02100KPA
- Sensor
- 2.1M / Sony IMX307(C) 1/2.8" (5.56 × 3.13 mm)
- Frame Rate
- 38 fps @ 1920×1080 38 fps @ 960×540
- Interface
- USB2.0
- Resolution
- 2.1 MP (1920 × 1080)
- Pixel Size
- 2.9 µm × 2.9 µm
Complete Specifications
Sensor & Imaging
| Sensor/Size | 2.1M / Sony IMX307(C) 1/2.8" (5.56 × 3.13 mm) |
|---|---|
| Effective Pixels | 2.9 µm × 2.9 µm |
| Sensor | 2.1M / Sony IMX307(C) 1/2.8" (5.56 × 3.13 mm) |
| Resolution | 2.1 MP (1920 × 1080) |
| Pixel Size | 2.9 µm × 2.9 µm |
Performance
| Frame Rate (fps) | 38 fps @ 1920×1080 38 fps @ 960×540 |
|---|---|
| Frame Rate | 38 fps @ 1920×1080 38 fps @ 960×540 |
Interface & Connectivity
| Output Resolution | 2.1 MP (1920 × 1080) |
|---|---|
| Output Interface | USB2.0 |
| Storage Support | Computer storage |
| Interface | USB2.0 |
Cooling & Mechanical
| Lens Mount | Integrated HH153 lens |
|---|
Other Published Specifications
| Model | PUM02100KPA |
|---|---|
| Featured Functions | HH153 lens 10×–280× continuous magnification 8-LED ring illumination M-SD-HM5 metal stand High-frame-rate 1080P capture |
Related Products
| Selection parameter | PUM02100KPA (current) | PUM01300KPASame IMX307 sensor | AVCAM290ASame IMX307 sensor | C2CMOS02100KPASame IMX307 sensor |
|---|---|---|---|---|
| Sensor | 2.1M / Sony IMX307(C) 1/2.8" (5.56 × 3.13 mm) | 1.3M / Sony IMX307(C) 1/2.8" (4.41 × 2.48 mm) | Sony IMX307 | IMX307(C) |
| Image type | Color | Color | Monochrome | Color |
| Resolution | 2.1 MP (1920 × 1080) | 1.3 MP (1520 × 856) | 0.4 MP (720×576) | 2.1M (1920×1080) |
| Pixel size | 2.9 µm × 2.9 µm | 2.9 µm × 2.9 µm | 2.9 µm × 2.9 µm | 2.9 µm × 2.9 µm |
| Frame / line rate | 38 fps @ 1920×1080 38 fps @ 960×540 | 38 fps @ 1520×856 38 fps @ 760×428 | 25 fps @ 720×576 | 38 fps @ 1920×1080; 38 fps @ 960×540 |
| Interface | USB2.0 | USB2.0 | CVBS (PAL-N format) | USB2.0 |
