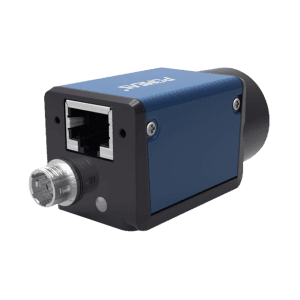

Monochrome · Gigabit Ethernet industrial camera
PMS-CCN-100K15BSC
- Sensor
- 1/2.3" CMOS
- Resolution
- 10 MP (3840×2748)
- Pixel Size
- 1.67 µm × 1.67 µm
- Frame Rate
- 10 fps @ 3840×2748
- Interface
- GigE (Gigabit Ethernet), 1 Gbit/s
Complete Specifications
Sensor & Imaging
| Sensor | 1/2.3" CMOS |
|---|---|
| Sensor Format | 1/2.3" |
| Shutter Type | Rolling shutter |
| Resolution | 10 MP (3840×2748) |
| Pixel Size | 1.67 µm × 1.67 µm |
| Color Type | Monochrome |
Performance
| Frame Rate | 10 fps @ 3840×2748 |
|---|---|
| Signal-to-noise Ratio | >32 dB |
| Dynamic Range | 65 dB |
| Gain Range | 1×-32× |
| Bit Depth | 12 bit |
| Exposure Time | 25 µs-1 s |
| Image Buffer | 64 MB |
| Memory Channel | 2 groups of user-defined configurations |
| Binning | Supported |
Interface & Connectivity
| Interface | GigE (Gigabit Ethernet), 1 Gbit/s |
|---|---|
| GPIO | 6-pin Hirose: 1 opto-isolated input, 1 opto-isolated output and 1 configurable non-isolated input/output |
Cooling & Mechanical
| Power Supply | PoE or DC 6-26 V via Hirose connector |
|---|---|
| Power Consumption | Approximately 2.9 W at 12 V |
| Operating Temperature | -30 °C to +50 °C |
| Storage Temperature | -30 °C to +80 °C |

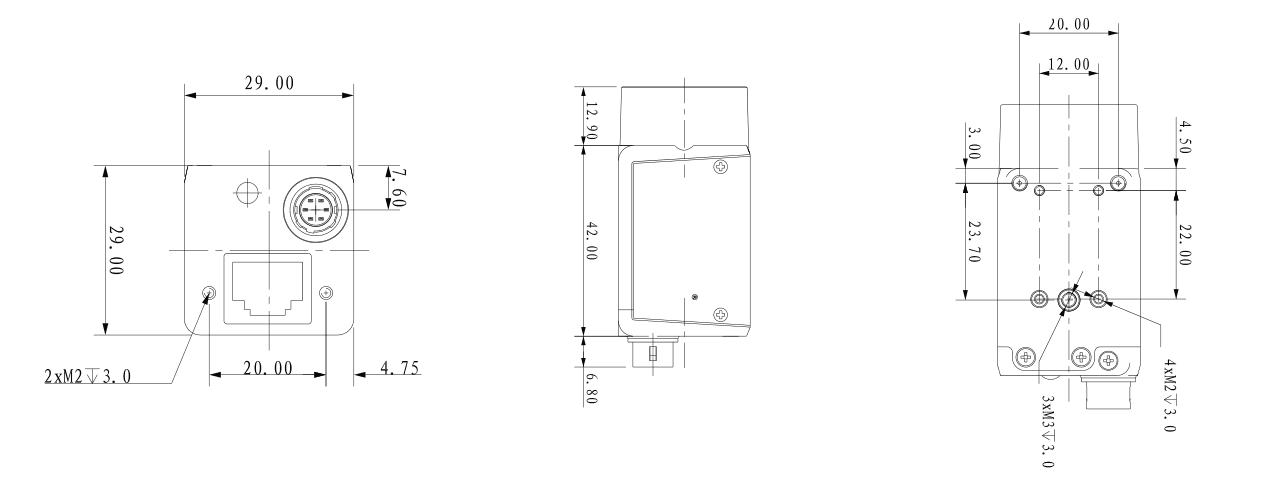

| Dimensions | 29 × 29 × 42 mm |
| Weight | 88 g |
| Lens Mount | C-mount |
Other Published Specifications
| Maximum Cable Length | 100 m without a repeater |
|---|---|
| Protocol Compatibility | GigE Vision V2.0; GenICam |
| Gamma | 0-4; LUT supported |
| Image Format | Mono8/10/10Packed/12/12Packed |
| ROI | Supported |
| SPC | Supported |
| FPN | Supported |
| Feature 1 | Gigabit Ethernet transfers uncompressed image data over cables up to 100 m without a repeater. |
| Feature 2 | Automatic or manual gain, exposure and gamma adjustment; lookup-table processing. |
| Feature 3 | GigE Vision V2.0 and GenICam compatibility for third-party software integration. |
| Applications | Machine vision; Industrial inspection; Microscopic imaging; Visual positioning; Dimensional measurement |
Other Published Specifications — I/O Connector Pinout
| Pin | Signal | Description |
|---|---|---|
| 1 | Power | +6-26 V DC supply |
| 2 | Line1 | Opto-isolated input |
| 3 | Line2 | Configurable non-isolated input/output |
| 4 | Line0 | Opto-isolated output |
| 5 | IO GND | Optocoupler isolated ground |
| 6 | GND | DC power ground |
Technical Files & Images

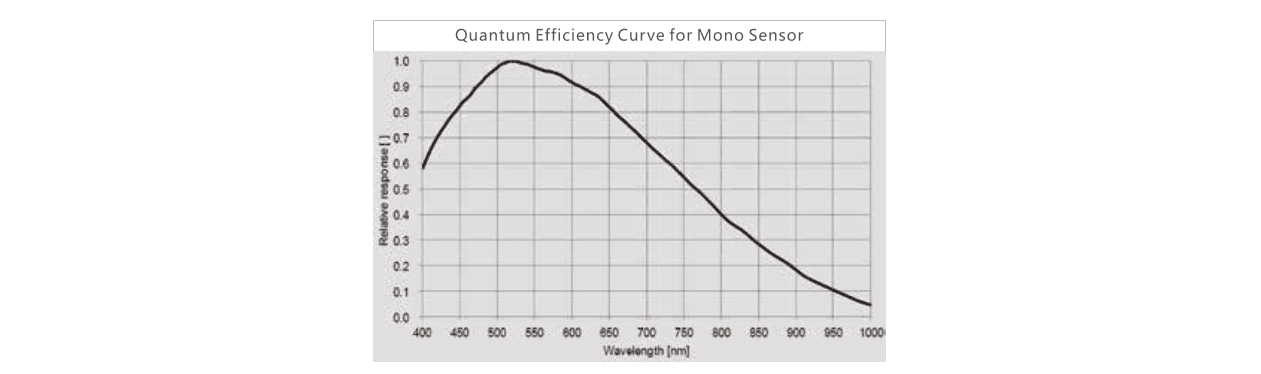

Technical images (2)
