Microscopy Camera

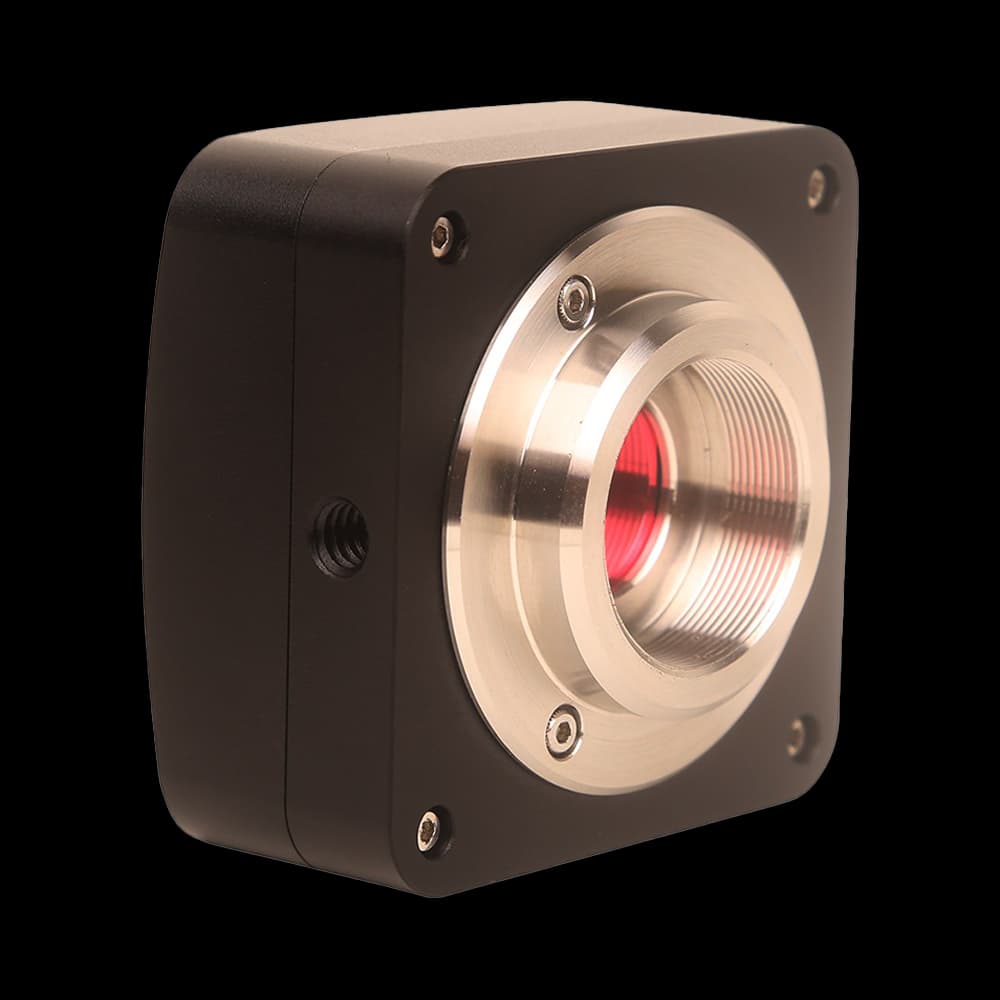

C2CMOS03100KPA Microscopy Camera with Aptina(C) sensor, 3.1M (2048×1536) for professional imaging.
Application context
C2CMOS03100KPA: The Aptina(C) sensor, 3.1M (2048×1536) resolution, and 2.8 µm × 2.8 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 30 fps @ 2048×1536; 30 fps @ 1024×768 frame-rate listing also sets the fastest full-frame acquisition regime.
C2CMOS03100KPA: The Aptina(C) sensor, 3.1M (2048×1536) resolution, and 2.8 µm × 2.8 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 30 fps @ 2048×1536; 30 fps @ 1024×768 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
22 specification rows
The C2CMOS03100KPA is a microscopy camera in the C2CMOS series, built around a Aptina(C) sensor, 3.1M (2048×1536) resolution, 2.8 µm × 2.8 µm pixels, frame rates up to 30 fps @ 2048×1536; 30 fps @ 1024×768, a USB2.0 interface. It suits microscopy camera where reliable imaging performance and interface compatibility matter.
| Model | C2CMOS03100KPA |
|---|---|
| Sensor | Aptina(C) |
| Effective Pixels / Resolution | 3.1M (2048×1536) |
| Frame Rate (Full Resolution) | 30 fps @ 2048×1536; 30 fps @ 1024×768 |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Pixel Size | 2.8 µm × 2.8 µm |
|---|---|
| Sensor Size | 5.73 mm × 4.3 mm |
| Diagonal | 1/2.5" (7.16 mm) |
| Dynamic Range | 73 dB |
| Bit Depth | MJPEG |
| Sensitivity | 18.8 ke-/lux |
| Data Interface | USB2.0 |
|---|---|
| GPIO | Available on request |
| Lens Mount | C-mount |
| Dimensions | Available on request |
| Weight | 0.5~0.55Kg |
| Power Supply | USB powered |
| Operating Temperature / Humidity | 10 °C ~ 50 °C / 30%~80%RH |
|---|---|
| Storage Temperature / Humidity | 20 °C ~ 60 °C / 10%~60%RH |
| Operating System | Windows/Linux/Mac OS |
| Certification | CE/FCC |
System integration
Use these checks to connect C2CMOS03100KPA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Aptina(C) · Resolution: 3.1M (2048×1536). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 30 fps @ 2048×1536; 30 fps @ 1024×768 · Interface: USB2.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: Available on request. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: 73 dB. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare C2CMOS03100KPA with the closest available models in the C2CMOS family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | C2CMOS03100KPA (current) | C2CMOS02100KPA | C2CMOS05100KPA |
|---|---|---|---|
| Sensor | Aptina(C) | IMX307(C) | AR0521(C) |
| Resolution | 3.1M (2048×1536) | 2.1M (1920×1080) | 5.1M (2592×1944) |
| Sensor size | 5.73 mm × 4.3 mm | 5.73 mm × 4.3 mm | 5.70 mm × 4.28 mm |
| Pixel size / frame rate | 2.8 µm × 2.8 µm | 2.9 µm × 2.9 µm | 2.2 µm × 2.2 µm |
Compare the C2CMOS03100KPA with other C2CMOS models and microscopy cameras in the range.
Choosing a camera
How to tell whether this sensor is the right technology for your photon budget, and what to check before committing.

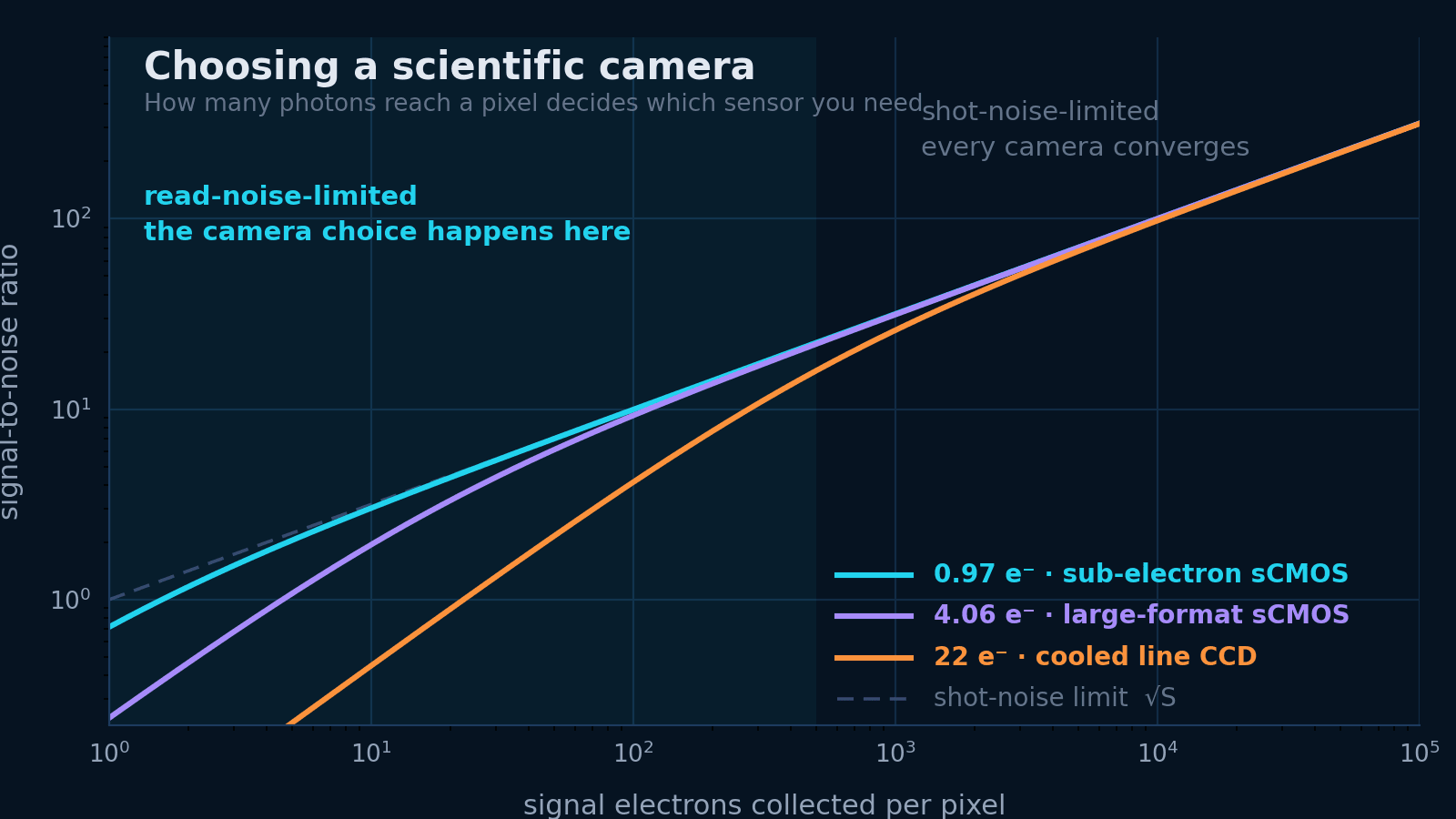

Scientific camerasWhich sensor technology your photon budget actually needs, why rolling and global shutter answer different questions, and how to check the data can leave the camera at all.
Open guide

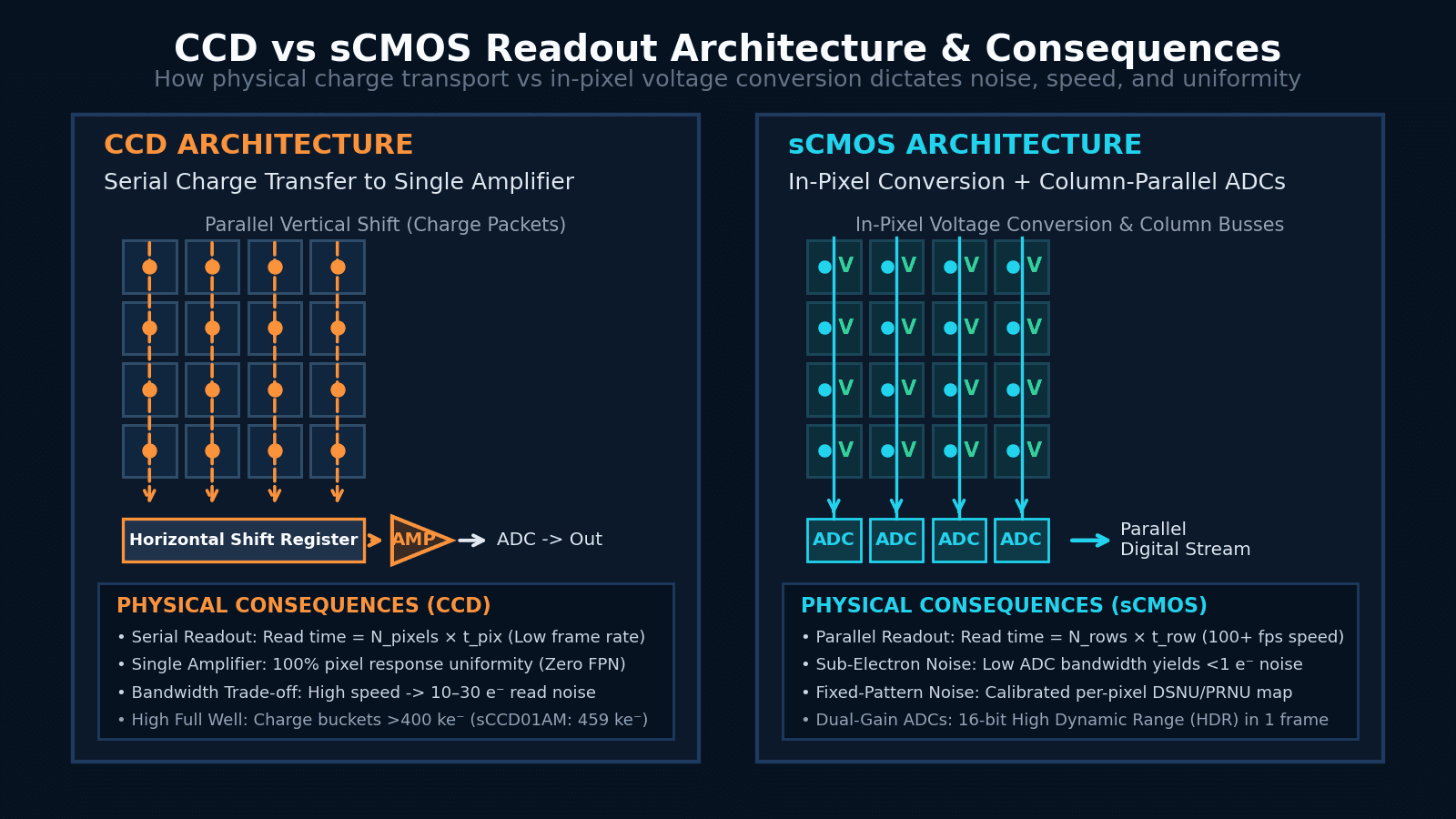

Scientific camerasHow physical charge transport versus in-pixel voltage conversion dictates readout speed, read noise, blooming, fill factor, and fixed-pattern noise in scientific detectors.
Open guide

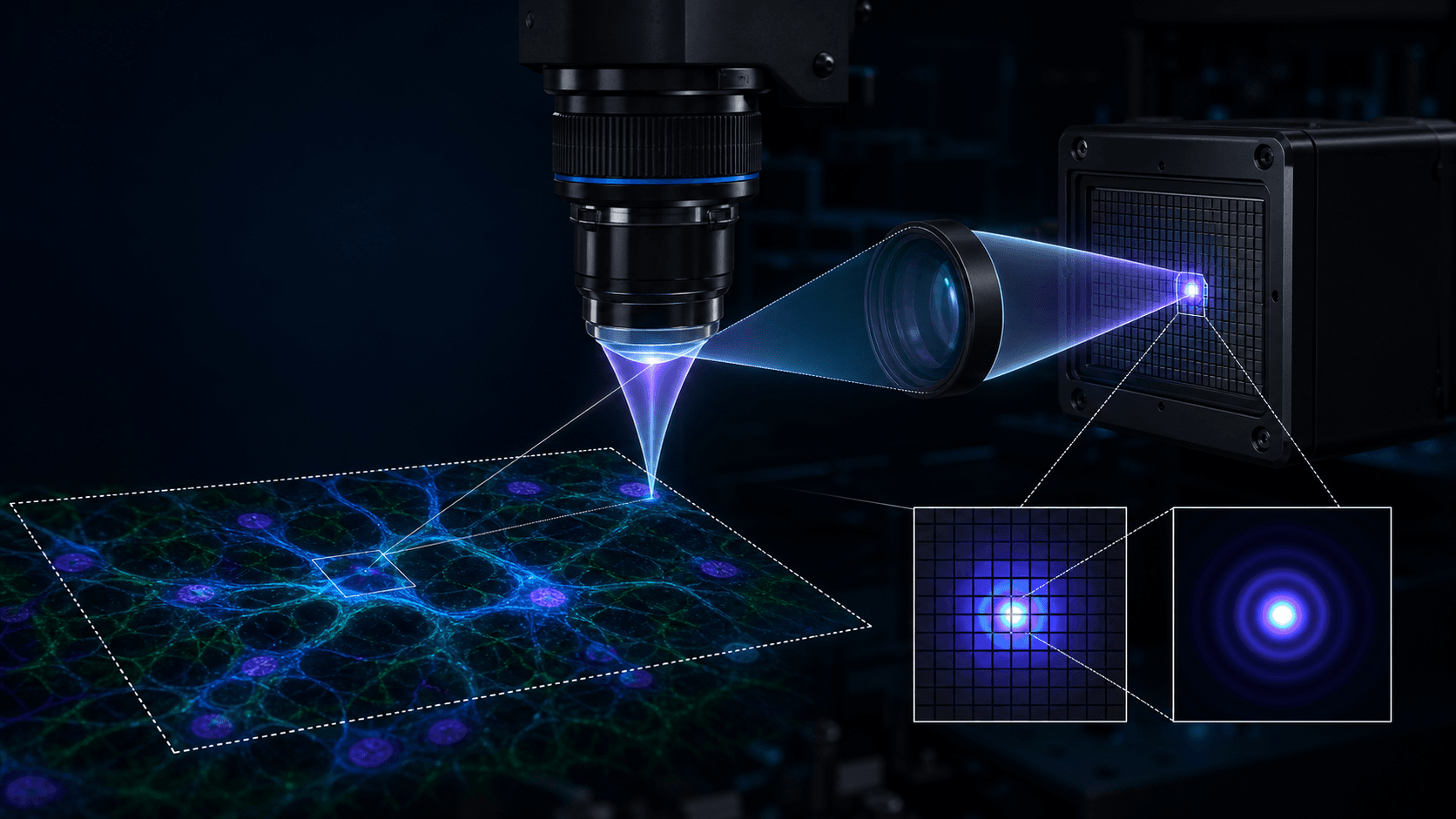

Scientific imagingCalculate object-space pixel size, field of view, Rayleigh resolution, and sampling using real MAX and sMAX sensor formats.
