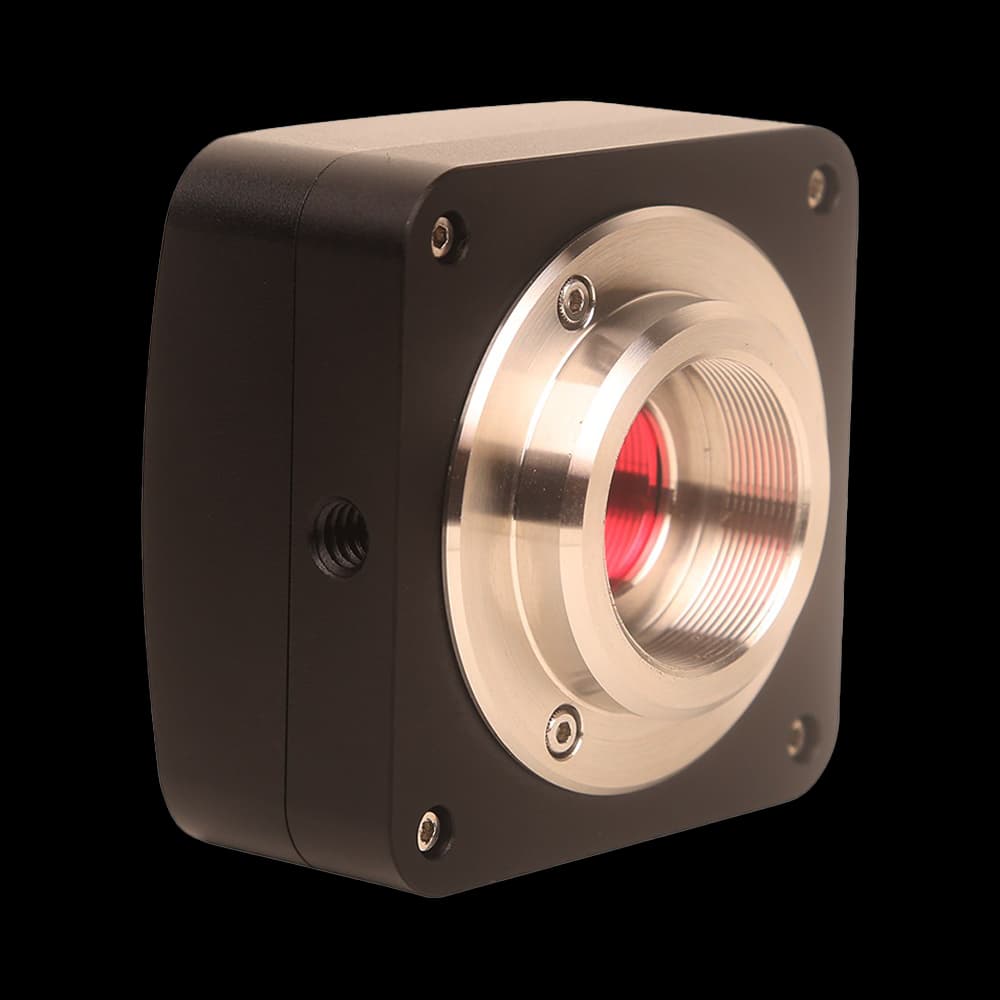

Color · Microscopy Camera
C2CMOS05100KPB
- Sensor
- IMX335(C)
- Resolution
- 5.1M (2592×1944)
- Pixel Size
- 2.0 µm × 2.0 µm
- Frame Rate
- 26 fps @ 2592×1944; 26 fps @ 1280×960; 26 fps @ 640×480
- Interface
- USB2.0
Complete Specifications
Sensor & Imaging
| Sensor | IMX335(C) |
|---|---|
| Effective Pixels / Resolution | 5.1M (2592×1944) |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Pixel Size | 2.0 µm × 2.0 µm |
| Sensor Size | 5.18 mm × 3.89 mm |
| Diagonal | 1/2.5" (6.48 mm) |
| Resolution | 5.1M (2592×1944) |
Performance
| Frame Rate (Full Resolution) | 26 fps @ 2592×1944; 26 fps @ 1280×960; 26 fps @ 640×480 |
|---|---|
| Dynamic Range | 70 dB |
| Bit Depth | MJPEG |
| Sensitivity | 505 mV |
| Frame Rate | 26 fps @ 2592×1944; 26 fps @ 1280×960; 26 fps @ 640×480 |
Interface & Connectivity
| Data Interface | USB2.0 |
|---|---|
| GPIO | Available on request |
| Interface | USB2.0 |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Dimensions | Available on request |
| Weight | 0.5~0.55Kg |
| Power Supply | USB powered |
| Operating Temperature / Humidity | 10 °C ~ 50 °C / 30%~80%RH |
| Storage Temperature / Humidity | 20 °C ~ 60 °C / 10%~60%RH |
Other Published Specifications
| Model | C2CMOS05100KPB |
|---|---|
| Operating System | Windows/Linux/Mac OS |
| Certification | CE/FCC |
Technical Files & Images
Related Products
| Selection parameter | C2CMOS05100KPB (current) | C3CMOS05100KPBSame IMX335 sensor | ECMOS05000KPASame IMX335 sensor | PUM05100KPASame IMX335 sensor |
|---|---|---|---|---|
| Sensor | IMX335(C) | IMX335(C) | IMX335(C) | 5.1M / Sony IMX335(C) 1/2.8" (5.18 × 3.89 mm) |
| Image type | Color | Color | Color | Color |
| Resolution | 5.1M (2592×1944) | 5.1M (2592×1944) | 5.0M (2592×1944) | 5.1 MP (2592 × 1944) |
| Pixel size | 2.0 µm × 2.0 µm | 2.0 µm × 2.0 µm | 2.0 µm × 2.0 µm | 2.0 µm × 2.0 µm |
| Frame / line rate | 26 fps @ 2592×1944; 26 fps @ 1280×960; 26 fps @ 640×480 | 25 fps @ 2592×1944; 40 fps @ 1296×972 | 6.4 fps @ 2592×1944; 26.7 fps @ 1296×972 | 26 fps @ 2592×1944 26 fps @ 1280×960 26 fps @ 640×480 |
| Interface | USB2.0 | USB3.0 | USB2.0 | USB2.0 |
| Cooling / shutter | Rolling Shutter | Rolling Shutter | Rolling Shutter | — |
