Industrial Camera/Analytical Imaging

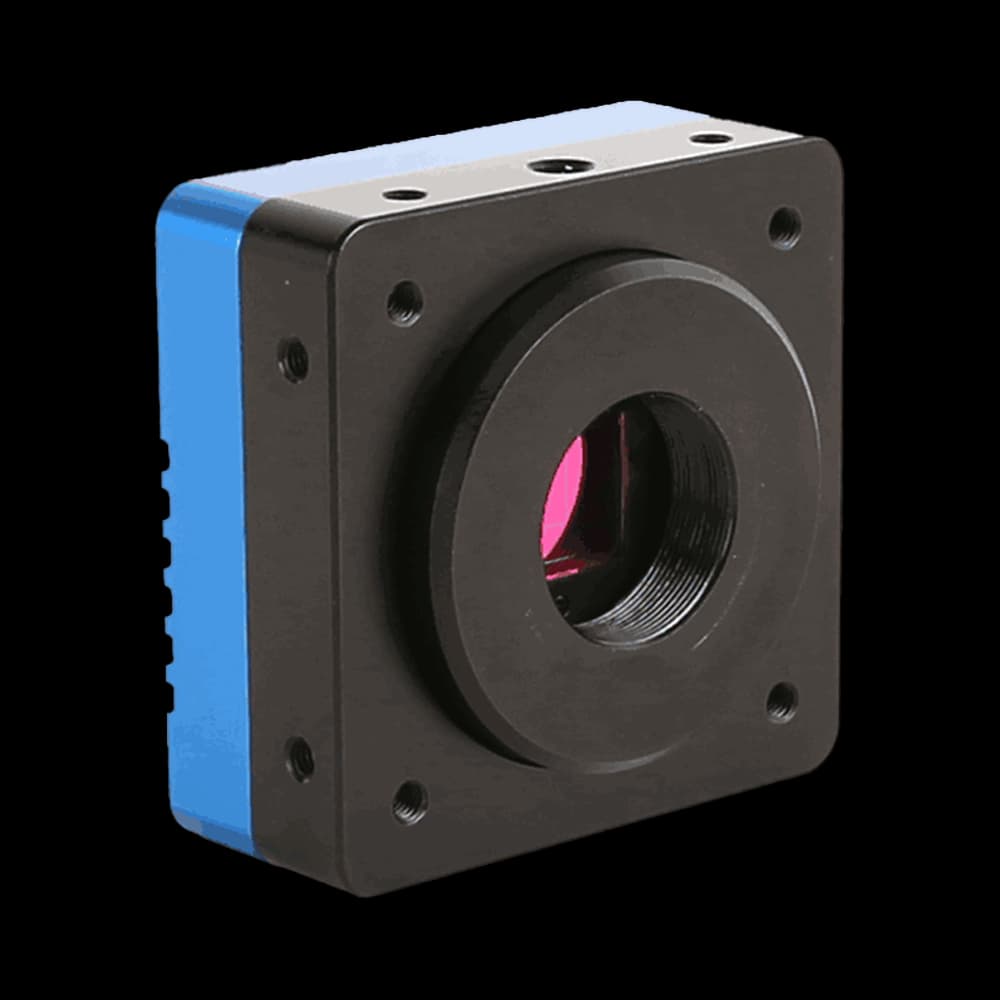

IUA2300KMA
IUA2300KMA Industrial Camera/Analytical Imaging with Sony IMX174LLJ sensor, 2.3MP (1920×1200) for professional imaging.
- Sensor
- Sony IMX174LLJ
- Resolution
- 2.3MP (1920×1200)
- Pixel Size
- 5.86 µm × 5.86 µm
- Frame Rate
- 164.5 fps @ 1920×1200
- Interface
- USB3.0 (USB3.1 GEN1)
Specifications
IUA2300KMA
23 specification rows
The IUA2300KMA is an industrial & analytical camera in the IUA series, built around a Sony IMX174LLJ sensor, 2.3MP (1920×1200) resolution, 5.86 µm × 5.86 µm pixels, frame rates up to 164.5 fps @ 1920×1200, a USB3.0 (USB3.1 GEN1) interface. It suits industrial camera/analytical imaging where reliable imaging performance and interface compatibility matter.
Key Parameters
| Model | IUA2300KMA |
|---|---|
| Sensor | Sony IMX174LLJ |
| Effective Pixels / Resolution | 2.3MP (1920×1200) |
| Frame Rate (Full Resolution) | 164.5 fps @ 1920×1200 |
| Exposure Time | 19 µs ~ 15 s |
| Shutter Type | Global Shutter |
| Color Type | Monochrome |
Imaging Performance
| Pixel Size | 5.86 µm × 5.86 µm |
|---|---|
| Sensor Size | 11.25 mm × 7.03 mm |
| Diagonal | 3/4" (13.27 mm) |
| Dynamic Range | 72 dB |
| Bit Depth | 8/12-bit |
| Sensitivity | 1650 mV |
Interface & Mechanical
| Data Interface | USB3.0 (USB3.1 GEN1) |
|---|---|
| GPIO | 1 optically isolated input, 1 optically isolated output, 2 non-isolated input/output ports |
| Lens Mount | C-mount |
| Dimensions | 68 mm × 68 mm × 28.1 mm |
| Weight | 228g |
| Power Supply | USB3.0 bus power / DC 12 V power |
Environment & Certification
| Operating Temperature / Humidity | 10 °C ~ +50 °C / 20%~80% non-condensing |
|---|---|
| Storage Temperature / Humidity | 30 °C ~ +70 °C / Available on request |
| Operating System | Windows 32-bit/Windows RT/Linux/macOS/Android; x86/x64/ARM HF/ARM EL/ARM64 |
| Certification | CE, FCC |
System integration
Integration and compatibility
Use these checks to connect IUA2300KMA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
- Lens and microscope interface
- Lens Mount: C-mount
- Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
- Sensor and sampling
- Sensor: Sony IMX174LLJ · Resolution: 2.3MP (1920×1200)
- Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
- Interface and data rate
- Frame Rate: 164.5 fps @ 1920×1200 · Interface: USB3.0 (USB3.1 GEN1)
- Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
- Hardware synchronization
- GPIO: 1 optically isolated input, 1 optically isolated output, 2 non-isolated input/output ports
- Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
- Cooling and noise floor
- Dynamic Range: 72 dB
- Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Technical FAQ
Integration questions for IUA2300KMA
What lens mount is required for the IUA2300KMA?
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
What sensor and pixel pitch does the IUA2300KMA use?
Sensor: Sony IMX174LLJ · Resolution: 2.3MP (1920×1200). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
How does the IUA2300KMA connect to the acquisition computer?
Frame Rate: 164.5 fps @ 1920×1200 · Interface: USB3.0 (USB3.1 GEN1). Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Does the IUA2300KMA support hardware triggering?
GPIO: 1 optically isolated input, 1 optically isolated output, 2 non-isolated input/output ports. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
What is the noise performance of the IUA2300KMA?
Dynamic Range: 72 dB. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Need help choosing?
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Zoom lenses for the IUA2300KMA
See which of our C-mount zoom lenses suit this sensor, with the field of view, µm per pixel and depth of field at each zoom setting.
Model selection
Nearby series comparison
Compare IUA2300KMA with the closest available models in the IUA family.
| Selection parameter | IUA2300KMA (current) | IUA2100KPA(NIR) | IUA2300KMB |
|---|---|---|---|
| Sensor | Sony IMX174LLJ | Sony IMX462LQR | Sony IMX249LLJ |
| Resolution | 2.3MP (1920×1200) | 2.1MP (1920×1080) | 2.3MP (1920×1200) |
| Sensor size | 11.25 mm × 7.03 mm | 5.57 mm × 3.13 mm | 11.25 mm × 7.03 mm |
| Pixel size / frame rate | 5.86 µm × 5.86 µm | 2.9 µm × 2.9 µm | 5.86 µm × 5.86 µm |
Other cameras on the IMX174 sensor
The IMX174 appears in 5 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
