Microscopy Camera

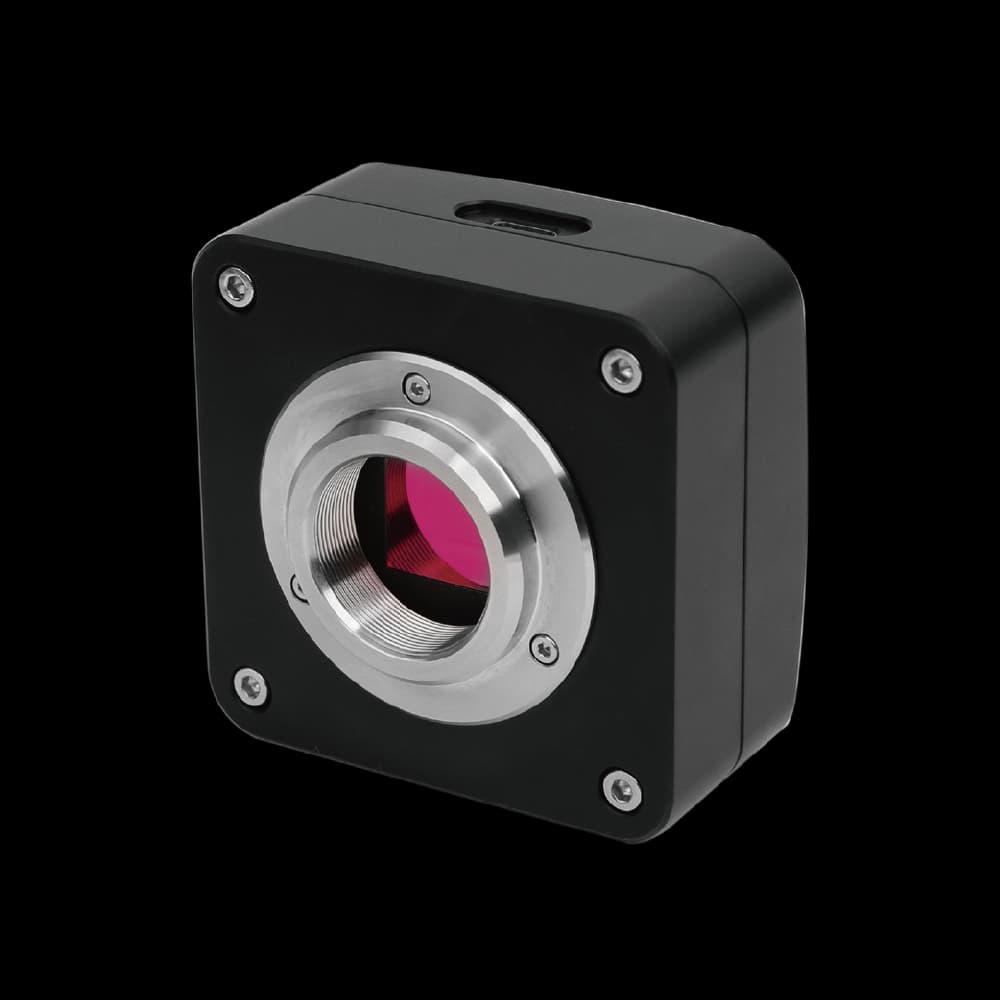

E10ISPM50000KPA Microscopy Camera with IMX06A (C,RS) sensor, 50M (8128×6144) for professional imaging.
Application context
E10ISPM50000KPA: The IMX06A (C,RS) sensor, 50M (8128×6144) resolution, and 1.6 µm × 1.6 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 14 fps @ 8128×6144(8-bit); 10 fps @ 8128×6144(12-bit); 19 fps @ 7680×4320(8-bit); 15 fps @ 7680×4320(12-bit); 45 fps @ 4032×3072(8-bit); 40 fps @ 4032×3072(12-bit); 62 fps @ 3840×2160(8-bit); 62 fps @ 3840×2160(12-bit) frame-rate listing also sets the fastest full-frame acquisition regime.
E10ISPM50000KPA: The IMX06A (C,RS) sensor, 50M (8128×6144) resolution, and 1.6 µm × 1.6 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 14 fps @ 8128×6144(8-bit); 10 fps @ 8128×6144(12-bit); 19 fps @ 7680×4320(8-bit); 15 fps @ 7680×4320(12-bit); 45 fps @ 4032×3072(8-bit); 40 fps @ 4032×3072(12-bit); 62 fps @ 3840×2160(8-bit); 62 fps @ 3840×2160(12-bit) frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
28 specification rows
The E10ISPM50000KPA is a microscopy camera in the E10ISPM series, built around a IMX06A (C,RS) sensor, 50M (8128×6144) resolution, 1.6 µm × 1.6 µm pixels, frame rates up to 14 fps @ 8128×6144(8-bit); 10 fps @ 8128×6144(12-bit); 19 fps @ 7680×4320(8-bit); 15 fps @ 7680×4320(12-bit); 45 fps @ 4032×3072(8-bit); 40 fps @ 4032×3072(12-bit); 62 fps @ 3840×2160(8-bit); 62 fps @ 3840×2160(12-bit), a USB3.2 Gen2 (Type-C) interface. It suits microscopy camera where reliable imaging performance and interface compatibility matter.
| Model | E10ISPM50000KPA |
|---|---|
| Sensor | IMX06A (C,RS) |
| Effective Pixels / Resolution | 50M (8128×6144) |
| Frame Rate (Full Resolution) | 14 fps @ 8128×6144(8-bit); 10 fps @ 8128×6144(12-bit); 19 fps @ 7680×4320(8-bit); 15 fps @ 7680×4320(12-bit); 45 fps @ 4032×3072(8-bit); 40 fps @ 4032×3072(12-bit); 62 fps @ 3840×2160(8-bit); 62 fps @ 3840×2160(12-bit) |
| Exposure Time | 0.35 ms ~ 15 s |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Pixel Size | 1.6 µm × 1.6 µm |
|---|---|
| Sensor Size | 13.00 mm × 9.83 mm |
| Diagonal | 1" (16.30 mm) |
| Dynamic Range | 70.7 dB |
| Bit Depth | 8/12-bit |
| Sensitivity | Available on request |
| Read Noise | 4.63 e- |
| Full Well Capacity | 15.829 ke- |
| Signal-to-Noise Ratio | 42 dB |
| Conversion Gain | 3.871 e-/ADU |
| Data Interface | USB3.2 Gen2 (Type-C) |
|---|---|
| GPIO | 1 optically isolated input, 1 optically isolated output, 2 non-isolated input/output ports |
| Lens Mount | C-mount |
| Binning Mode | Hardware 2×2, 3×3, 4×4; Software 2×2, 3×3, 4×4 |
| Dimensions | Available on request |
| Weight | Available on request |
| Power Supply | USB Type-C interface power |
| Operating Temperature / Humidity | 10 °C ~ +50 °C / 20%~80%RH |
|---|---|
| Storage Temperature / Humidity | 30 °C ~ +70 °C / 10%~60%RH |
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
| Certification | CE, FCC |
System integration
Use these checks to connect E10ISPM50000KPA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: IMX06A (C,RS) · Resolution: 50M (8128×6144). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 14 fps @ 8128×6144(8-bit); 10 fps @ 8128×6144(12-bit); 19 fps @ 7680×4320(8-bit); 15 fps @ 7680×4320(12-bit); 45 fps @ 4032×3072(8-bit); 40 fps @ 4032×3072(12-bit); 62 fps @ 3840×2160(8-bit); 62 fps @ 3840×2160(12-bit) · Interface: USB3.2 Gen2 (Type-C). Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 1 optically isolated input, 1 optically isolated output, 2 non-isolated input/output ports. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: 70.7 dB · Read Noise: 4.63 e-. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare E10ISPM50000KPA with the closest available models in the E10ISPM family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | E10ISPM50000KPA (current) | E10ISPM21000KPA | E10ISPM20000KPA |
|---|---|---|---|
| Sensor | IMX06A (C,RS) | IMX472 (C,RS) | IMX383 (C,RS) |
| Resolution | 50M (8128×6144) | 21M (5280×3956) | 20M (5472×3648) |
| Sensor size | 13.00 mm × 9.83 mm | 17.42 mm × 13.05 mm | 13.13 mm × 8.75 mm |
| Pixel size / frame rate | 1.6 µm × 1.6 µm | 3.3 µm × 3.3 µm | 2.4 µm × 2.4 µm |
