Color · Microscopy Camera

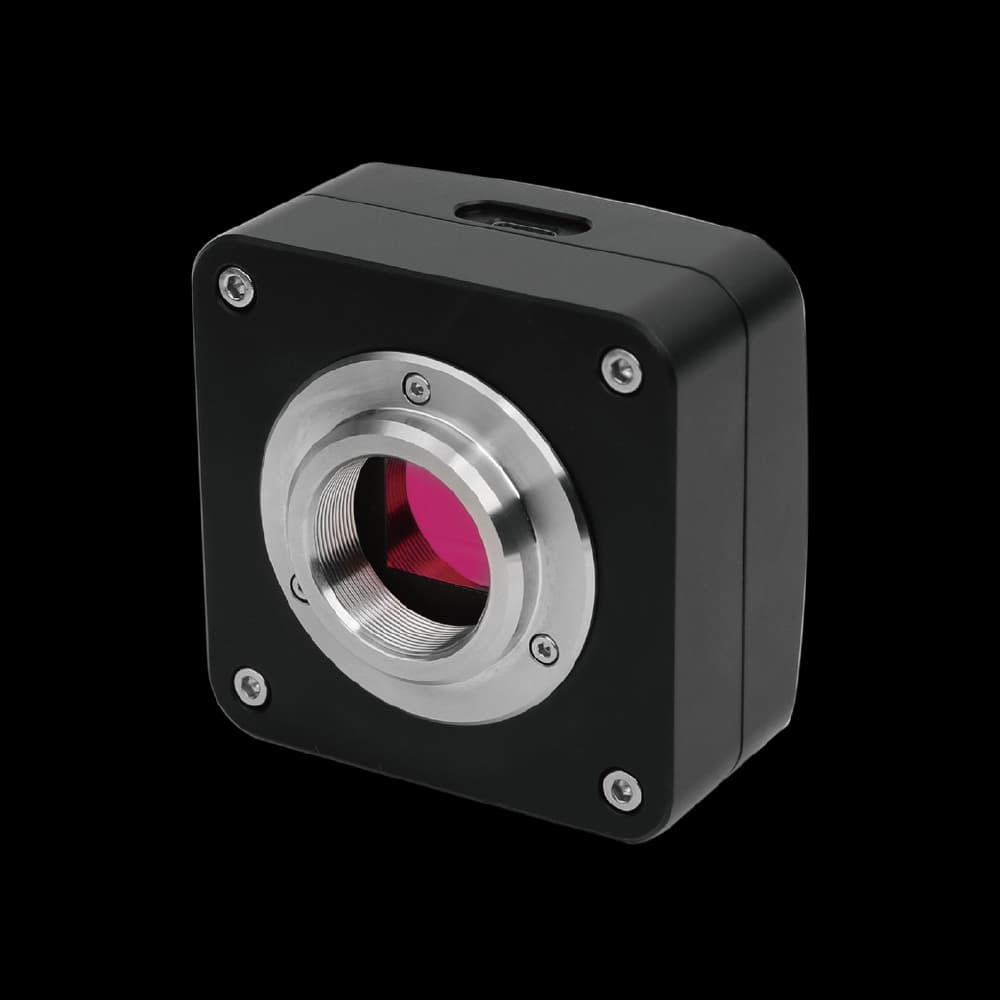

E10ISPM05100KPA
- Sensor
- IMX537-AAQJ (C, GS)
- Resolution
- 5.1M (2448×2048)
- Pixel Size
- 2.74 µm × 2.74 µm
- Frame Rate
- 147 fps @ 2448×2048(8-bit); 101 fps @ 2448×2048(12-bit); 257 fps @ 1232×1024(8-bit); 257 fps @ 1232×1024(12-bit)
- Interface
- USB3.2 Gen2 (Type-C)
Complete Specifications
Sensor & Imaging
| Sensor | IMX537-AAQJ (C, GS) |
|---|---|
| Effective Pixels / Resolution | 5.1M (2448×2048) |
| Shutter Type | Global Shutter |
| Color Type | Color |
| Pixel Size | 2.74 µm × 2.74 µm |
| Sensor Size | 6.71 mm × 5.61 mm |
| Diagonal | 1/1.8" (8.8 mm) |
| Resolution | 5.1M (2448×2048) |
Performance
| Frame Rate (Full Resolution) | 147 fps @ 2448×2048(8-bit); 101 fps @ 2448×2048(12-bit); 257 fps @ 1232×1024(8-bit); 257 fps @ 1232×1024(12-bit) |
|---|---|
| Dynamic Range | 71.7 dB |
| Bit Depth | 8/12-bit |
| Read Noise | 1.47 e- |
| Full Well Capacity | 5.632 ke- |
| Signal-to-Noise Ratio | 40 dB |
| Conversion Gain | 2.430 e-/ADU |
| Binning Mode | Hardware 2×2, 3×3, 4×4; Software 2×2, 3×3, 4×4 |
| Frame Rate | 147 fps @ 2448×2048(8-bit); 101 fps @ 2448×2048(12-bit); 257 fps @ 1232×1024(8-bit); 257 fps @ 1232×1024(12-bit) |
Interface & Connectivity
| Data Interface | USB3.2 Gen2 (Type-C) |
|---|---|
| GPIO | 1 optically isolated input, 1 optically isolated output, 2 non-isolated input/output ports |
| Interface | USB3.2 Gen2 (Type-C) |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Power Supply | USB Type-C interface power |
| Operating Temperature / Humidity | -10 °C ~ +50 °C / 20%~80%RH |
| Storage Temperature / Humidity | -30 °C ~ +70 °C / 10%~60%RH |
Other Published Specifications
| Model | E10ISPM05100KPA |
|---|---|
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
| Certification | CE, FCC |
Technical Files & Images
Related Products
| Selection parameter | E10ISPM05100KPA (current) | E10ISPM08300KPASame E10ISPM series | E10ISPM20000KPASame E10ISPM series | E10ISPM21000KPASame E10ISPM series |
|---|---|---|---|---|
| Sensor | IMX537-AAQJ (C, GS) | IMX585 (C,RS) | IMX383 (C,RS) | IMX472 (C,RS) |
| Image type | Color | Color | Color | Color |
| Resolution | 5.1M (2448×2048) | 8.3M (3840×2160) | 20M (5472×3648) | 21M (5280×3956) |
| Pixel size | 2.74 µm × 2.74 µm | 2.9 µm × 2.9 µm | 2.4 µm × 2.4 µm | 3.3 µm × 3.3 µm |
| Read noise | 1.47 e- | 1.07 e-(HCG); 6.69 e-(LCG) | 3.48 e- | 4.58 e- |
| Frame / line rate | 147 fps @ 2448×2048(8-bit); 101 fps @ 2448×2048(12-bit); 257 fps @ 1232×1024(8-bit); 257 fps @ 1232×1024(12-bit) | 88 fps @ 3840×2160(8-bit); 60 fps @ 3840×2160(12-bit); 60 fps @ 1920×1080(8-bit); 60 fps @ 1920×1080(12-bit) | 49 fps @ 5472×3648(8-bit); 24 fps @ 5472×3648(12-bit); 49 fps @ 2736×1824(8-bit); 24 fps @ 2736×1824(12-bit); 120 fps @ 1824×1216(8-bit); 120 fps @ 1824×1216(12-bit) | 49 fps @ 5280×3956(8-bit); 25 fps @ 5280×3956(12-bit); 115 fps @ 2640×1978(8-bit); 55 fps @ 2640×1978(12-bit); 240 fps @ 1760×1318(8-bit); 117 fps @ 1760×1318(12-bit) |
| Interface | USB3.2 Gen2 (Type-C) | USB3.2 Gen2 (Type-C) | USB3.2 Gen2 (Type-C) | USB3.2 Gen2 (Type-C) |
| Cooling / shutter | Global Shutter | Rolling Shutter | Rolling Shutter | Rolling Shutter |
