Monochrome · Low Light Imaging/Semiconductor Cooled Camera

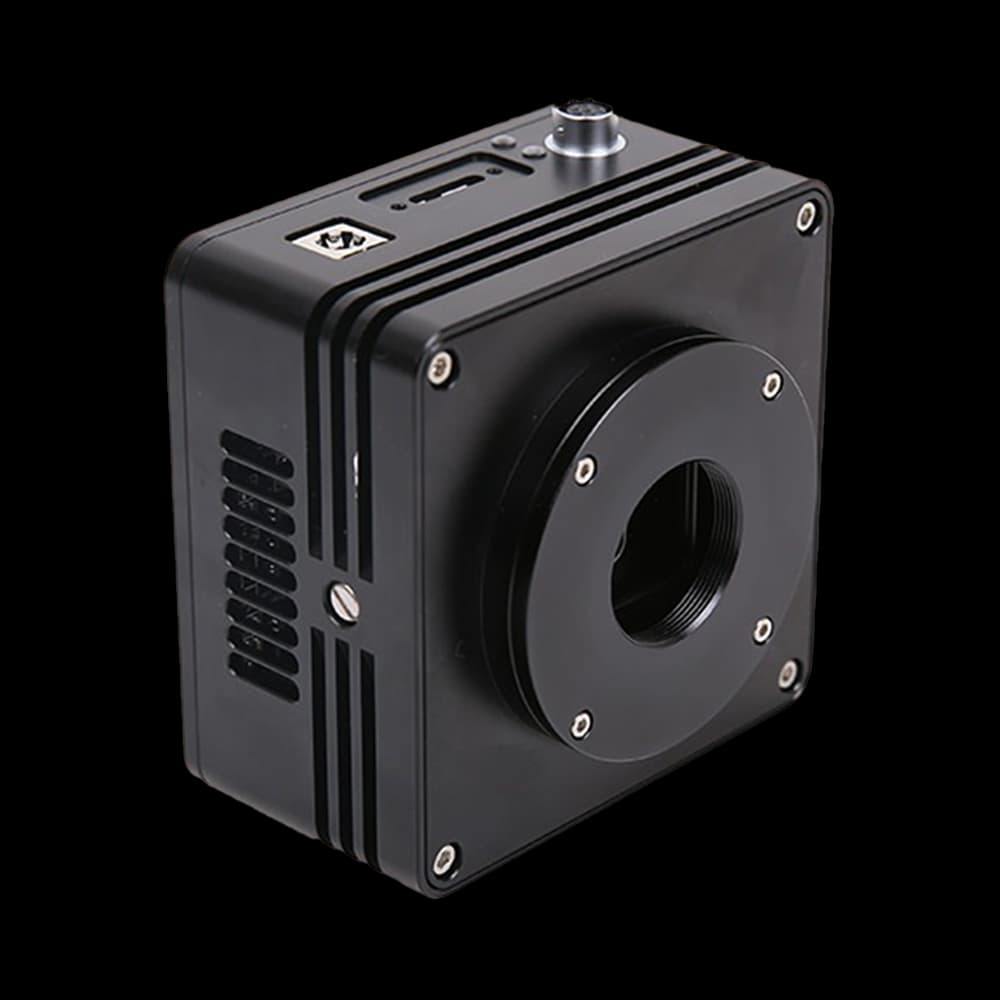

CTR3CMOS08300KMA
- Sensor
- Sony IMX585
- Resolution
- 8.3MP (3840×2160)
- Pixel Size
- 2.9 µm × 2.9 µm
- Frame Rate
- 45 fps @ 3840×2160; 70 fps @ 1920×1080
- Interface
- USB3.0
Complete Specifications
Sensor & Imaging
| Sensor | Sony IMX585 |
|---|---|
| Effective Pixels / Resolution | 8.3MP (3840×2160) |
| Shutter Type | Rolling Shutter |
| Color Type | Monochrome |
| Pixel Size | 2.9 µm × 2.9 µm |
| Sensor Size | 11.14 mm × 6.26 mm |
| Diagonal | 1/1.2" (12.78 mm) |
| Resolution | 8.3MP (3840×2160) |
Performance
| Frame Rate (Full Resolution and Key Resolution Modes) | 45 fps @ 3840×2160; 70 fps @ 1920×1080 |
|---|---|
| Exposure Time | 30 µs ~ 300 s |
| Dynamic Range | Available on request |
| Bit Depth | 8-bit/12-bit |
| Sensitivity | Available on request |
| Frame Rate | 45 fps @ 3840×2160; 70 fps @ 1920×1080 |
Interface & Connectivity
| Data Interface | USB3.0 |
|---|---|
| GPIO | 1x optically isolated input, 1x optically isolated output, 2x non-isolated I/O ports |
| OS Support | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
| Interface | USB3.0 |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Dimensions | 80 mm × 80 mm × 45.5 mm |
| Weight | 396.6 g |
| Power Supply | USB3.0 interface power / DC 12 V power |
| Operating Temperature / Humidity | 10 °C ~ +50 °C / 20%-80% non-condensing |
| Storage Temperature / Humidity | 30 °C ~ +70 °C / Available on request |
Other Published Specifications
| Model | CTR3CMOS08300KMA |
|---|---|
| Certification | CE/FCC |
