Deep-sky astrophotography
Two-stage TEC, ΔT ≥45 °C helps control thermal noise during long exposures of galaxies, nebulae and star clusters.
Deep-sky cooled
ATR585C

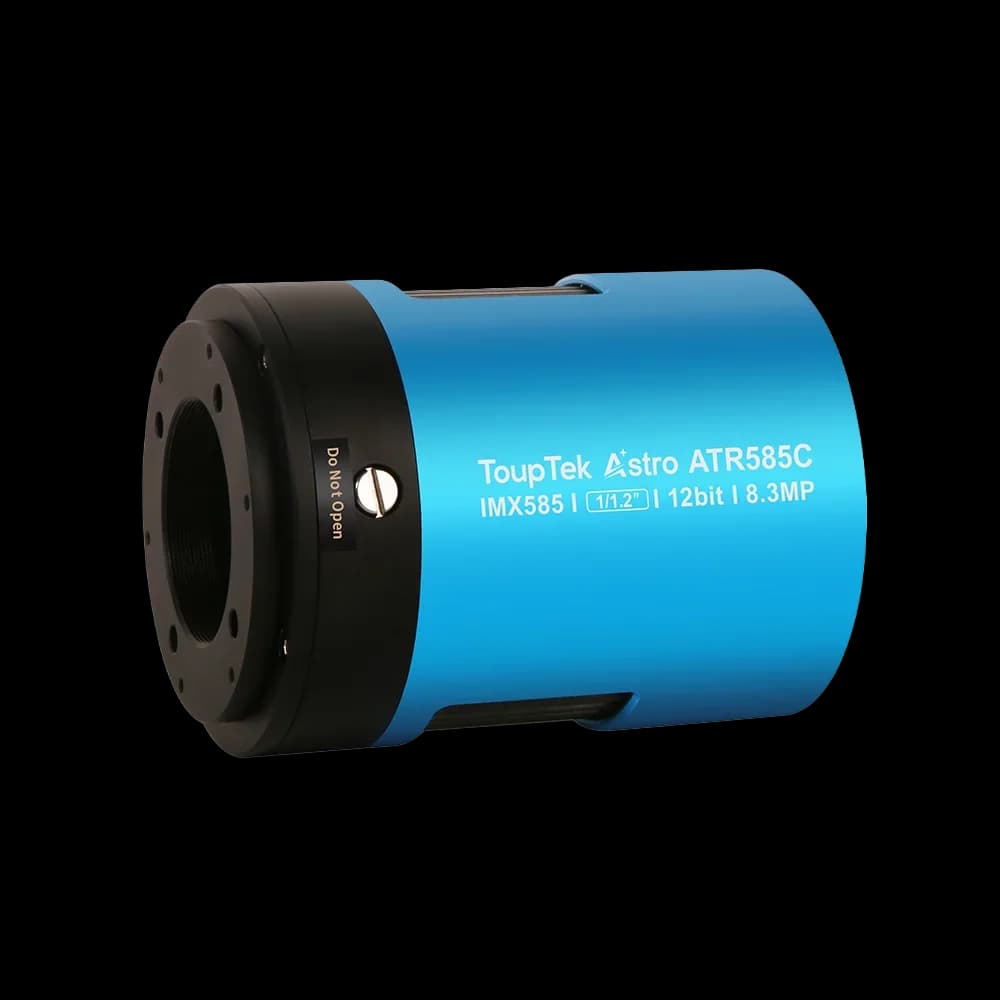

ToupTek ATR585C is a cooled deep-sky camera using the IMX585 sensor, with 8.3 MP (3840 × 2160), 2.9 µm pixels and 47 fps. Designed for deep-sky astrophotography, one-shot colour deep-sky imaging, high-resolution galaxy and lunar imaging. Available from Precisometer for professional astronomy systems in the Benelux.
- Sensor
- Sony IMX585 color CMOS
- Sensor Type
- STARVIS 2 back-illuminated color CMOS
- Resolution
- 8.3 MP (3840 × 2160)
- Pixel Size
- 2.9 µm
- Frame Rate
- 47 fps
- Interface
- USB 3.0
Applications & selection
ATR585C applications
One-shot colour deep-sky imaging
The colour IMX585 sensor captures broadband targets without a separate LRGB filter sequence.
High-resolution galaxy and lunar imaging
2.9 µm pixels balance image scale and detail for appropriately matched telescope focal lengths.
Photometry and time-series imaging
12-bit / 16-bit HDR acquisition, 85.6 dB HDR dynamic range and regulated cooling support repeatable quantitative observations.
When to choose this camera
Choose the ATR585C when your telescope and target benefit from 1/1.2-inch, 11.2 × 6.3 mm sensor coverage, 2.9 µm sampling, two-stage TEC, ΔT ≥45 °C and 380–690 nm response.
Specifications
ATR585C
31 specification rows
The ATR585C is an astronomy camera in the ATR DSO cooled series, built around a Sony IMX585 color CMOS sensor, 8.3 MP (3840 × 2160) resolution, 2.9 µm pixels, frame rates up to 47 fps, a USB 3.0 interface. It suits deep-sky cooled where reliable imaging performance and interface compatibility matter.
Sensor & Imaging
| Model | ATR585C |
|---|---|
| Status | Current |
| Application | Deep-sky cooled |
| Sensor | Sony IMX585 color CMOS |
| Sensor Type | STARVIS 2 back-illuminated color CMOS |
| Sensor Size | 1/1.2-inch, 11.2 × 6.3 mm |
| Resolution | 8.3 MP (3840 × 2160) |
| Pixel Size | 2.9 µm |
| Shutter Type | Rolling shutter |
Performance
| Frame Rate | 47 fps |
|---|---|
| ADC | 12-bit / 16-bit HDR |
| Peak QE | >91% |
| Dynamic Range | 85.6 dB HDR |
| Read Noise | 5.18–0.46 e⁻ |
| Full Well | 40 ke⁻ |
| Spectral Range | 380–690 nm |
Interface & Thermal
| Interface | USB 3.0 |
|---|---|
| Mount | M42 / M54 astronomy adapters |
| Cooling | Two-stage TEC, ΔT ≥45 °C |
Additional Published Specifications
| Legacy Model Name | ATR3CMOS08300KPA |
|---|---|
| Sensor Diagonal | 12.85mm |
| LCG Read Noise | 5.8-2.2e- |
| Maximum SNR | 46dB |
| Frame Buffer | 512MB |
| Sensor Chamber Window | Adjustable heating window |
| Back Focal Distance | 17.5mm/12.5mm |
| Protective Window | IR/AR |
| Color Filter Array | RGGB |
| DDR3 Buffer | 512MB |
| Max Exposure | Up to 1 hour |
| Power Supply | DC 12V / 3A |
Technical media
Performance graphs and technical drawings

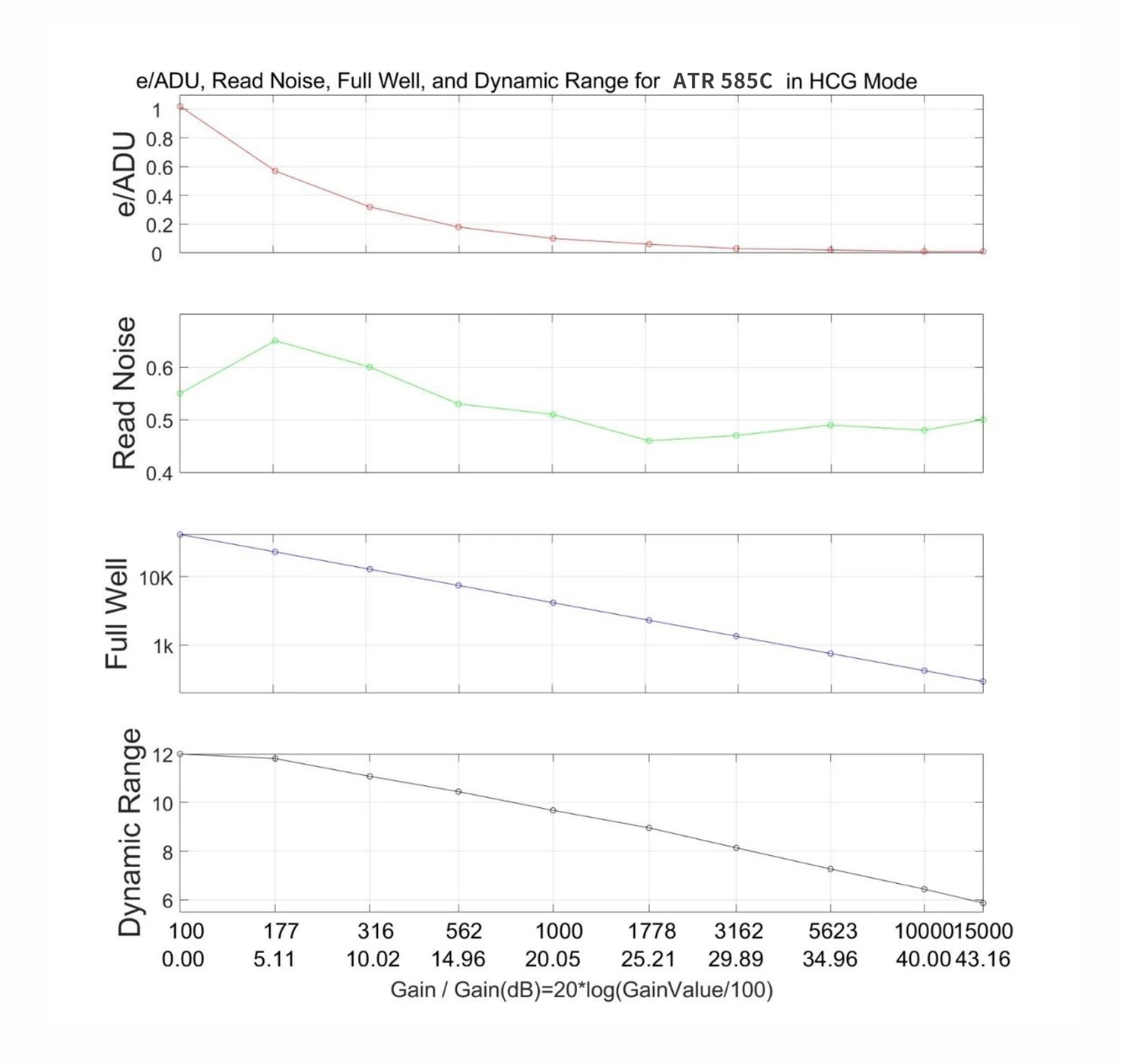

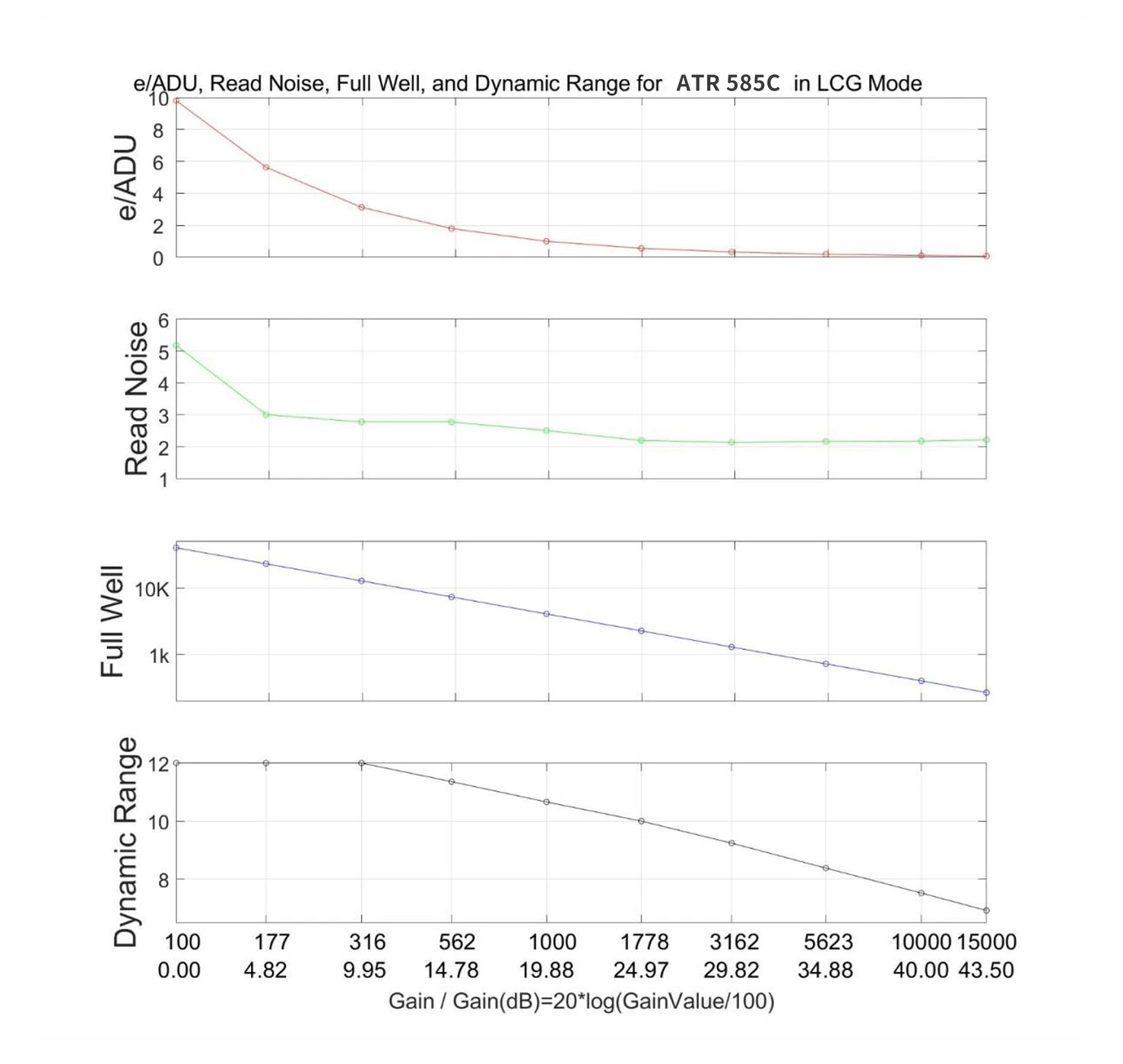

Official sensor-response, performance, and mechanical imagery for the ATR585C.
