Type-C multi-interface output CMOS camera

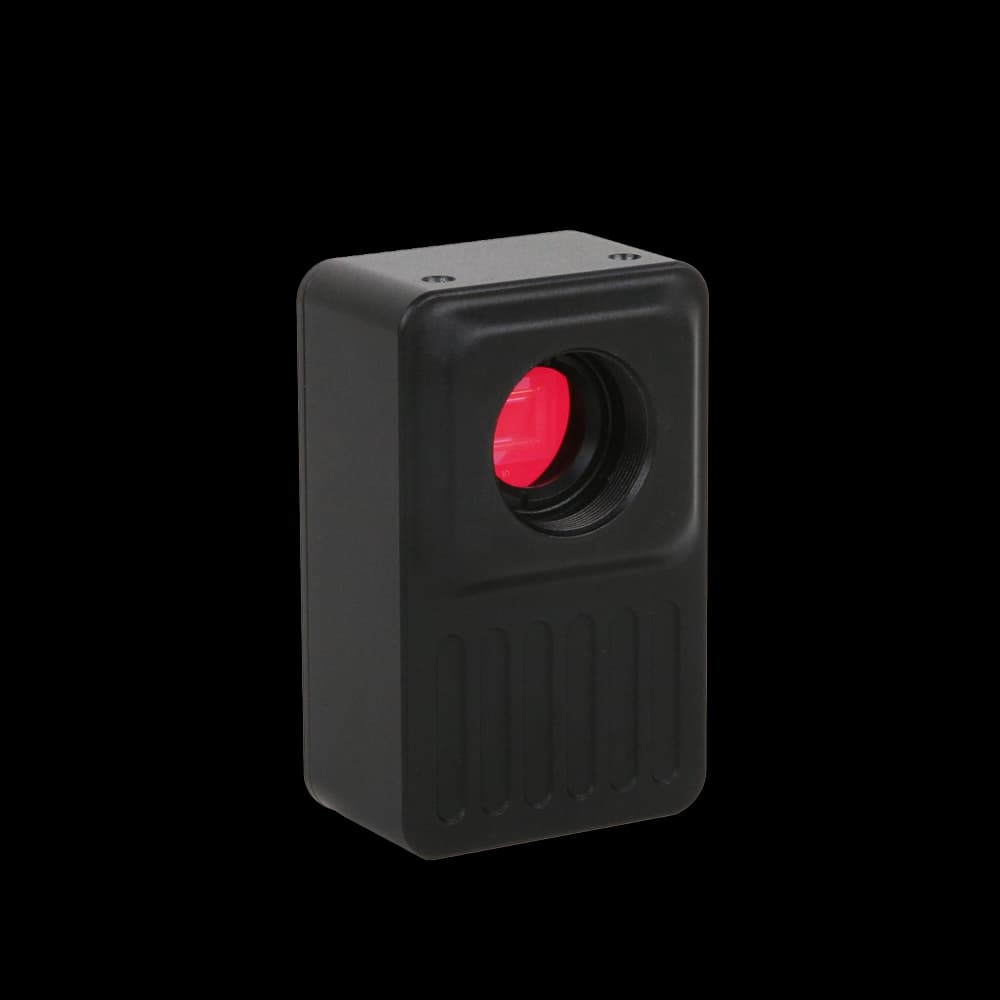

CXCAM1080P8MPB
CXCAM1080P8MPB combines Type-C power/video, Sony Starvis 4K imaging, Monitor/USB output, optional Wi-Fi and XCamView tools.
- Sensor
- Sony IMX585 (Color)
- Resolution
- 8 MP (3840×2160)
- Pixel Size
- 2.9 µm × 2.9 µm
- Frame Rate
- Sensor: 45 fps @ 3840×2160; Video recording: 45 fps @ 1920×1080; Monitor: 45 fps @ 1920×1080; USB Video: 30 fps @ 3840×2160 / 45 fps @ 1920×1080; Wi-Fi: 30 fps @ 3840×2160 / 45 fps @ 1920×1080
- Interface
- Type-C Monitor, USB Video, Wi-Fi
Specifications
CXCAM1080P8MPB
20 specification rows
The CXCAM1080P8MPB is a intelligent imaging camera in the CXCAM series, built around a Sony IMX585 (Color) sensor, 8 MP (3840×2160) resolution, 2.9 µm × 2.9 µm pixels, frame rates up to Sensor: 45 fps @ 3840×2160; Video recording: 45 fps @ 1920×1080; Monitor: 45 fps @ 1920×1080; USB Video: 30 fps @ 3840×2160 / 45 fps @ 1920×1080; Wi-Fi: 30 fps @ 3840×2160 / 45 fps @ 1920×1080, a Type-C Monitor, USB Video, Wi-Fi interface. It suits type-c multi-interface output cmos camera where reliable imaging performance and interface compatibility matter.
Key Parameters
| Product Model | CXCAM1080P8MPB |
|---|---|
| Product Series | Type-C multi-interface output CMOS camera |
Sensor Parameters
| Sensor Model | Sony IMX585 (Color) |
|---|---|
| Sensor Size | 1/1.2" (11.14 × 6.26 mm) |
| Diagonal | 12.78 mm |
| Pixel Size | 2.9 µm × 2.9 µm |
| Resolution | 8 MP (3840×2160) |
| Shutter Type | Rolling shutter |
| Color Type | Color |
Performance Parameters
| Frame Rate | Sensor: 45 fps @ 3840×2160; Video recording: 45 fps @ 1920×1080; Monitor: 45 fps @ 1920×1080; USB Video: 30 fps @ 3840×2160 / 45 fps @ 1920×1080; Wi-Fi: 30 fps @ 3840×2160 / 45 fps @ 1920×1080 |
|---|---|
| Output Interfaces | Type-C Monitor, USB Video, Wi-Fi |
| Lens Mount | C-mount |
| Storage Support | USB flash drive |
| Software Support | XCamView, ToupView, ToupLite |
Physical Parameters
| Power Supply | Type-C power input from monitor or computer |
|---|---|
| Dimensions | Refer to dimension drawing |
| Weight | Available on request |
Environmental Parameters
| Operating Temperature | 10 °C to +50 °C |
|---|
Other Information
| OS Support | Windows 7/8/10/11, macOS, Linux |
|---|---|
| Certification | CE, FCC, RoHS |
Need help choosing?
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
