Monochrome · Deep-sky cooled

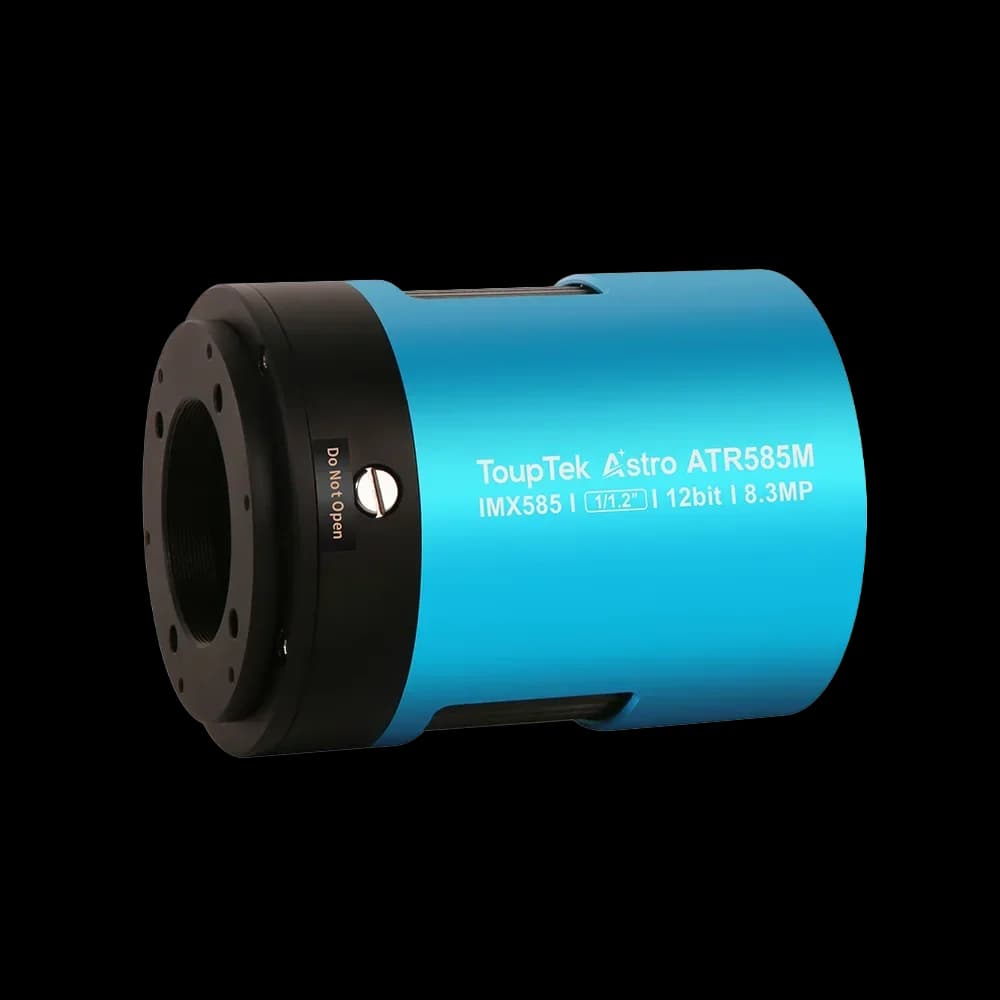

ATR585M IMX585 8.3 MP monochrome USB 3.0 astronomy camera

  • Sensor: Sony IMX585 monochrome CMOS
  • Sensor Type: STARVIS 2 back-illuminated monochrome CMOS
  • Resolution: 8.3 MP (3840 × 2160)
  • Pixel Size: 2.9 µm
  • Frame Rate: 47 fps
  • Cooling: Two-stage TEC, ΔT ≥45 °C
ATR585M

Complete Specifications

Sensor & Imaging

Sensor & Imaging
SensorSony IMX585 monochrome CMOS
Sensor TypeSTARVIS 2 back-illuminated monochrome CMOS
Sensor Size1/1.2-inch, 11.2 × 6.3 mm
Resolution8.3 MP (3840 × 2160)
Pixel Size2.9 µm
Shutter TypeRolling shutter
Peak QE>91%
Spectral Range380–1100 nm
Sensor Diagonal12.85mm
Color Filter ArrayRGGB

Performance

Performance
Frame Rate47 fps
ADC12-bit / 16-bit HDR
Dynamic Range88.6 dB HDR
Read Noise3.04–0.50 e⁻
Full Well38.9 ke⁻
LCG Read Noise5.8-2.2e-
Maximum SNR46dB
Frame Buffer512MB
DDR3 Buffer512MB (4Gb)
Max ExposureUp to 3600 seconds (1 hour)

Interface & Connectivity

Interface & Connectivity
InterfaceUSB 3.0

Cooling & Mechanical

Cooling & Mechanical
MountM42 / M54 astronomy adapters
CoolingTwo-stage TEC, ΔT ≥45 °C
Sensor Chamber WindowAdjustable heating window
Back Focal Distance17.5mm/12.5mm
Protective WindowIR/AR
Power SupplyDC 12V / 3.3A

Other Published Specifications

Other Published Specifications
ModelATR585M
StatusCurrent
ApplicationDeep-sky cooled
Legacy Model NameATR585M

Construction details

  • Cooling assembly: Two-stage TEC, ΔT ≥45 °C.

Technical Files & Images

Technical images (3)

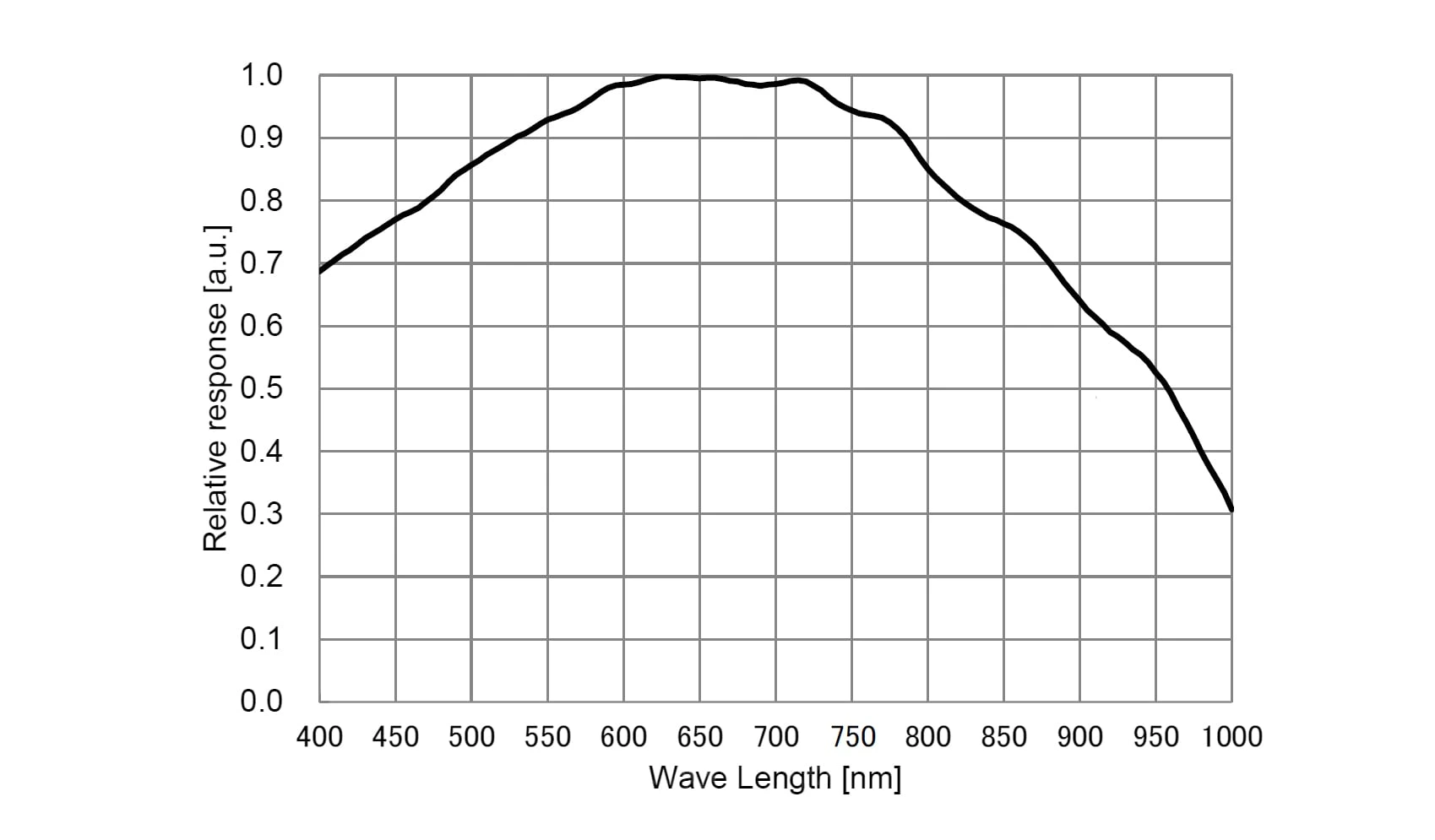

ATR585M quantum efficiency curve
ATR585M quantum efficiency curve

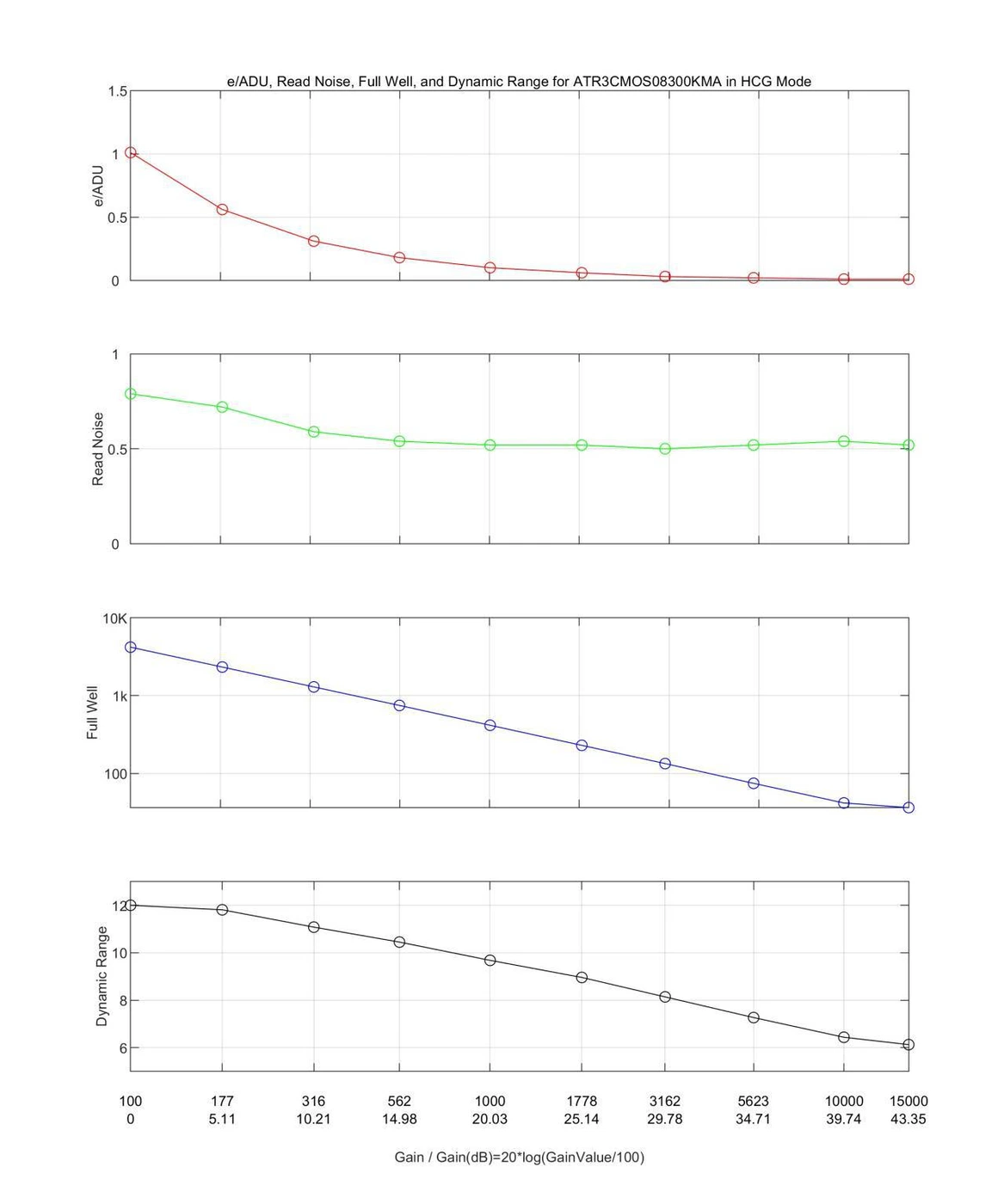

ATR585M HCG mode performance analysis
ATR585M HCG mode performance analysis

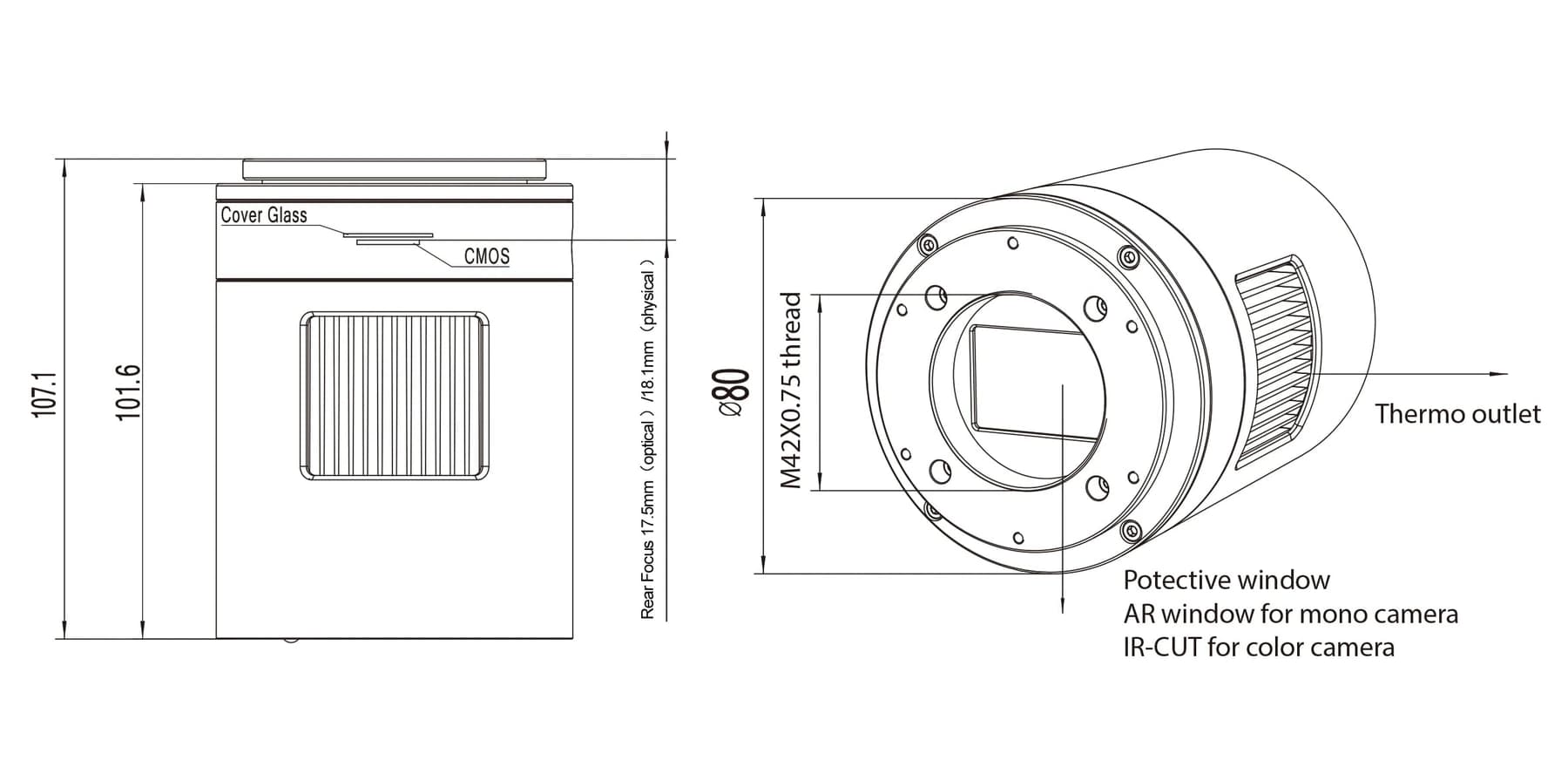

ATR585M dimensions and mount
ATR585M dimensions and mount

Ask Precisometer

Will ATR585M work in your setup?

Send us your application and we’ll discuss ATR585M, the connection to your optics and the software you need.

  • Your sample, microscope or lens
  • Wavelength range, exposure or frame rate
  • Computer, software and triggering requirements

You don’t need a complete specification to start. Share what you know, and we can discuss the remaining choices.

About: ATR585M

We use your details to reply to this enquiry. You won’t be subscribed to marketing. Privacy policy.

Selection parameterATR585M (current)ATR585CSame IMX585 sensorCTR3CMOS08300KMASame IMX585 sensorCXCAM1080P8MPBSame IMX585 sensor
SensorSony IMX585 monochrome CMOSSony IMX585 color CMOSSony IMX585Sony IMX585 (Color)
Image typeMonochromeColorMonochromeColor
Resolution8.3 MP (3840 × 2160)8.3 MP (3840 × 2160)8.3MP (3840×2160)8 MP (3840×2160)
Pixel size2.9 µm2.9 µm2.9 µm × 2.9 µm2.9 µm × 2.9 µm
Published QE>91%>91%——
Read noise3.04–0.50 e⁻5.18–0.46 e⁻——
Frame / line rate47 fps47 fps45 fps @ 3840×2160; 70 fps @ 1920×1080Sensor: 45 fps @ 3840×2160; Video recording: 45 fps @ 1920×1080; Monitor: 45 fps @ 1920×1080; USB Video: 30 fps @ 3840×2160 / 45 fps @ 1920×1080; Wi-Fi: 30 fps @ 3840×2160 / 45 fps @ 1920×1080
InterfaceUSB 3.0USB 3.0USB3.0Type-C Monitor, USB Video, Wi-Fi
Cooling / shutterTwo-stage TEC, ΔT ≥45 °CTwo-stage TEC, ΔT ≥45 °CRolling ShutterRolling shutter
