Microscopy Cameras/Microscope Cameras

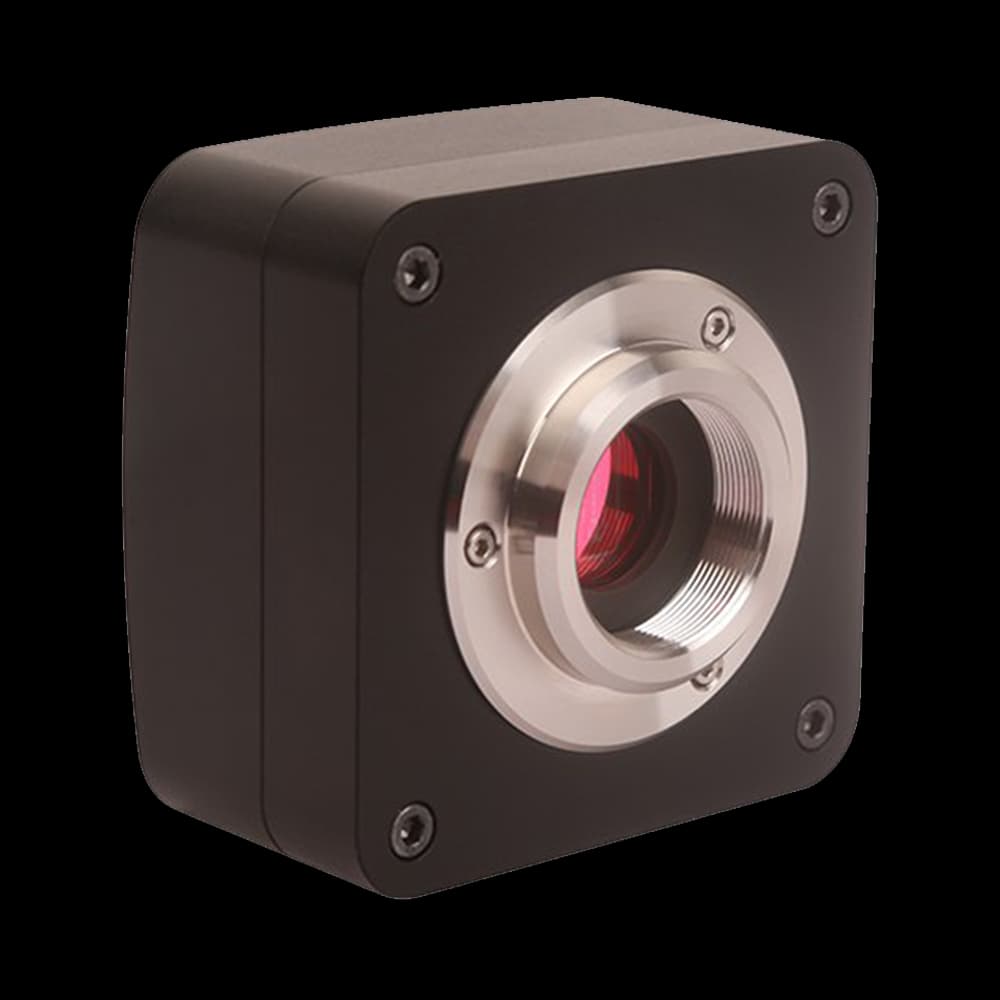

EXCCD00440KMA Microscopy Cameras/Microscope Cameras with ICX829AL CCD (M) sensor, 0.44MP (748×578) for professional imaging.
Application context
EXCCD00440KMA: The ICX829AL CCD (M) sensor, 0.44MP (748×578) resolution, and 8.6 µm × 8.3 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 46 fps @ 748×578 frame-rate listing also sets the fastest full-frame acquisition regime.
EXCCD00440KMA: The ICX829AL CCD (M) sensor, 0.44MP (748×578) resolution, and 8.6 µm × 8.3 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 46 fps @ 748×578 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
23 specification rows
The EXCCD00440KMA is a microscopy camera in the EXCCD series, built around a ICX829AL CCD (M) sensor, 0.44MP (748×578) resolution, 8.6 µm × 8.3 µm pixels, frame rates up to 46 fps @ 748×578, a USB2.0 interface. It suits microscopy cameras/microscope cameras where reliable imaging performance and interface compatibility matter.
| Model | EXCCD00440KMA |
|---|---|
| Sensor | ICX829AL CCD (M) |
| Effective Pixels / Resolution | 0.44MP (748×578) |
| Frame Rate (Full Resolution) | 46 fps @ 748×578 |
| Exposure Time | 0.20 ms ~ 1 h |
| Shutter Type | Rolling Shutter |
| Color Type | Monochrome |
| Pixel Size | 8.6 µm × 8.3 µm |
|---|---|
| Sensor Size | 6.43 mm × 4.80 mm |
| Diagonal | 1/2" (8.02 mm) |
| Dynamic Range | Available on request |
| Bit Depth | 8-bit/12-bit |
| Sensitivity | 2800 mv with 1/30s |
| Data Interface | USB2.0 |
|---|---|
| GPIO | Available on request |
| Lens Mount | C-mount |
| Dimensions | Available on request |
| Weight | 0.67~0.8 Kg |
| Power Supply | USB2.0 Power Supply |
| Operating Temperature / Humidity | 10 °C ~ +50 °C / 30%~80%RH |
|---|---|
| Storage Temperature / Humidity | 20 °C ~ +60 °C / 10%~60%RH |
| Operating System | Windows XP/Vista/7/8/10/11(32&64-bit)/OS X/Linux |
| Certification | CE, FCC |
System integration
Use these checks to connect EXCCD00440KMA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: ICX829AL CCD (M) · Resolution: 0.44MP (748×578). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 46 fps @ 748×578 · Interface: USB2.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: Available on request. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: Available on request. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare EXCCD00440KMA with the closest available models in the EXCCD family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | EXCCD00440KMA (current) | EXCCD00300KMA | EXCCD01400KMA |
|---|---|---|---|
| Sensor | ICX829AL CCD (M) | ICX618AL CCD (M) | ICX285AL CCD (M) |
| Resolution | 0.44MP (748×578) | 0.3MP (640×480) | 1.4MP (1360×1024) |
| Sensor size | 6.43 mm × 4.80 mm | 3.58 mm × 2.69 mm | 8.77 mm × 6.60 mm |
| Pixel size / frame rate | 8.6 µm × 8.3 µm | 5.6 µm × 5.6 µm | 6.45 µm × 6.45 µm |
