Industrial Camera/Analytical Imaging

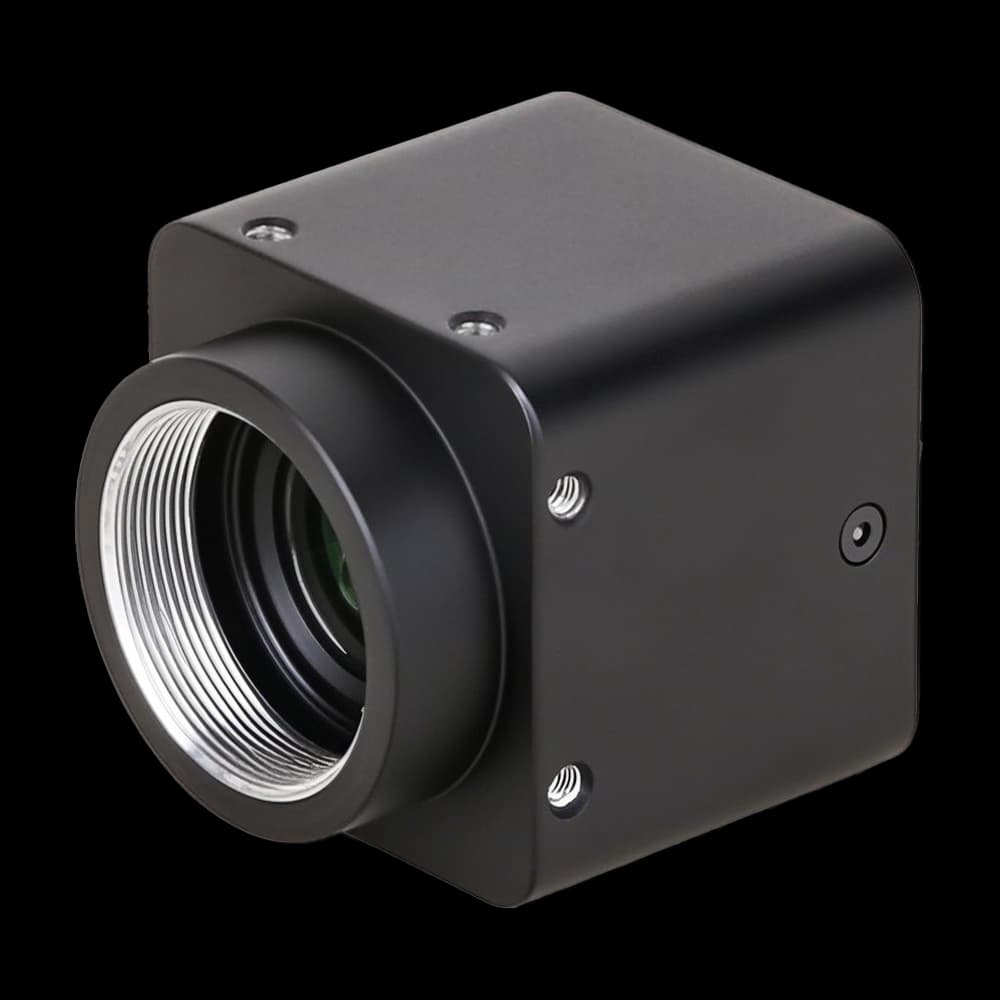

I3CMOS01700KMB Industrial Camera/Analytical Imaging with Sony IMX425LLJ sensor, 1.7 MP (1600×1100) for professional imaging.
Application context
I3CMOS01700KMB: The Sony IMX425LLJ sensor, 1.7 MP (1600×1100) resolution, and 9.0 µm × 9.0 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 210 fps @ 1600×1100 frame-rate listing also sets the fastest full-frame acquisition regime.
I3CMOS01700KMB: The Sony IMX425LLJ sensor, 1.7 MP (1600×1100) resolution, and 9.0 µm × 9.0 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 210 fps @ 1600×1100 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
23 specification rows
The I3CMOS01700KMB is an industrial & analytical camera in the I3CMOS series, built around a Sony IMX425LLJ sensor, 1.7 MP (1600×1100) resolution, 9.0 µm × 9.0 µm pixels, frame rates up to 210 fps @ 1600×1100, a USB3.0 interface. It suits industrial camera/analytical imaging where reliable imaging performance and interface compatibility matter.
| Model | I3CMOS01700KMB |
|---|---|
| Sensor | Sony IMX425LLJ |
| Effective Pixels / Resolution | 1.7 MP (1600×1100) |
| Frame Rate (Full Resolution) | 210 fps @ 1600×1100 |
| Exposure Time | 6 µs ~ 15 s |
| Shutter Type | Global Shutter |
| Color Type | Monochrome |
| Pixel Size | 9.0 µm × 9.0 µm |
|---|---|
| Sensor Size | 14.4 mm × 9.9 mm |
| Diagonal | 1" (17.47 mm) |
| Dynamic Range | 72 dB |
| Bit Depth | 8/12-bit |
| Sensitivity | 8100 mV |
| Data Interface | USB3.0 |
|---|---|
| GPIO | 1 opto-isolated input, 1 opto-isolated output, 1 non-isolated I/O port |
| Lens Mount | C-mount |
| Dimensions | 38 mm × 38 mm × 33 mm |
| Weight | 70 g |
| Power Supply | USB3.0 interface powered |
| Operating Temperature / Humidity | 10 °C to +50 °C / 20% to 80% (non-condensing) |
|---|---|
| Storage Temperature / Humidity | 30 °C to +70 °C / Available on request |
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
| Certification | CE/FCC |
System integration
Use these checks to connect I3CMOS01700KMB to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX425LLJ · Resolution: 1.7 MP (1600×1100). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 210 fps @ 1600×1100 · Interface: USB3.0. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 1 opto-isolated input, 1 opto-isolated output, 1 non-isolated I/O port. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: 72 dB. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare I3CMOS01700KMB with the closest available models in the I3CMOS family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | I3CMOS01700KMB (current) | I3CMOS01700KMA | I3CMOS02000KMA |
|---|---|---|---|
| Sensor | Sony IMX425LLJ | Sony IMX432LLJ | Sony IMX430LLJ |
| Resolution | 1.7 MP (1600×1100) | 1.7 MP (1600×1100) | 2.0 MP (1624×1240) |
| Sensor size | 14.4 mm × 9.9 mm | 14.4 mm × 9.9 mm | 7.31 mm × 5.58 mm |
| Pixel size / frame rate | 9.0 µm × 9.0 µm | 9.0 µm × 9.0 µm | 4.5 µm × 4.5 µm |
The IMX425 appears in 5 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
