Monochrome · Gigabit Ethernet industrial camera

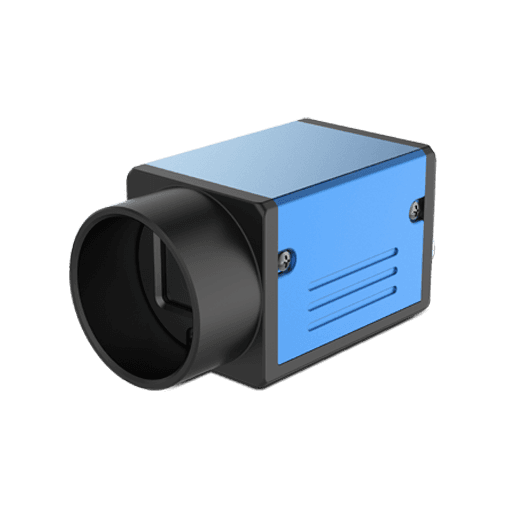

PMS-CCN-060C15BSC
- Sensor
- 1/1.8" CMOS
- Resolution
- 6 MP (3072×2048)
- Pixel Size
- 2.4 µm × 2.4 µm
- Frame Rate
- 18 fps @ 3072×2048
- Interface
- GigE (Gigabit Ethernet), 1 Gbit/s
Complete Specifications
Sensor & Imaging
| Sensor | 1/1.8" CMOS |
|---|---|
| Sensor Format | 1/1.8" |
| Shutter Type | Rolling shutter |
| Resolution | 6 MP (3072×2048) |
| Pixel Size | 2.4 µm × 2.4 µm |
| Color Type | Monochrome |
Performance
| Frame Rate | 18 fps @ 3072×2048 |
|---|---|
| Bit Depth | 12 bit |
| Signal-to-noise Ratio | >38 dB |
| Dynamic Range | >66 dB |
| Gain Range | 1×-32× |
| Exposure Time | 25 µs-1 s |
| Exposure Modes | Automatic / manual / one-touch exposure |
| Image Buffer | 64 MB |
| Memory Channel | 2 groups of user-defined configurations |
| Binning | Supported |
Interface & Connectivity
| Interface | GigE (Gigabit Ethernet), 1 Gbit/s |
|---|---|
| GPIO | 6-pin Hirose: 1 opto-isolated input, 1 opto-isolated output and 1 configurable non-isolated input/output |
Cooling & Mechanical
| Power Supply | DC 6-26 V via Hirose connector |
|---|---|
| Power Consumption | 3.4 W at 12 V |
| Operating Temperature | -30 °C to +50 °C |
| Storage Temperature | -30 °C to +80 °C |
| Dimensions | 29 × 29 × 42 mm |
| Weight | 88 g |
| Lens Mount | C-mount |
Other Published Specifications
| Maximum Cable Length | 100 m without a repeater |
|---|---|
| Protocol Compatibility | GigE Vision V2.0; GenICam |
| Gamma | 0-4; LUT supported |
| Image Format | Mono8/10/10Packed/12/12Packed |
| ROI | Supported |
| SPC | Supported |
| Feature 1 | Gigabit Ethernet transfers uncompressed image data over cables up to 100 m without a repeater. |
| Feature 2 | Automatic or manual gain, exposure and gamma adjustment; lookup-table processing. |
| Feature 3 | GigE Vision V2.0 and GenICam compatibility for third-party software integration. |
| Applications | Machine vision; Industrial inspection; Microscopic imaging; Visual positioning; Dimensional measurement |
