Color · Low Light Imaging/Semiconductor Cooled Camera

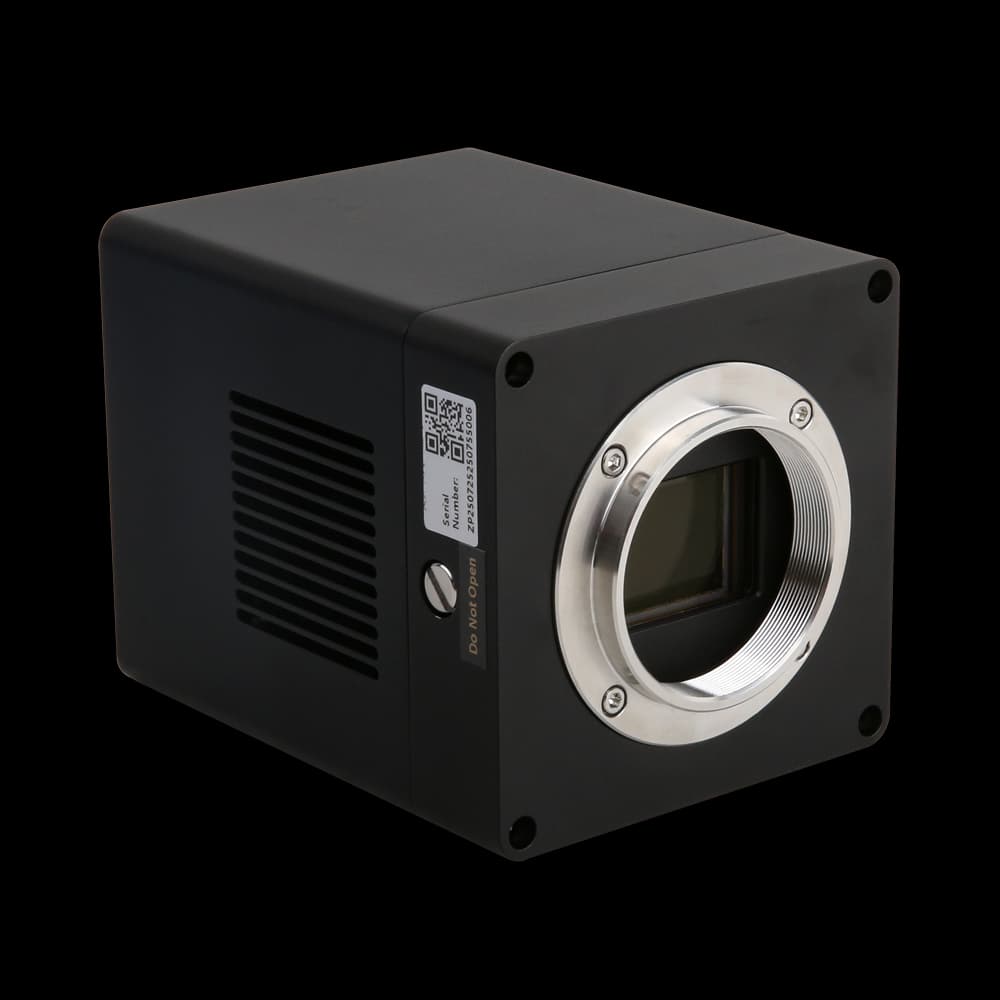

MTR3CMOS01700KPA
- Sensor
- IMX432 (C, GS)
- Resolution
- 1.7MP (1600×1100)
- Pixel Size
- 9.0 µm × 9.0 µm
- Frame Rate
- 98.6 fps @ 1600×1100
- Interface
- USB3.0
Complete Specifications
Sensor & Imaging
| Sensor | IMX432 (C, GS) |
|---|---|
| Effective Pixels / Resolution | 1.7MP (1600×1100) |
| Shutter Type | Global Shutter |
| Color Type | Color |
| Pixel Size | 9.0 µm × 9.0 µm |
| Sensor Size | 14.4 mm × 9.9 mm |
| Diagonal | 1" (17.47 mm) |
| Resolution | 1.7MP (1600×1100) |
Performance
| Frame Rate (Full Resolution and Key Resolution Modes) | 98.6 fps @ 1600×1100 |
|---|---|
| Exposure Time | 0.1 ms ~ 1 h |
| Dynamic Range | Available on request |
| Bit Depth | 8/12-bit |
| Sensitivity | 4910 mV (1/30s), 0.3 mV dark current |
| Frame Rate | 98.6 fps @ 1600×1100 |
Interface & Connectivity
| Data Interface | USB3.0 |
|---|---|
| GPIO | Available on request |
| OS Support | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, TWAIN, etc.) |
| Interface | USB3.0 |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Dimensions | Circular or square housing optional |
| Weight | Available on request |
| Power Supply | USB3.0 interface power + external DC 12 V 3 A cooling power supply |
| Operating Temperature / Humidity | 10 °C ~ +50 °C / 30%~80%RH |
| Storage Temperature / Humidity | 20 °C ~ +60 °C / 10%~60%RH |
Other Published Specifications
| Model | MTR3CMOS01700KPA |
|---|---|
| Certification | CE, FCC |
