Deep-sky astrophotography
Two-stage TEC, ΔT ≥44 °C helps control thermal noise during long exposures of galaxies, nebulae and star clusters.
Deep-sky cooled
ATR432M

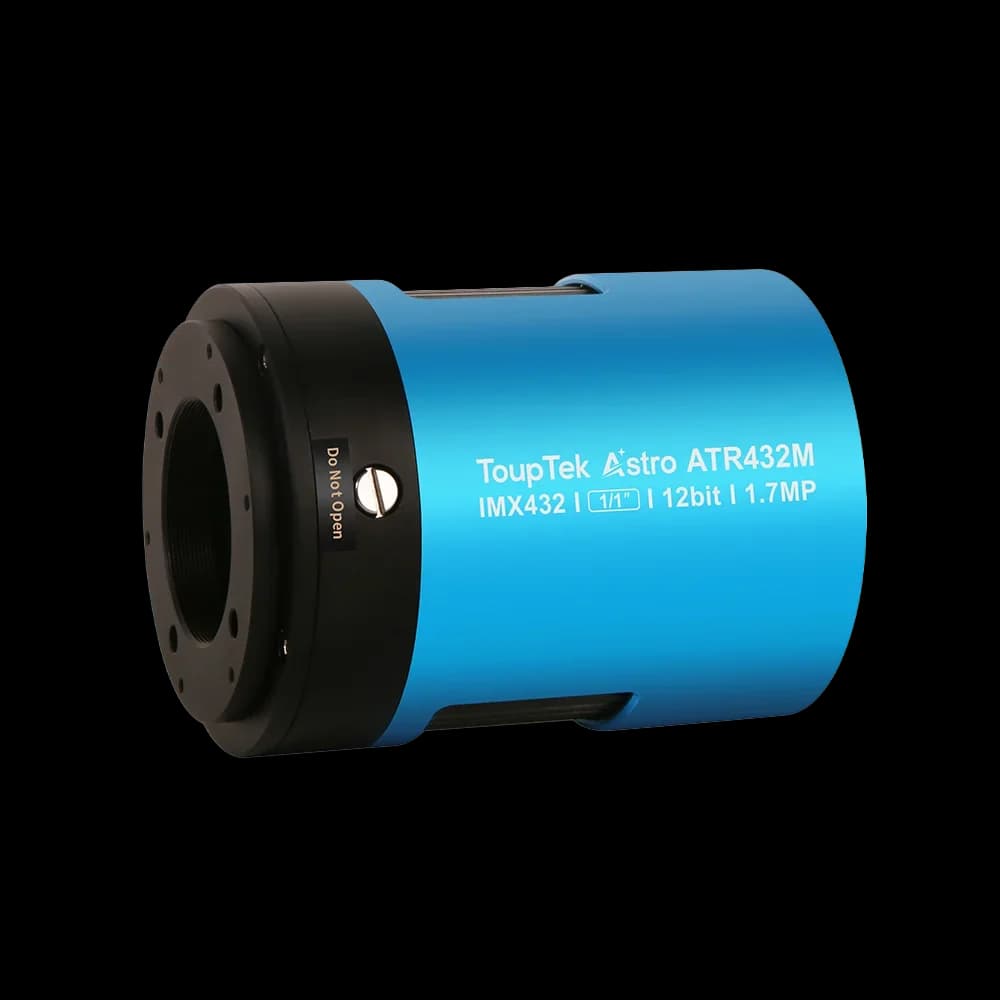

ToupTek ATR432M is a cooled deep-sky camera using the IMX432 sensor, with 1.76 MP (1600 × 1100), 9 µm pixels and 128 fps. Designed for deep-sky astrophotography, narrowband nebula imaging, high-resolution galaxy and lunar imaging. Available from Precisometer for professional astronomy systems in the Benelux.
- Sensor
- Sony IMX432 monochrome CMOS
- Sensor Type
- Large-pixel global-shutter monochrome CMOS
- Resolution
- 1.76 MP (1600 × 1100)
- Pixel Size
- 9 µm
- Frame Rate
- 128 fps
- Interface
- USB 3.0
Applications & selection
ATR432M applications
Narrowband nebula imaging
The monochrome IMX432 sensor is suited to H-alpha, O III and S II filter workflows.
High-resolution galaxy and lunar imaging
9 µm pixels balance image scale and detail for appropriately matched telescope focal lengths.
Photometry and time-series imaging
12-bit acquisition, 74 dB dynamic range and regulated cooling support repeatable quantitative observations.
When to choose this camera
Choose the ATR432M when your telescope and target benefit from 1.1-inch, 14.4 × 9.9 mm sensor coverage, 9 µm sampling, two-stage TEC, ΔT ≥44 °C and 380–1100 nm response.

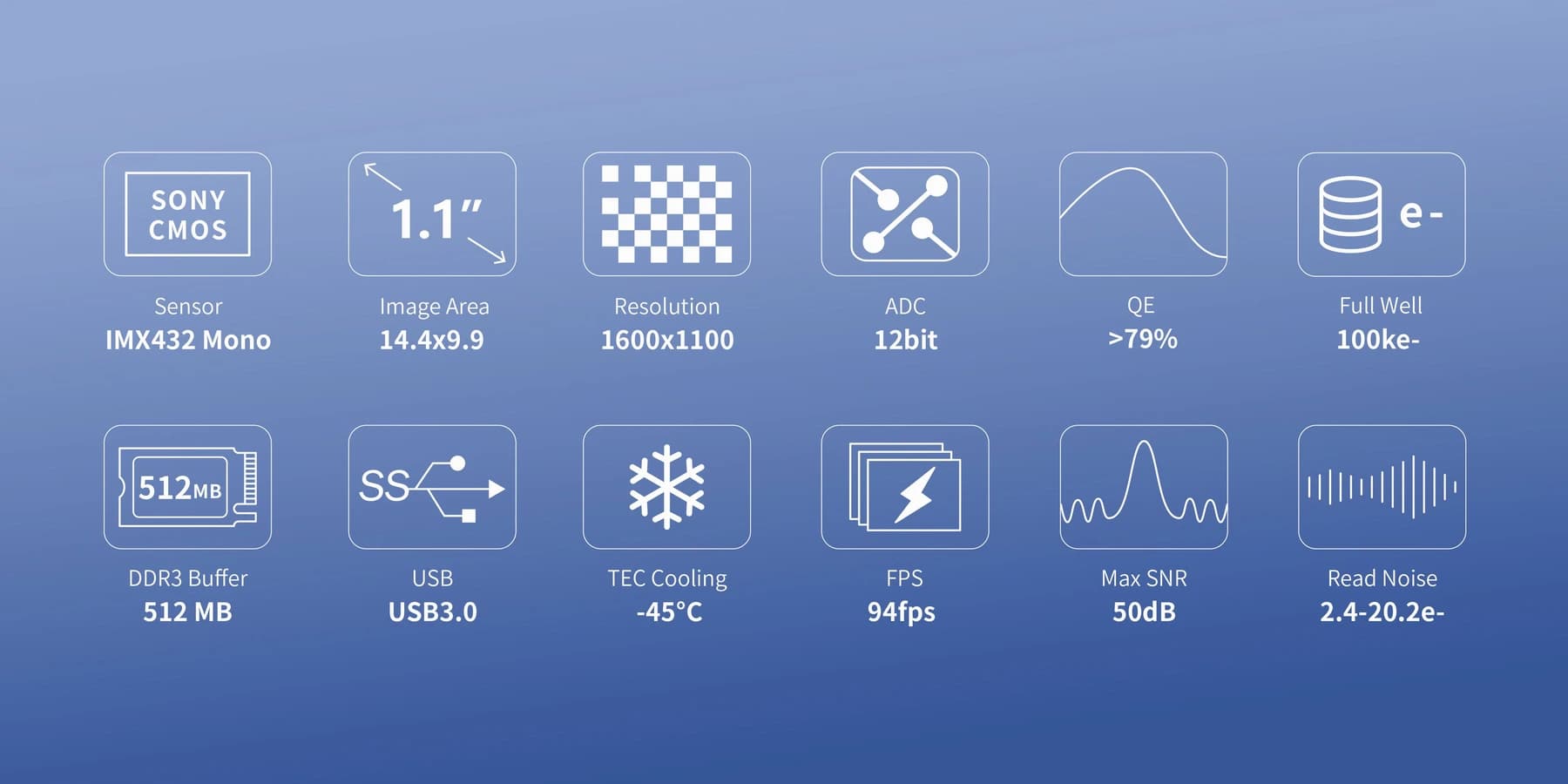

Specifications
ATR432M
31 specification rows
The ATR432M is an astronomy camera in the ATR DSO cooled series, built around a Sony IMX432 monochrome CMOS sensor, 1.76 MP (1600 × 1100) resolution, 9 µm pixels, frame rates up to 128 fps, a USB 3.0 interface. It suits deep-sky cooled where reliable imaging performance and interface compatibility matter.
Sensor & Imaging
| Model | ATR432M |
|---|---|
| Status | Current |
| Application | Deep-sky cooled |
| Sensor | Sony IMX432 monochrome CMOS |
| Sensor Type | Large-pixel global-shutter monochrome CMOS |
| Sensor Size | 1.1-inch, 14.4 × 9.9 mm |
| Resolution | 1.76 MP (1600 × 1100) |
| Pixel Size | 9 µm |
| Shutter Type | Global shutter |
Performance
| Frame Rate | 128 fps |
|---|---|
| ADC | 12-bit |
| Peak QE | >79% |
| Dynamic Range | 74 dB |
| Read Noise | 20.2–2.4 e⁻ |
| Full Well | 100 ke⁻ |
| Spectral Range | 380–1100 nm |
Interface & Thermal
| Interface | USB 3.0 |
|---|---|
| Mount | M42 / M54 astronomy adapters |
| Cooling | Two-stage TEC, ΔT ≥44 °C |
Additional Published Specifications
| Legacy Model Name | ATR3CMOS01700KMA |
|---|---|
| Sensor Diagonal | 17.5mm |
| LCG Read Noise | 2.4-20.2e- |
| Maximum SNR | 50dB |
| Frame Buffer | 512MB |
| Sensor Chamber Window | Adjustable heating window |
| Back Focal Distance | 17.5mm/12.5mm |
| Protective Window | IR/AR |
| Color Filter Array | RGGB |
| DDR3 Buffer | 512MB |
| Max Exposure | Up to 1 hour |
| Power Supply | DC 12V / 3A |
Technical media

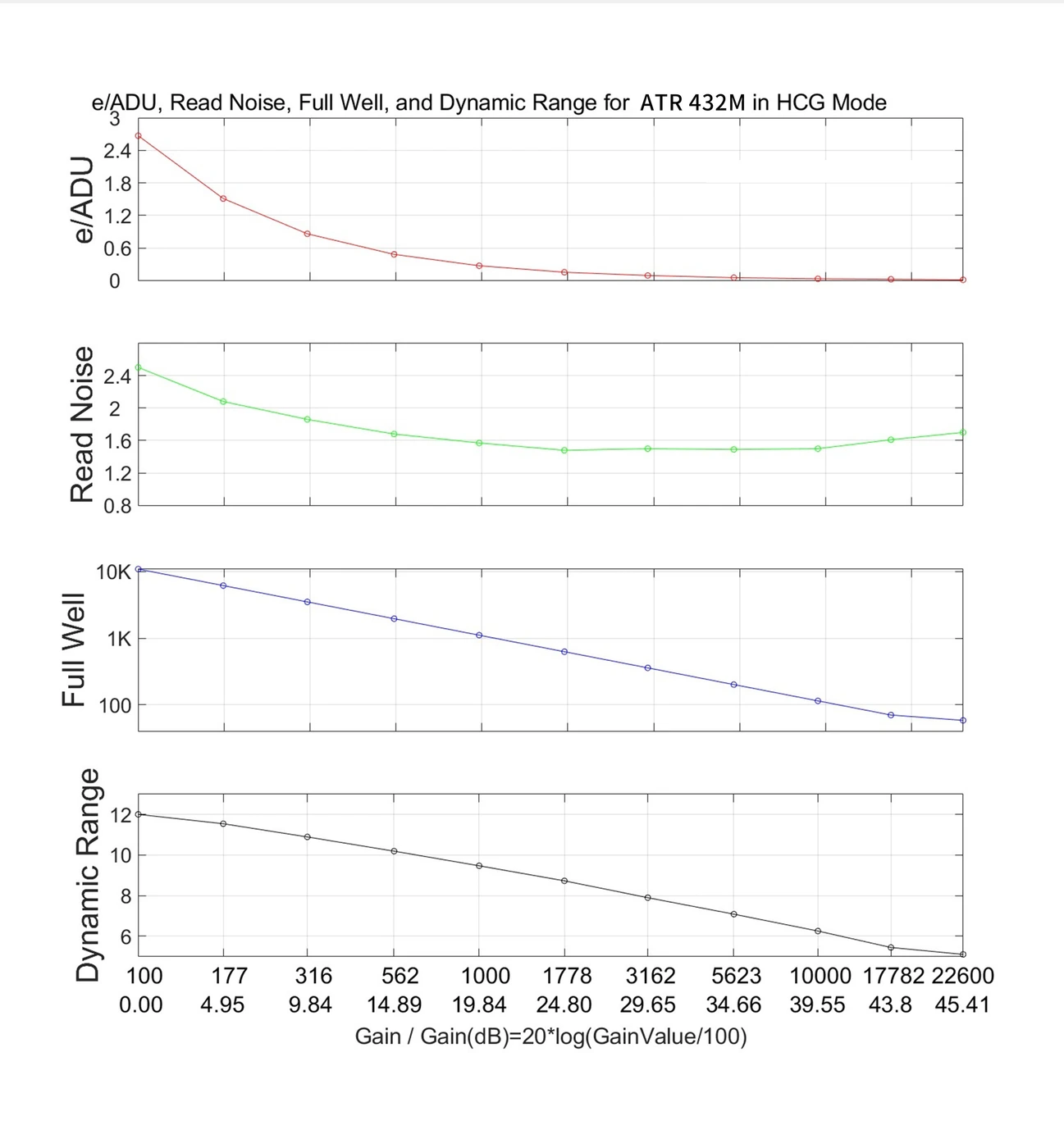

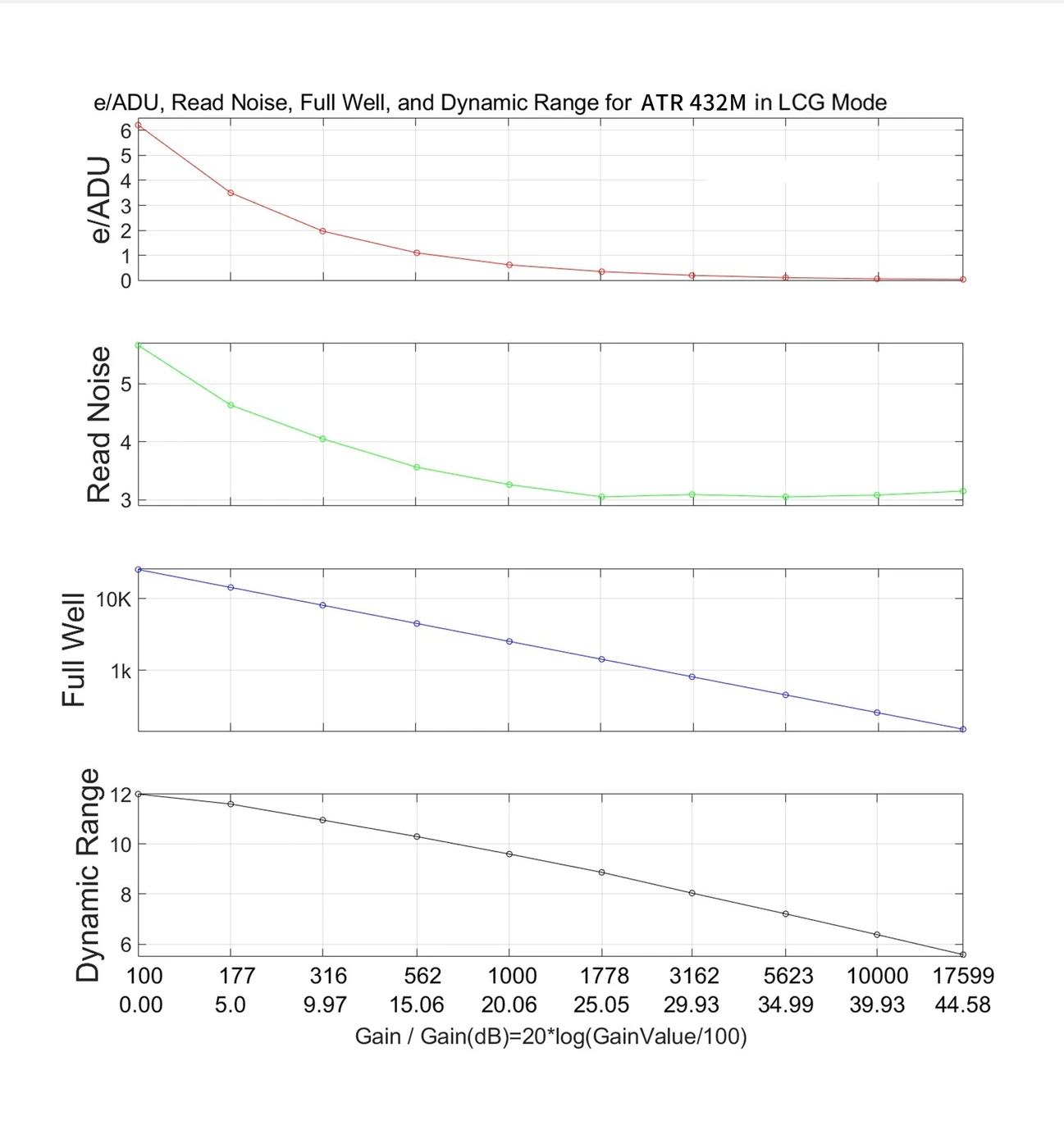

Performance graphs and technical drawings
Official sensor-response, performance, and mechanical imagery for the ATR432M.
